Direct-connect SRS Component Connectors

INFOID:0000000009479957

The following SRS components use direct-connect style harness connectors.

• Driver air bag module

• Front passenger air bag module

• LH side front curtain air bag module

• LH side rear curtain air bag module

• RH side front curtain air bag module

• RH side rear curtain air bag module

• Front LH seat belt pre-tensioner

• Front RH seat belt pre-tensioner

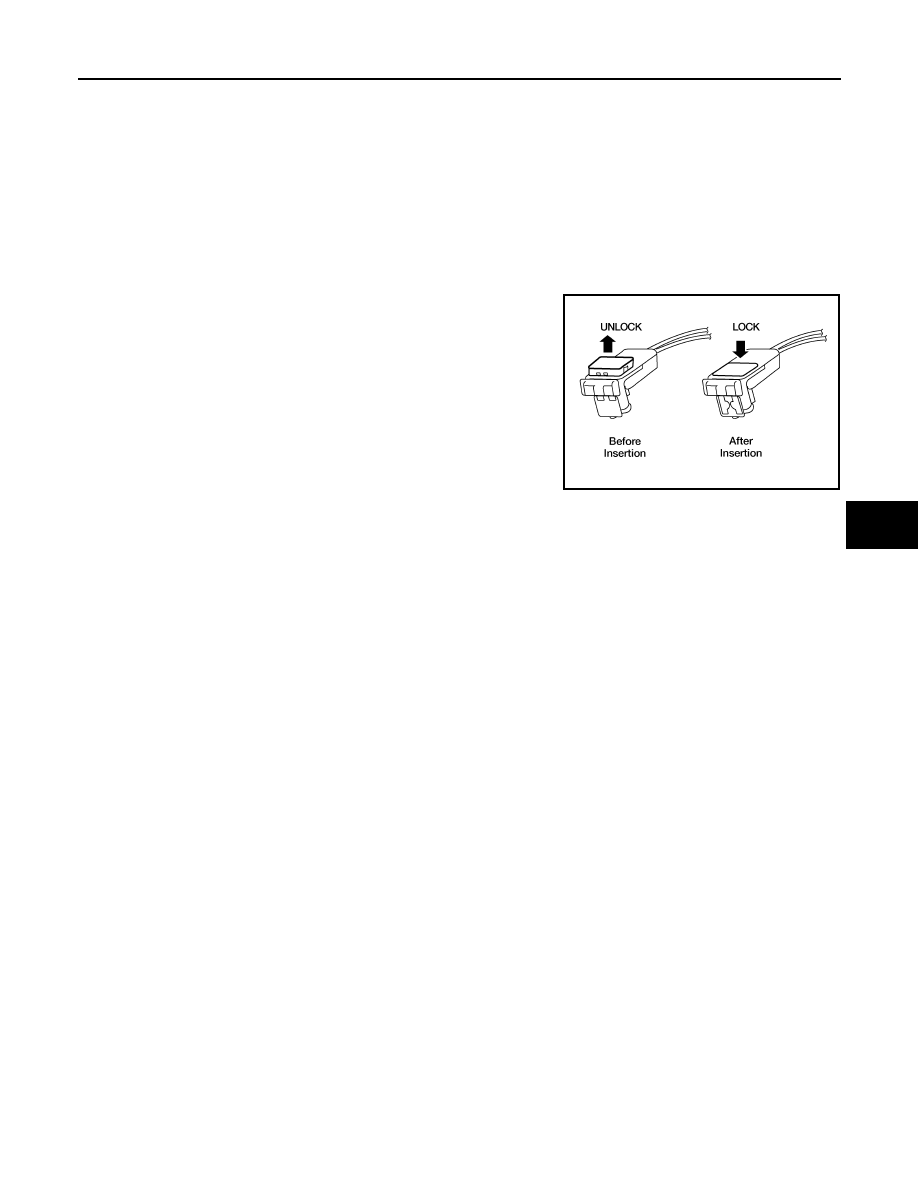

Always pull up to release locking tab prior to removing connector from SRS component.

Always push down to lock locking tab after installing connector to

SRS component. When locked, the locking tab is level with the con-

nector housing.

WHIA0103E

SRC-10

< SYSTEM DESCRIPTION >

OCCUPANT CLASSIFICATION SYSTEM

OCCUPANT CLASSIFICATION SYSTEM

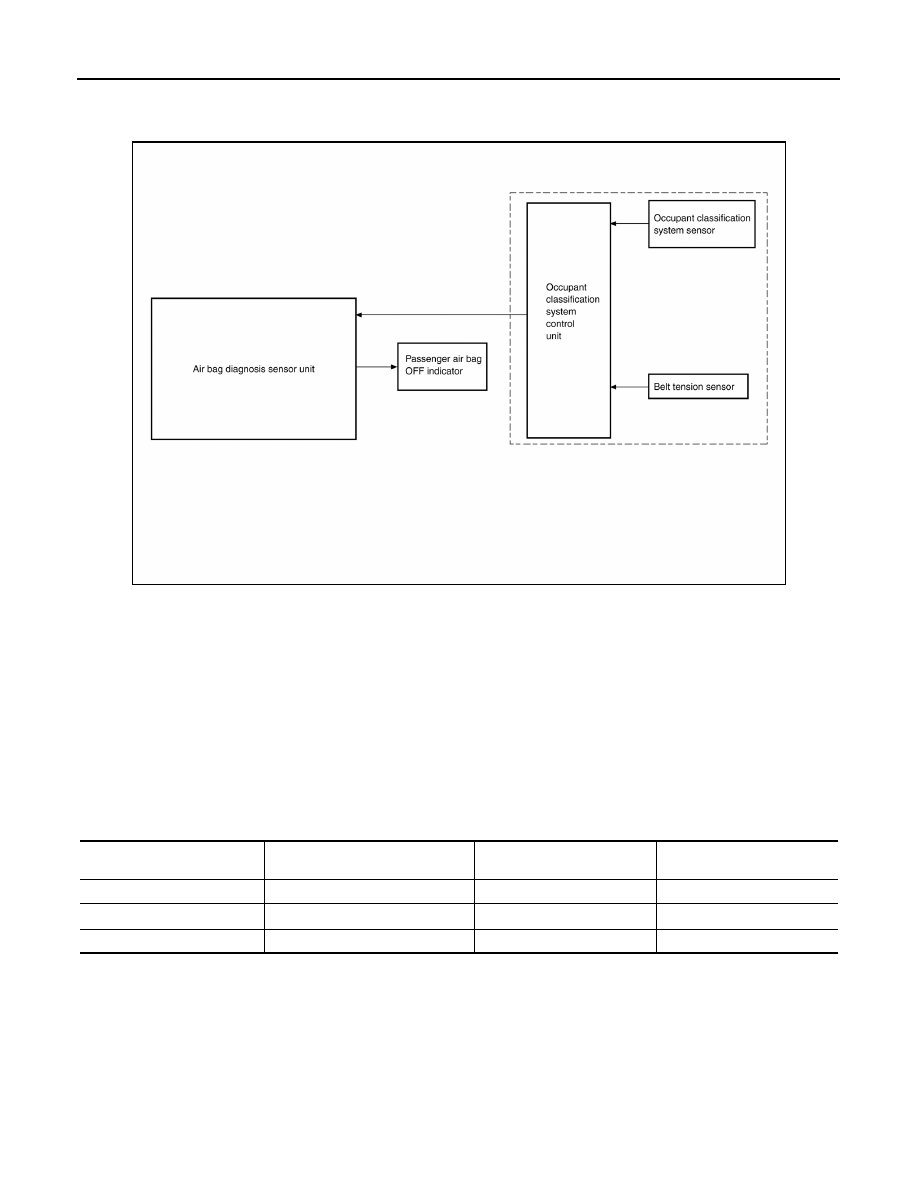

System Diagram

INFOID:0000000009479958

Occupant Classification System (OCS)

INFOID:0000000009479959

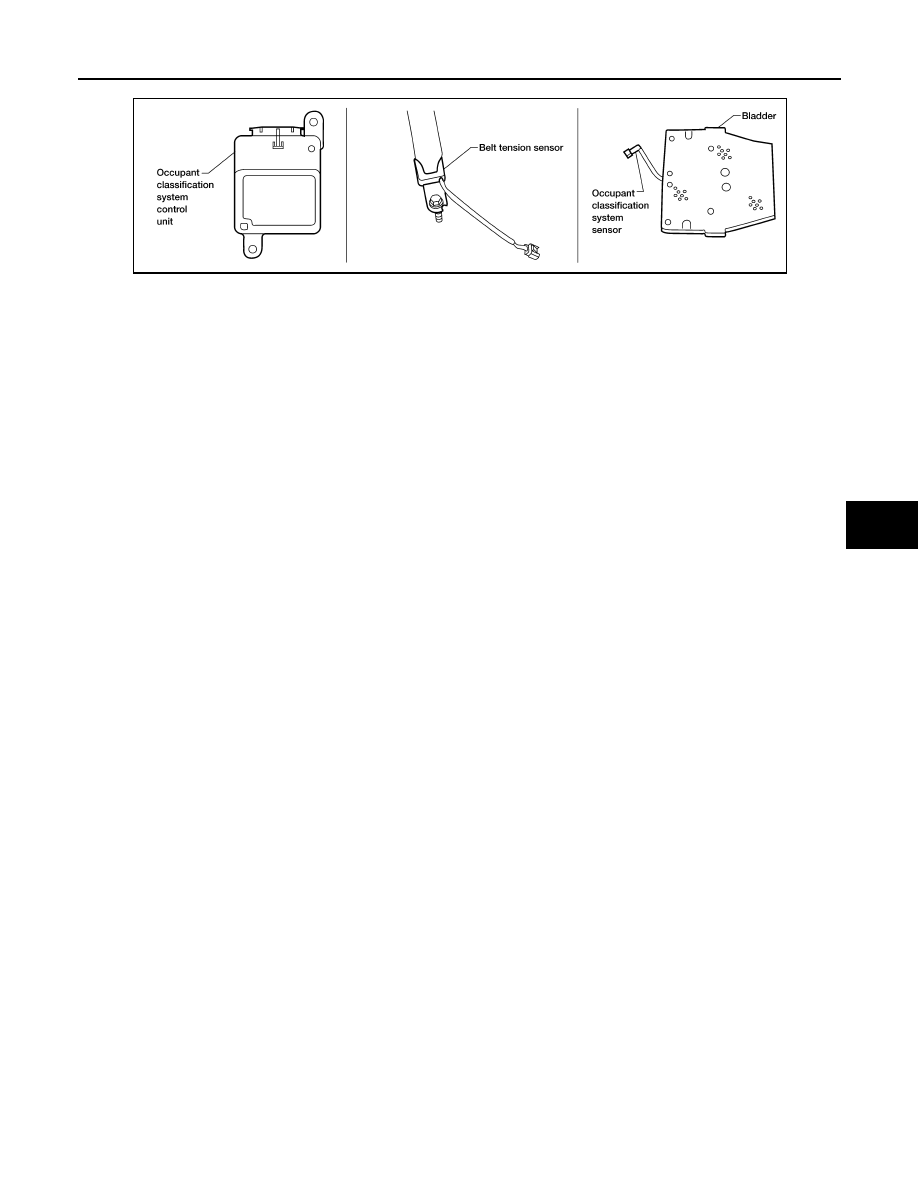

The occupant classification system (OCS) identifies different size occupants, out of position occupants, and

detects if child seat is present in the front passenger seat. The OCS receives inputs from the occupant classi-

fication sensor (located inside the passenger seat cushion assembly) and belt tension sensor (part of the pas-

senger front seat belt assembly and located at the belt anchor location). Depending on classification of the

passenger, the OCS sends a signal to the air bag diagnosis sensor unit. The air bag diagnosis sensor unit

uses this signal and the seat belt buckle switch RH signal to determine deployment or non deployment of the

passenger front air bag in the event of a collision. Depending on the signals received, the air bag diagnosis

sensor unit can disable the passenger front air bag completely.

NOTE:

In case of customer concern, CONSULT can be used to confirm the passenger air bag status (readiness).

Passenger Air Bag Status Conditions

NOTE:

ALHIA0205GB

Front Passenger Seat

(Condition)

PASS AIR BAG OFF Indicator

(Status)

Passenger Air Bag Status

(Readiness)

CONSULT Display

Seat occupied

OFF

Active (enabled)

ON

Seat occupied

NOTE

ON

Deactivated (disabled)

OFF

Seat empty

OFF

Deactivated (disabled)

OFF

OCCUPANT CLASSIFICATION SYSTEM

SRC-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

Passenger does not meet Occupant Classification System specifications for passenger air bag activation.

WHIA0195E

SRC-12

< SYSTEM DESCRIPTION >

PASSENGER SEAT BELT WARNING SYSTEM

PASSENGER SEAT BELT WARNING SYSTEM

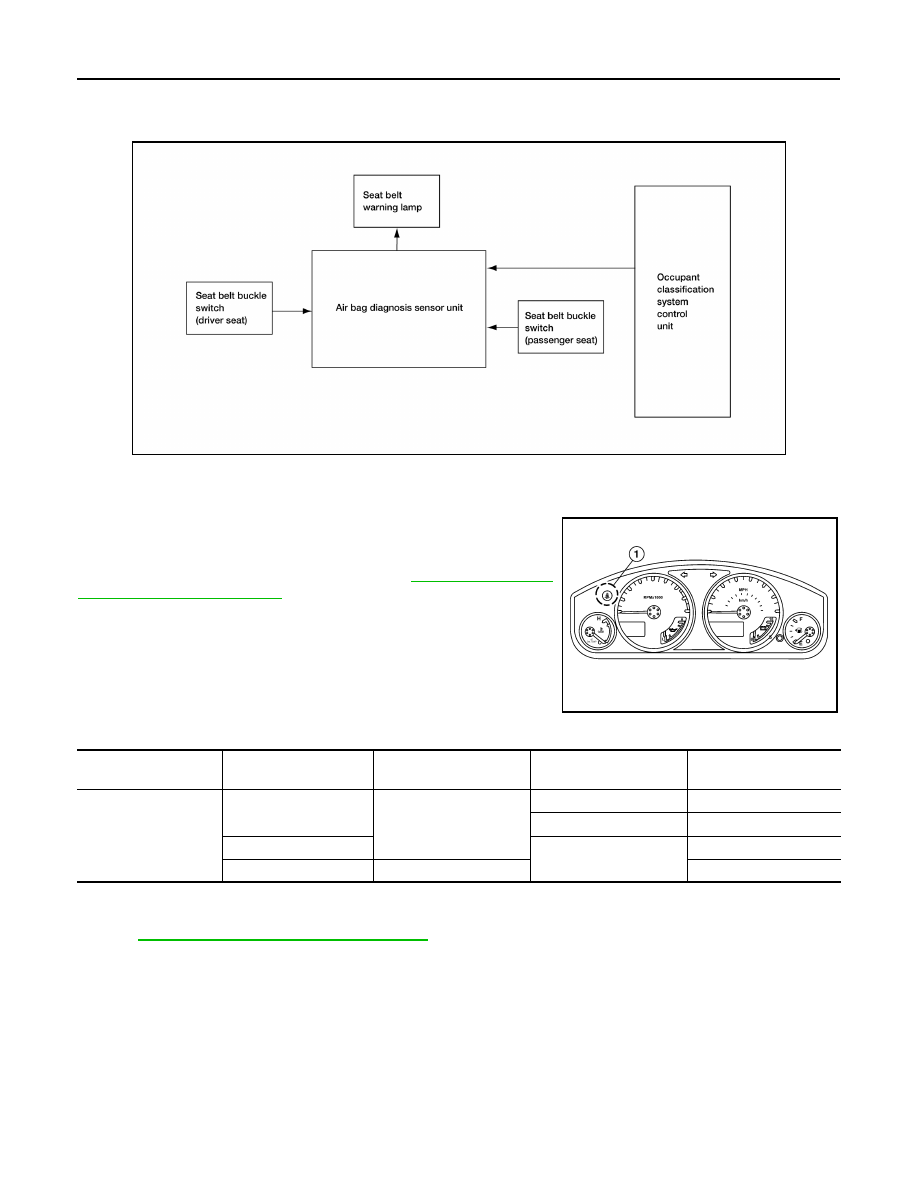

System Diagram

INFOID:0000000009479960

System Description

INFOID:0000000009479961

The passenger seat belt warning system will remind the driver if the

driver or front passenger seat belt should be buckled by turning on

the seat belt warning light (1). The system works in conjunction with

the occupant classification system. Refer to

SRC-10, "Occupant

Classification System (OCS)"

.

Passenger Seat Belt Warning System Operation

Component Parts Location

INFOID:0000000009479962

Refer to

SRC-7, "SRS Component Parts Location"

.

ALHIA0028GB

ALHIA0043ZZ

Driver seat status
(Ignition switch ON)

Passenger seat status

Seat belt buckle switch
LH status

Seat belt buckle switch
RH status

Seat belt warning lamp

Seat occupied

Seat occupied

Buckled

Buckled

Off

Unbuckled

On

Seat unoccupied

—

Off

—

Unbuckled

On
