SR-10

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

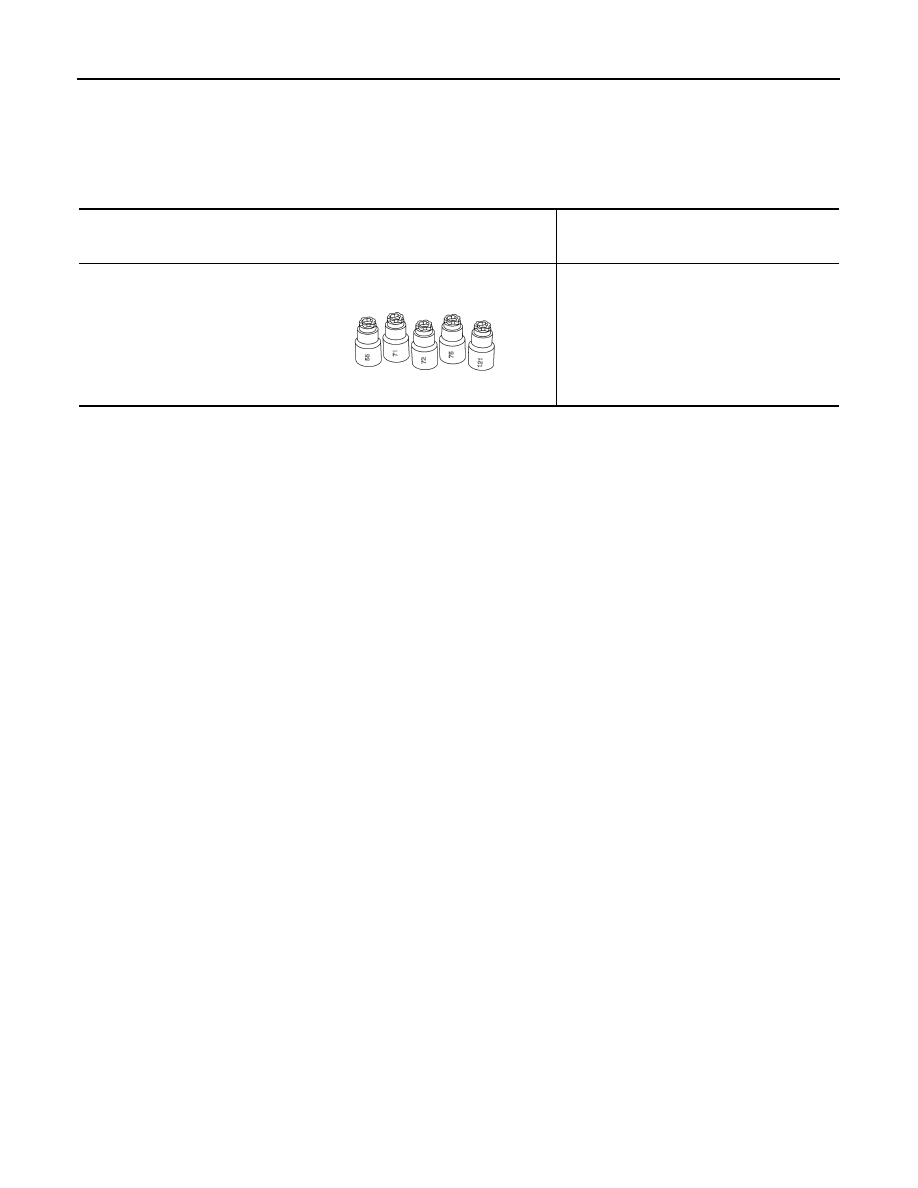

Special Service Tool

INFOID:0000000009480297

The actual shape of the tools may differ from those illustrated here.

Tool number
(TechMate No.)
Tool name

Description

(J-42057-UPD)
Air bag key set
Part of kit (J-42057)

Removing and installing air bag lock

LRS210

DRIVER AIR BAG MODULE

SR-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

REMOVAL AND INSTALLATION

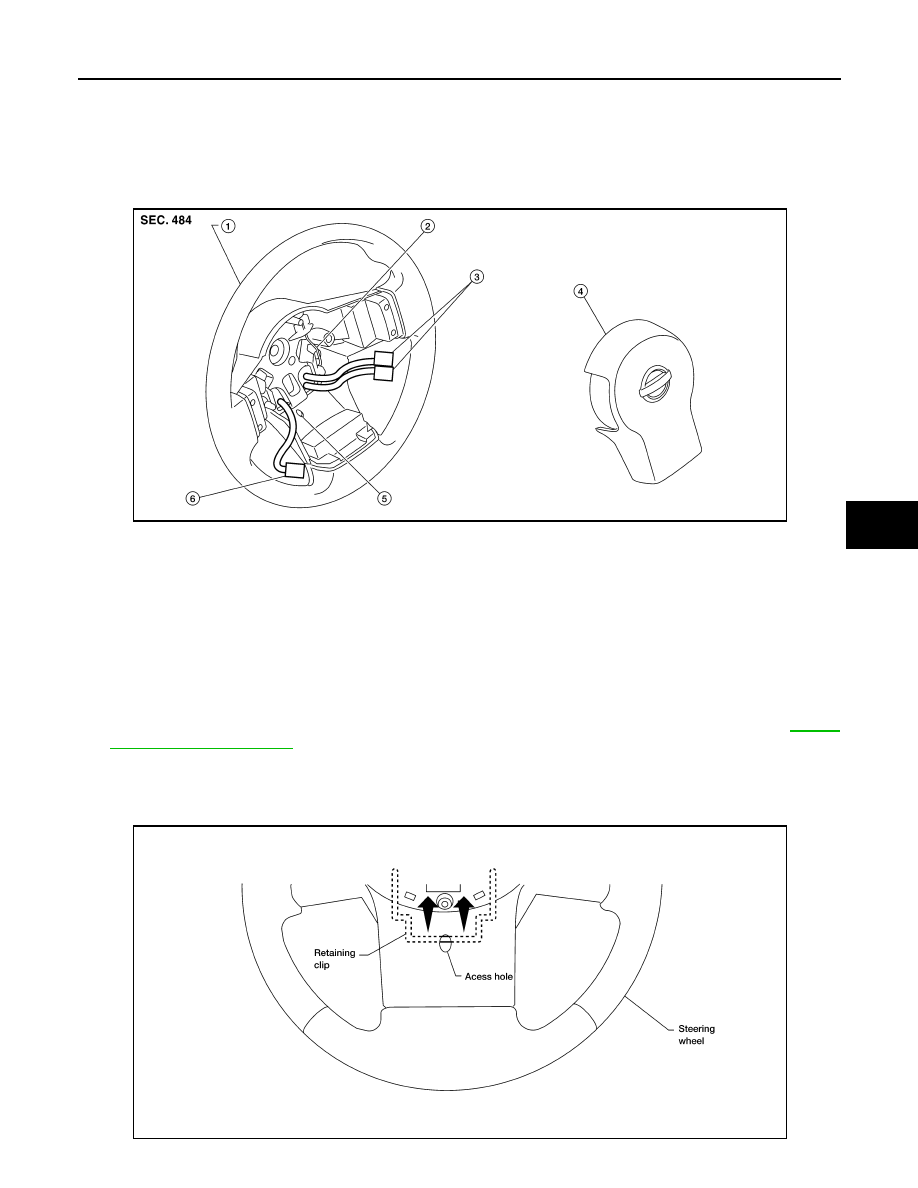

DRIVER AIR BAG MODULE

Removal and Installation

INFOID:0000000009480298

REMOVAL

CAUTION:

• Do not attempt to repair or replace damaged direct-connect SRS component connectors. If a driver

air bag direct-connect harness connector is damaged, the spiral cable must be replaced.

• Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals and wait at

least three minutes.

• When servicing the SRS, do not work from directly in front of air bag module.
1. Disconnect the negative and positive battery terminals, then wait at least three minutes. Refer to

PG-83,

"Removal and Installation"

.

2. Locate retaining clip access hole and insert suitable 4mm - 6mm blunt tool.

NOTE:

Do not use sharp edged objects such as screwdrivers to release driver air bag module from steering

wheel, SRS components may be unintentionally damaged.

1.

Steering wheel

2.

Retaining clip

3.

Driver air bag module connectors

4.

Driver air bag module

5.

Retaining clip access hole

6.

Horn connector

LHIA0084E

LHIA0085E

SR-12

< REMOVAL AND INSTALLATION >

DRIVER AIR BAG MODULE

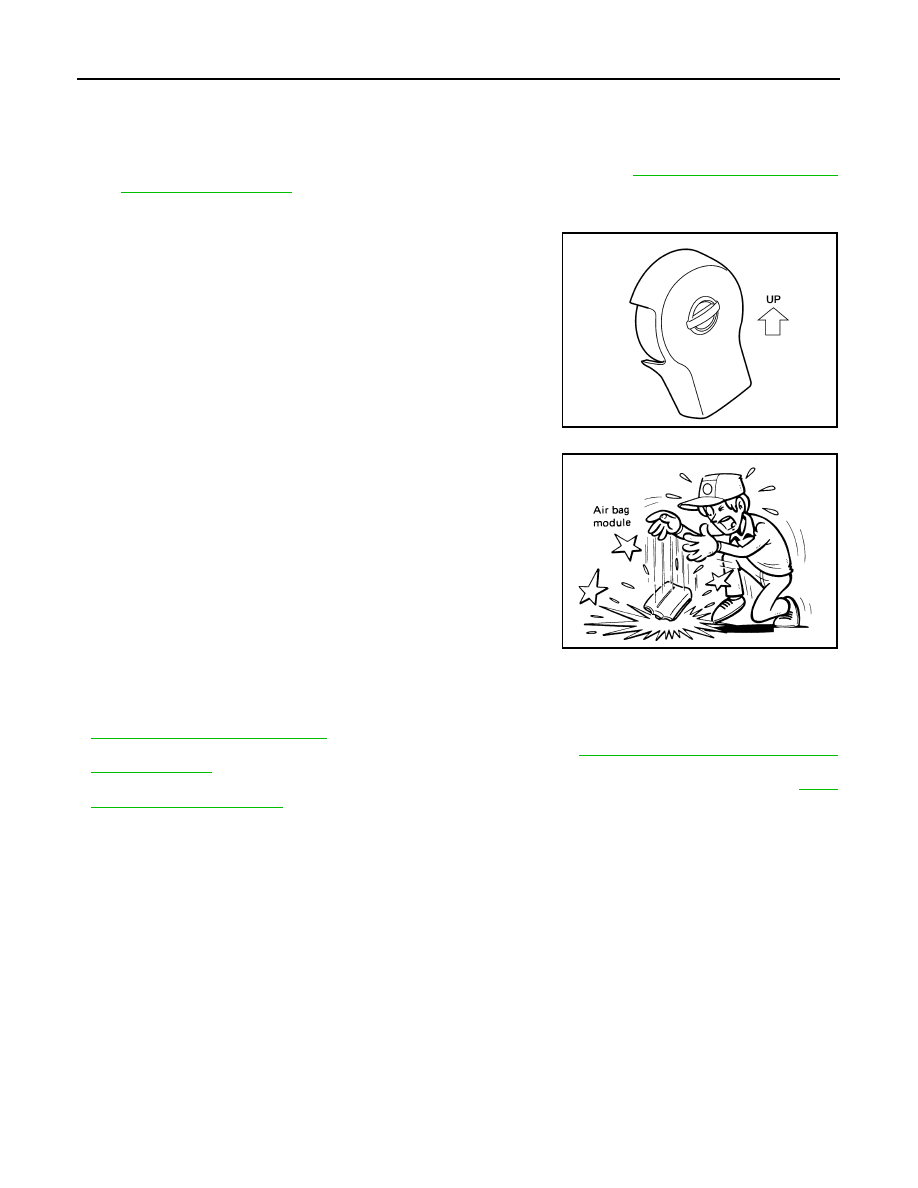

3. Press upward (toward center of steering wheel) on retaining clip until driver air bag module is released

from steering wheel.

4. Lift the driver air bag module from the steering wheel.
5. Disconnect the driver air bag module and horn connectors, then remove the driver air bag module.

• For removal/installation of the direct-connect SRS connectors, refer to

SRC-9, "Direct-connect SRS

Component Connectors"

.

CAUTION:

• When servicing the SRS, do not work from directly in front of air bag module.

• Always place air bag module with pad side facing

upward.

• Do not insert any foreign objects (screwdriver, etc.) into

air bag module or connectors.

• Do not disassemble air bag module.

• Do not expose the air bag module to temperatures

exceeding 90

°C (194°F).

• Replace the air bag module if it has been dropped or

sustained an impact.

• Do not allow oil, grease or water to come in contact with

the air bag module.

INSTALLATION

Installation is in the reverse order of removal.

• If driver air bag module is being replaced due to deployment, spiral cable must also be replaced. Refer to

SR-13, "Removal and Installation"

.

• For removal/installation of the direct-connect SRS connectors, refer to

SRC-9, "Direct-connect SRS Compo-

nent Connectors"

.

• After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to

SRC-

13, "SRS Operation Check"

.

LHIA0086E

SBF814E

SPIRAL CABLE

SR-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

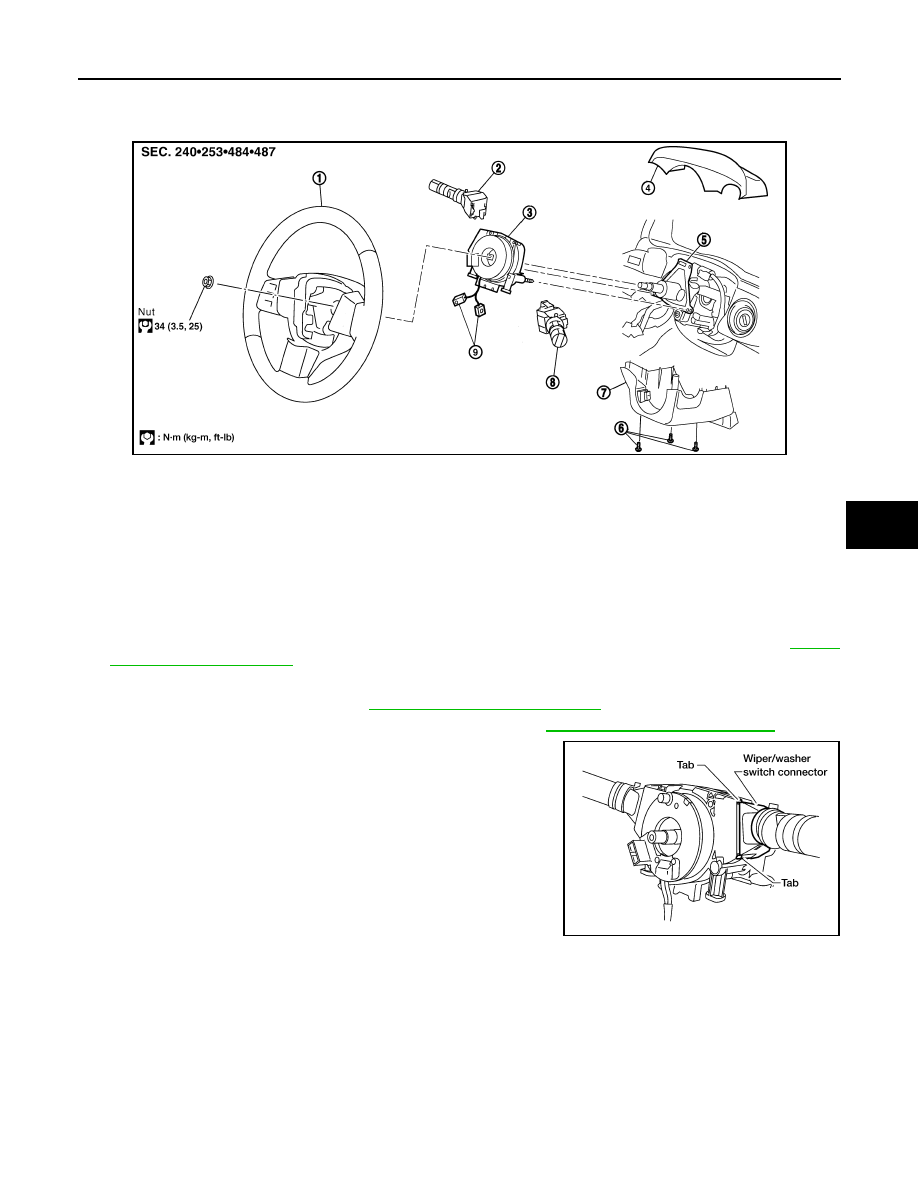

SPIRAL CABLE

Removal and Installation

INFOID:0000000009480299

REMOVAL

CAUTION:

• Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals and wait at

least three minutes.

• When servicing the SRS, do not work from directly in front of air bag module.
1. Disconnect the negative and positive battery terminals, then wait at least three minutes. Refer to

PG-83,

"Removal and Installation"

.

2. Set the front wheels in the straight-ahead position.
3. Remove the steering wheel. Refer to

ST-11, "Removal and Installation"

.

4. Remove the steering column upper and lower covers. Refer to

IP-16, "Removal and Installation"

.

5. Disconnect wiper and washer switch connector. Then while

pressing tabs, pull wiper and washer switch away from spiral

cable to remove.

LHIA0087E

1.

Steering wheel

2.

Lighting and turn signal switch

3.

Spiral cable

4.

Steering column upper cover

5.

Steering column assembly

6.

Screw

7.

Steering column lower cover

8.

Wiper and washer switch

9.

Driver air bag module connectors

LHIA0034E
