Nissan Frontier. Manual - part 1128





NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)

SEC-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

• If ECM other than Genuine NISSAN is installed, the engine cannot be started. For ECM replacement proce-

dure, refer to

SEC-7, "ECM RE-COMMUNICATING FUNCTION : Description"

.

PRECAUTIONS FOR KEY REGISTRATION

• The key registration is a procedure that erases the current NATS ID once, and then re-registers a new ID.

Therefore the registered key is necessary for this procedure. Before starting the registration operation collect

all registered Keys from the customer.

• The NATS ID registration is the procedure that registers the ID stored into the transponder (integrated in

mechanical key) to BCM.

The key ID registration is the procedure that registers the ID to the BCM.

• When performing the key system registration only, the engine cannot be started by inserting the key into the

key cylinder. When performing the NATS registration only, the engine cannot be started by using the ignition

key.

SECURITY INDICATOR

• Always flashes with ignition key in the OFF position.

MAINTENANCE INFORMATION

CAUTION:

It is necessary to perform NATS ID registration when replacing any of the following part.

If it's not (or fail to do so), the electrical system may not operate properly.

• BCM

• ECM

• IPDM E/R

• Ignition key

• NATS antenna amp.

• Combination meter

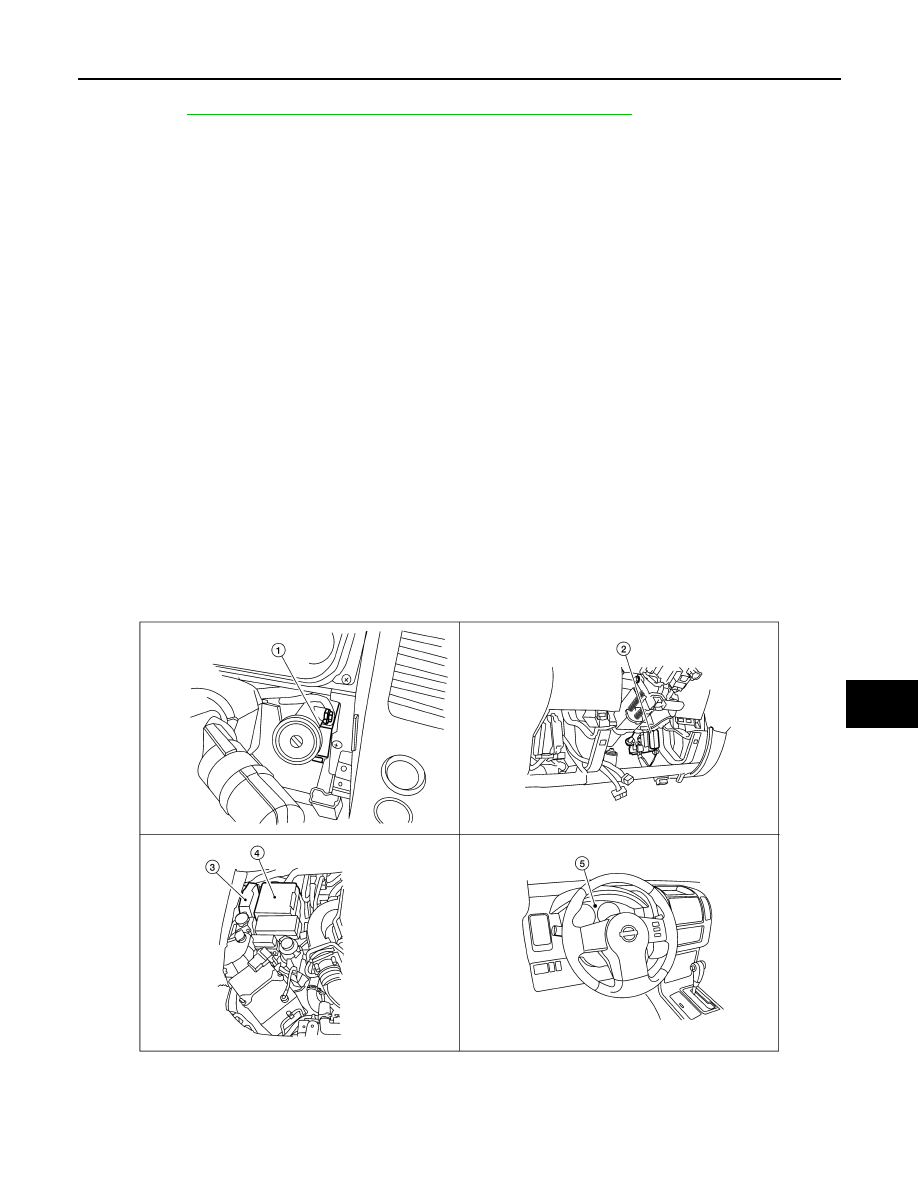

Component Parts Location

INFOID:0000000009479021

1.

NATS antenna amp. M21
(view with cluster lid A removed)

2.

BCM M18, M20
(view with lower instrument panel LH
removed)

3.

ECM

4.

IPDM E/R E121

5.

Combination meter M24

LIIA2428E

SEC-10

< SYSTEM DESCRIPTION >

NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)

Component Description

INFOID:0000000009479022

Item

Function

BCM

Verifies the received signal from the ignition key ID, then informs ECM whether to allow engine start.

Remote keyless entry receiver

Receives lock/unlock signal from the keyfob, and then transmits to the BCM.

A/T shift selector (detention key
switch)

Detects whether the shift lever is in park.

NATS antenna amp.

Detects the ignition key presence in the ignition key cylinder.

Security indicator

Indicates the status of the security system.

IPDM E/R

Powers-up the horn and the headlamps in case of a security breach.

VEHICLE SECURITY SYSTEM

SEC-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

VEHICLE SECURITY SYSTEM

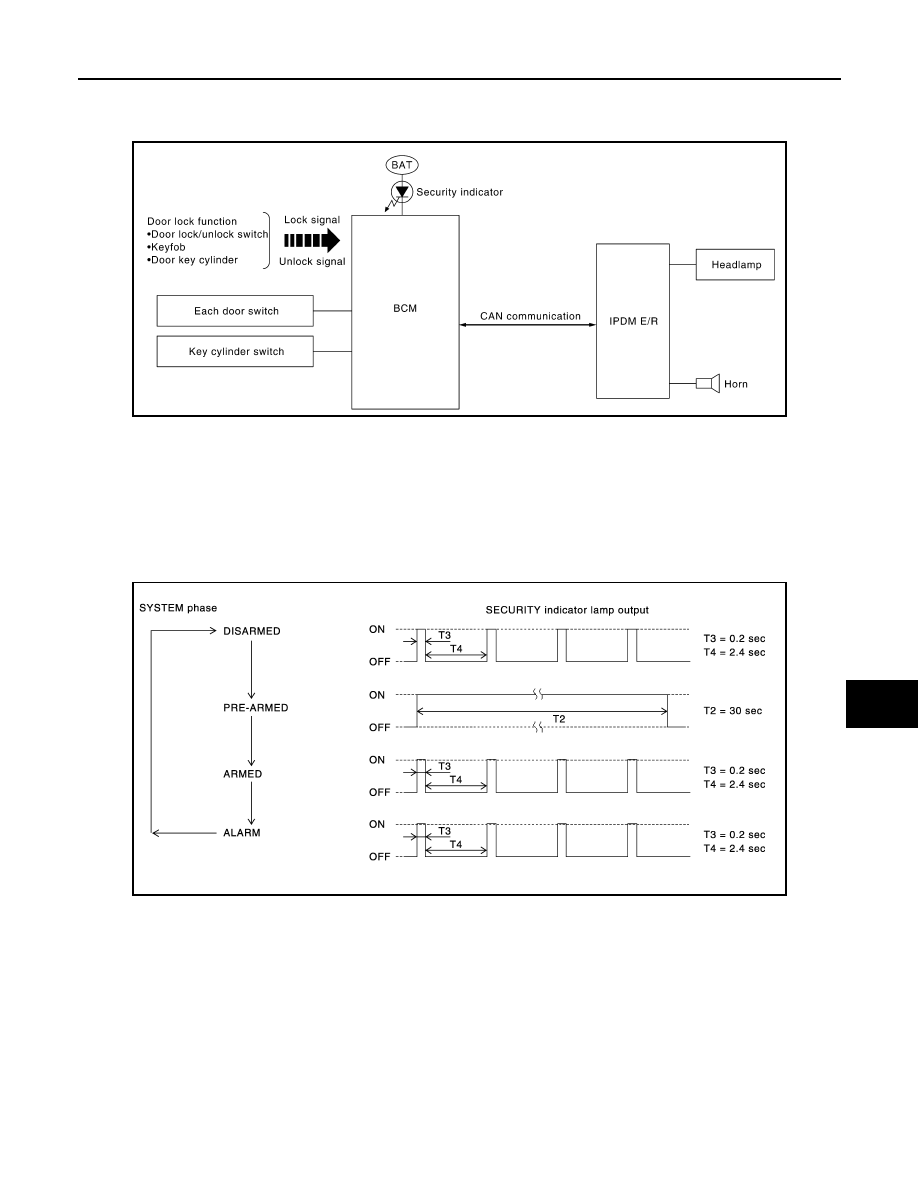

System Diagram

INFOID:0000000009479023

System Description

INFOID:0000000009479024

DESCRIPTION

The security system provides an audible and visual alarm when an unauthorized access to the vehicle is

detected while the system is in armed phase.

The security system consist of the BCM managing the audible alarm (horn) and the visual alarm (headlamps).

OPERATION FLOW

Disarmed Phase

When the vehicle is being driven or when doors are open, the theft warning system is set in the disarmed

phase on the assumption that the owner is inside or near the vehicle.

Pre-Armed Phase And Armed Phase

The vehicle security system turns into the pre-armed phase when ignition switch is in OFF position, all doors

are closed and locked (using keyfob, door lock/unlock switch, driver key cylinder or auto relock function). The

system automatically shifts into the armed phase.

Condition of Activating The System

When the following condition is performed in armed phase, the system sounds the horns and flashes the

headlamps for approximately 50 seconds.

• Any door is opened.

ALKIA0952GB

PIIA1367E

SEC-12

< SYSTEM DESCRIPTION >

VEHICLE SECURITY SYSTEM

Condition of Deactivating The System

When one of the following operations is performed, the armed phase is cancelled.

• Unlock the doors with keyfob.

• Use the mechanical key to unlock the driver door using the door key cylinder.

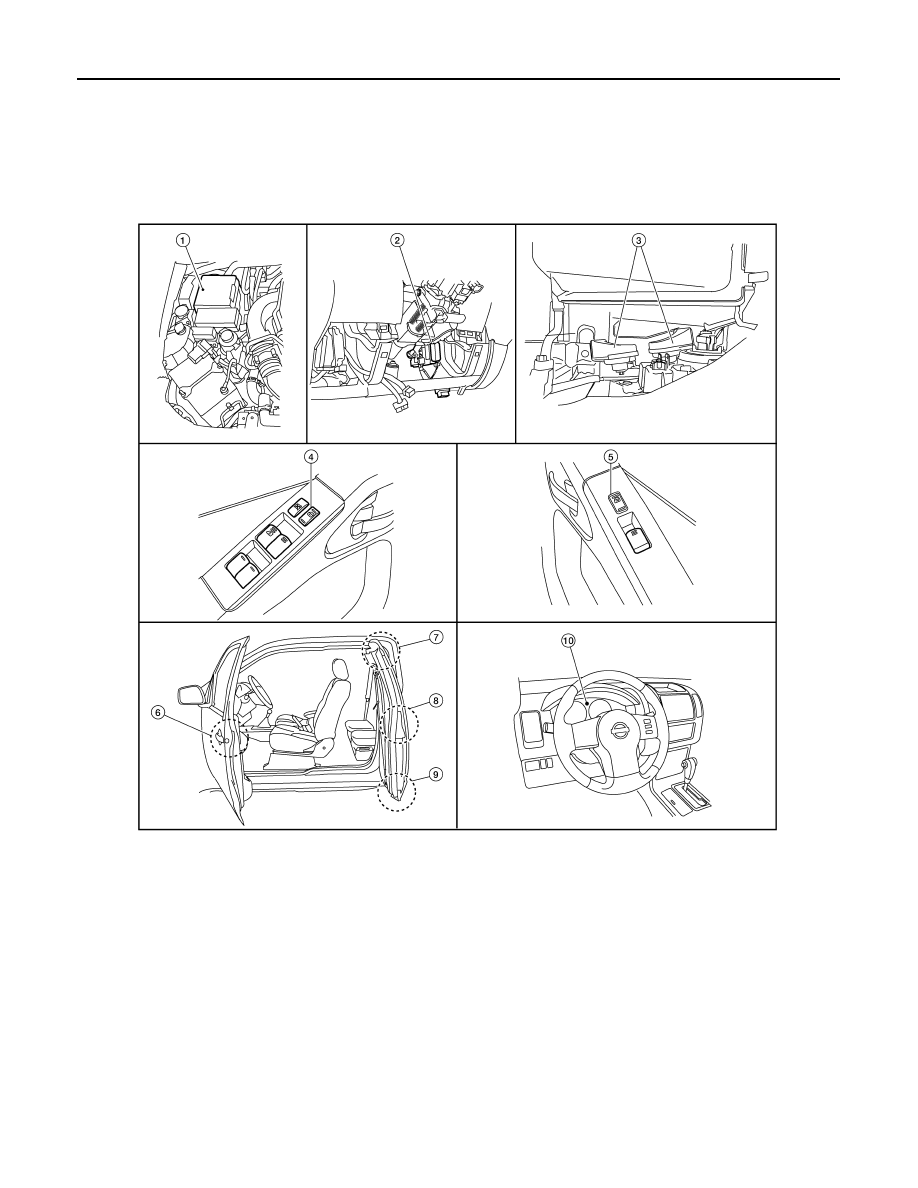

Component Parts Location - King Cab

INFOID:0000000009479025

1.

IPDM E/R E122, E123, E124

2.

BCM M18, M19, M20
(view with lower instrument panel LH
removed)

3.

Horn E6
(behind front combination lamp LH)

4.

Main power window and door lock/
unlock switch D7

5.

Power window and door lock/unlock
switch RH D105

6.

Front door lock assembly LH (key cylin-
der switch) D14

7.

Rear door switch upper
LH D211
RH D312

8.

Front door switch
LH D213
RH D314

9.

Rear door switch lower
LH D212
RH D313

10. Combination meter M24

ALKIA1387ZZ
