REAR SEAT

SE-45

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

REAR SEAT

Disassembly and Assembly

INFOID:0000000009479579

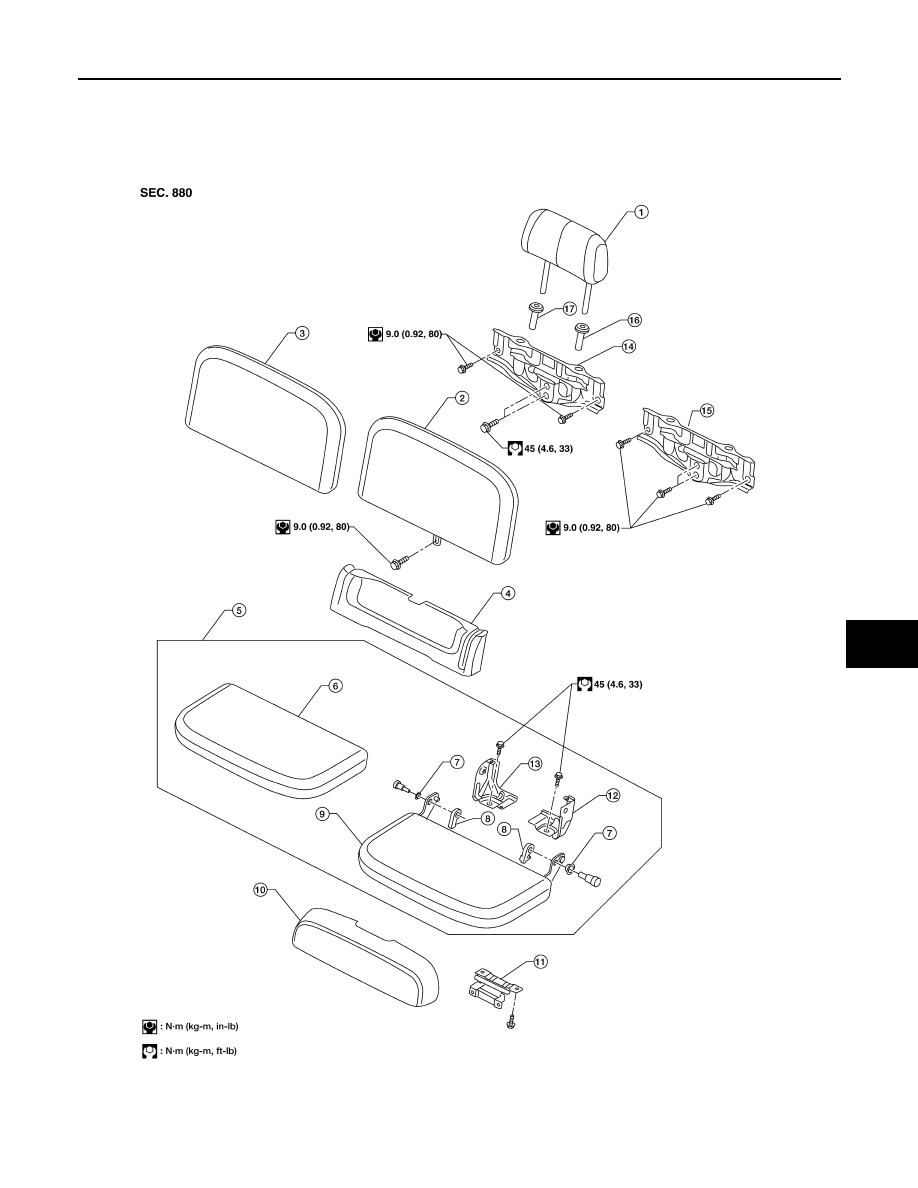

Jump Seat (King Cab)

LIIA1957E

1.

Headrest

2.

Seatback pad and frame

3.

Seatback trim cover

4.

Seat base trim panel

5.

Seat cushion assembly

6.

Seat cushion trim cover

7.

Bushing

8.

Spacer

9.

Seat cushion pad and frame

SE-46

< UNIT DISASSEMBLY AND ASSEMBLY >

REAR SEAT

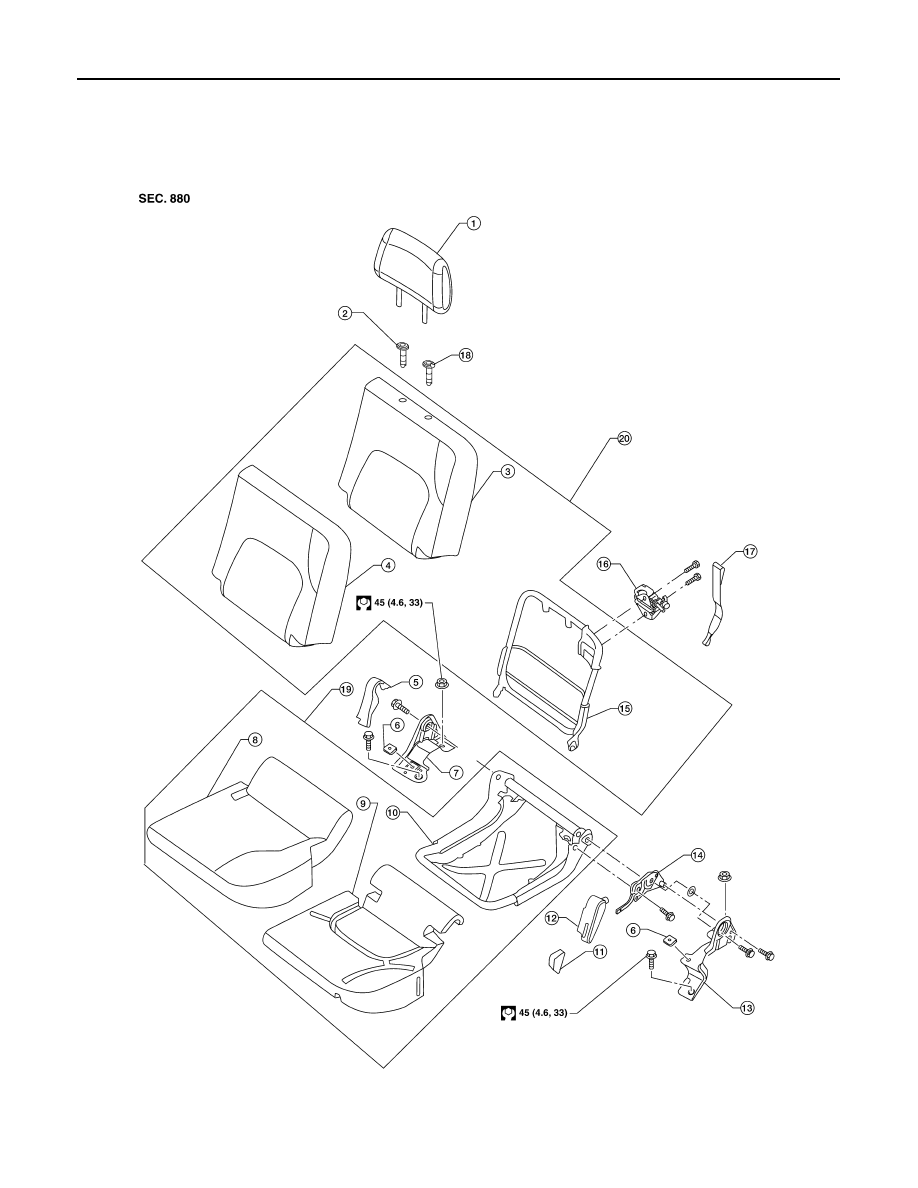

Bench Seat LH (Crew Cab)

10. Child seat extension (Passenger side

only)

11. Child seat extension hinge

12. Inboard jump seat pivot riser

13. Outboard jump seat pivot riser

14. Headrest plate (RH)

15. Headrest plate (LH)

16. Inboard headrest locking guide

17. Outboard headrest guide

WIIA1059E

1.

Headrest

2.

Inboard headrest guide

3.

Seatback pad

4.

Seatback trim cover

5.

Inboard pivot cover

6.

Seat cushion bumper (RH/LH)

REAR SEAT

SE-47

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

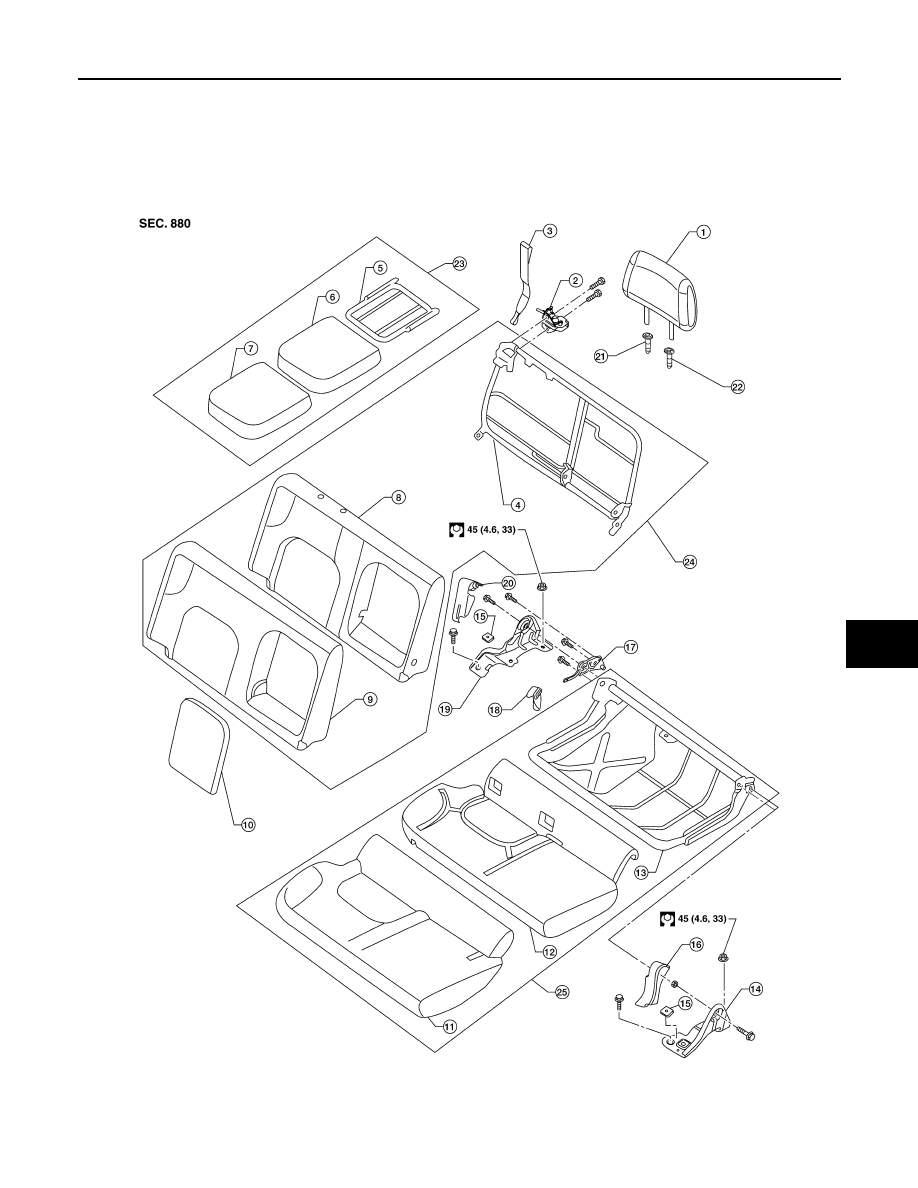

Bench Seat RH (Crew Cab)

7.

Inboard seat cushion pivot riser

8.

Seat cushion trim cover

9.

Seat cushion pad

10. Seat cushion pan

11. Seat cushion hinge release handle

12. Seat cushion hinge cover

13. Outboard seat cushion pivot riser

14. Seat cushion hinge assembly

15. Seatback frame

16. Seatback latch assembly

17. Seatback latch release strap

18. Outboard headrest locking guide

19. Seat cushion assembly

20. Seatback assembly

WIIA1060E

SE-48

< UNIT DISASSEMBLY AND ASSEMBLY >

REAR SEAT

1.

Headrest

2.

Seatback latch assembly

3.

Seatback latch release strap

4.

Seatback frame

5.

Armrest frame

6.

Armrest pad

7.

Armrest trim cover

8.

Seatback pad

9.

Seatback trim cover

10. Seatback armrest opening board

11. Seat cushion trim cover

12. Seat cushion pad

13. Seat cushion frame

14. Inboard pivot riser

15. Seat cushion bumper (RH/LH)

16. Inboard pivot riser cover

17. Seat cushion hinge assembly

18. Seat cushion hinge release handle

19. Outboard pivot riser

20. Outboard pivot riser cover

21. Outboard headrest guide

22. Inboard headrest locking guide

23. Armrest assembly

24. Seatback assembly

25. Seat cushion assembly
