Nissan Frontier. Manual - part 1117

POWER SEAT FOR PASSENGER SIDE

SE-13

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

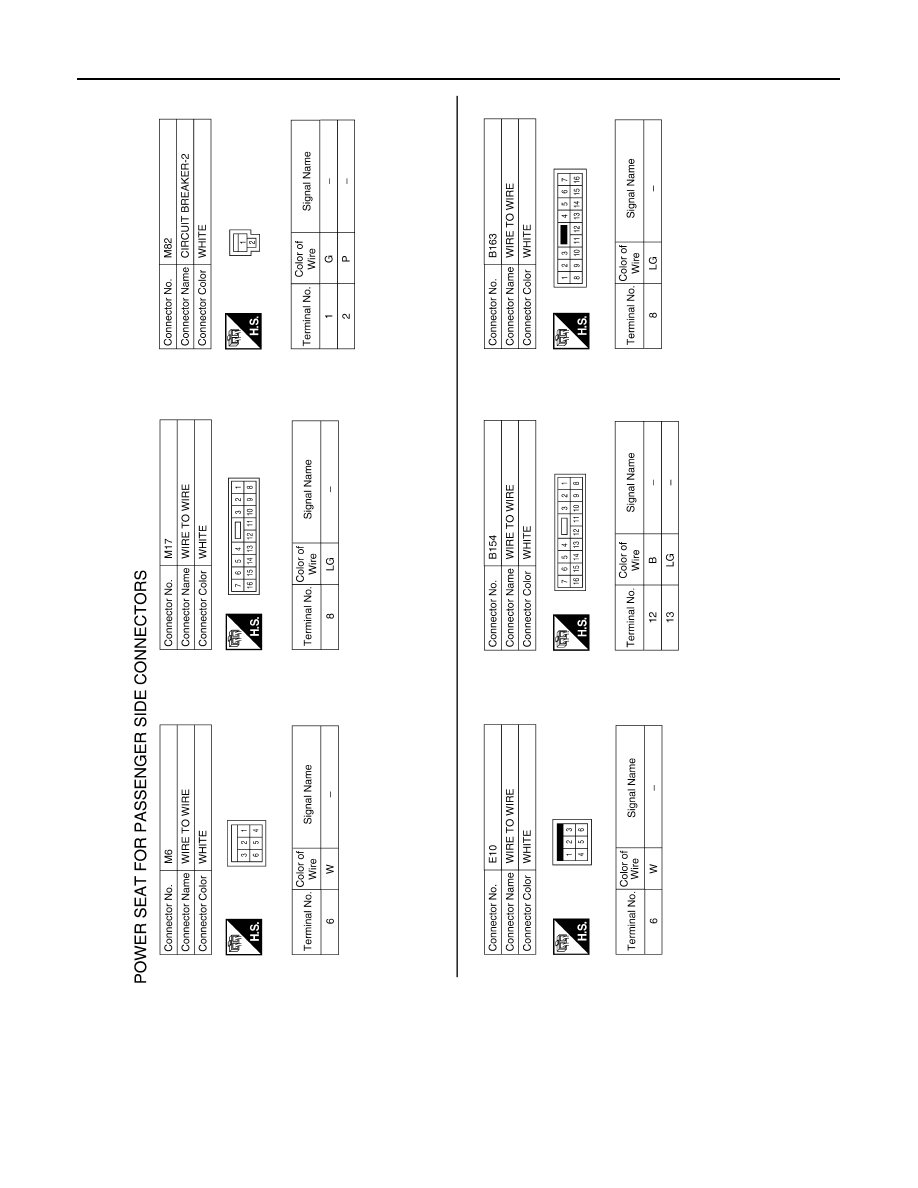

POWER SEAT FOR PASSENGER SIDE

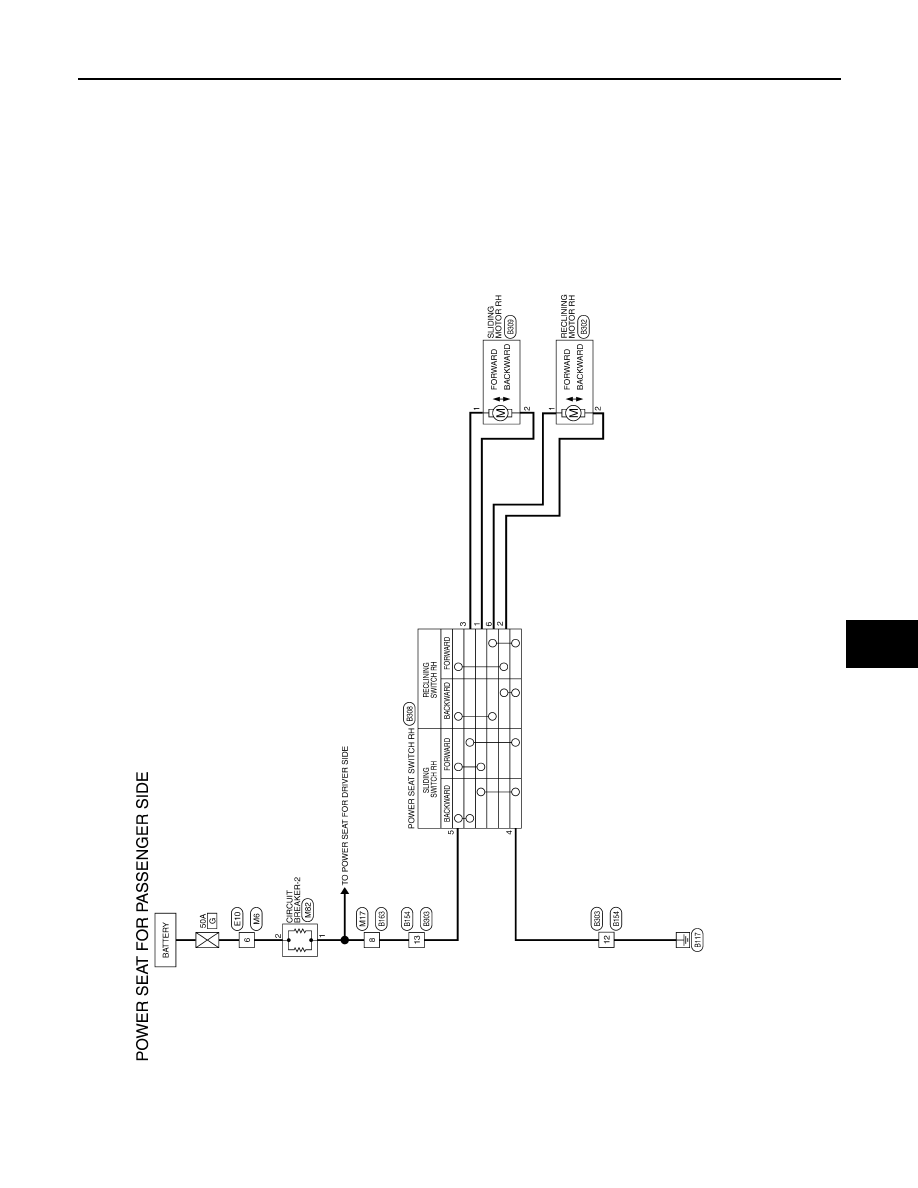

Wiring Diagram

INFOID:0000000009479566

ABJWA0058GB

SE-14

< WIRING DIAGRAM >

POWER SEAT FOR PASSENGER SIDE

AAJIA0040GB

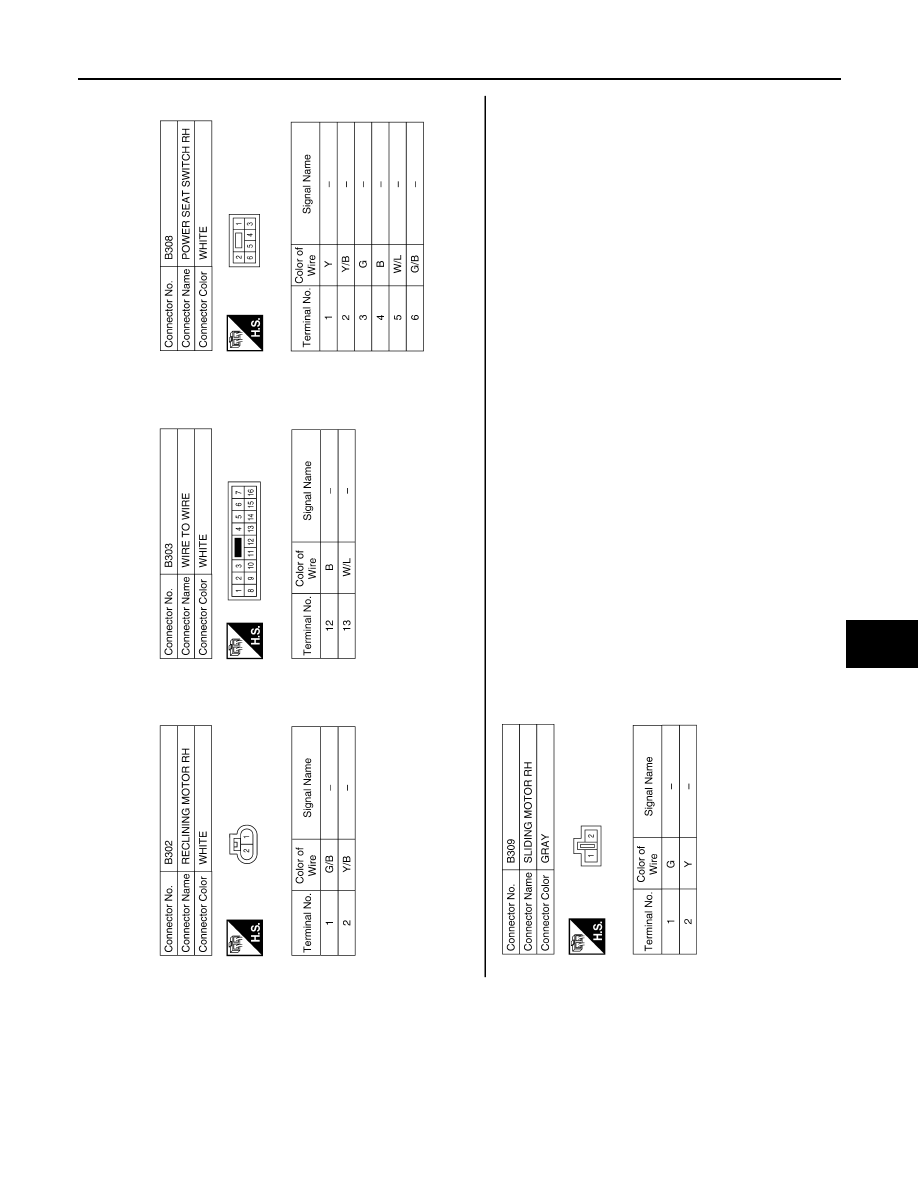

POWER SEAT FOR PASSENGER SIDE

SE-15

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

ABJIA0180GB

SE-16

< WIRING DIAGRAM >

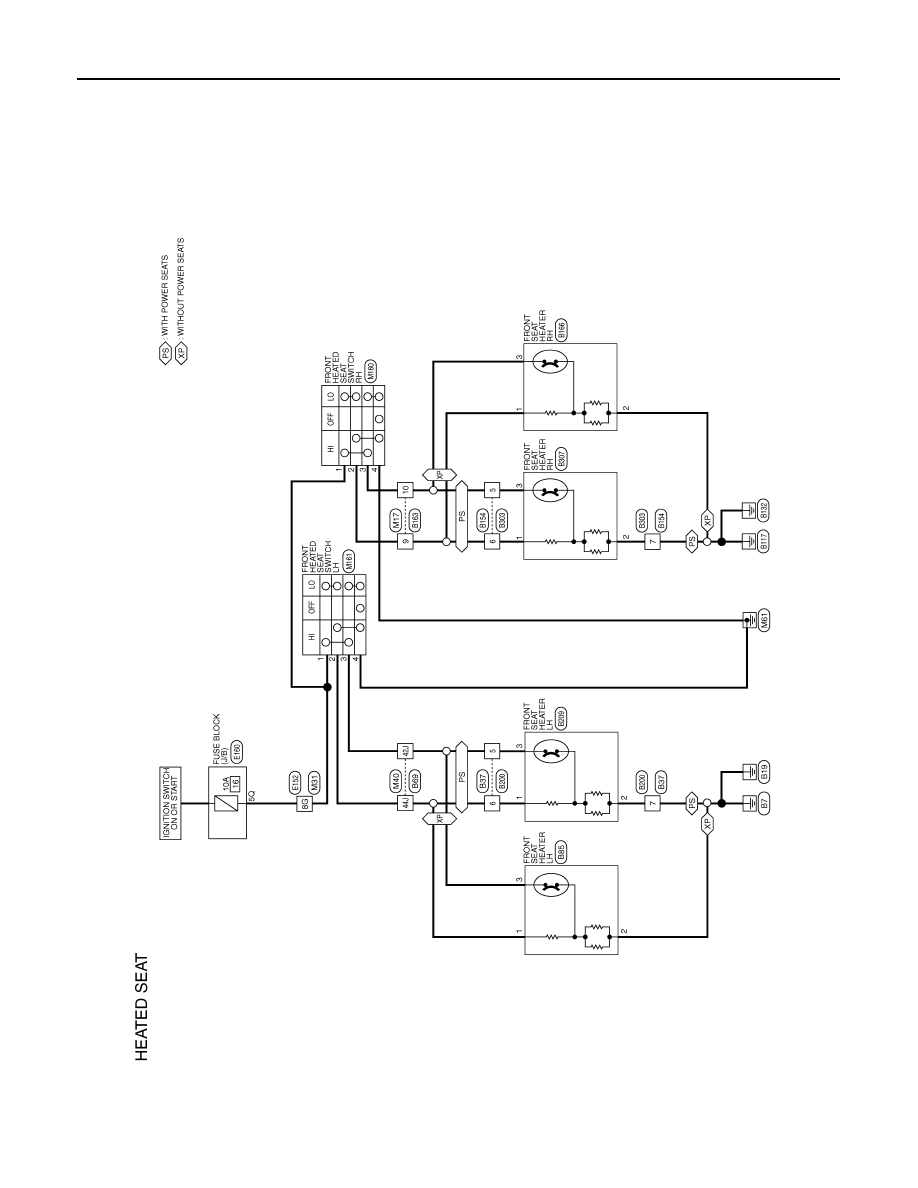

HEATED SEAT

HEATED SEAT

Wiring Diagram

INFOID:0000000009479567

ABJWA0409GB
