Crew Cab Models

Removal and Installation

INFOID:0000000009482272

REMOVAL OF SEAT BELT RETRACTOR - KING CAB

CAUTION:

• Before servicing SRS, turn the ignition switch off, disconnect both battery terminals and wait at least

three minutes.

1. Disconnect both the negative and positive battery terminals, then wait at least three minutes. Refer to

PG-

83, "Removal and Installation"

.

2. Remove the rear door finishers. Refer to

INT-15, "Removal and Installation"

.

3. Remove the retractor anchor bolt, retractor bolt upper, then remove the retractor and belt assembly.

• On RH side, disconnect the seat belt tension sensor.

4. Disconnect the harness connector from the seat belt pre-tensioner.

CAUTION:

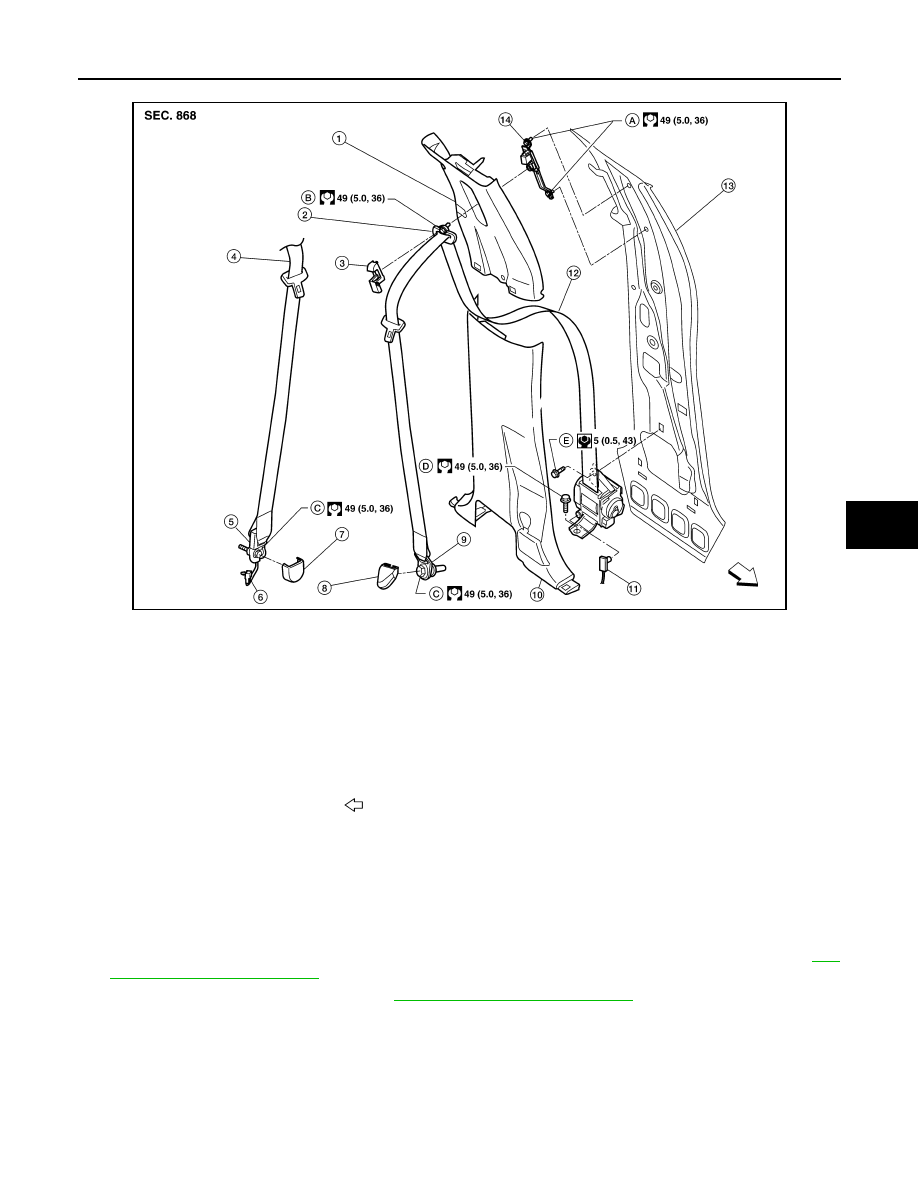

WHIA0344E

1.

Center pillar upper finisher

2.

 D-ring anchor

3.

 D-ring anchor bolt cover

4.

Seat belt retractor and belt assembly
(RH)

5.

Seat belt lower anchor
(RH) (seat belt tension
sensor)

6.

Seat belt tension sensor connector

7.

Anchor cover (RH)

8.

Anchor cover (LH)

9.

Seat belt lower anchor (LH)

10. Center pillar lower finisher

11. Seat belt pre-tensioner

connector

12. Seat belt retractor and belt assembly (LH)

13. Center pillar

14. Seat belt height adjuster

A.

Height adjuster anchor bolt

B.

D-ring anchor bolt

C.

Seat belt lower anchor bolt  D.

Retractor anchor bolt

E.

Retractor bolt upper

Front

SB-8

< REMOVAL AND INSTALLATION >

FRONT SEAT BELT

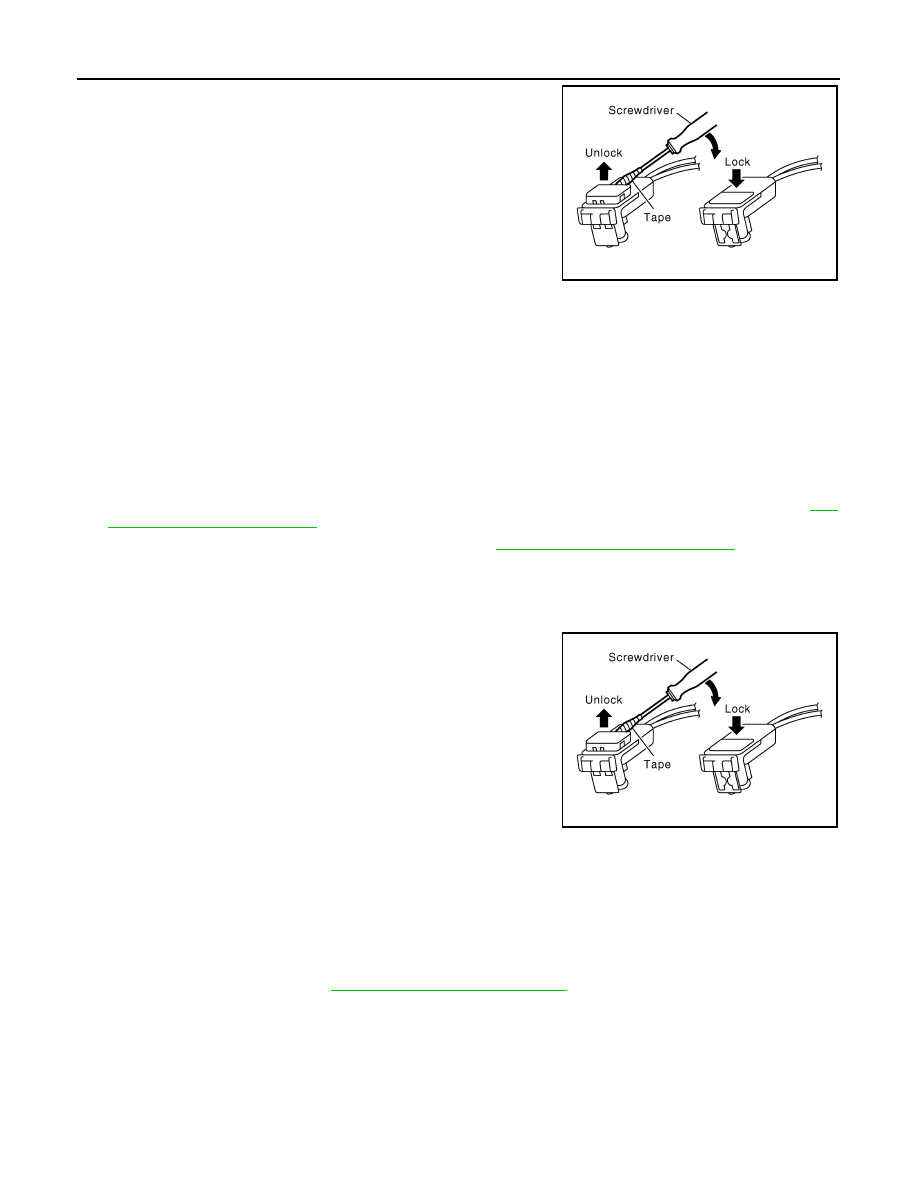

• For installing/removing seat belt pre-tensioner connector,

insert a thin screwdriver wrapped in tape into the notch,

lift the lock and remove the connector.

• Install the connector with the lock raised, and push the

lock into the connector.

INSTALLATION OF SEAT BELT RETRACTOR - KING CAB

CAUTION:

Hold belt tension sensor harness away from being caught or twisted during installation.

 Installation is in the reverse order of removal.

• Install the seat belt retractor upper bolt first.

• Ensure that seat belt height adjuster is locked in the lowest position during installation.

REMOVAL OF SEAT BELT RETRACTOR - CREW CAB

CAUTION:

• Before servicing SRS, turn the ignition switch off, disconnect both battery terminals and wait at least

three minutes.

1. Disconnect both the negative and positive battery terminals, then wait at least three minutes. Refer to

PG-

83, "Removal and Installation"

.

2. Remove the center pillar upper/lower finishers. Refer to

INT-19, "Removal and Installation"

.

3. Remove the seat belt retractor and belt bolts and assembly.

• On RH side, disconnect the seat belt tension sensor.

4. Disconnect the harness connector from the seat belt pre-tensioner.

CAUTION:

• For installing/removing seat belt pre-tensioner connector,

insert a thin screwdriver wrapped in tape into the notch,

lift the lock and remove the connector.

• Install the connector with the lock raised, and push the

lock into the connector.

INSTALLATION OF SEAT BELT RETRACTOR - CREW CAB

CAUTION:

Hold belt tension sensor harness away from being caught or twisted during installation.

 Installation is in the reverse order of removal.

• Install the seat belt retractor and belt assembly upper bolt first.

• Ensure that seat belt height adjuster is locked in the lowest position during installation.

REMOVAL OF SEAT BELT BUCKLE

1. Remove the front seat. Refer to

SE-32, "Removal and Installation"

.

PHIA0341E

PHIA0341E

FRONT SEAT BELT

SB-9

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

2. Remove screw and seat cushion inner finisher.
3. Remove the anchor bolt and buckle.
4. Disconnect the buckle switch connector from the seat connector.

INSTALLATION OF SEAT BELT BUCKLE

 Installation is in the reverse order of removal.

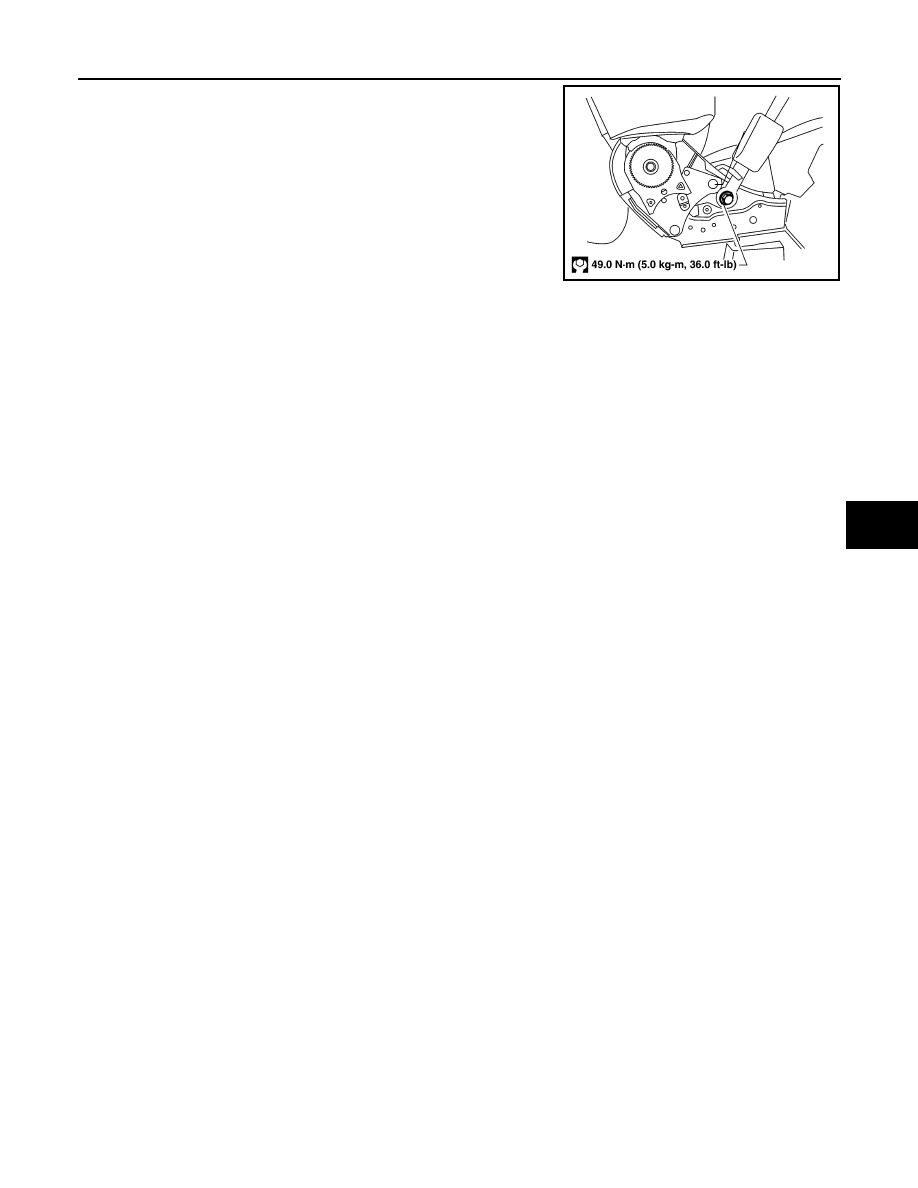

WHIA0128E

SB-10

< REMOVAL AND INSTALLATION >

REAR SEAT BELT

REAR SEAT BELT

Exploded View

INFOID:0000000009482273

KING CAB MODELS

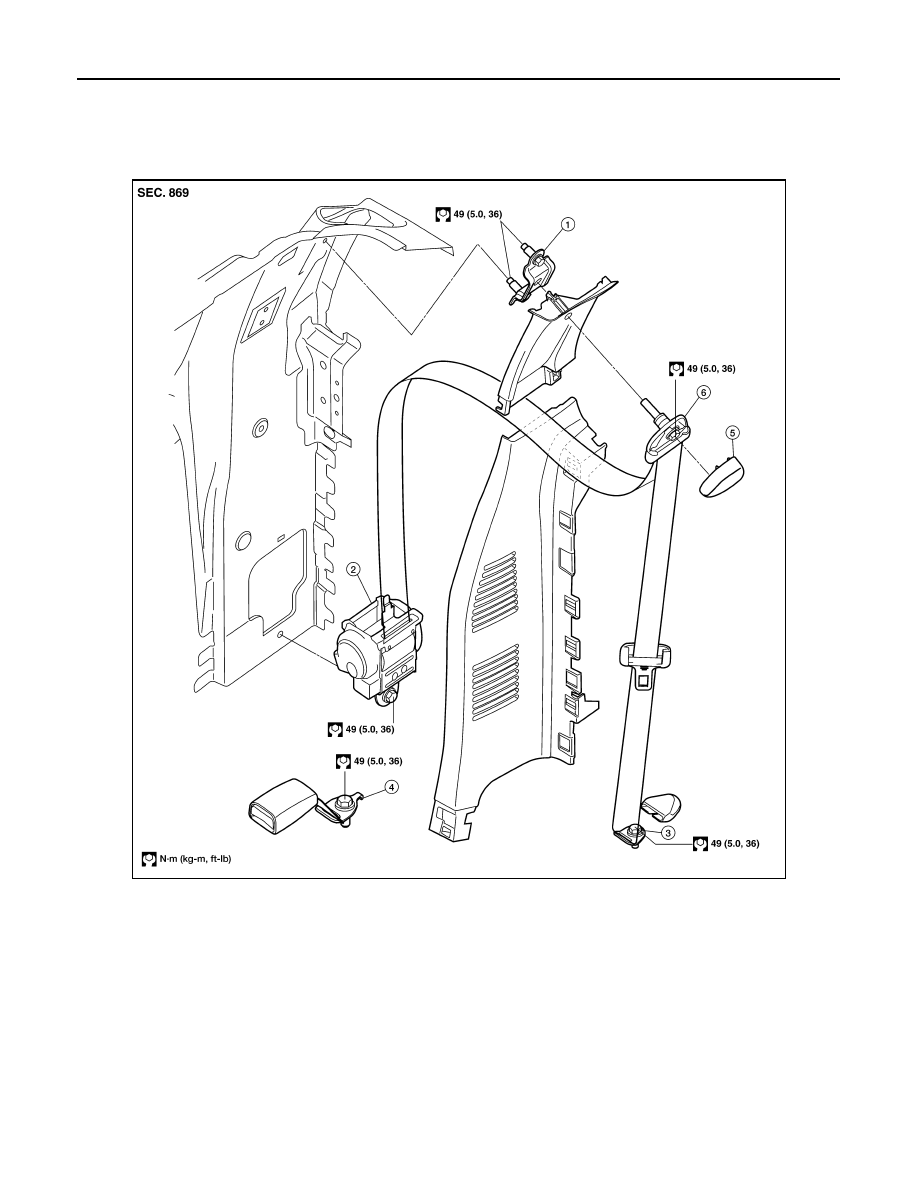

LHIA0096E

1.

Seat belt bracket

2.

Seat belt retractor and belt assembly

3.

Seat belt lower anchor

4.

Seat belt buckle

5.

D-ring anchor bolt cover

6.

D-ring anchor
