RF-54

< REMOVAL AND INSTALLATION >

SUNROOF SYSTEM

• If any damage is found, replace the drain hose.

Installation

Installation is in the reverse order of removal.

WEATHERSTRIP

Visually check weatherstrip for any damage, deterioration, or flattening.

• In the case of wind or water leakage around glass lid area, close glass lid and pour water around it to find the

damaged or gaped portion.

• If any damage is found, inspect and repair the body sealing surface, replace sunroof lid seal, or replace

glass lid assembly. Refer to GLASS LID in this section.

CAUTION:

Do not remove weatherstrip from glass lid.

LINK AND WIRE ASSEMBLY

NOTE:

Before replacing any suspect part, be sure it is the source of the noise.
1. Visually check to determine if a sufficient amount of petroleum jelly has been applied to the wire or rail

groove. If not, add petroleum jelly as required.

2. Check wire for any damage or deterioration. If any damage is found, remove rear guide, then replace

wire.

RSU-1

SUSPENSION

C

D

F

G

H

I

J

K

L

M

SECTION

RSU

A

B

RSU

N

O

P

CONTENTS

REAR SUSPENSION

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

Precaution for Rear Suspension ...............................

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Commercial Service Tool  ..........................................

3

SYMPTOM DIAGNOSIS  ...............................

4

NOISE, VIBRATION, AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

4

NVH Troubleshooting Chart  ......................................

4

PERIODIC MAINTENANCE ..........................

5

REAR SUSPENSION ASSEMBLY  .....................

5

On-Vehicle Inspection and Service  ...........................

5

REMOVAL AND INSTALLATION ................

6

REAR SUSPENSION ASSEMBLY ....................

6

Component ...............................................................

6

UNIT REMOVAL AND INSTALLATION .......

8

SHOCK ABSORBER  .........................................

8

Removal and Installation  ..........................................

8

Disposal ....................................................................

8

LEAF SPRING ....................................................

9

Removal and Installation  ..........................................

9

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

12

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

12

General Specification (Rear)  ...................................

12

Wheelarch Height (Unladen*1) ................................

12

RSU-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010136163

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Precaution for Rear Suspension

INFOID:0000000009478692

• When installing the rubber bushings, the final tightening must be done under unladen condition and with the

tires on level ground. Oil will shorten the life of the rubber bushings, so wipe off any spilled oil immediately.

• Unladen condition means the fuel tank, engine coolant and lubricants are at the full specification. The spare

tire, jack, hand tools, and mats are in their designated positions. There are no passengers in the vehicle.

• After installing suspension components, check the wheel alignment.

• Caulking nuts are not reusable. Always use new caulking nuts for installation. New caulking nuts are pre-

oiled, do not apply any additional lubrication.

PREPARATION

RSU-3

< PREPARATION >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

PREPARATION

PREPARATION

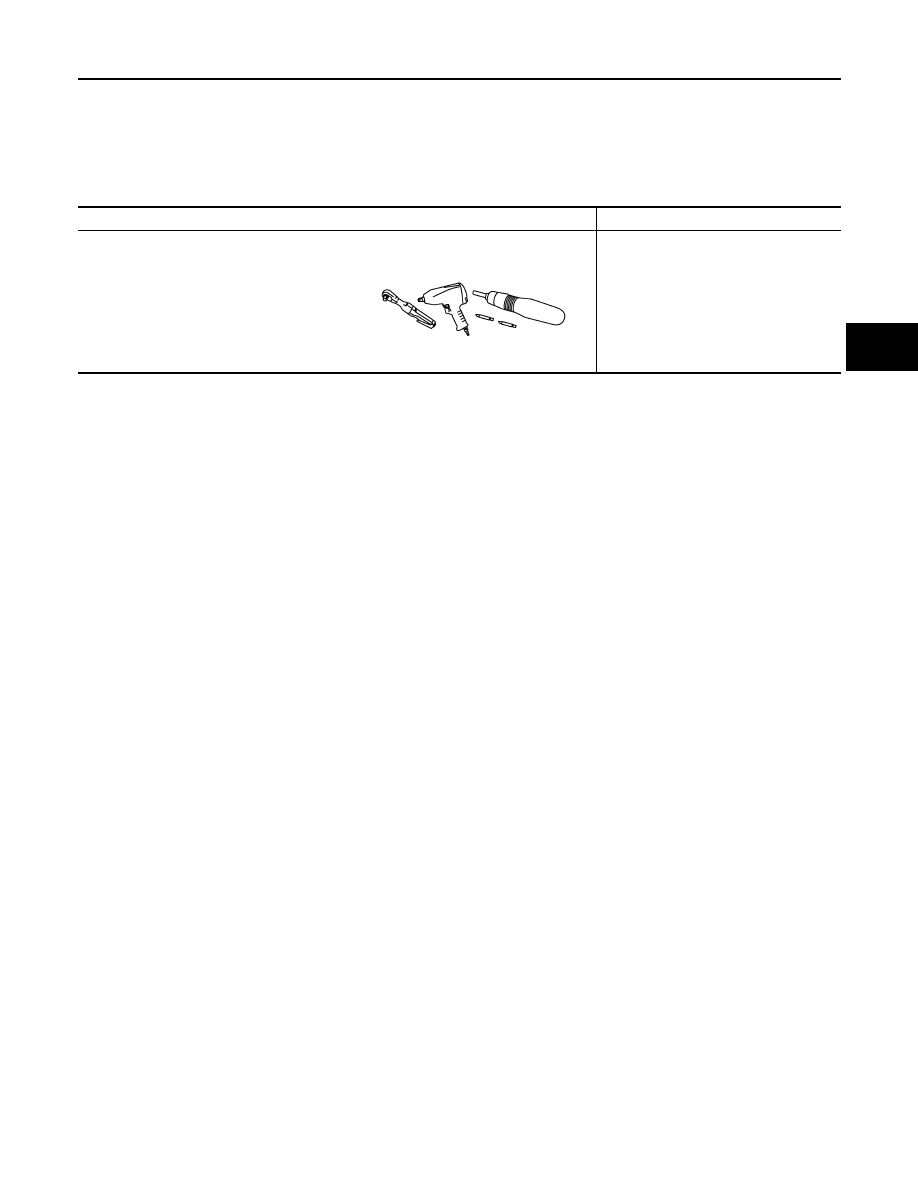

Commercial Service Tool

INFOID:0000000009478693

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E
