Nissan Frontier. Manual - part 105





BCS

BCM (BODY CONTROL MODULE)

BCS-49

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

REMOVAL AND INSTALLATION

BCM (BODY CONTROL MODULE)

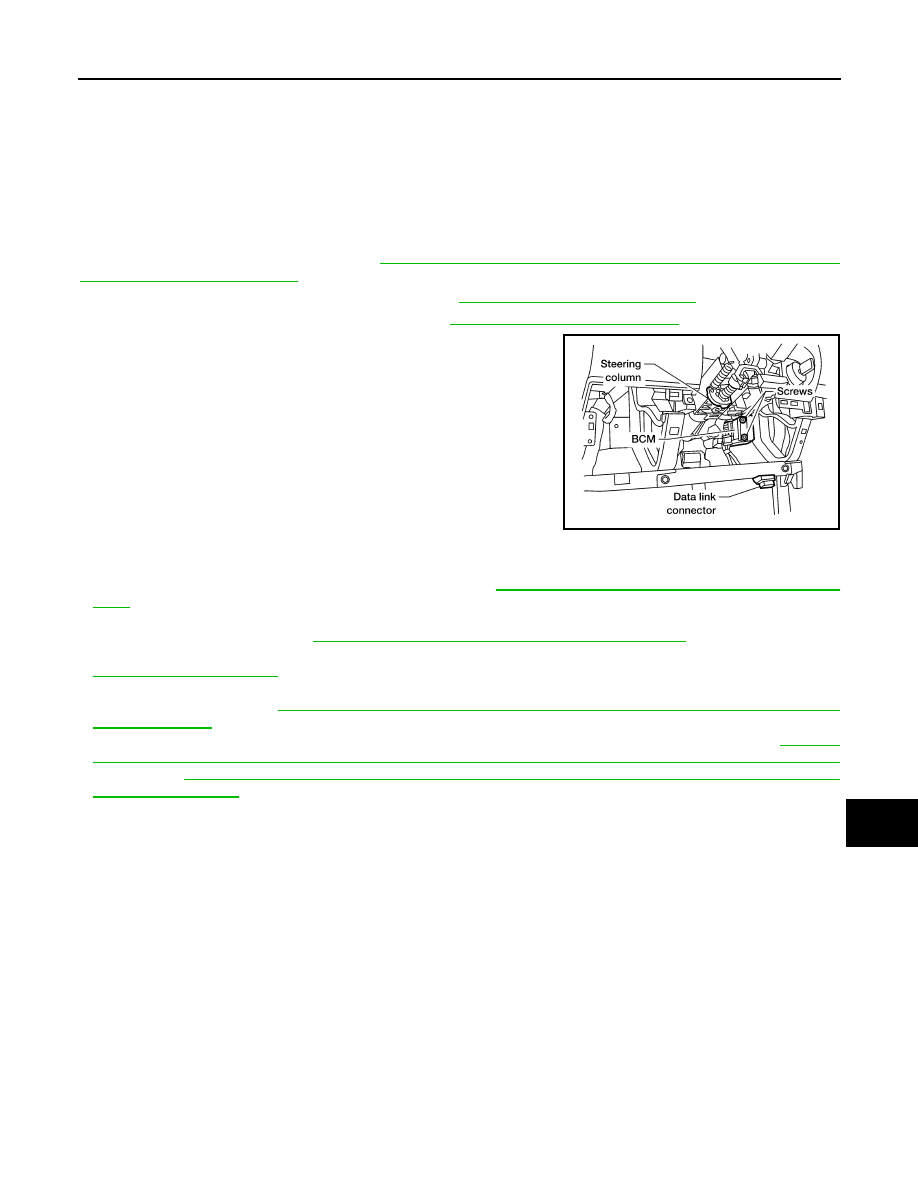

Removal and Installation

INFOID:0000000009479224

REMOVAL

NOTE:

If possible, before removing BCM, retrieve current BCM configuration to use for reference when configuring

brand-new BCM after installation. Refer to

BCS-3, "ADDITIONAL SERVICE WHEN REPLACING CONTROL

UNIT (BCM) : Work Procedure"

.

1. Disconnect the battery negative terminal. Refer to

PG-83, "Removal and Installation"

.

2. Remove the instrument lower panel LH. Refer to

IP-18, "Removal and Installation"

.

3. Remove the BCM screws and release the BCM.
4. Disconnect the harness conntectors from BCM and remove.

INSTALLATION

Installation is in the reverse order of removal.

• When replacing the BCM, it must be configured. Refer to

BCS-4, "CONFIGURATION (BCM) : Work Proce-

dure"

.

• When replacing the BCM, if equipped with NATS perform initialization of NATS system and registration of all

NATS ignition key IDs. Refer to

BCS-4, "CONFIGURATION (BCM) : Work Procedure"

.

• When replacing the BCM, perform ID registration procedure of low tire pressure warning system. Refer to

WT-5, "Preliminary Check"

.

• When replacing the BCM, if equipped with remote keyless entry, register the remote keyless entry system

keyfob ID codes. Refer to

BCS-3, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) :

Work Procedure"

.

• When replacing the BCM, perform adjustment procedure for the steering angle sensor. Refer to

BRC-12,

"ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

(TYPE 1) or

BRC-124, "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special

Repair Requirement"

 (TYPE 2).

LKIA0564E

BR-1

BRAKES

C

D

E

G

H

I

J

K

L

M

SECTION

BR

A

B

BR

N

O

P

CONTENTS

BRAKE SYSTEM

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

3

Precaution for Brake System  ....................................

3

PREPARATION ............................................

4

PREPARATION ...................................................

4

Special Service Tool  .................................................

4

Commercial Service Tool  ..........................................

4

SYSTEM DESCRIPTION  ..............................

5

NOISE, VIBRATION, AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

5

NVH Troubleshooting Chart  ......................................

5

BASIC INSPECTION  ....................................

6

FRONT DISC BRAKE .........................................

6

BRAKE PAD ................................................................

6

BRAKE PAD : Inspection  ..........................................

6

DISC ROTOR ...............................................................

6

DISC ROTOR : Inspection  ........................................

6

REAR DISC BRAKE ...........................................

8

BRAKE PAD ................................................................

8

BRAKE PAD : Inspection  ..........................................

8

DISC ROTOR ...............................................................

8

DISC ROTOR : Inspection  ........................................

8

BRAKE BOOSTER  .............................................

9

Inspection ..................................................................

9

VACUUM LINES .................................................

10

Inspection ................................................................

10

BRAKE MASTER CYLINDER  ..........................

11

On Board Inspection ................................................

11

BRAKE TUBE AND HOSE  ...............................

12

Hydraulic Circuit  ......................................................

12

FRONT BRAKE  .........................................................

14

FRONT BRAKE : Inspection ....................................

14

REAR BRAKE ............................................................

15

REAR BRAKE : Inspection  ......................................

15

PERIODIC MAINTENANCE  ........................

16

BRAKE PEDAL .................................................

16

Inspection and Adjustment  ......................................

16

BRAKE FLUID  ..................................................

18

On Board Inspection ................................................

18

Drain and Refill  ........................................................

18

Bleeding Brake System  ...........................................

18

REMOVAL AND INSTALLATION ...............

20

BRAKE PEDAL .................................................

20

Exploded View .........................................................

20

Removal and Installation  .........................................

20

BRAKE TUBE AND HOSE  ...............................

22

Hydraulic Circuit  ......................................................

22

Removal and Installation of Front Brake Piping
and Brake Hose .......................................................

24

Removal and Installation of Rear Brake Piping
and Brake Hose .......................................................

25

Inspection After Installation  .....................................

26

BRAKE MASTER CYLINDER  ..........................

28

Removal and Installation  .........................................

28

BRAKE BOOSTER  ...........................................

30

Removal and Installation  .........................................

30

VACUUM LINES  ...............................................

32

BR-2

Removal and Installation  ........................................

32

FRONT DISC BRAKE ........................................

33

Exploded View of Brake Pads  ................................

33

Removal and Installation of Brake Pad  ..................

33

Brake Burnishing  ....................................................

34

Exploded View of Brake Caliper  .............................

35

Removal and Installation of Brake Caliper and
Disc Rotor ..............................................................
.

35

REAR DISC BRAKE ..........................................

38

Exploded View of Brake Pad  ..................................

38

Removal and Installation of Brake Pad  ..................

38

Brake Burnishing  ....................................................

39

Exploded View of Brake Caliper  .............................

40

Removal and Installation of Brake Caliper and
Disc Rotor ..............................................................
.

40

UNIT DISASSEMBLY AND ASSEMBLY ....

43

BRAKE MASTER CYLINDER  ...........................

43

Disassembly and Assembly ....................................

43

FRONT DISC BRAKE  .......................................

45

Exploded View of Brake Caliper  .............................

45

Disassembly and Assembly  ....................................

45

REAR DISC BRAKE ..........................................

48

Exploded View of Brake Caliper  .............................

48

Disassembly and Assembly  ....................................

48

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

51

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

51

General Specification ..............................................

51

Brake Pedal  ............................................................

51

Brake Booster  .........................................................

52

Check Valve ............................................................

52

Front Disc Brake  .....................................................

52

Rear Disc Brake ......................................................

52

PRECAUTIONS

BR-3

< PRECAUTION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010077084

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Precaution for Brake System

INFOID:0000000009478727

• Recommended fluid is Genuine NISSAN Super Heavy Duty Brake Fluid or equivalent. Refer to

MA-16,

"FOR USA AND CANADA : Fluids and Lubricants"

. (United States and Canada) and

MA-18, "FOR MEXICO

: Fluids and Lubricants"

 (Mexico).

• Do not reuse drained brake fluid.

• Be careful not to splash brake fluid on painted areas.

• To clean or wash all parts of master cylinder, disc brake caliper and wheel cylinder, use clean brake fluid.

• Do not use mineral oils such as gasoline or kerosene. They will ruin rubber parts of the hydraulic system.

• Use flare nut wrench when removing and installing brake tube.

• Always check tightening torque when installing brake lines.

• Before working, turn ignition switch to OFF and disconnect con-

nectors for ABS actuator and electric unit (control unit) or battery

negative terminal.

• Burnish the brake contact surfaces after refinishing or replacing

drums or rotors, after replacing pads or linings, or if a soft pedal

occurs at very low mileage.

WARNING:

• Clean dust on caliper and brake pad with a vacuum dust col-

lector to minimize the hazard of airborne particles or other

materials.

SBR686C
