< SYSTEM DESCRIPTION >

METER SYSTEM

SPEEDOMETER

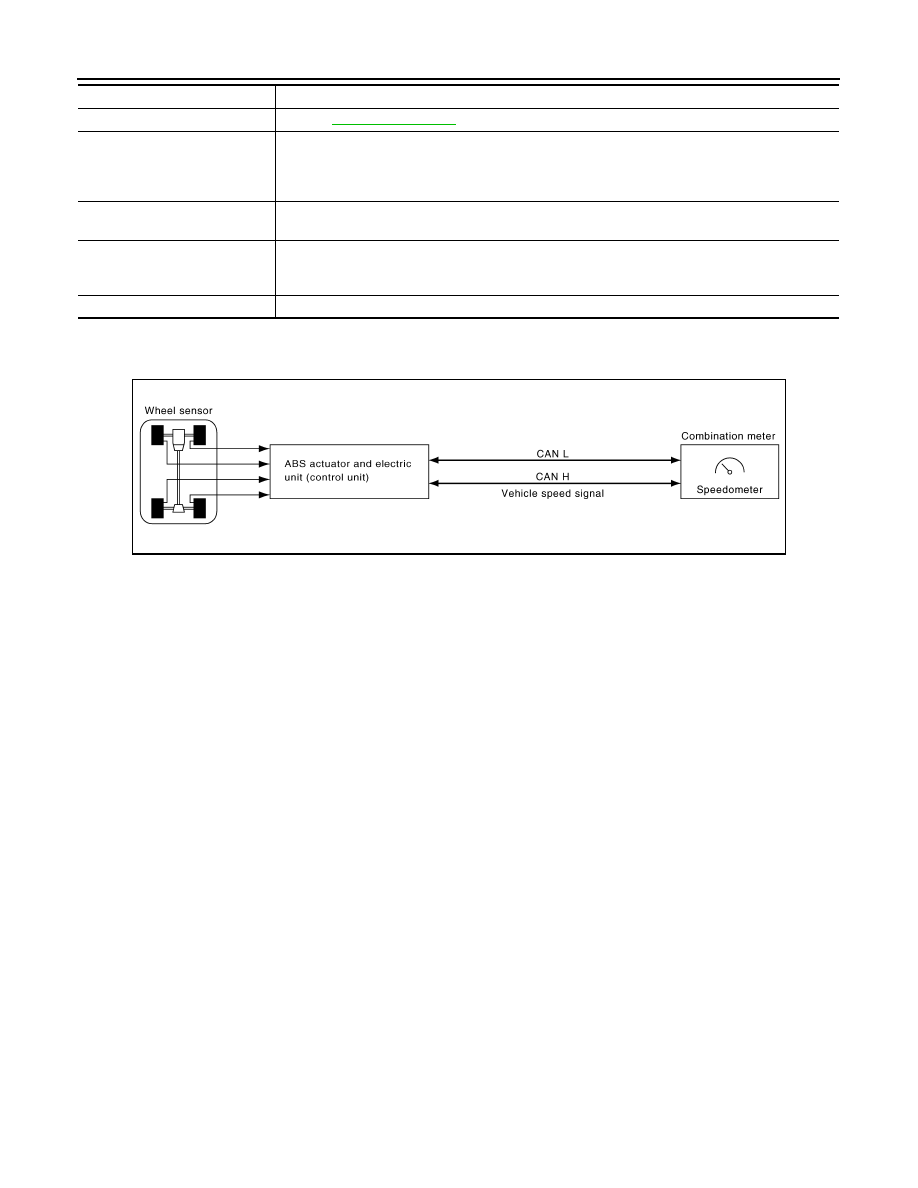

SPEEDOMETER : System Diagram

INFOID:0000000009480313

SPEEDOMETER : System Description

INFOID:0000000009480314

The ABS actuator and electric unit (control unit) provides a vehicle speed signal to the combination meter via

CAN communication lines.

Oil pressure switch

Refer to

MWI-37, "Description"

.

ECM

Transmits the following signals to the combination meter with CAN communication line.

• Engine speed signal

• Engine coolant temperature signal

• Fuel consumption monitor signal

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter with CAN communication line.

BCM

• Transmits signals provided by various units to the combination meter with CAN communication

line.

• Transmits the security signal to the combination meter.

TCM

Transmits shift position signal to the combination meter with CAN communication line.

Unit

Description

WKIA5370E

MWI

METER SYSTEM

MWI-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

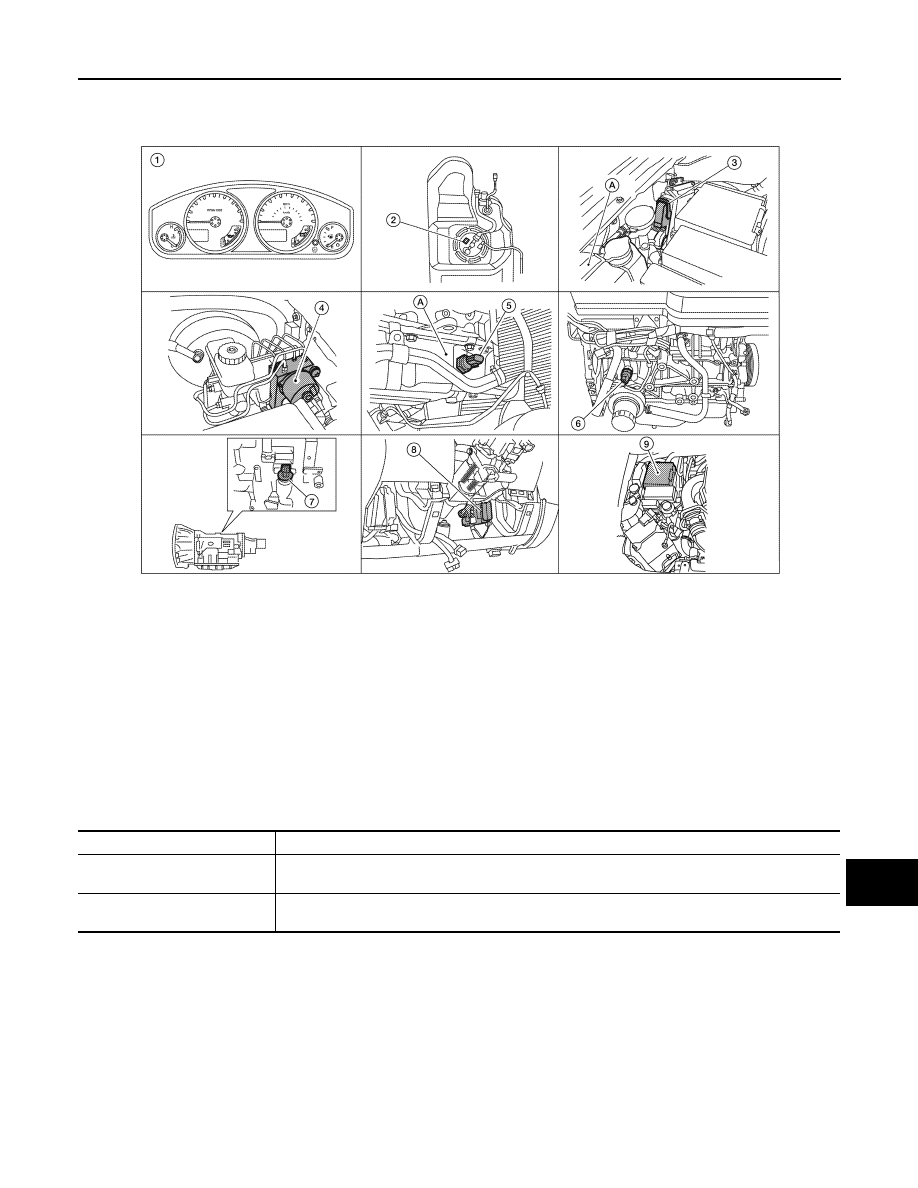

SPEEDOMETER : Component Parts Location

INFOID:0000000009480315

SPEEDOMETER : Component Description

INFOID:0000000009480316

TACHOMETER

AWNIA0781ZZ

1.

Combination meter M24

2.

Fuel level sensor unit and fuel pump C5
(view with fuel tank removed)

3.

ECM (view with ECM cover removed)
E8 (with VQ40DE for Mexico)
E16 (with QR25DE)
E55 (with VQ40DE except Mexico)
A. Coolant reservoir

4.

ABS actuator and electric unit (control
unit) E127

5.

Oil pressure switch E208 (with VQ40DE)
A. Oil pan (upper)

6.

Oil pressure switch F4 (with
QR25DE) (view with engine re-
moved)

7.

A/T assembly F9 (with A/T)

8.

BCM M18, M19 (view with lower instru-
ment panel LH removed)

9.

IPDM E/R E122, E124

Unit

Description

Combination meter

Indicates the vehicle speed according to the vehicle speed signal received from ABS actuator and
electric unit (control unit) via CAN communication.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter with CAN communication line.

MWI-10

< SYSTEM DESCRIPTION >

METER SYSTEM

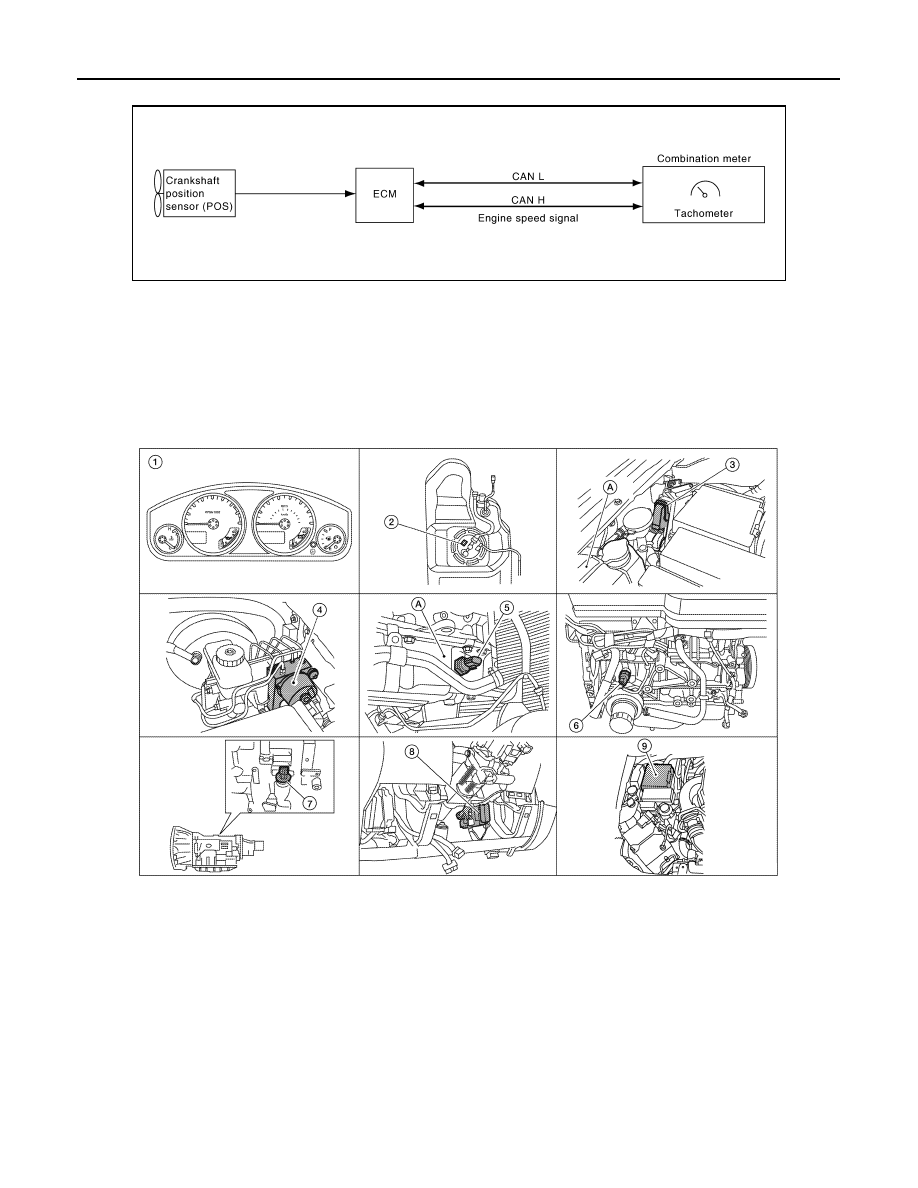

TACHOMETER : System Diagram

INFOID:0000000009480317

TACHOMETER : System Description

INFOID:0000000009480318

The tachometer indicates engine speed in revolutions per minute (rpm).

The ECM provides an engine speed signal to the combination meter via CAN communication lines.

TACHOMETER : Component Parts Location

INFOID:0000000009480319

SKIB6904E

AWNIA0781ZZ

1.

Combination meter M24

2.

Fuel level sensor unit and fuel pump C5
(view with fuel tank removed)

3.

ECM (view with ECM cover removed)
E8 (with VQ40DE for Mexico)
E16 (with QR25DE)
E55 (with VQ40DE except Mexico)
A. Coolant reservoir

4.

ABS actuator and electric unit (control
unit) E127

5.

Oil pressure switch E208 (with VQ40DE)
A. Oil pan (upper)

6.

Oil pressure switch F4 (with
QR25DE) (view with engine re-
moved)

7.

A/T assembly F9 (with A/T)

8.

BCM M18, M19 (view with lower instru-
ment panel LH removed)

9.

IPDM E/R E122, E124

MWI

METER SYSTEM

MWI-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

TACHOMETER : Component Description

INFOID:0000000009480320

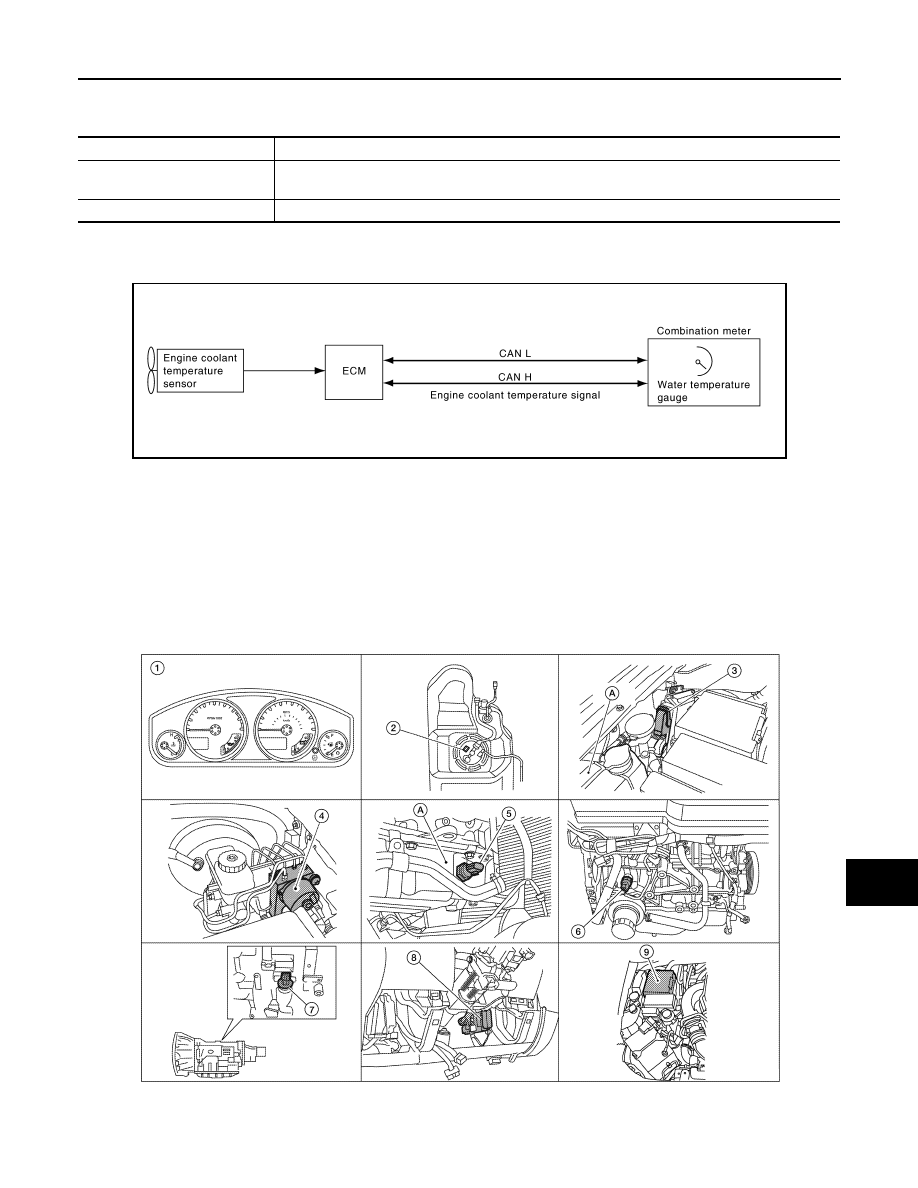

ENGINE COOLANT TEMPERATURE GAUGE
ENGINE COOLANT TEMPERATURE GAUGE : System Diagram

INFOID:0000000009480321

ENGINE COOLANT TEMPERATURE GAUGE : System Description

INFOID:0000000009480322

The engine coolant temperature gauge indicates the engine coolant temperature.

The ECM provides an engine coolant temperature signal to the combination meter via CAN communication

lines.

ENGINE COOLANT TEMPERATURE GAUGE : Component Parts Location

INFOID:0000000009480323

Unit

Description

Combination meter

Indicates the engine speed in RPM according to the engine speed signal received from ECM via
CAN communication.

ECM

Transmits the engine speed signal to the combination meter with CAN communication line.

SKIB6905E

AWNIA0781ZZ
