PREPARATION

MIR-21

< PREPARATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000010151044

The actual shape of the tools may differ from those illustrated here.

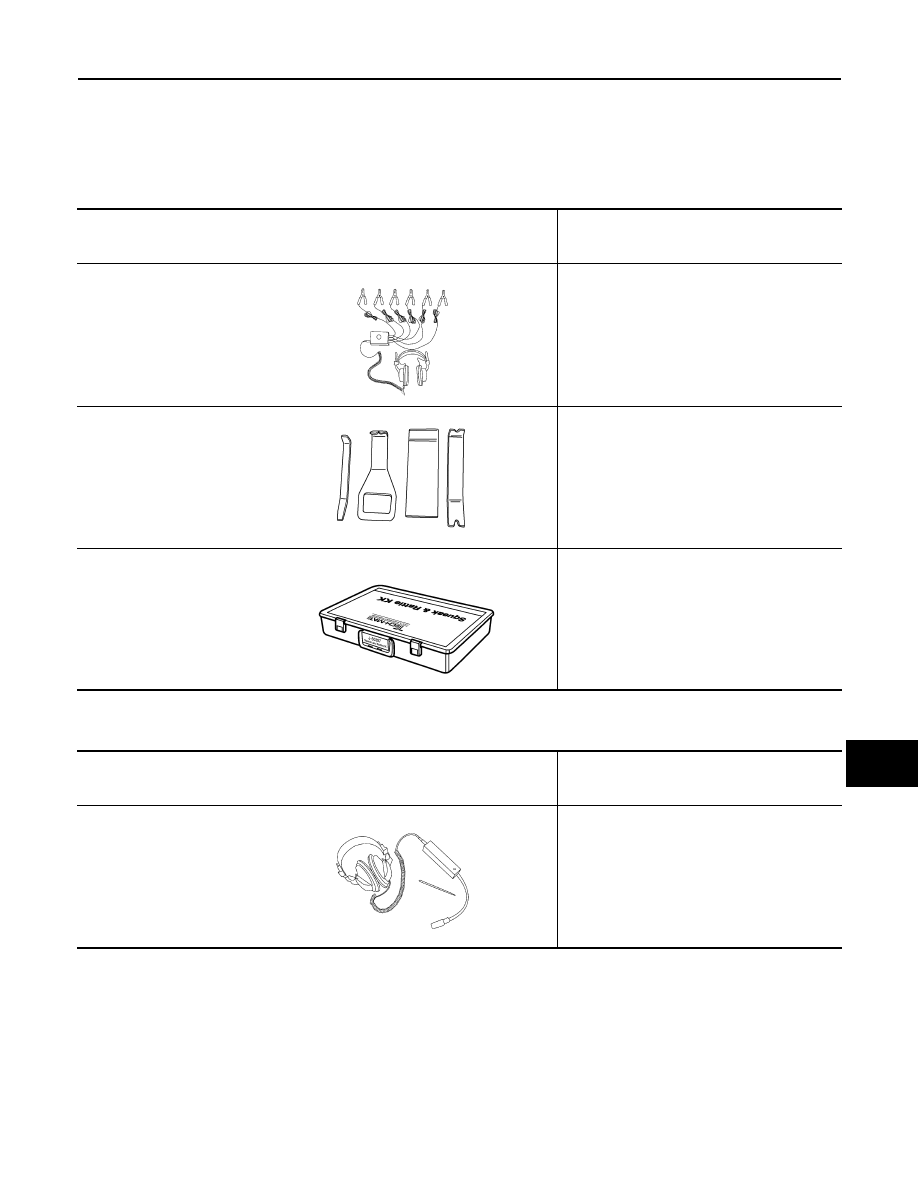

Commercial Service Tools

INFOID:0000000010151046

Tool number
(TechMate No.)
Tool name

Description

—

(J-39570)
Chassis Ear

Locating the noise

—

(J-46534)
Trim Tool Set

Removing trim components

—

(J-50397)
NISSAN Squeak and Rattle
Kit

Repairing the cause of noise

SIIA0993E

AWJIA0483ZZ

ALJIA1232ZZ

Tool number
(TechMate No.)
Tool name

Description

—

(J-39565)
Engine Ear

Locating the noise

SIIA0995E

MIR-22

< UNIT REMOVAL AND INSTALLATION >

INSIDE MIRROR

UNIT REMOVAL AND INSTALLATION

INSIDE MIRROR

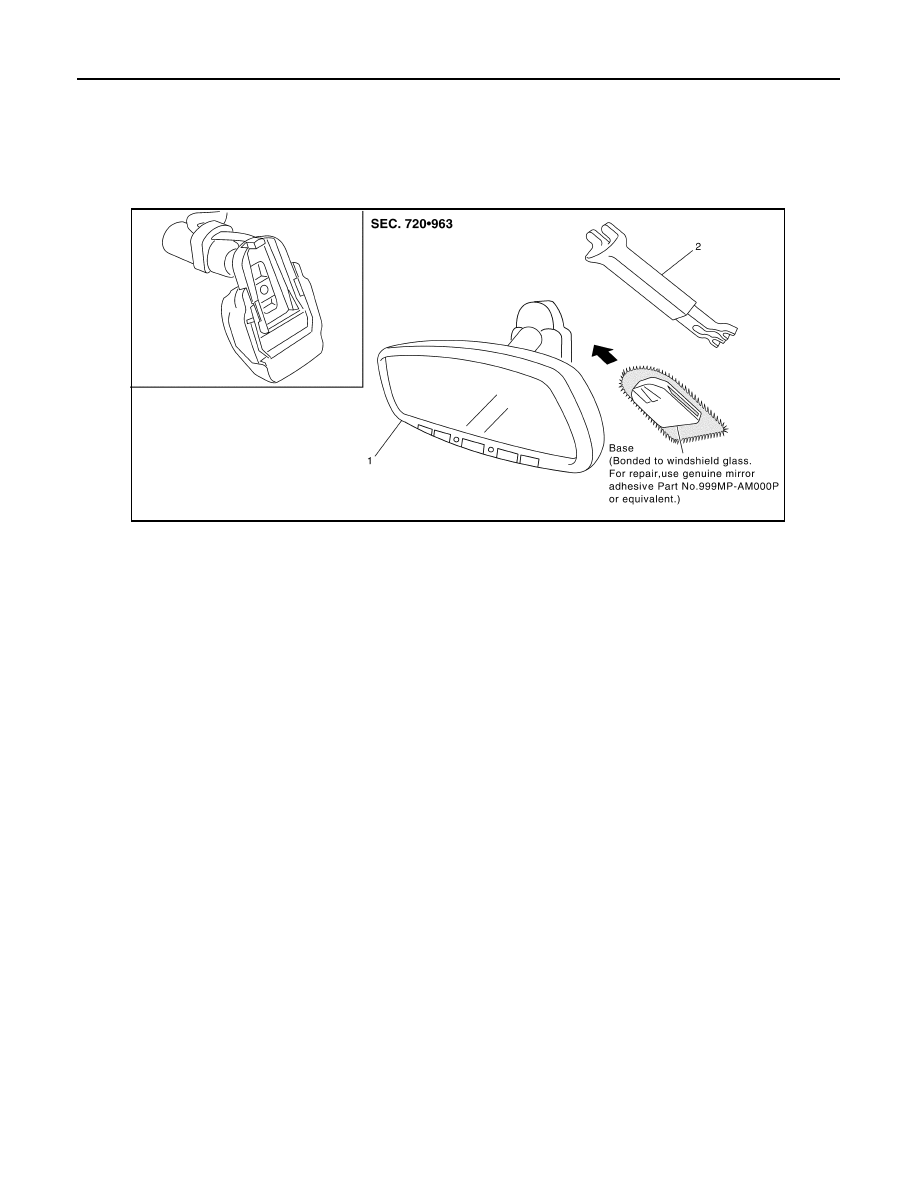

Inside Mirror Assembly

INFOID:0000000009479943

REMOVAL

1. Remove the mirror finisher (if equipped).
2. Remove the screw and slide the mirror upward to remove.
3. Disconnect the connector (if equipped).
4. Remove the inside mirror.

INSTALLATION

Installation is in the reverse order of removal.

1. Inside mirror

2. Inside mirror finisher (If equipped)

LIIA0277E

DOOR MIRROR

MIR-23

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DOOR MIRROR

Door Mirror Assembly

INFOID:0000000009479944

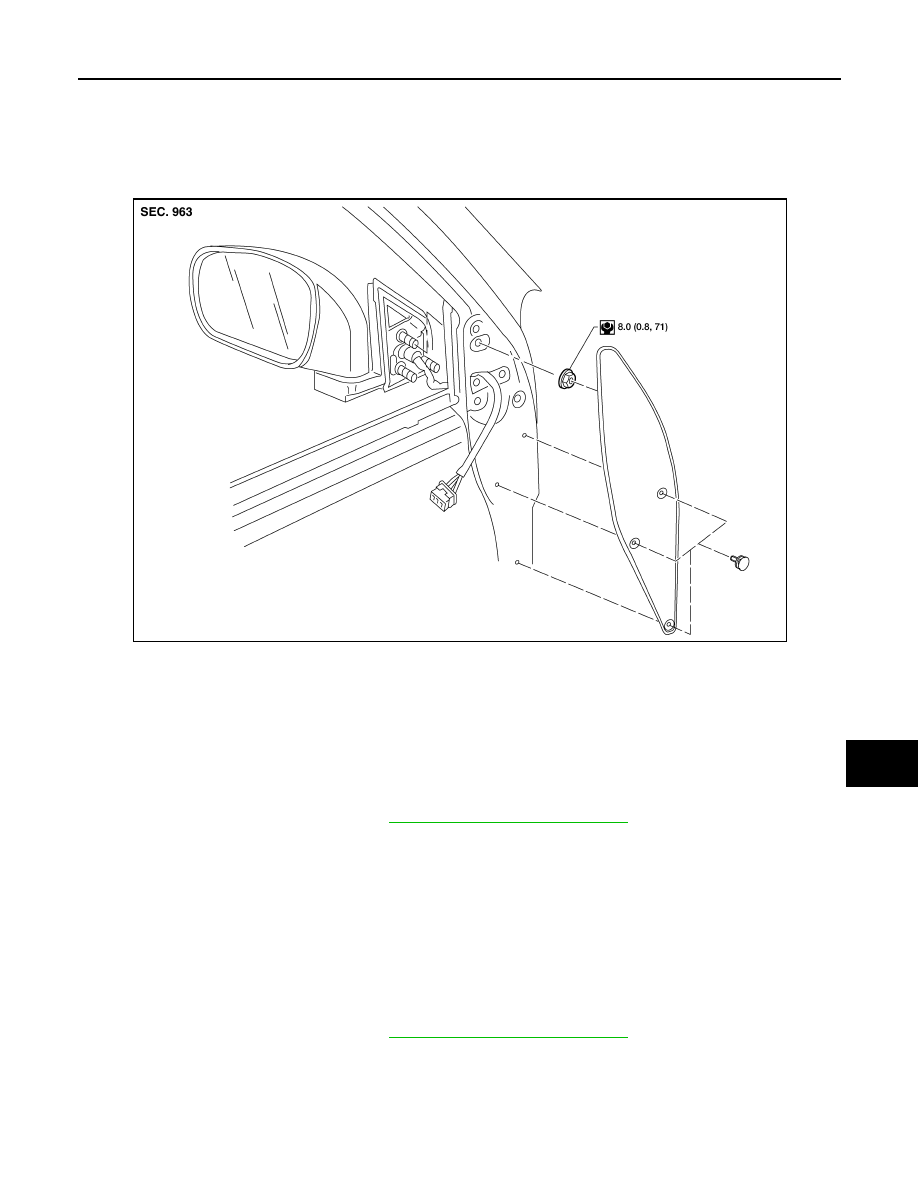

EXPLODED VIEW

NOTE:

Power mirror shown, manual mirror similar.

MANUAL MIRROR

CAUTION:

Be careful not to damage the mirror body.

Removal

1. Remove the front door sash cover.
2. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

.

3. Remove the nuts and the door mirror assembly.

Installation

Installation is in the reverse order of removal

POWER MIRROR

CAUTION:

Be careful not to damage the mirror body.

Removal

1. Remove the front door sash cover.
2. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

.

3. Disconnect the harness connector from the door mirror.
4. Remove the nuts and the door mirror assembly.

Installation

Installation is in the reverse order of removal.

AWIIA1222GB

MIR-24

< UNIT REMOVAL AND INSTALLATION >

DOOR MIRROR

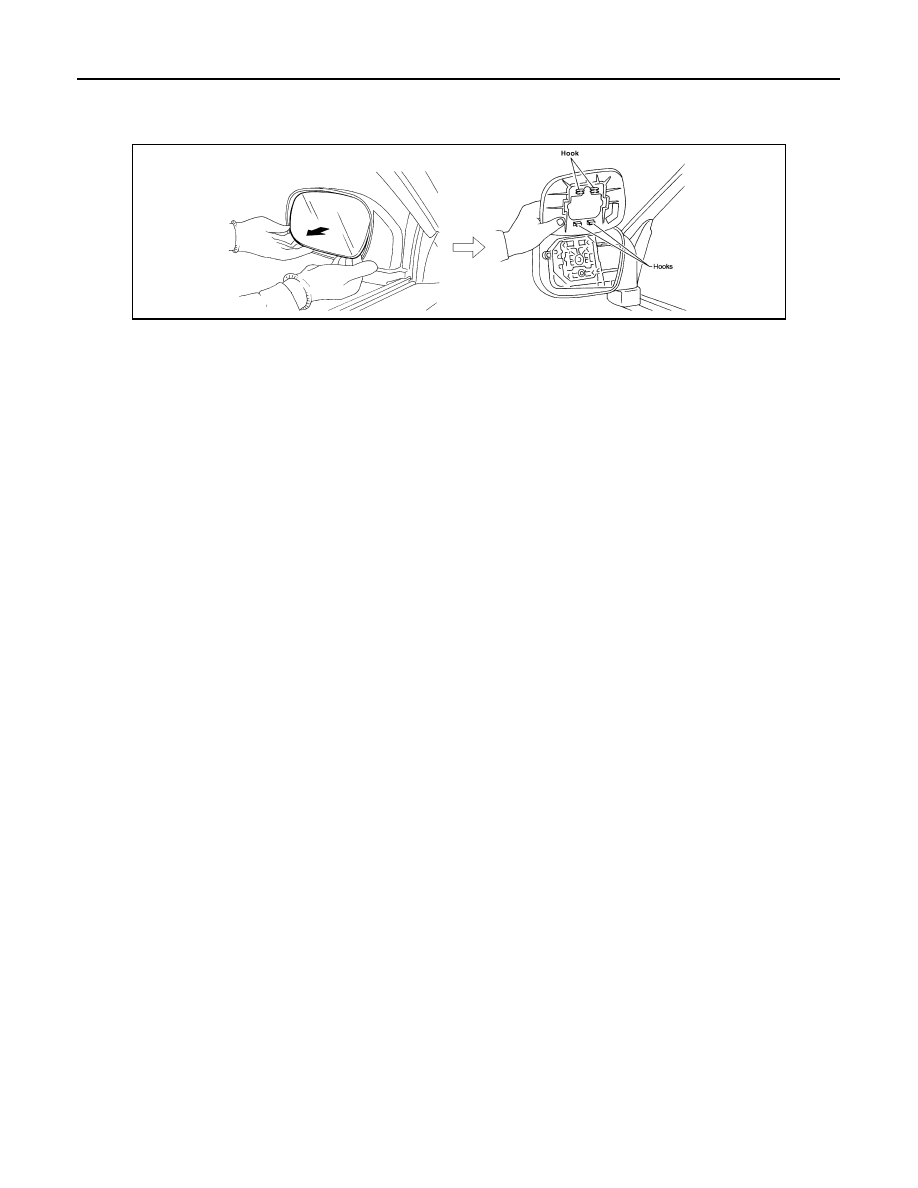

Door Mirror Glass

INFOID:0000000009479945

REMOVAL

1. Angle the mirror fully up.
2. Remove the door mirror.

• Pull from the bottom to disengage the clips.

• Continue to pivot the mirror upward from the bottom to separate the hooks.

• Disconnect the harness connectors (if equipped).

INSTALLATION

Installation is in the reverse order of removal.

LIIA1694E
