Nissan Frontier. Manual - part 100

BCS

COMBINATION SWITCH INPUT CIRCUIT

BCS-29

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

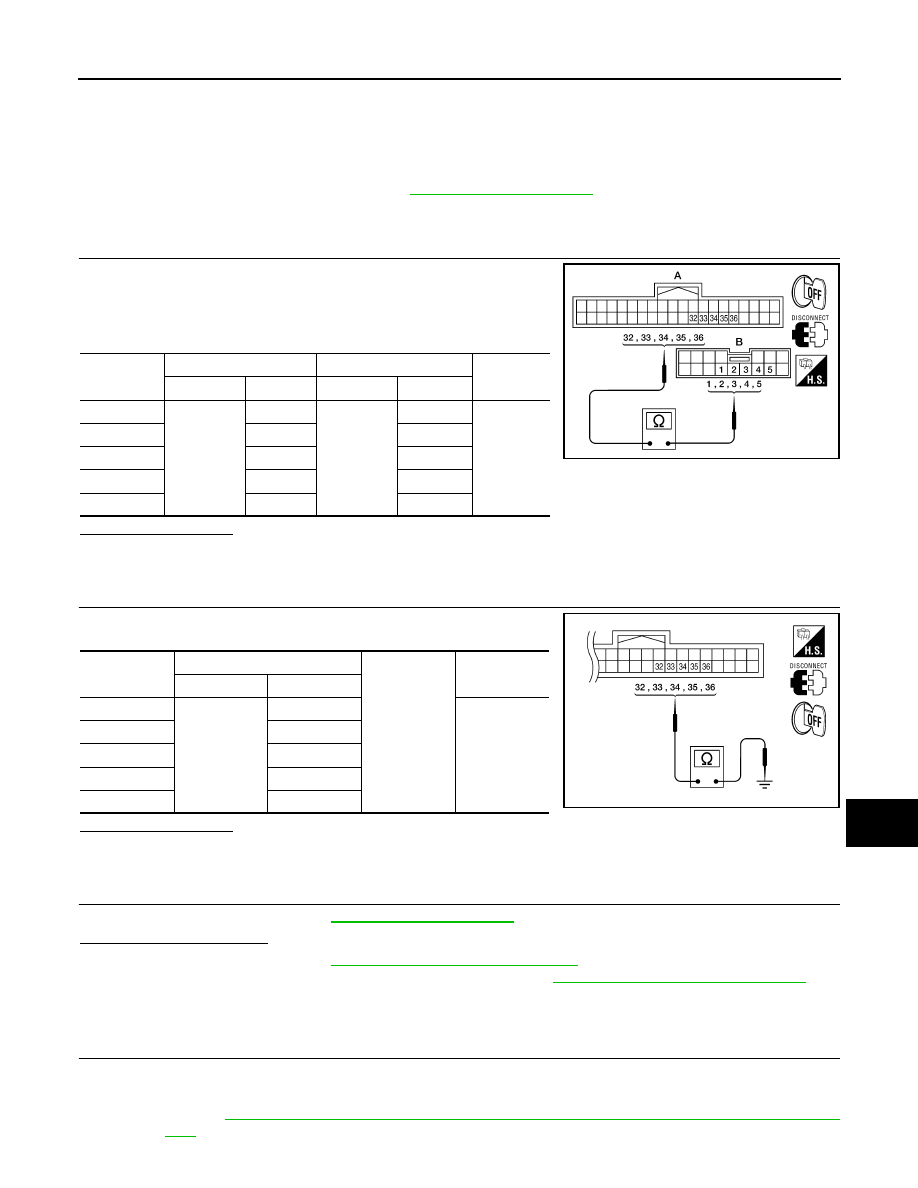

COMBINATION SWITCH INPUT CIRCUIT

Diagnosis Procedure

INFOID:0000000009479211

Regarding Wiring Diagram information, refer to

BCS-43, "Wiring Diagram"

.

1.

 CHECK INPUT 1 - 5 SYSTEM CIRCUIT FOR OPEN

1. Turn ignition switch OFF.

2. Disconnect BCM and combination switch.

3. Check continuity between BCM harness connector and combi-

nation switch harness connector.

Does continuity exist?

YES

>> GO TO 2

NO

>> Repair or replace harness.

2.

 CHECK INPUT 1 - 5 SYSTEM CIRCUIT FOR SHORT

Check for continuity between BCM harness connector and ground.

Does continuity exist?

YES

>> Repair or replace harness.

NO

>> GO TO 3

3.

 CHECK COMBINATION SWITCH

Check combination switch. Refer to

BCS-47, "Symptom Table"

.

Is the check result normal?

YES

>> Replace BCM. Refer to

BCS-49, "Removal and Installation"

.

NO

>> Replace combination switch (applicable parts). Refer to

EXL-147, "Removal and Installation"

.

Special Repair Requirement

INFOID:0000000009479212

1.

 ADDITIONAL SERVICE WHEN REPLACING BCM

>> Refer to

BCS-3, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) : Descrip-

tion"

.

System

BCM

Combination switch

Continuity

Connector

Terminal

Connector

Terminal

INPUT 1

M18

(A)

36

M28

(B)

1

Yes

INPUT 2

35

2

INPUT 3

34

3

INPUT 4

33

4

INPUT 5

32

5

ALMIA0278ZZ

System

BCM

Ground

Continuity

Connector

Terminal

INPUT 1

M18

36

No

INPUT 2

35

INPUT 3

34

INPUT 4

33

INPUT 5

32

ALMIA0279ZZ

BCS-30

< DTC/CIRCUIT DIAGNOSIS >

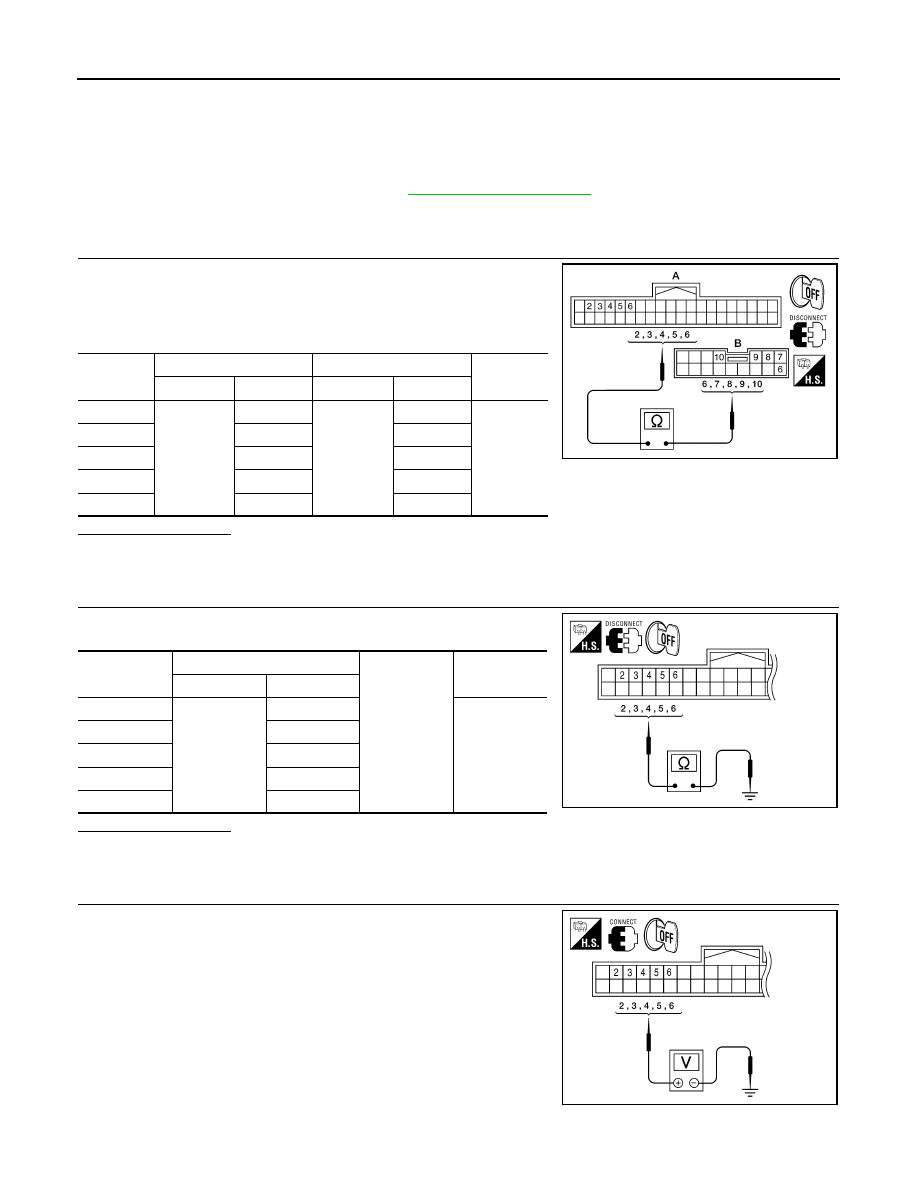

COMBINATION SWITCH OUTPUT CIRCUIT

COMBINATION SWITCH OUTPUT CIRCUIT

Diagnosis Procedure

INFOID:0000000009479213

Regarding Wiring Diagram information, refer to

BCS-43, "Wiring Diagram"

.

1.

 CHECK OUTPUT 1 - 5 SYSTEM CIRCUIT FOR OPEN

1. Turn ignition switch OFF.

2. Disconnect BCM and combination switch.

3. Check continuity between BCM harness connector and combi-

nation switch harness connector.

Does continuity exist?

YES

>> GO TO 2

NO

>> Repair or replace harness.

2.

 CHECK OUTPUT 1 - 5 SYSTEM CIRCUIT FOR SHORT

Check for continuity between BCM harness connector and ground.

Does continuity exist?

YES

>> Repair or replace harness.

NO

>> GO TO 3

3.

 CHECK BCM INPUT VOLTAGE

1. Connect BCM.

2. Turn ignition switch ON.

3. Check voltage between BCM harness connector and ground.

System

BCM

Combination switch

Continuity

Connector

Terminal

Connector

Terminal

OUTPUT 1

M18

(A)

6

M28

(B)

6

Yes

OUTPUT 2

5

7

OUTPUT 3

4

10

OUTPUT 4

3

9

OUTPUT 5

2

8

ALMIA0275ZZ

System

BCM

Ground

Continuity

Connector

Terminal

OUTPUT 1

M18

6

No

OUTPUT 2

5

OUTPUT 3

4

OUTPUT 4

3

OUTPUT 5

2

ALMIA0276ZZ

ALMIA0277ZZ

BCS

COMBINATION SWITCH OUTPUT CIRCUIT

BCS-31

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Is the measurement value normal?

YES

>> GO TO 4

NO

>> Replace BCM. Refer to

BCS-49, "Removal and Installation"

.

4.

 CHECK COMBINATION SWITCH

Check combination switch. Refer to

BCS-47, "Symptom Table"

.

Is the check result normal?

YES

>> Replace BCM. Refer to

BCS-49, "Removal and Installation"

.

NO

>> Replace the combination switch (applicable parts). Refer to

EXL-147, "Removal and Installation"

.

Special Repair Requirement

INFOID:0000000009479214

1.

 ADDITIONAL SERVICE WHEN REPLACING BCM

>> Refer to

BCS-3, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) : Descrip-

tion"

.

System

Terminals

Voltage

(Approx.)

(+)

(

−)

BCM

Ground

Connector

Terminal

INPUT 1

M18

6

Refer to

BCS-

35, "Physical

Values"

.

INPUT 2

5

INPUT 3

4

INPUT 4

3

INPUT 5

2

BCS-32

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

ECU DIAGNOSIS INFORMATION

BCM (BODY CONTROL MODULE)

Reference Value

INFOID:0000000009479215

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Activate and display TPMS transmitter IDs

• Display tire pressure reported by the TPMS transmitter

• Read TPMS DTCs

• Register TPMS transmitter IDs

• Test remote keyless entry keyfob relative signal strength

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

ACC ON SW

Ignition switch OFF or ON

Off

Ignition switch ACC

On

AIR COND SW

A/C switch OFF

Off

A/C switch ON

On

AIR PRESS FL

Front left tire air pressure value

kPa, kg/cm

2

, psi

AIR PRESS FR

Front right tire air pressure value

kPa, kg/cm

2

, psi

AIR PRESS RL

Rear left tire air pressure value

kPa, kg/cm

2

, psi

AIR PRESS RR

Rear right tire air pressure value

kPa, kg/cm

2

, psi

AUTO LIGHT SW

Lighting switch OFF

Off

Lighting switch AUTO

On

BRAKE SW

Brake pedal released

Off

Brake pedal applied

On

BUCKLE SW

Seat belt buckle unfastened

Off

Seat belt buckle fastened

On

BUZZER

Buzzer in combination meter OFF

Off

Buzzer in combination meter ON

On

CARGO LAMP SW

Cargo lamp switch OFF

Off

Cargo lamp switch ON

On

CDL LOCK SW

Door lock/unlock switch does not operate

Off

Press door lock/unlock switch to the LOCK side

On

CDL UNLOCK SW

Door lock/unlock switch does not operate

Off

Press door lock/unlock switch to the UNLOCK side

On

DOOR SW-AS

Front door RH closed

Off

Front door RH opened

On

DOOR SW-DR

Front door LH closed

Off

Front door LH opened

On

DOOR SW-RL

Rear door LH closed

Off

Rear door LH opened

On

DOOR SW-RR

Rear door RH closed

Off

Rear door RH opened

On
