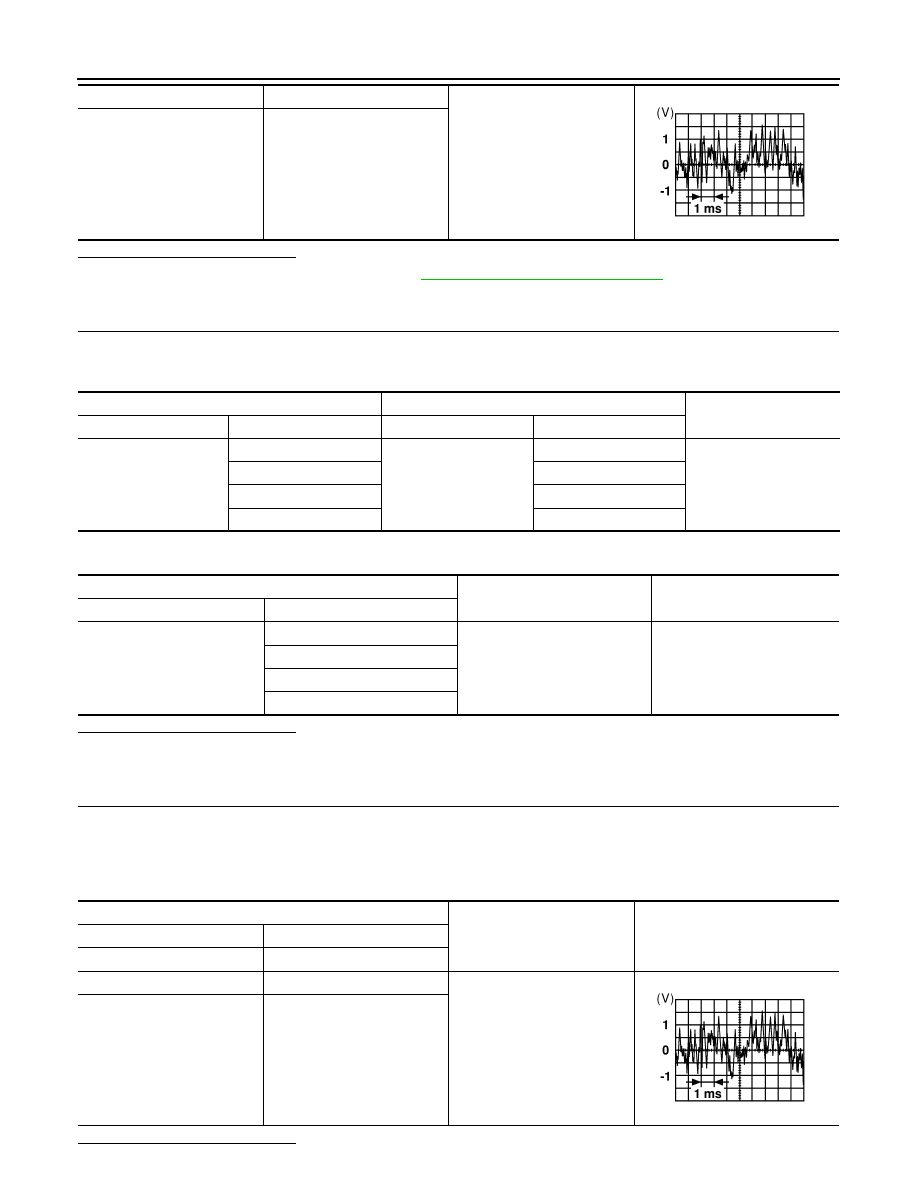

AV-200 < DTC/CIRCUIT DIAGNOSIS > [DISPLAY AUDIO WITH AMPLIFIER] POWER SUPPLY AND GROUND CIRCUIT 4. Check continuity between microphone connector R8 and ground. Is the inspection result normal? YES >> Replace the Bluetooth ® AV-151, "Removal and Installation" . NO >> Repair or replace harness or connectors. 3. CHECK GROUND CIRCUIT 1. Turn ignition switch OFF. ® control unit connector B141. 3. Check continuity between microphone connector R8 and Bluetooth ® control unit connector B141. Is the inspection result normal? YES >> Inspection End. NO >> Repair or replace harness or connectors. Microphone Bluetooth ® control unit Continuity Connector Terminal Connector Terminal R8 4 B141 29 Yes Microphone — Continuity Connector Terminal R8 4 Ground No Microphone Bluetooth ® control unit Continuity Connector Terminal Connector Terminal R8 2 B141 8 Yes |
