AV-176
< ECU DIAGNOSIS INFORMATION >
[DISPLAY AUDIO WITH AMPLIFIER]

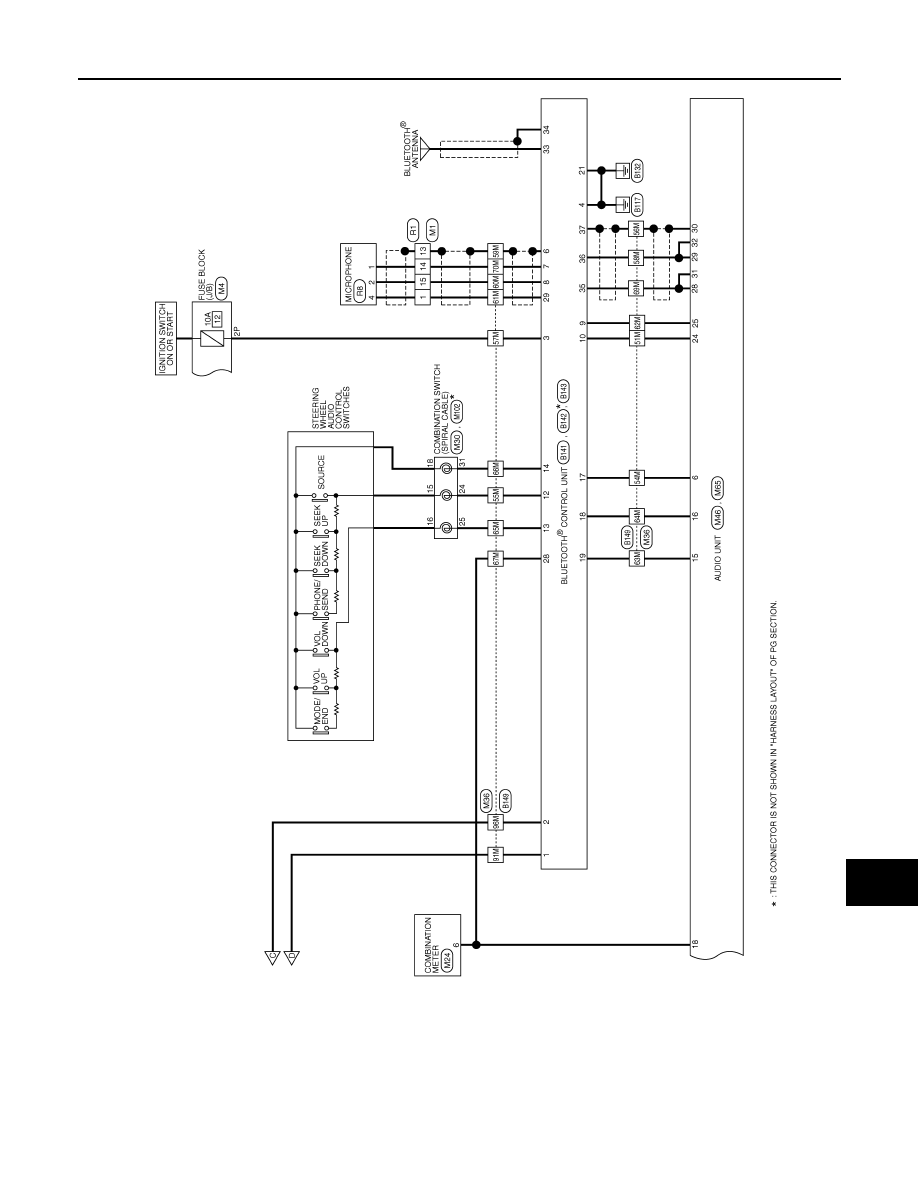

BLUETOOTH® CONTROL UNIT
14
(G)
-
Ladder in ground
Input
-
-
-
17
(V)
Ground Ladder out 1
Input
ACC
or
ON
Press and hold MODE
switch.
0 V
Press and hold switch.
1.34 V
Press and hold switch.
2.45 V
Press and hold
switch.
3.43 V
Except for above.
5.0 V
18
(LG)
Ground Ladder out 2
Input
ACC
or
ON
Press VOL DOWN switch
0 V
Press VOL UP switch.
1.34 V
Press
switch.
2.45 V
Except for above.
5.0 V
19
(BG)
Ground Ladder out ground
Output
–
–-
–
21
(B)
Ground Cont 2
–
–
–
0V
28
(SB)
Ground
Vehicle speed signal (8-
pulse)
Input
ON
When vehicle speed is ap-
prox. 40 km/h (25 MPH)
29
(Y)
Ground Microphone power
Output
ON
–
5V
33
(B)
–
Bluetooth
®
antenna
–
–
–
—
34 –
Bluetooth
®
antenna shield
–
–
–
—
35
(R)
–
MCAN H
–
–
–
—
36
(G)
–
MCAN L
–
–
–
—
37
–
MCAN shield
–
–
–
—
Terminal
(wire color)
Description
Condition
Reference value
(Approx.)
+
–
Signal name
Input/
output
Ignition
switch
Condition
PKIA1935E
