AV-24

< DTC/CIRCUIT DIAGNOSIS >

[BASE AUDIO (EXCEPT MEXICO)]

MICROPHONE SIGNAL CIRCUIT

Is the inspection result normal?

YES

>> Replace Bluetooth

®

 control unit. Refer to

AV-54, "Removal and Installation"

.

NO

>> Replace microphone. Refer to

AV-56, "Removal and Installation"

.

Bluetooth

®

 control unit connector B141

Condition

Reference signal

(+)

(-)

Terminal

Terminal

7

8

Speak into microphone.

PKIB5037J

AV

AUDIO UNIT

AV-25

< ECU DIAGNOSIS INFORMATION >

[BASE AUDIO (EXCEPT MEXICO)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

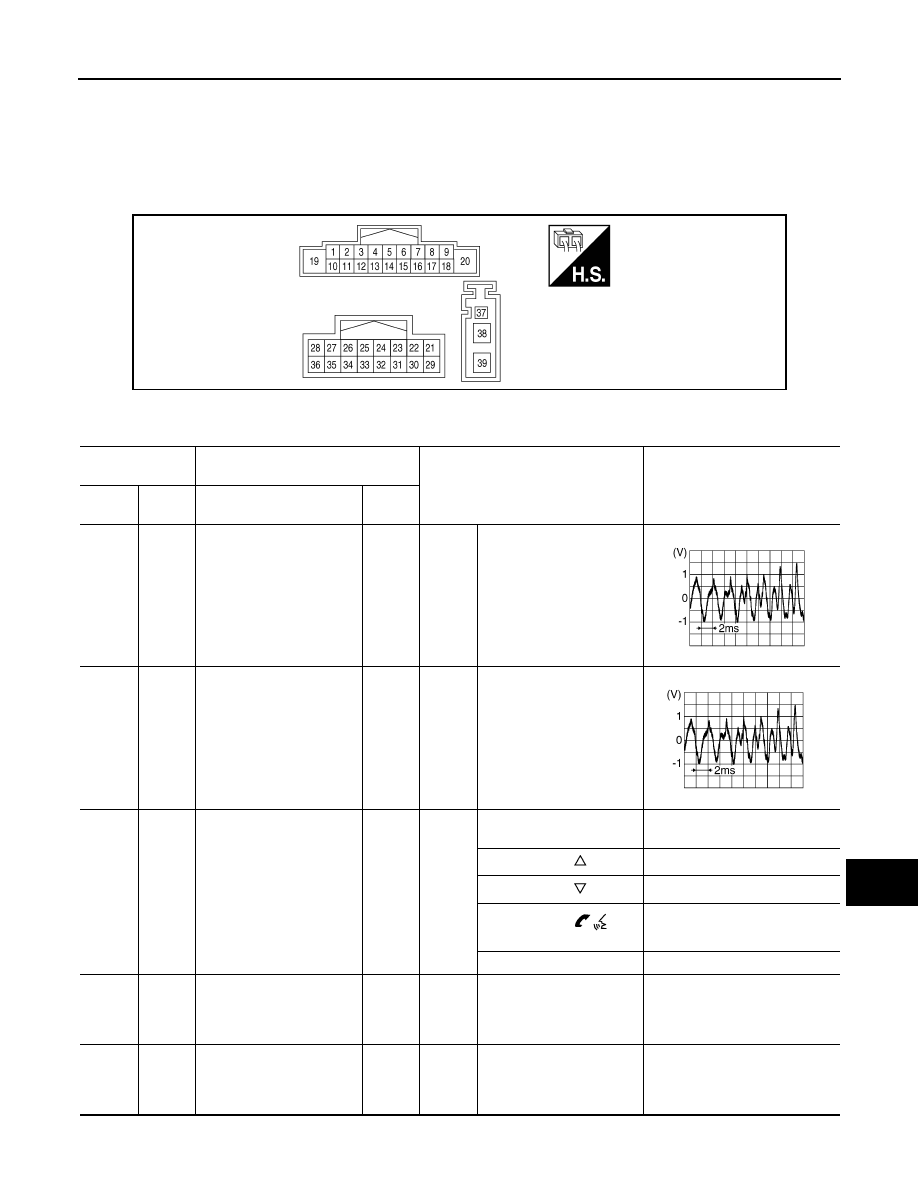

ECU DIAGNOSIS INFORMATION

AUDIO UNIT

Reference Value

INFOID:0000000009482083

TERMINAL LAYOUT

PHYSICAL VALUES

AWNIA3319ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

2

(BR)

3

(L)

Sound signal front door
speaker and  front tweeter
LH

Output

Ignition

switch

ON

Audio output

4

(G)

5

(B)

Sound signal rear door
speaker LH

Output

Ignition

switch

ON

Audio output

6

(V)

Ground STRG SW A

Input

ON

Press and hold MODE
switch.

0 V

Press and hold   switch.

1.34 V

Press and hold   switch.

2.45 V

Press and hold



switch.

3.43 V

Except for above.

5.0 V

7

(G/B)

Ground ACC power supply

Input

Ignition

switch

ACC or

ON

—

Battery voltage

8

(GR)

Ground ILL control

Input

Ignition

switch

ACC or

ON

—

0V

SKIB3609E

SKIB3609E

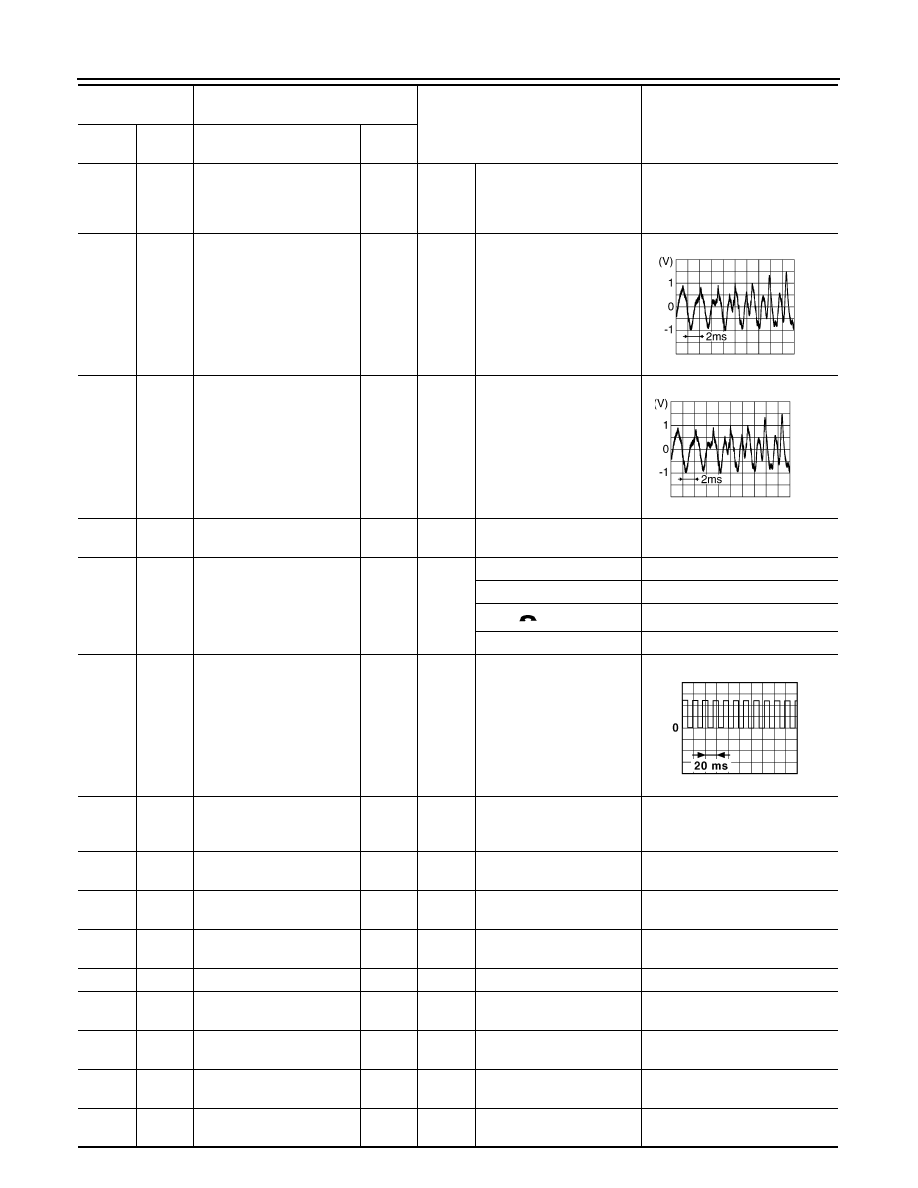

AV-26

< ECU DIAGNOSIS INFORMATION >

[BASE AUDIO (EXCEPT MEXICO)]

AUDIO UNIT

9

(R)

Ground Light switch

Input

Ignition

switch

ACC or

ON

—

Battery voltage

11

(LG)

12

(R)

Sound signal front door
speaker and front tweeter
RH

Output

Ignition

switch

ON

Voice output

13

(GR)

14

(BG)

Sound signal rear door
speaker RH

Output

Ignition

switch

ON

Voice output

15

(BG)

–

STRG SW ground

Output

–

–

–

16

(LG)

Ground  STRG SW B

Input

ON

Press VOL DOWN switch

 0 V

Press VOL UP switch.

1.34 V

Press

switch.

2.45 V

Except for above.

5.0 V

18

(SB)

Ground Vehicle speed signal

Input

ON

When vehicle speed is ap-
prox. 40 km/h (25 MPH)

19

(Y)

Ground Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

20

(B)

—

GND

—

—

—

—

21

(G)

—

MCAN1 L

—

—

—

—

22

(R)

—

MCAN1 H

—

—

—

—

23

—

MCAN shield

—

—

—

—

25

(BR)

—

EQ4 Ground

—

—

—

—

26

(L)

—

EQ3 Ground

—

—

—

—

27

(G)

—

EQ2 Ground

—

—

—

—

29

(W)

—

MCAN2 L

—

—

—

—

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3609E

SKIB3609E

JSNIA0012GB

AV

AUDIO UNIT

AV-27

< ECU DIAGNOSIS INFORMATION >

[BASE AUDIO (EXCEPT MEXICO)]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

30

(L)

—

MCAN2 H

—

—

—

—

33

(W)

34

(GR)

Telephone audio in

—

—

—

—

36

(R)

Ground Telephone ON

Output

ON

—

—

38

(B)

Ground AM-FM main antenna

Input

ON

—

5.0 V

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output
