TRANSMITTER

TRANSMITTER

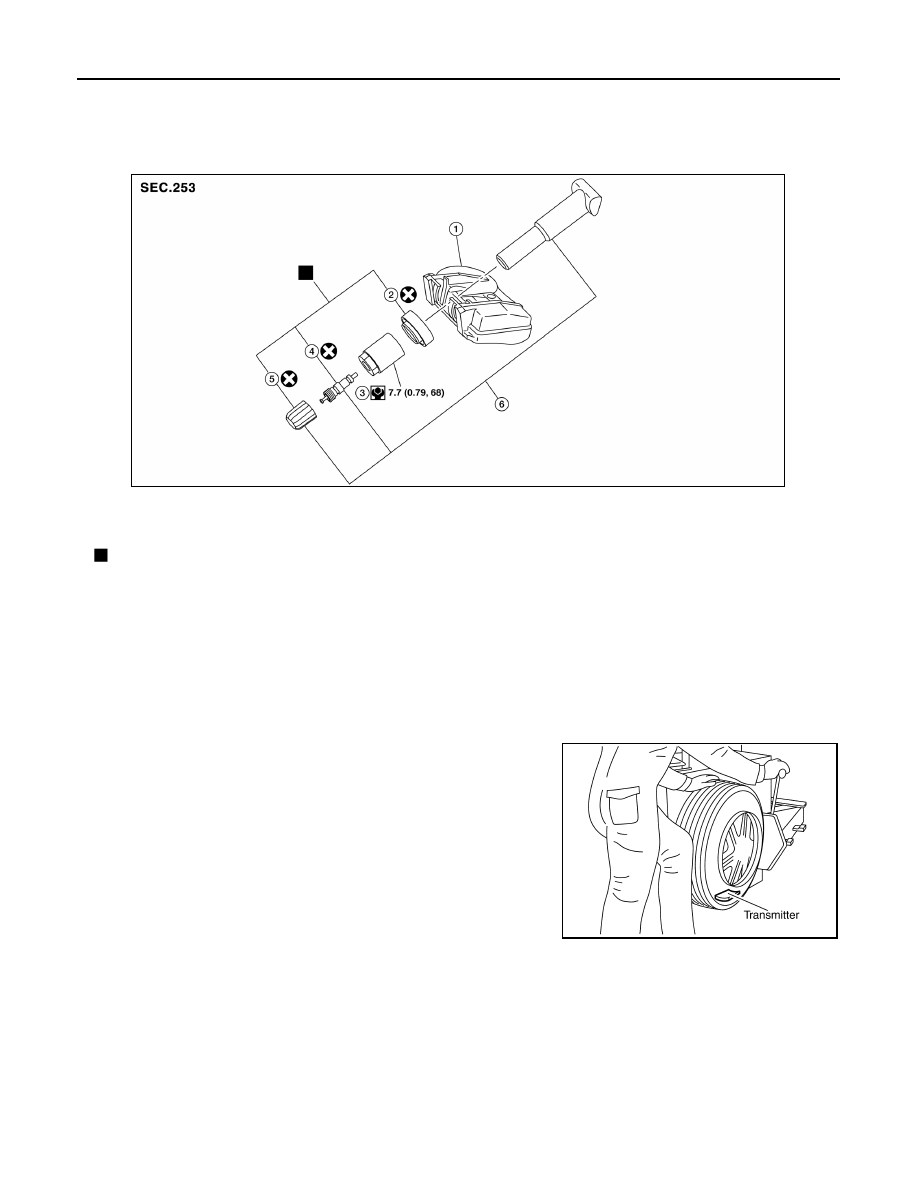

Exploded View

INFOID:0000000009758170

Removal and Installation

INFOID:0000000009758171

REMOVAL

1. Remove road wheel and tire assembly using power tool.
2. Remove valve cap and valve core to deflate the tire.

NOTE:

If the tire is to be reused, apply a matching mark on the tire in line with the position of the road wheel valve

stem assembly for the purpose of road wheel and tire balance adjustment after installation.

3. Remove the valve stem nut and allow transmitter to fall into tire.

4. Lubricate the tire outside bead well with a suitable non-silicone lubricant, and remove outside of tire from

the road wheel. Reach inside the tire and remove the transmitter.

CAUTION:

• Do not use silicone lubricant. Use of silicone lubricant will deteriorate the tire and road wheel.

• Be sure not to damage the road wheel or transmitter.

• Do not allow lubricant to make contact with transmitter.

5. Lubricate the tire inside bead well with a suitable non-silicone lubricant, and remove inside of tire from the

road wheel.

CAUTION:

• Do not use silicone lubricant. Use of silicone lubricant will deteriorate the tire and road wheel.

1.

Transmitter (tire pressure sensor)

2.

O-ring

3.

Valve stem nut

4.

Valve core

5.

Valve cap

6.

Valve stem assembly

:

Parts that are replaced as a set when the tire is replaced.

AWEIA0212GB

SEIA0047E

TRANSMITTER

WT-51

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

• Be sure not to damage the road wheel.

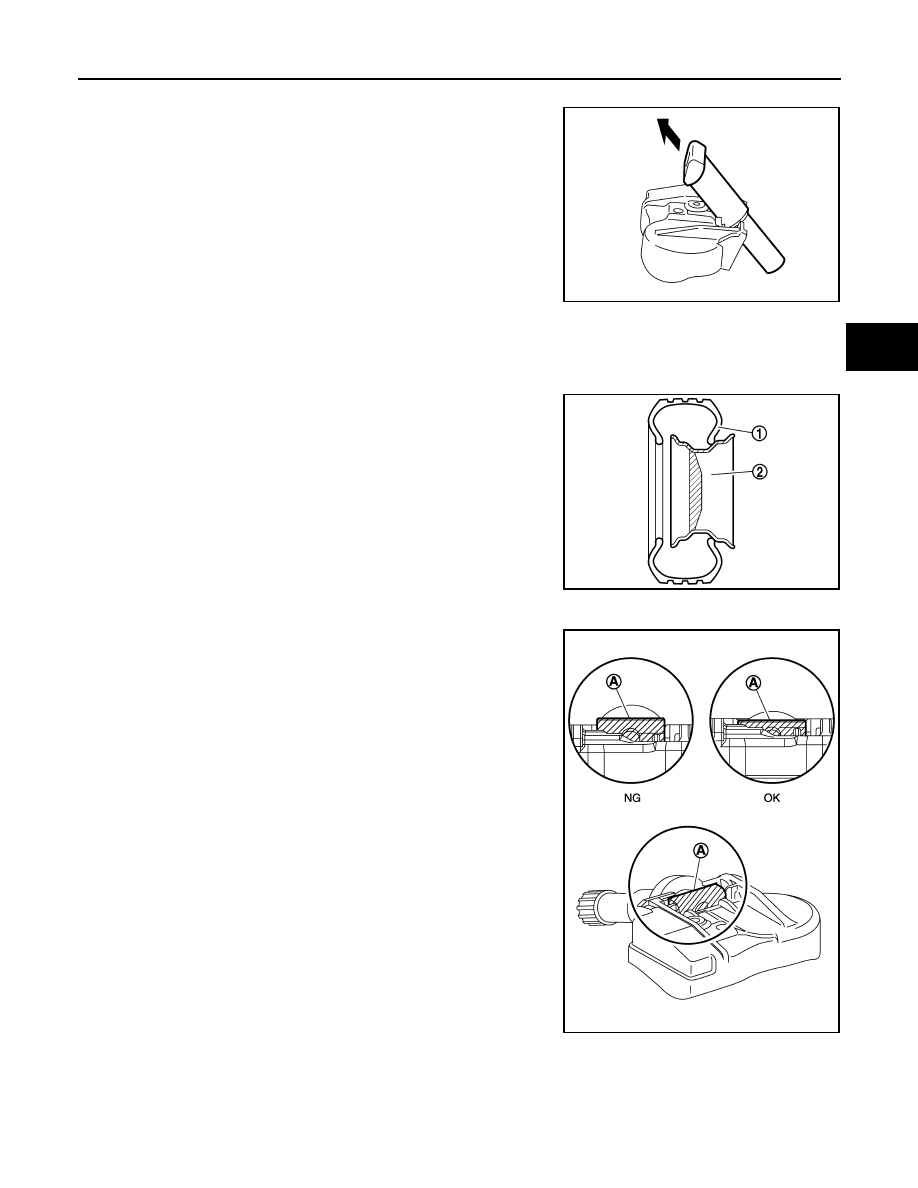

6. Remove the valve stem from the transmitter as shown.

INSTALLATION

1. Apply a suitable non-silicone lubricant to the tire inside bead.

CAUTION:

Do not use silicone lubricant. Use of silicone lubricant will deteriorate the tire and road wheel.

2. Install the tire inside bead (1) onto the road wheel (2) in the posi-

tion shown.

3. Install the valve stem to the transmitter.
4. Install the O-ring to the transmitter.

CAUTION:

• Do not reuse O-ring

• Insert O-ring to the base of the transmitter.

• The base of the valve stem (A) must be positioned in the

groove of the metal plate as shown.

JSEIA0378ZZ

JPEIC0105ZZ

JSEIA0376GB

WT-52

< REMOVAL AND INSTALLATION >

TRANSMITTER

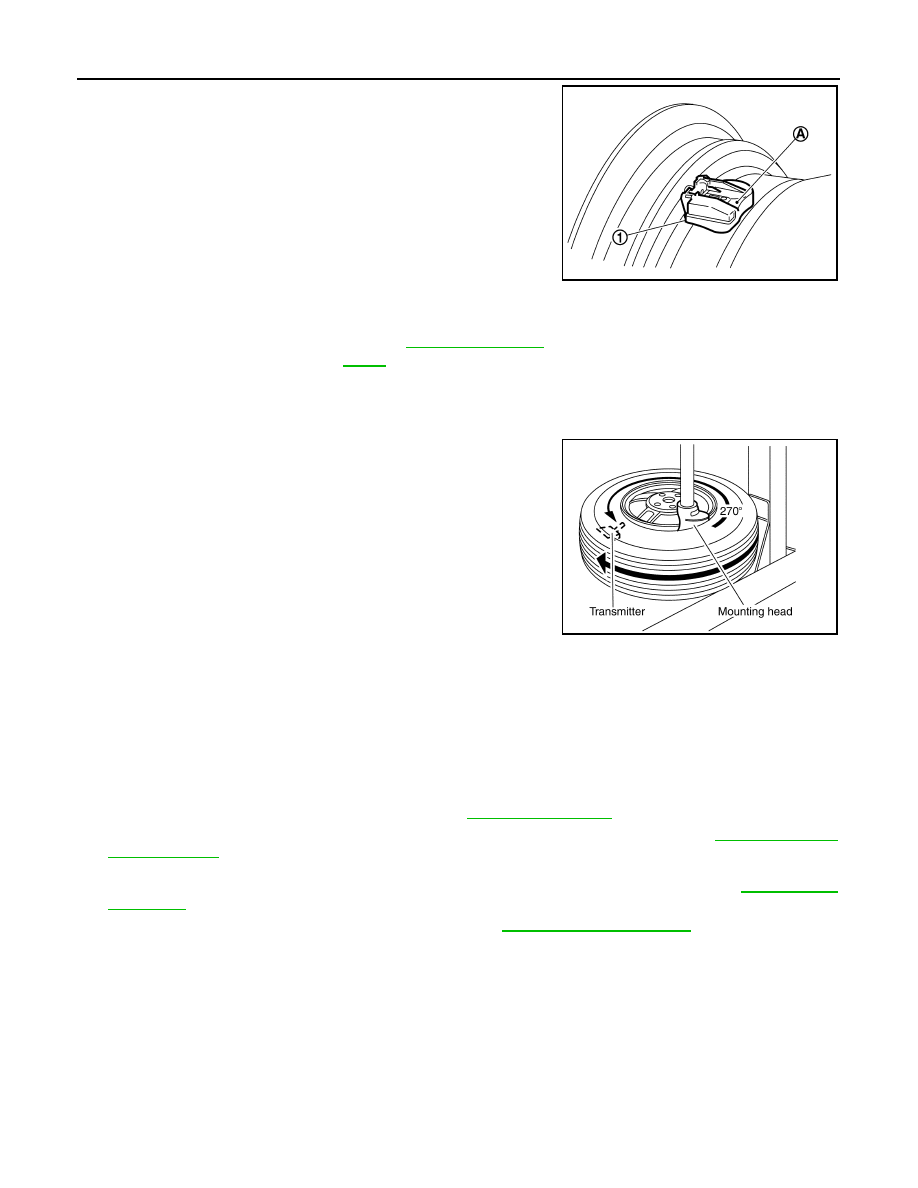

5. Install transmitter (1) to road wheel while pressing at position

(A).

CAUTION:

• Check that O-ring contacts horizontally with road wheel.

• Check that the base of the valve stem is positioned in the

groove of the metal plate.

6. Install and tighten the valve stem nut to the specified torque.

CAUTION:

Do not use power tool for installation.

7. Place road wheel on turntable of tire machine. Ensure that trans-

mitter is 270 degrees from mounting/dismounting head.

NOTE:

Do not touch transmitter with mounting head.

8. Apply a suitable non-silicone lubricant to the tire outside bead.

CAUTION:

• Do not use silicone lubricant. Use of silicone lubricant will

deteriorate the tire and road wheel.

• Do not allow lubricant to make contact with transmitter.

9. Install the tire outside bead onto the road wheel as normal.

NOTE:

If the tire is being reused, align the matching mark applied on

the tire with the position of the road wheel valve stem assembly for the purpose of road wheel and tire bal-

ance adjustment after installation. Ensure that the tire does not rotate relative to road wheel.

10. Install the valve core and inflate tire.

CAUTION:

Do not reuse valve core.

11. Install the valve cap.

CAUTION:

Do not reuse valve cap.

12. Balance the road wheel and tire assembly. Refer to

WT-47, "Adjustment"

.

13. Install road wheel and tire assembly in appropriate wheel position on vehicle. Refer to

WT-47, "Removal

and Installation"

.

NOTE:

If replacing the transmitter, then transmitter wake up operation must be performed. Refer to

WT-22, "Work

Procedure"

.

14. Adjust neutral position of steering angle sensor. Refer to

BRC-54, "Work Procedure"

.

JSEIA0377ZZ

Valve stem nut tightening
torque

Refer to

WT-50, "Exploded

View"

.

WEIA0046E

TIRE PRESSURE RECEIVER

WT-53

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

TIRE PRESSURE RECEIVER

Removal and Installation

INFOID:0000000009758172

The tire pressure receiver is integral to the remote keyless entry receiver. Refer to

DLK-199, "Removal and

Installation"

.
