WARNING CHIME SYSTEM

WCS-17

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

WIRING DIAGRAM

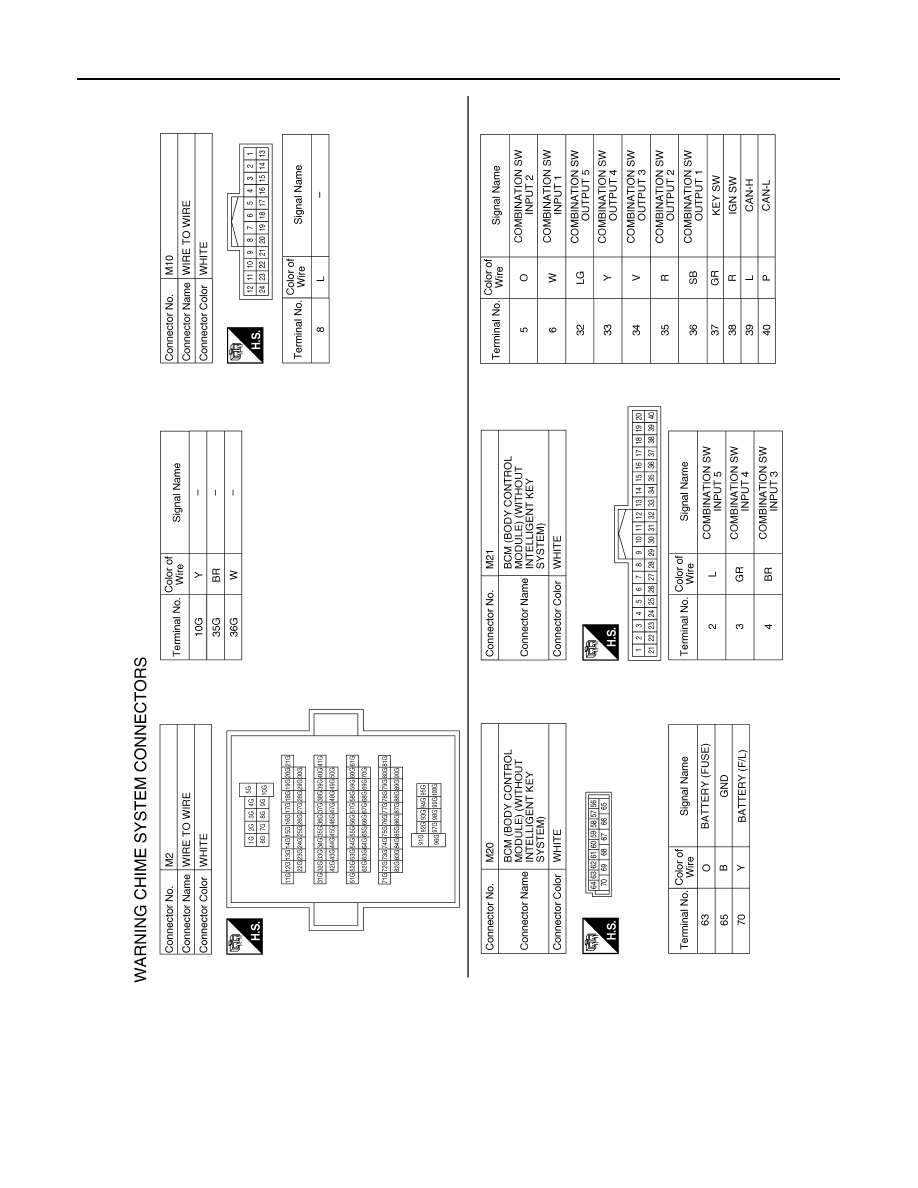

WARNING CHIME SYSTEM

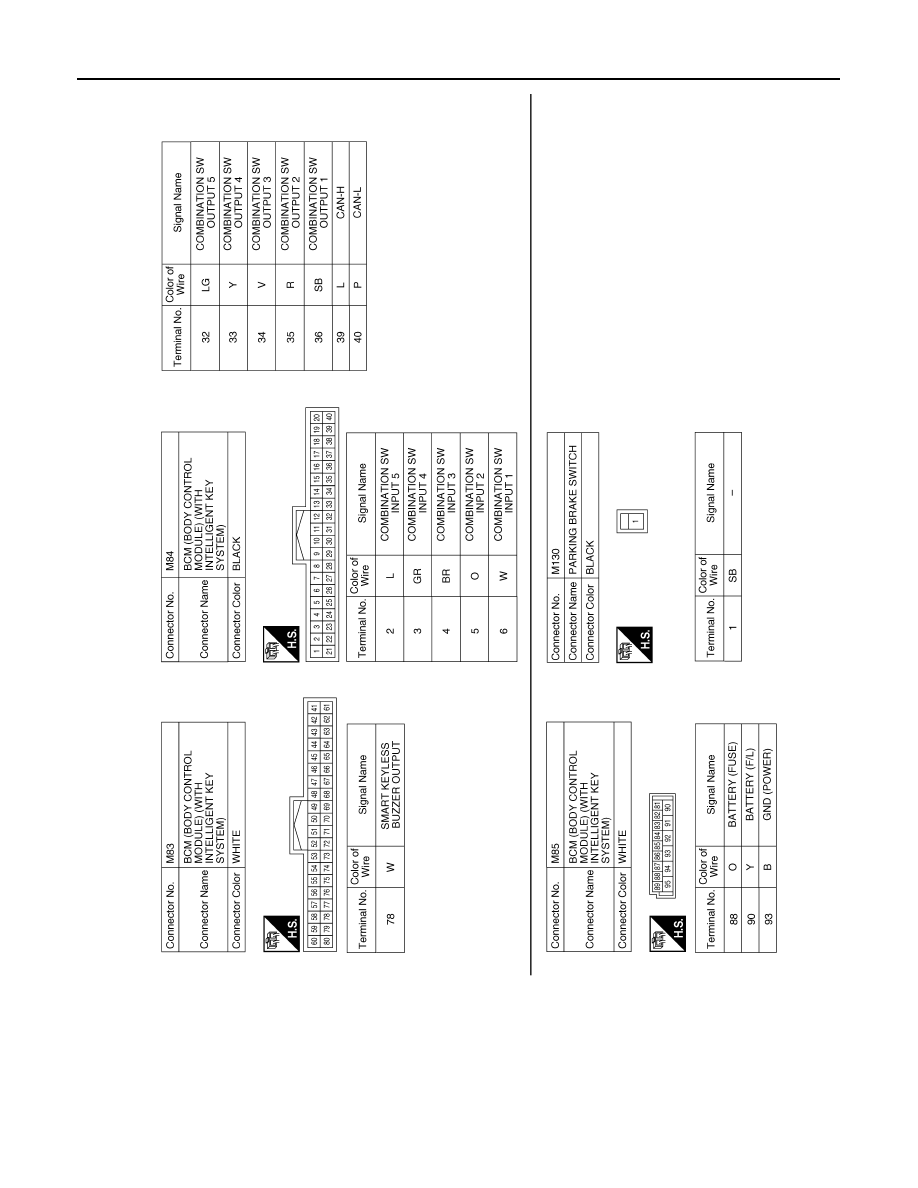

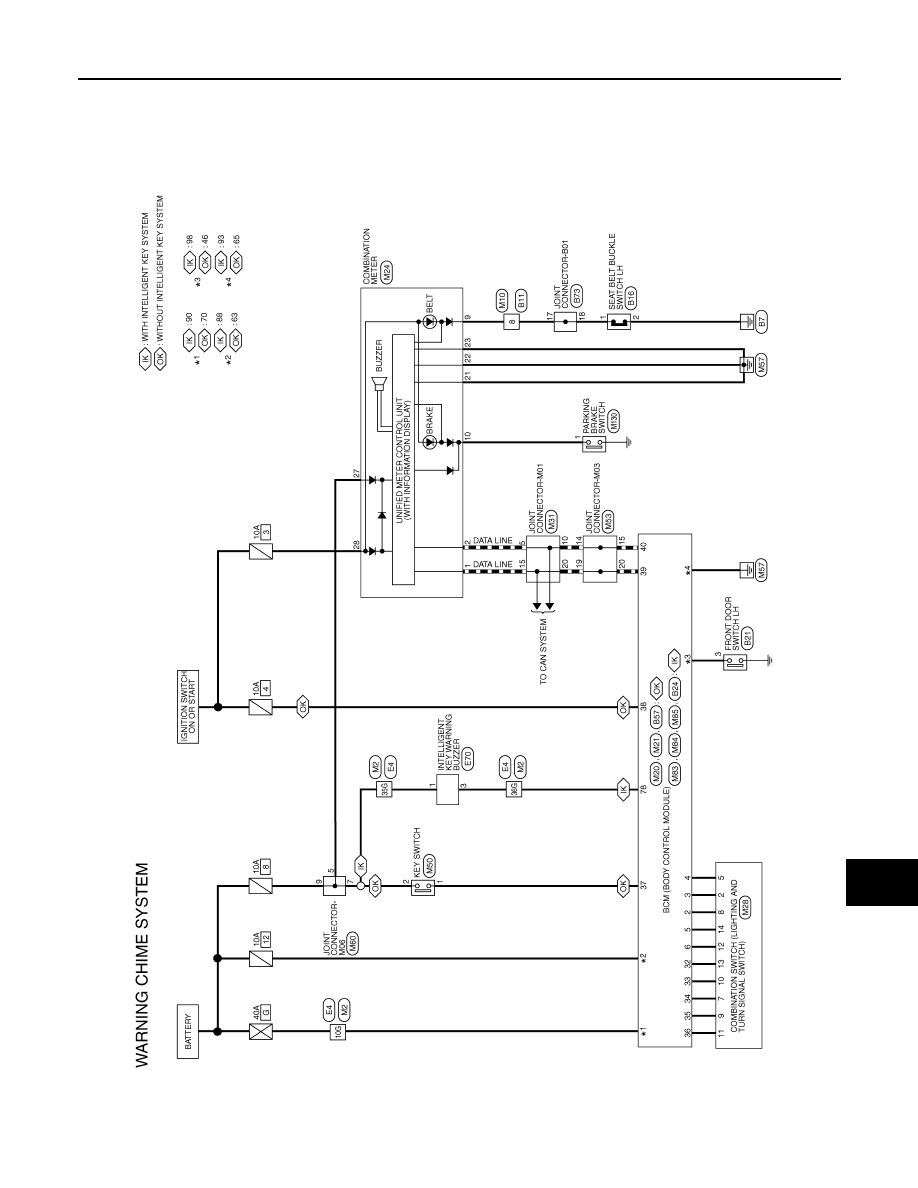

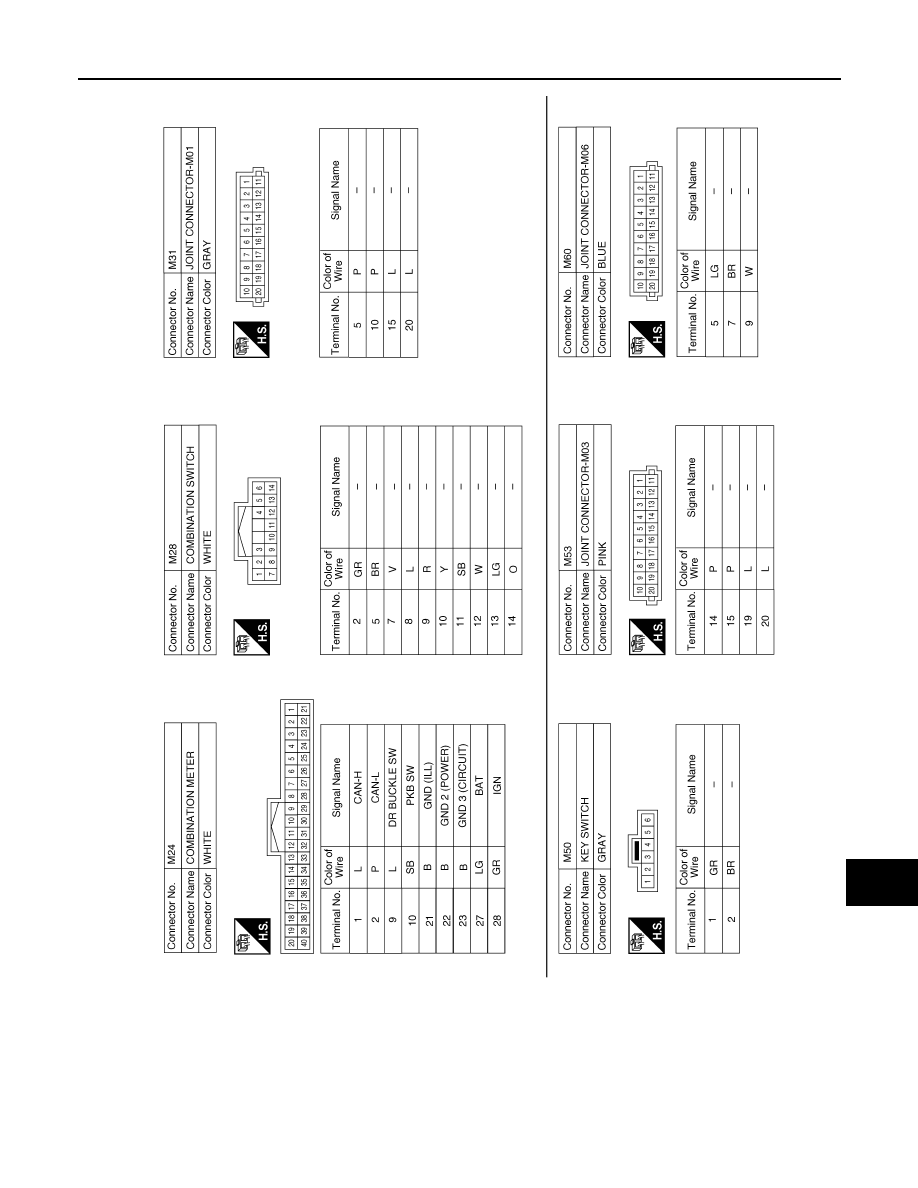

Wiring Diagram

INFOID:0000000009759239

ABNWA2117GB

WCS-18

< WIRING DIAGRAM >

WARNING CHIME SYSTEM

ABNIA5773GB

WCS

WARNING CHIME SYSTEM

WCS-19

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ABNIA5770GB

WCS-20

< WIRING DIAGRAM >

WARNING CHIME SYSTEM

ABNIA5771GB
