PREPARATION

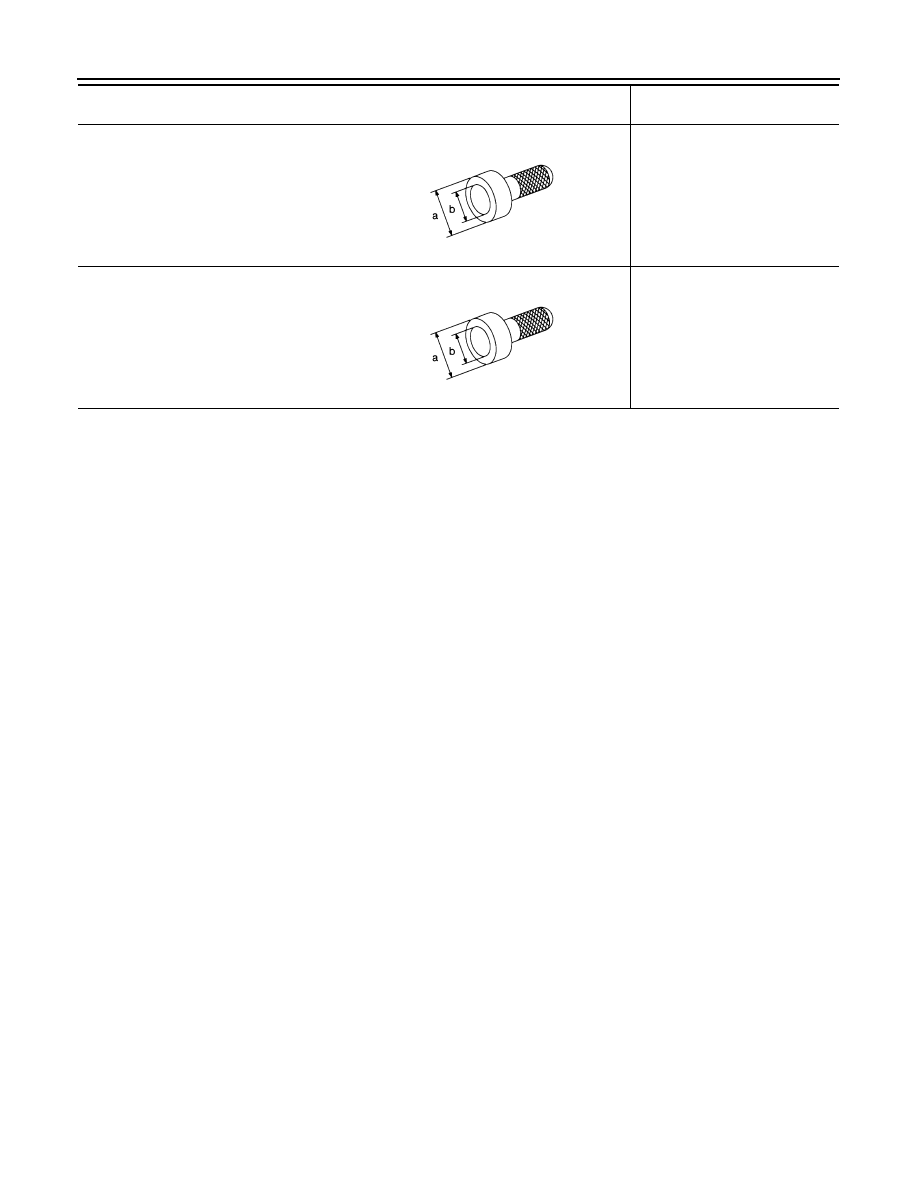

Drift
a: 56 mm (2.20 in) dia.
b: 50 mm (1.97 in) dia.

Installing differential side oil seal

Drift
a: 60 mm (2.36 in) dia.
b: 55 mm (2.17 in) dia.

Installing converter housing oil
seal

Tool number
Tool name

Description

NT115

NT115

COMPONENT PARTS

TM-73

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

CVT CONTROL SYSTEM

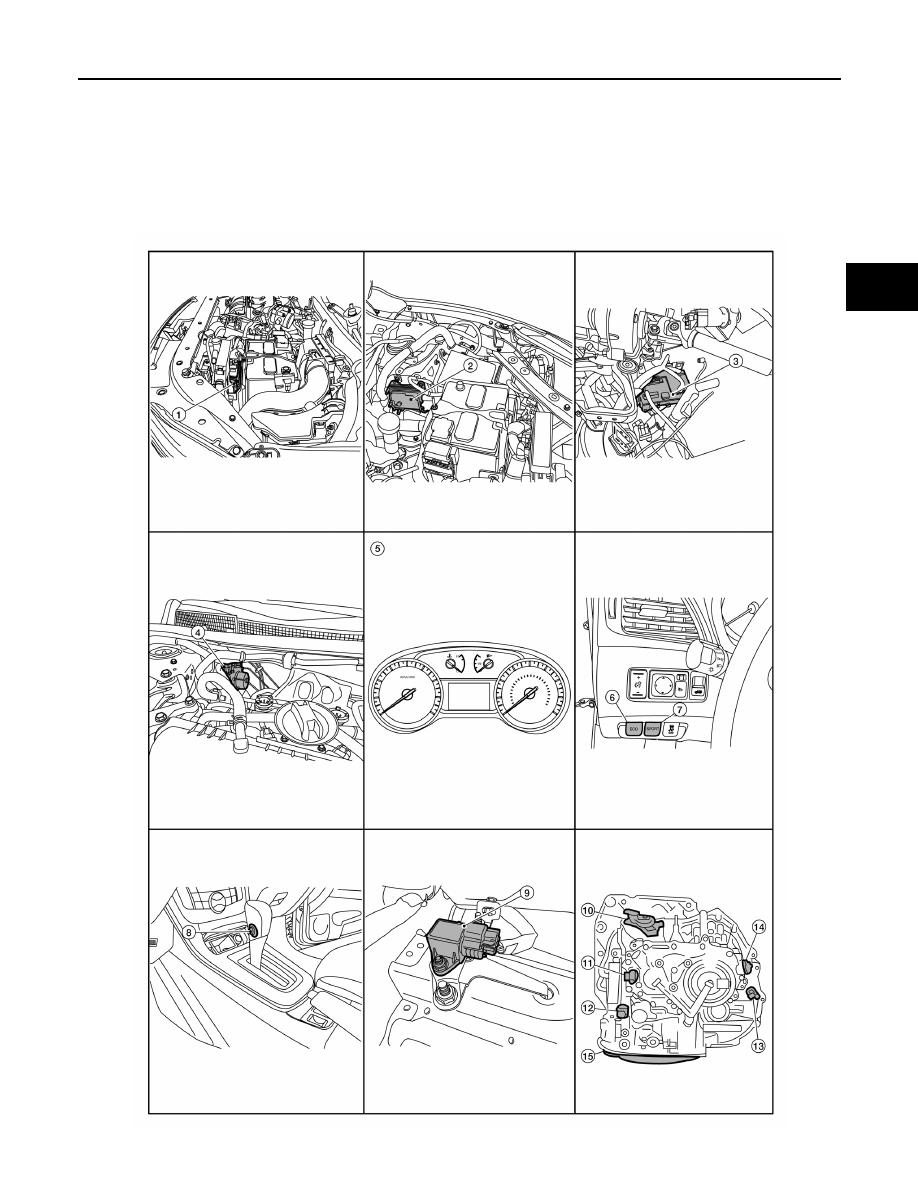

CVT CONTROL SYSTEM : Component Parts Location

INFOID:0000000009759318

ALDIA0403ZZ

TM-74

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

COMPONENT PARTS

No.

Component

Function

ECM

Mainly transmits the following signal to TCM via CAN communication.
• Engine and CVT integrated control signal

NOTE:
General term for the communication (torque-down permission, torque-
down request, etc.) exchanged between the ECM and TCM.

• Engine speed signal
• Accelerator pedal position signal
• Closed throttle position signal
• N idle instruction signal
Mainly receives the following signals from TCM via CAN communication.
• N idle instruction signal
• Malfunction indicator lamp (MIL) signal
Refer to

EC-15, "ENGINE CONTROL SYSTEM :

Component Parts Location"

 for detailed installation location.

TCM

TM-75, "CVT CONTROL SYSTEM : TCM"

BCM

Mainly transmits the following signal to TCM via CAN communication.
• Stop lamp switch signal
• Turn indicator signal
Refer to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"



(With intelligent key system) or

BCS-77, "BODY CONTROL SYSTEM :

Component Parts Location"

 (Without intelligent key system) for detailed in-

stallation location.

ABS actuator and electric unit (control unit)

Mainly transmits the following signal to TCM via CAN communication.
• Vehicle speed signal (ABS)
• ABS operation signal
• TCS operation signal
• VDC operation signal
• ABS malfunction signal
Refer to

BRC-7, "Component Parts Location"

 for detailed installation loca-

tion.

Combination meter

Mainly transmits the following signal to TCM via CAN communication.
• Overdrive control switch signal
Mainly receives the following signals from TCM via CAN communication.
• Shift position indicator signal
• OD OFF indicator lamp signal
Refer to

MWI-5, "METER SYSTEM : Component Parts Location"

 for de-

tailed installation location.

ECO mode switch

DMS-24, "ECO Mode Switch"

SPORT mode switch

DMS-61, "SPORT Mode Switch"

Overdrive control switch

TM-82, "CVT CONTROL SYSTEM : Overdrive Control Switch"

G sensor

TM-81, "CVT CONTROL SYSTEM : G Sensor"

Transmission range switch

TM-75, "CVT CONTROL SYSTEM : Transmission Range Switch"

Primary speed sensor

TM-76, "CVT CONTROL SYSTEM : Primary Speed Sensor"

CVT unit connector

—

Output speed sensor

TM-77, "CVT CONTROL SYSTEM : Output Speed Sensor"

Secondary speed sensor

TM-76, "CVT CONTROL SYSTEM : Secondary Speed Sensor"

COMPONENT PARTS

TM-75

< SYSTEM DESCRIPTION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

*: These components are included in control valve assembly.

CVT CONTROL SYSTEM : TCM

INFOID:0000000009759319

• The TCM consists of a microcomputer and connectors for signal

input and output and for power supply.

• The vehicle driving status is judged based on the signals from the

sensors, switches, and other control units, and the optimal tran-

saxle control is performed.

• For TCM control items, refer to

TM-93, "CVT CONTROL SYSTEM

: System Description"

.

CVT CONTROL SYSTEM : ROM Assembly

INFOID:0000000009759320

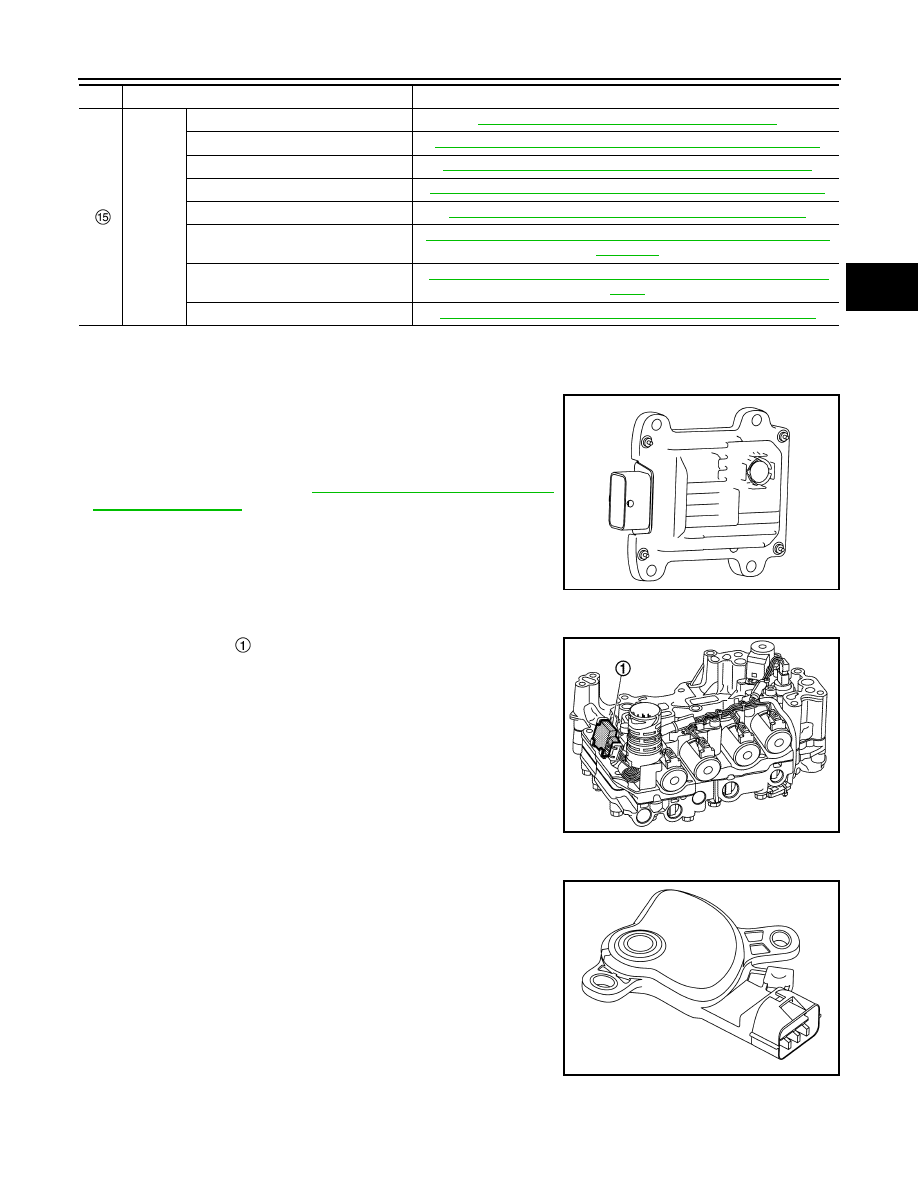

• The ROM assembly   is installed to control valve.

• The ROM assembly stores the calibration data (characteristic

value) of each solenoid valve. TCM enables accurate hydraulic

control by obtaining the calibration data.

CVT CONTROL SYSTEM : Transmission Range Switch

INFOID:0000000009759321

• The transmission range switch is installed to upper part of tran-

saxle case.

• The transmission range switch detects the selector lever position.

Control
valve

ROM assembly*

TM-75, "CVT CONTROL SYSTEM : ROM Assembly"

CVT fluid temperature sensor*

TM-78, "CVT CONTROL SYSTEM : CVT Fluid Temperature Sensor"

Secondary pressure sensor*

TM-78, "CVT CONTROL SYSTEM : Secondary Pressure Sensor"

Primary pressure solenoid valve*

TM-79, "CVT CONTROL SYSTEM : Primary Pressure Solenoid Valve"

Low brake solenoid valve*

TM-79, "CVT CONTROL SYSTEM : Low Brake Solenoid Valve"

High clutch & reverse brake solenoid
valve*

TM-80, "CVT CONTROL SYSTEM : High Clutch & Reverse Brake Sole-

noid Valve"

Torque converter clutch solenoid
valve*

TM-80, "CVT CONTROL SYSTEM : Torque Converter Clutch Solenoid

Valve"

Line pressure solenoid valve*

TM-81, "CVT CONTROL SYSTEM : Line Pressure Solenoid Valve"

No.

Component

Function

JSDIA3071ZZ

JSDIA3085ZZ

JSDIA3072ZZ
