Nissan Sentra. Manual - part 795

DIAGNOSIS SYSTEM (AIR BAG)

SRC-15

< SYSTEM DESCRIPTION >

SRC

DIAGNOSIS SYSTEM (AIR BAG)

Description

INFOID:0000000009757931

CAUTION:

• Never use electrical test equipment on any circuit related to the SRS unless instructed in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness

connectors.

• Never repair, splice or modify the SRS wiring harness. If the harness is damaged, replace it with a

new one.

• Keep ground portion clean.

DIAGNOSIS FUNCTION

• The SRS self-diagnostic results can be read with air bag warning lamp and/or CONSULT.

• The user mode is exclusively prepared for the customer (driver). This mode warns the driver of a system

malfunction through the operation of the air bag warning lamp.

• The diagnosis mode allows the technician to locate and inspect the malfunctioning part.

• The mode applications for the air bag warning lamp and CONSULT are as per the following items.

×: Application, —: Not application

On Board Diagnosis Function

INFOID:0000000009757932

ON-BOARD DIAGNOSIS

There are two self diagnosis functions with air bag warning lamp per the following items.

• USER MODE

• DIAGNOSIS MODE

METHOD OF STARTING

• Diagnosis mode changes from user mode to diagnosis mode when changing operation is performed.

• In user mode, when SRS air bag warning lamp is not turning ON, changing to diagnosis mode by ignition

switch operation is not possible.

• In diagnosis mode, when repair is complete and system is normal, the mode changes to user mode when

ignition switch is turned from OFF to ON.

Procedure to Change Diagnosis Mode

1. Turn ignition switch from OFF to ON.

2. SRS air bag lamp turns ON for 7 second and turns OFF, then turn ignition switch OFF within 2 second

after the lamp turns OFF.

NOTE:

When in Diagnosis Mode, the air bag warning lamp may illuminate for more than 7 seconds after the igni-

tion switch is turned ON. If this is the case, the ignition switch must still be cycled OFF after 7 seconds.

3. After turning ignition switch OFF, wait for 3 seconds or more.

4. Repeat operation 1 to 3 for 2 times so that operation 1 to 3 is repeated for 3 times in total.

5. Turn ignition switch from OFF to ON. Diagnosis mode changes.

USER MODE

In USER MODE, air bag warning lamp on combination meter turning ON when a malfunction is detected and

warns the customer (driver).

How to Read Air Bag Warning Lamp

1. Turn the ignition switch from OFF to ON, and check that the air bag warning lamp turns ON.
2. Compare the air bag warning lamp operation pattern with the examples.

Air Bag Warning Lamp Examples:

Diagnosis tool

User mode

Diagnosis mode

Air bag warning lamp

CONSULT

–

SRC-16

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (AIR BAG)

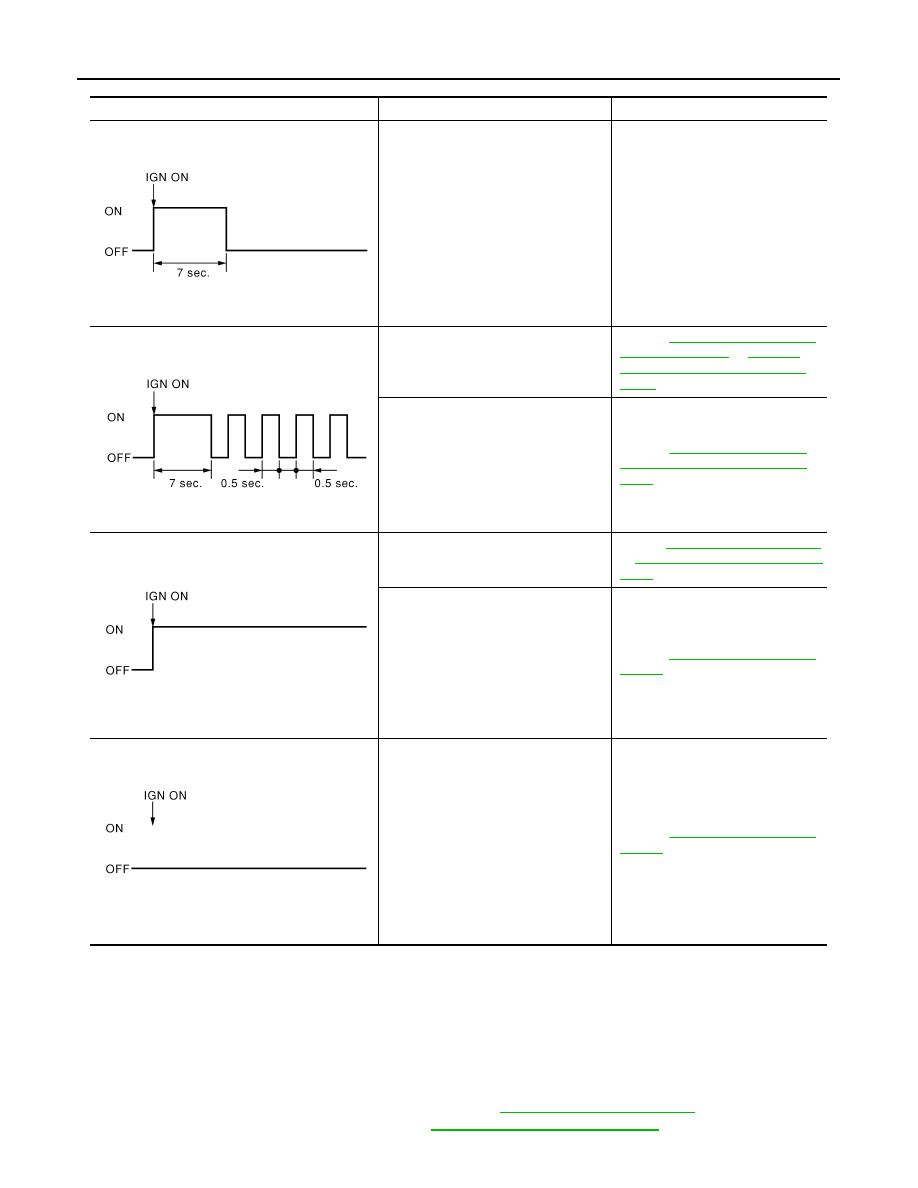

Air bag warning lamp flashing pattern (User Mode)

Trouble Diagnosis with CONSULT

INFOID:0000000009757933

1. Connect CONSULT.

2. DTC is displayed on SELF-DIAG RESULTS.

NOTE:

If a malfunction is not detected on SELF-DIAG RESULTS [CURRENT], but a malfunction is detected during

SRS Operation Check, the following cases may exist:

• SELF-DIAG [PAST] memory might not be erased. Refer to

SRC-17, "SRS Final Check"

• SRS system malfunctions intermittently. Refer to

SRC-42, "Inspection Procedure"

Warning lamp

SRS condition

Reference item

• No malfunction is detected.
• No further action is necessary.

—

The system is malfunctioning and
needs to be repaired.

Refer to

SRC-16, "Trouble Diagno-

sis with CONSULT"

SRC-17,

"Trouble Diagnosis without CON-
SULT"

Zero point reset is incomplete

Refer to

SRC-41, "ZERO POINT

RESET : Special Repair Require-
ment"

• Air bag is deployed.
• Seat belt pre-tensioner is deployed.

Refer to

SR-5, "For Frontal Collision"

SR-7, "For Side and Rollover Col-

lision"

• Air bag diagnosis sensor unit is mal-

functioning.

• Air bag power supply circuit is mal-

functioning.

• SRS air bag warning lamp circuit is

malfunctioning.

Refer to

SRC-107, "Diagnosis Pro-

cedure"

• Air bag diagnosis sensor unit is mal-

functioning.

• Air bag warning lamp circuit is mal-

functioning.

Refer to

SRC-108, "Diagnosis Pro-

cedure"

SHIA0011E

SHIA0012E

SHIA0013E

SHIA0014E

DIAGNOSIS SYSTEM (AIR BAG)

SRC-17

< SYSTEM DESCRIPTION >

SRC

Trouble Diagnosis without CONSULT

INFOID:0000000009757934

DIAGNOSIS MODE

NOTE:

Diagnosis Mode can not be entered if a malfunction is not detected in User Mode.

1. Turn ignition switch ON.

2. After AIR BAG warning lamp lights for 7 seconds, turn ignition switch OFF within 1 second.

3. Wait more than 3 seconds.

4. Repeat steps 1 to 3 two more times (3 times total).

5. Turn ignition switch ON.

SRS is now in Diagnosis Mode. Refer to

SRC-23, "Flash Code Index"

SRS History Check

INFOID:0000000009757935

SRS HISTORY CHECK

1. Check repair history of the SRS. If no repairs have been made, perform

SRC-15, "On Board Diagnosis

Function"

. If repairs have been made, GO TO step 2.

2. Erase ”SELF-DIAG [PAST]” after repair. Refer to

SRC-17, "SRS Final Check"

SRS Final Check

INFOID:0000000009757936

DIAGNOSIS MODE

1. Connect CONSULT.

2. Confirm that zero point reset of OCS is complete.

3. If no DTCs are detected on “SELF-DIAG RESULTS [CURRENT]”, repair of SRS is completed. Go to step

If any DTCs are detected on “SELF-DIAG RESULTS [CURRENT]”, the malfunction has not been repaired

completely or another malfunction is being detected. Perform SRS Operation Check again. Refer to

SRC-

15, "On Board Diagnosis Function"

4. Touch “ERASE”.

NOTE:

Touching “ERASE” will clear the SRS memory of the malfunction (“SELF-DIAG [PAST]”). If “SELF-

DIAG [PAST]” is not erased, User Mode may show the previous system malfunction even if the

malfunction has been repaired completely.

5. Check that no malfunction is detected in “SELF-DIAG [PAST]”.

6. Exit Diagnosis Mode and disconnect the CONSULT.

7. Perform SRS Operation Check. Refer to

SRC-15, "On Board Diagnosis Function"

CONSULT Function (AIR BAG)

INFOID:0000000009757937

CONSULT can display each diagnostic item using the diagnostic test modes shown following.

CONSULT Function (OCCUPANT DETECTION)

INFOID:0000000009757938

CONSULT can display each diagnostic item using the diagnostic test modes shown following.

Diagnostic Test Mode

Diagnostic Item

Description

Self Diagnostic Result

SELF-DIAG RESULT [CURRENT]

A current Self-diagnosis result (also indicated by the number of
warning lamp flashes in the Diagnosis mode) is displayed on the
CONSULT screen in real time. This refers to a malfunctioning part
requiring repairs.

Data Monitor

DATA MONITOR

Displays air bag diagnosis sensor unit input/output data in real time.

Ecu Identification

ECU DISCRIMINATED NO.

Air bag diagnosis sensor unit ECU discriminated number (identifica-
tion number) or part number is displayed. Air bag diagnosis sensor
unit has individual ECU discriminated number (identification num-
ber) or part number based on model and equipment.

Trouble Diagnostic Record

TROUBLE DIAG RECORD [PAST]

With TROUBLE DIAG RECORD, diagnosis results previously
erased by a reset operation can be displayed on the CONSULT
screen.

SRC-18

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (AIR BAG)

Diagnostic Test Mode

Diagnostic Item

Description

Work Support

ZERO POINT RESET FUNCTION

Perform zero point reset. Refer to

SRC-41, "ZERO POINT RESET : Spe-

cial Repair Requirement"
