SEC-168

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

VEHICLE SECURITY SYSTEM

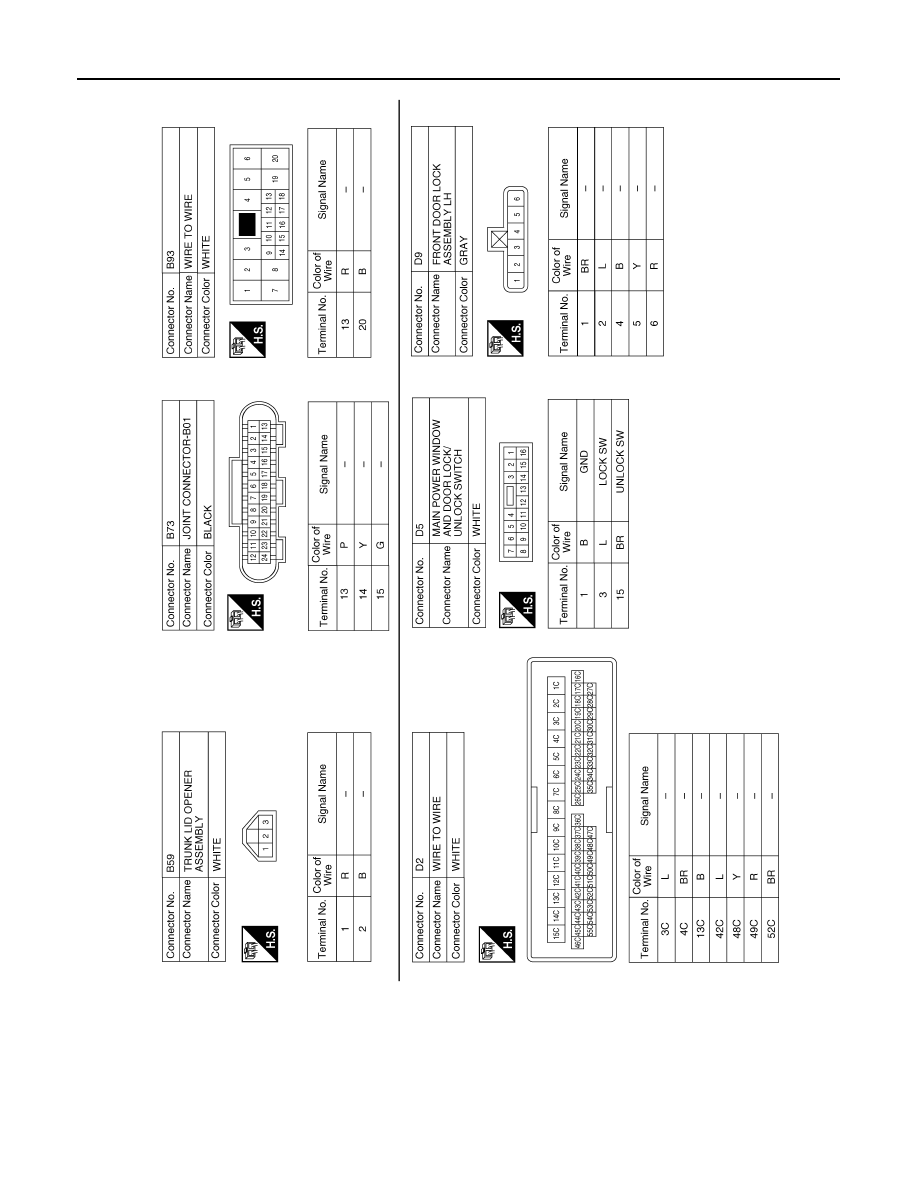

ABKIA5428GB

VEHICLE SECURITY SYSTEM

SEC-169

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

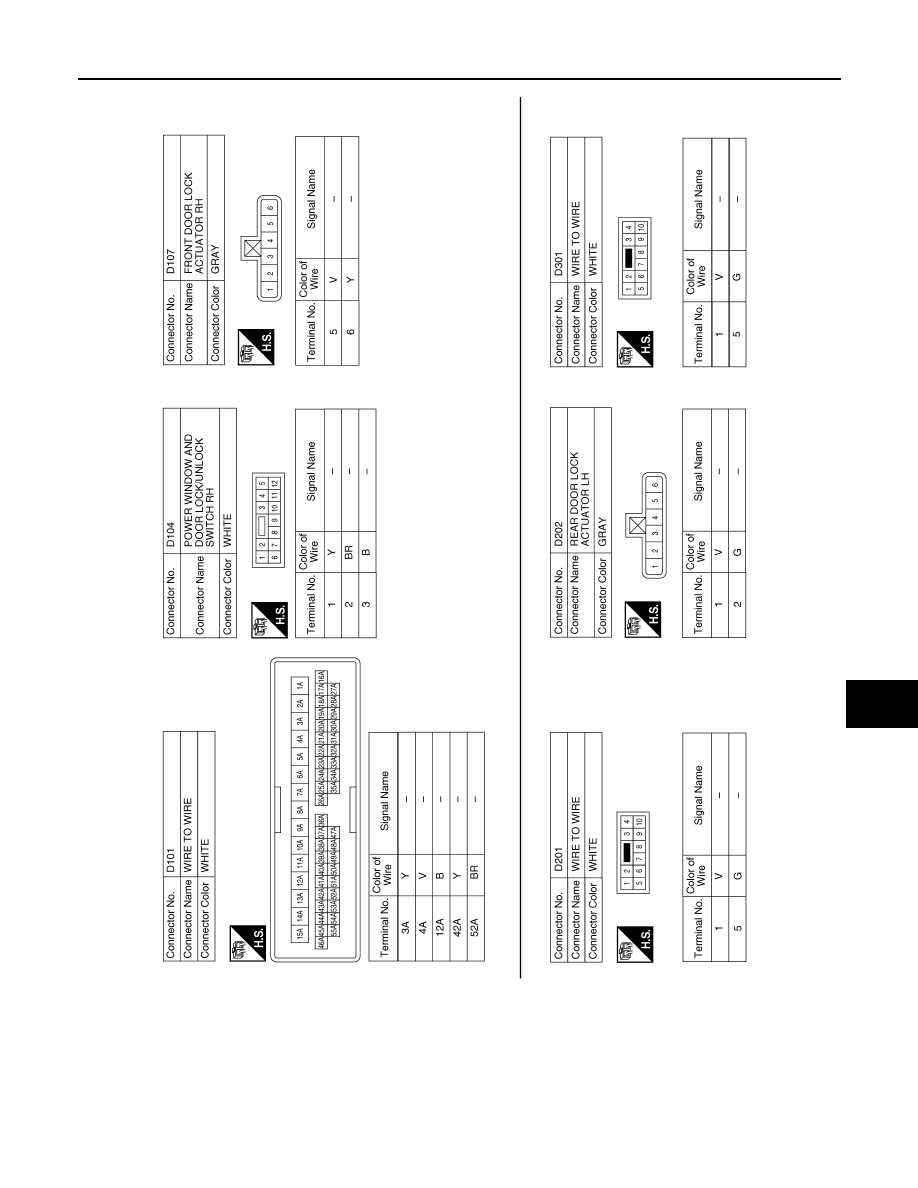

ABKIA5429GB

SEC-170

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

VEHICLE SECURITY SYSTEM

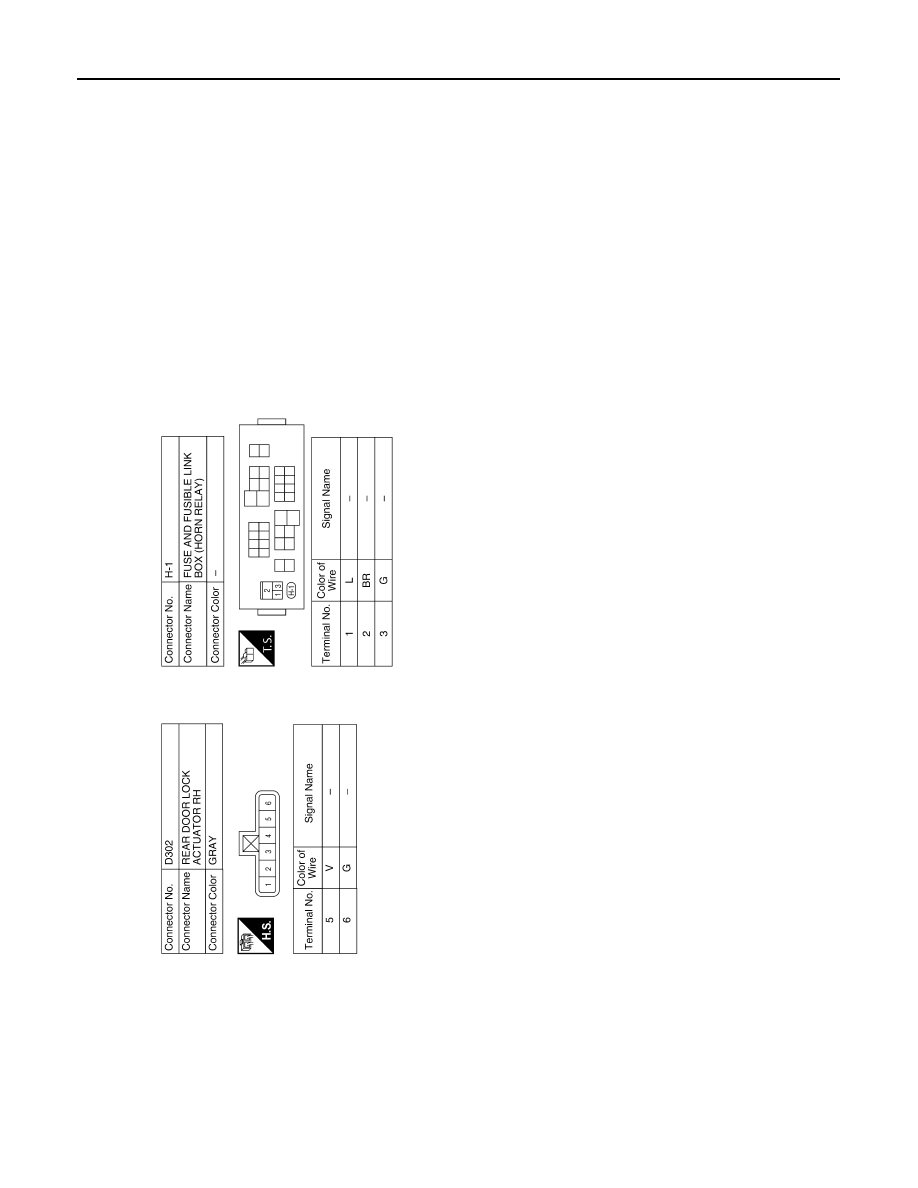

AAKIA1044GB

DIAGNOSIS AND REPAIR WORK FLOW

SEC-171

< BASIC INSPECTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000009756808

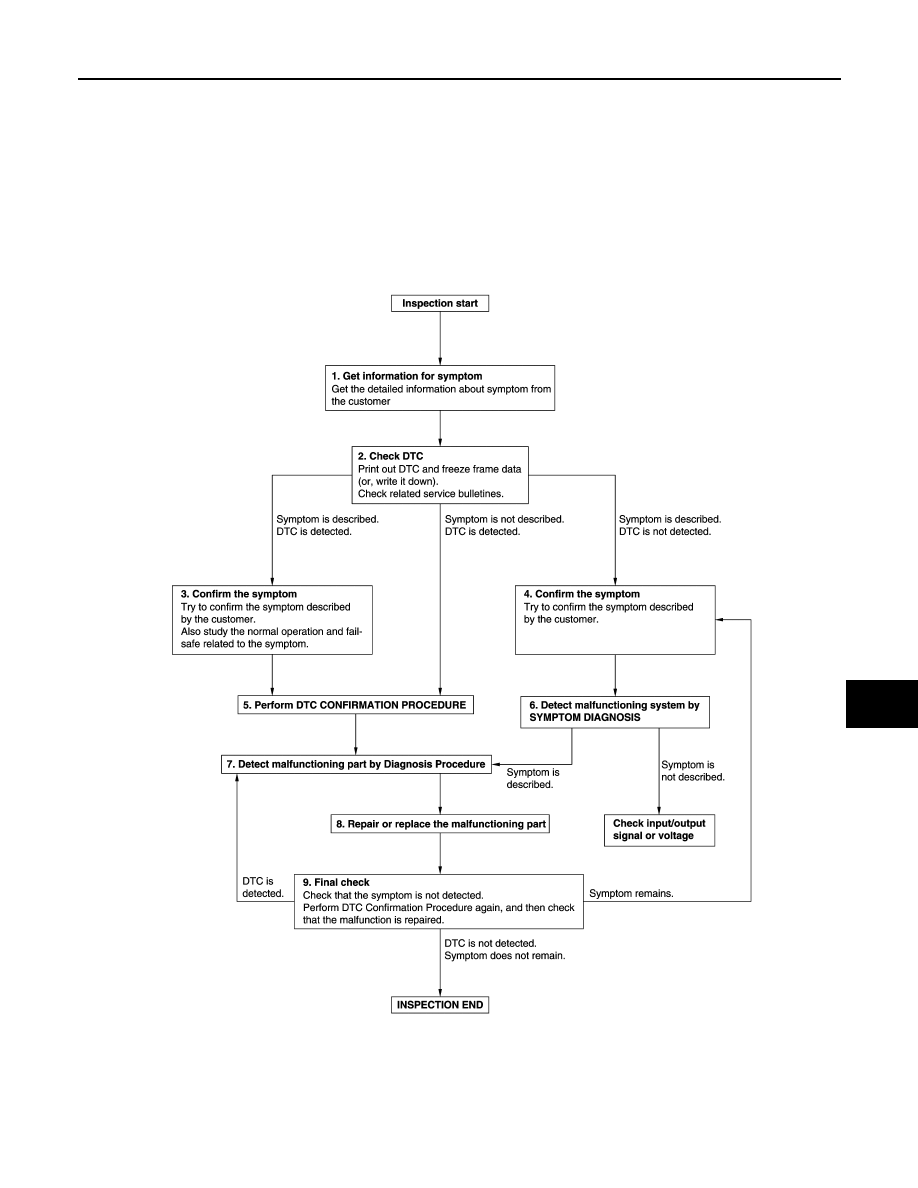

OVERALL SEQUENCE

DETAILED FLOW

JMKIA8652GB
