SEC-24

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

ECM, IPDM E/R, BCM

ECU DIAGNOSIS INFORMATION

ECM, IPDM E/R, BCM

List of ECU Reference

INFOID:0000000009756690

ECU

Reference

ECM

Reference Value

EC-77, "Reference Value"

Fail-safe

EC-90, "Fail Safe"

DTC Inspection Priority Chart

EC-93, "DTC Inspection Priority Chart"

DTC Index

EC-94, "DTC Index"

BCM

Reference Value

BCS-29, "Reference Value"

Fail-safe

BCS-46, "Fail-safe"

DTC Inspection Priority Chart

BCS-48, "DTC Inspection Priority Chart"

DTC Index

BCS-49, "DTC Index"

IPDM E/R

Reference Value

PCS-13, "Reference Value"

Fail-safe

PCS-19, "Fail-safe"

DTC Index

PCS-20, "DTC Index"

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

SEC-25

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

WIRING DIAGRAM

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

Wiring Diagram

INFOID:0000000009756691

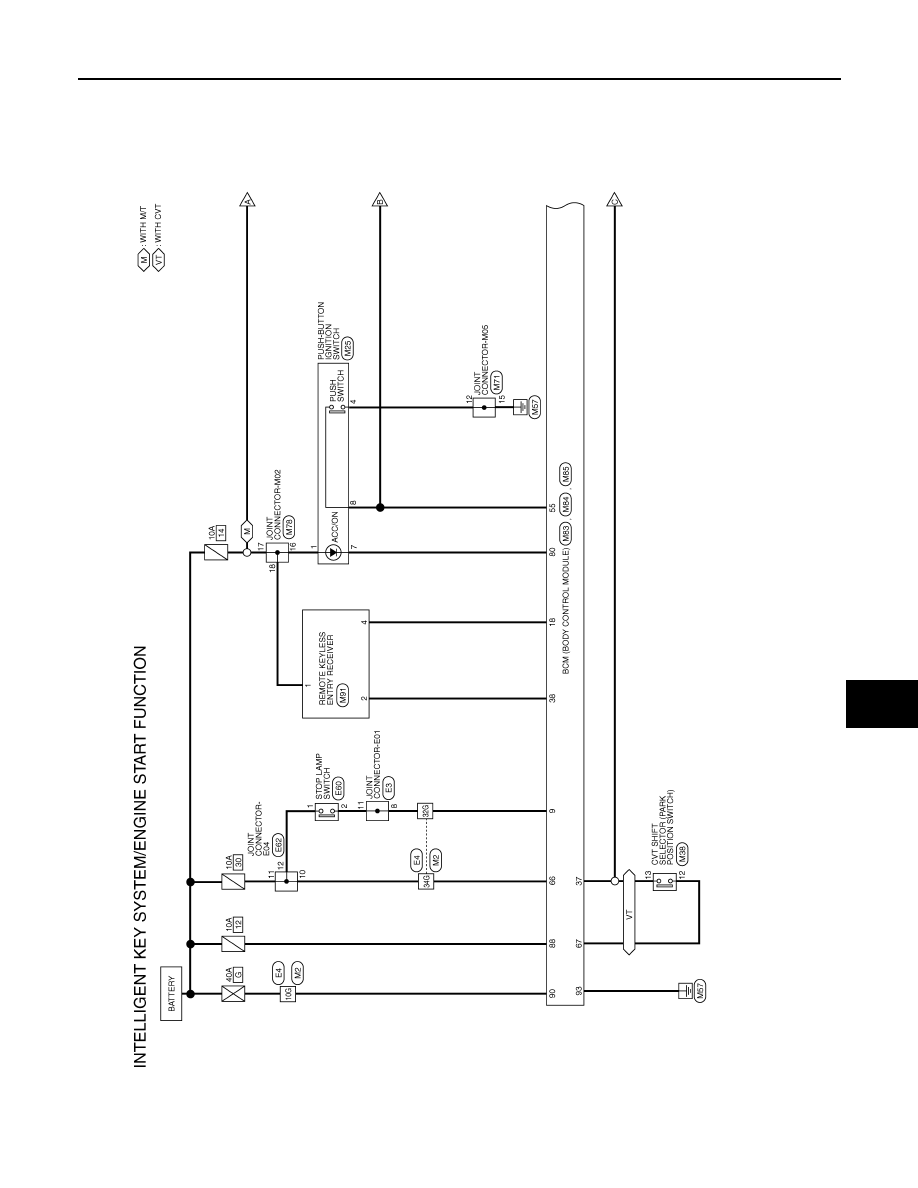

ABKWA2386GB

SEC-26

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

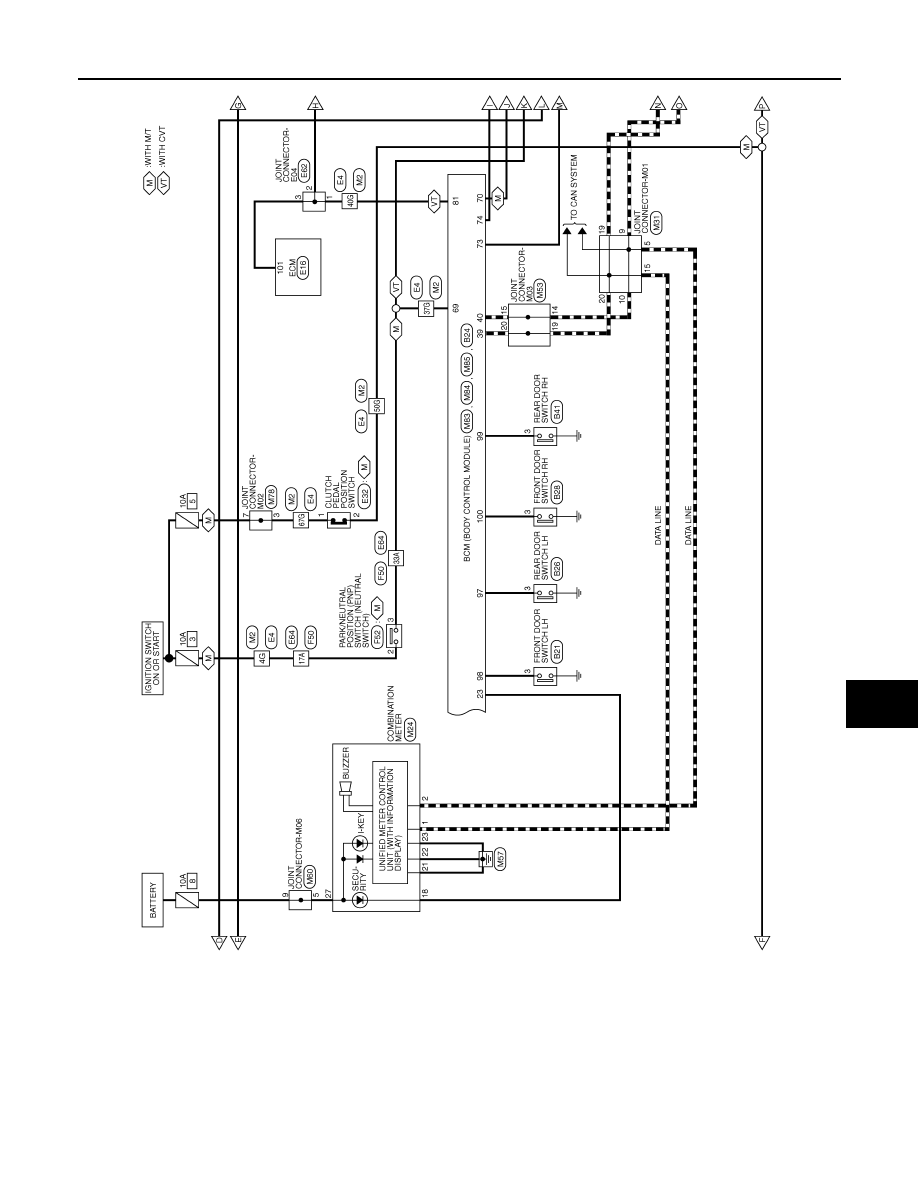

ABKWA2387GB

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

SEC-27

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

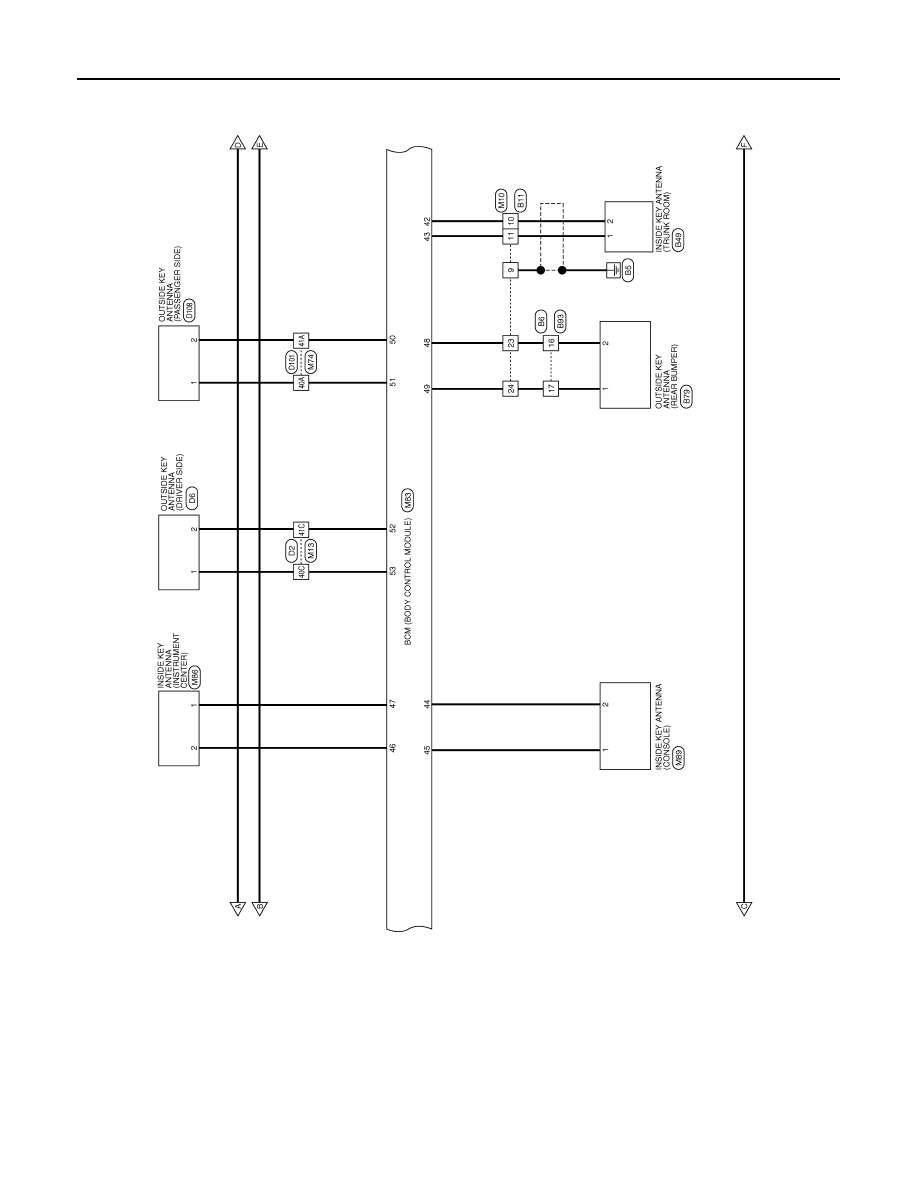

ABKWA2388GB
