Nissan Sentra. Manual - part 732

RF-38

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

LAIA0071E

GLASS LID

RF-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

REMOVAL AND INSTALLATION

GLASS LID

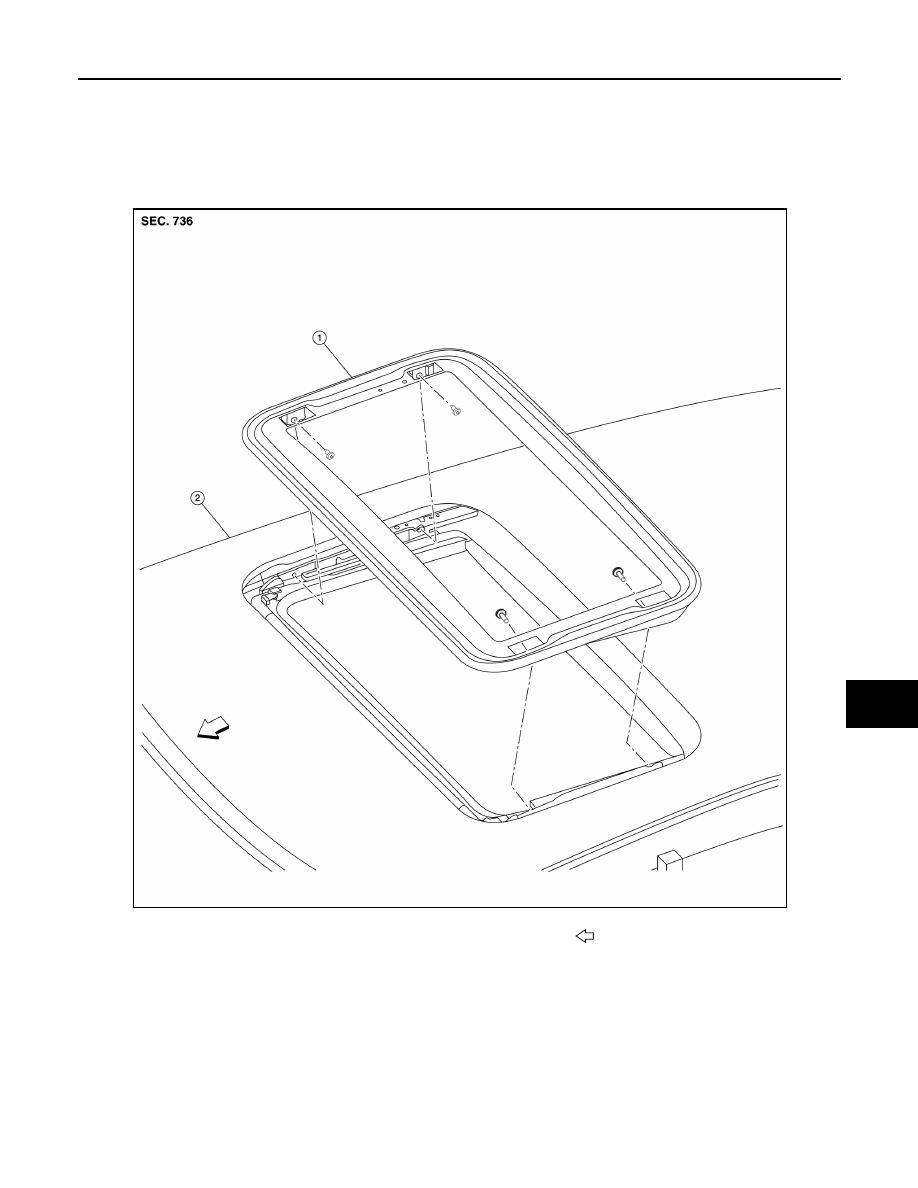

Exploded View

INFOID:0000000009756153

Removal and Installation

INFOID:0000000009756154

REMOVAL

CAUTION:

• After installing glass lid, check gap/height adjustments and operation to make sure there is no mal-

function.

• Handle glass lid with care to prevent damage.

1.

Glass lid

2. Roof panel

Front

AWKIA2158ZZ

RF-40

< REMOVAL AND INSTALLATION >

GLASS LID

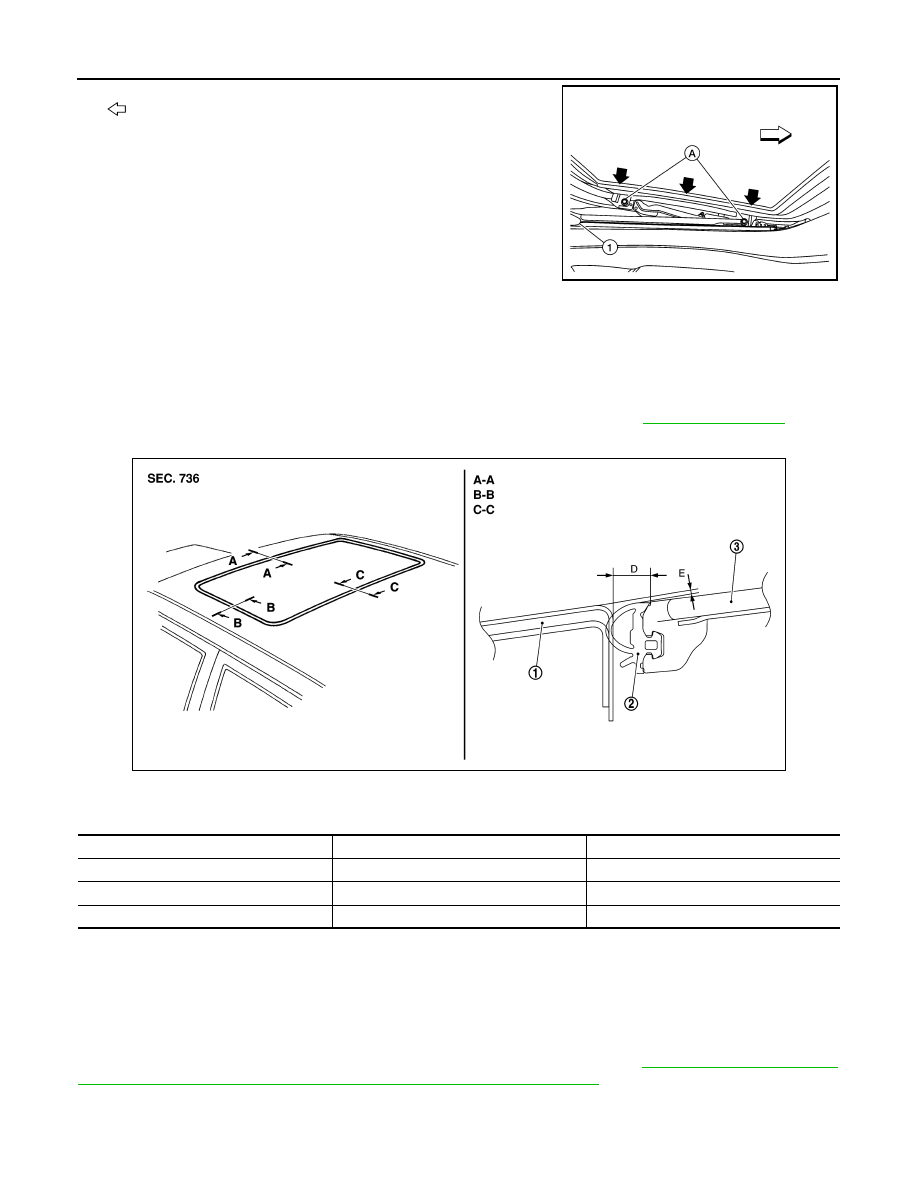

1. Open sunshade (1), then close glass lid.

: Front

2. Remove glass lid bolts (A) on the LH and RH sides.
3. Remove glass lid from moonroof unit assembly.

INSTALLATION

1. Position glass lid to moonroof unit assembly.
2. Tighten glass lid bolts.

NOTE:

First tighten the front bolt (LH), then the rear bolt (RH) on the moonroof lid assembly to prevent uneven

torque while tightening the remaining the remaining bolts

3. After installation, check moonroof operation and glass lid alignment. Refer to

RF-40, "Adjustment"

.

Adjustment

INFOID:0000000009756155

Unit: mm (in)

1. Loosen the glass lid bolts.
2. Adjust the clearance of glass lid and roof panel according to the fitting standard dimension.
3. First tighten the front bolt (LH), then the rear bolt (RH) on the moonroof lid assembly to prevent uneven

torque while tightening the remaining the remaining bolts.

4. Tilt glass lid up and down several times to check that it moves smoothly.
NOTE:

After adjusting the moonroof unit assembly, perform additional service. Refer to

RF-18, "ADDITIONAL SER-

VICE WHEN REPLACING CONTROL UNIT : Special Repair Requirement"

.

ALKIA2724ZZ

ALKIA2977ZZ

1.

Roof panel

2. Weatherstrip

3. Glass lid

Portion

Gap (D)

Surface height difference (E)

A – A

7.2

± 0.8 (0.28 ± 0.03)

0.8

± 1.5 (–0.03 ± 0.06)

B – B

7.2

± 0.8 (0.28 ± 0.03)

0.8

± 1.5 (–0.03 ± 0.06)

C – C

7.2

± 0.8 (0.28 ± 0.03)

0.8

± 1.5 (–0.03 ± 0.06)

MOONROOF MOTOR ASSEMBLY

RF-41

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

MOONROOF MOTOR ASSEMBLY

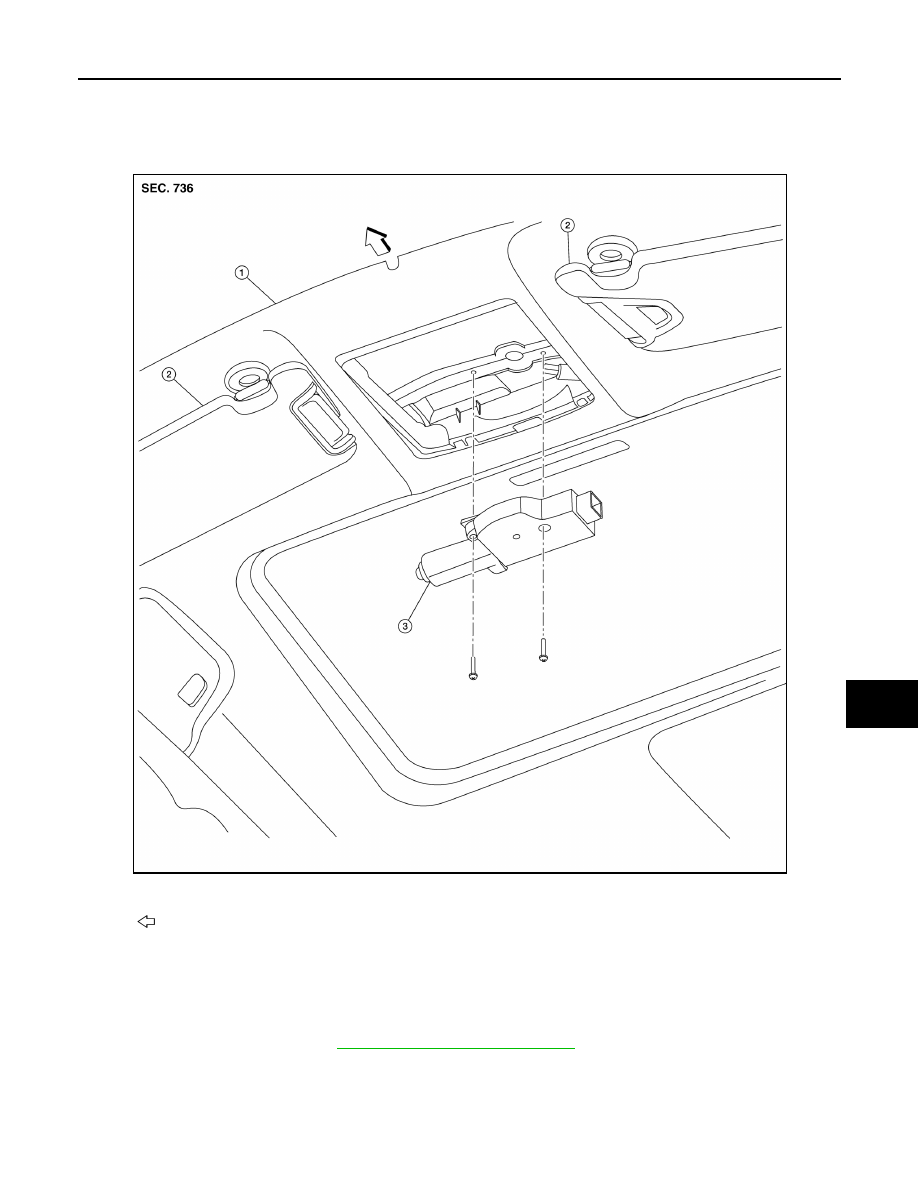

Exploded View

INFOID:0000000009756156

Removal and Installation

INFOID:0000000009756157

REMOVAL

1. Close the glass lid.
2. Remove the map lamp. Refer to

INL-52, "Removal and Installation"

.

1.

Headlining

2. Sun visor

3. Moonroof motor assembly

Front

AWKIA2161ZZ
