POWER WINDOW LOCK SWITCH DOES NOT FUNCTION

Diagnosis Procedure

INFOID:0000000009757291

1.

REPLACE POWER WINDOW MAIN SWITCH

• Replace power window main switch.

• Confirm the operation after replacement.
Is the result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-39, "Intermittent Incident"

.

PWC-70

< REMOVAL AND INSTALLATION >

MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

REMOVAL AND INSTALLATION

MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

Removal and Installation

INFOID:0000000009757292

REMOVAL

1. Release the pawls using a suitable tool and lift the main power window and door lock/unlock switch and

finisher as an assembly and remove.

2. Disconnect the harness connector from the main power window and door lock/unlock switch.

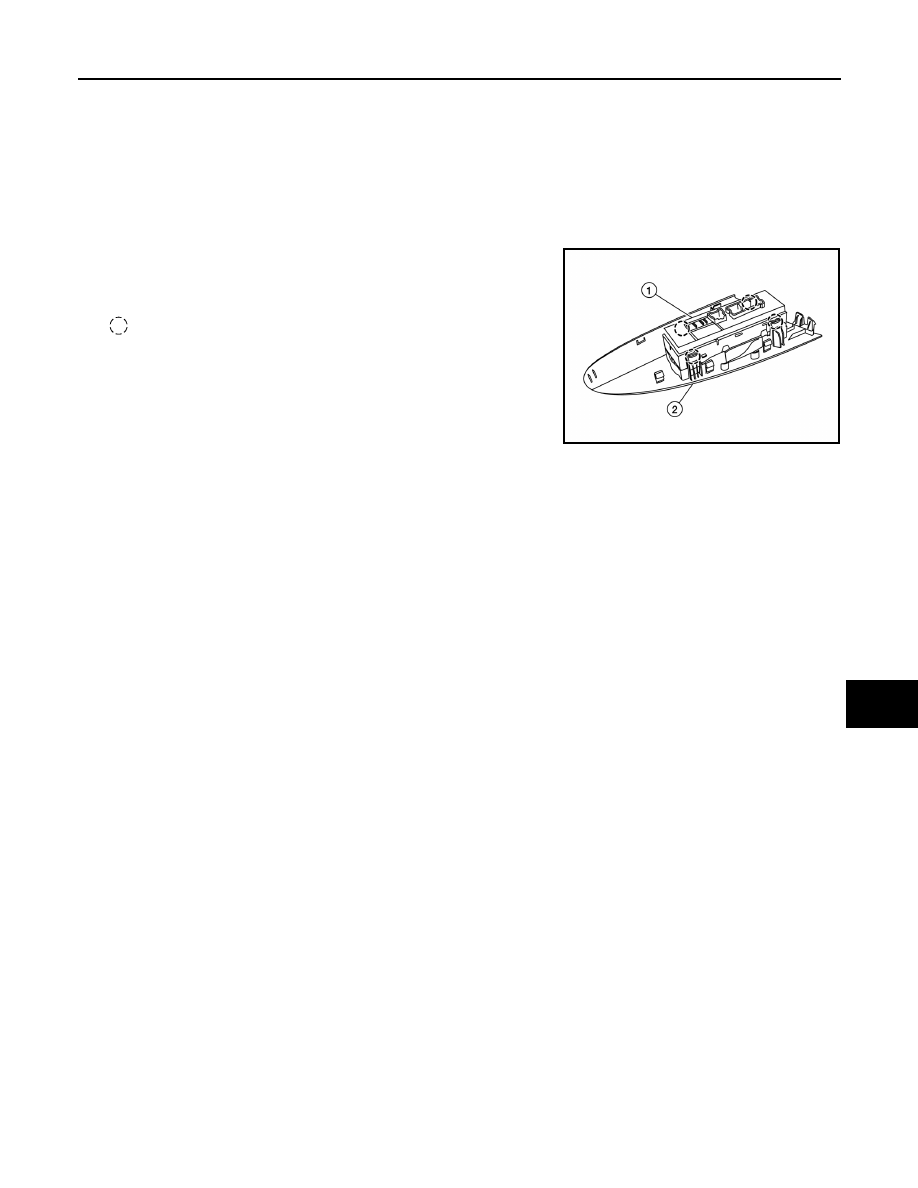

3. Release the four pawls (two on each side) using a suitable tool,

then separate the main power window and door lock/unlock

switch (1) from the main power window and door lock switch fin-

isher (2).

: Pawl

CAUTION:

Do not bend back the pawls on the switch finisher too far or

breakage may occur.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

When the main power window and door lock/unlock switch is disconnected from the harness connector it is

necessary to perform the initialization procedure. Refer to

PWC-29, "Work Procedure"

.

ALKIA2814ZZ

POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH

PWC-71

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH

Removal and Installation

INFOID:0000000009757293

REMOVAL

1. Release the pawls using a suitable tool and lift the power window and door lock/unlock switch RH and fin-

isher as an assembly and remove.

2. Disconnect the harness connector from the power window and door lock/unlock switch RH.

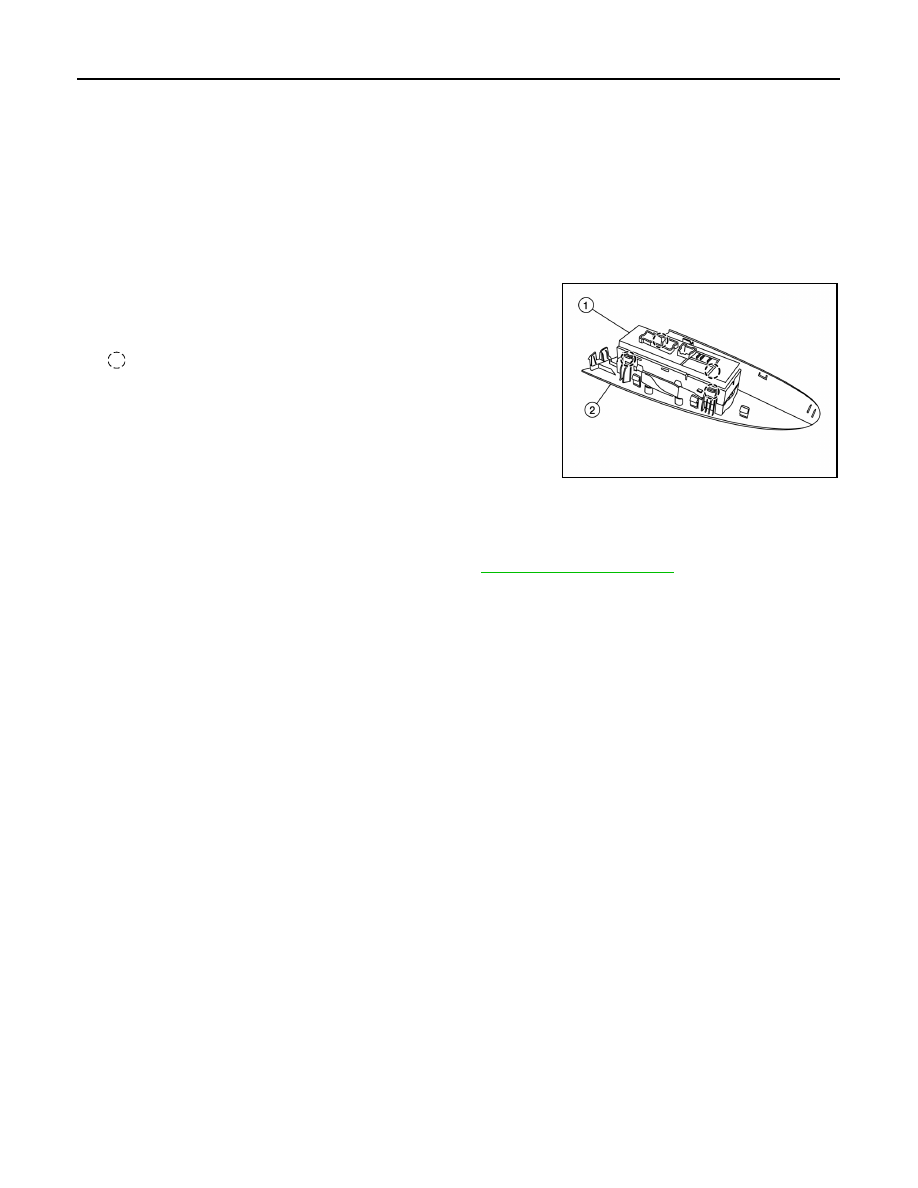

3. Release the four pawls (two on each side) using a suitable tool,

then separate the main power window and door lock/unlock

switch RH (1) from the main power window and door lock switch

RH finisher (2).

: Pawl

CAUTION:

Do not bend back the pawls on the switch finisher too far or

breakage may occur.

INSTALLATION

Installation is in the reverse order of removal.

ALKIA2816ZZ

PWC-72

< REMOVAL AND INSTALLATION >

REAR POWER WINDOW SWITCH

REAR POWER WINDOW SWITCH

Removal and Installation

INFOID:0000000009757294

REMOVAL

1. Release the pawls using a suitable tool and lift the rear power window switch and finisher as an assembly

and remove

2. Disconnect the harness connector from the rear power window switch.

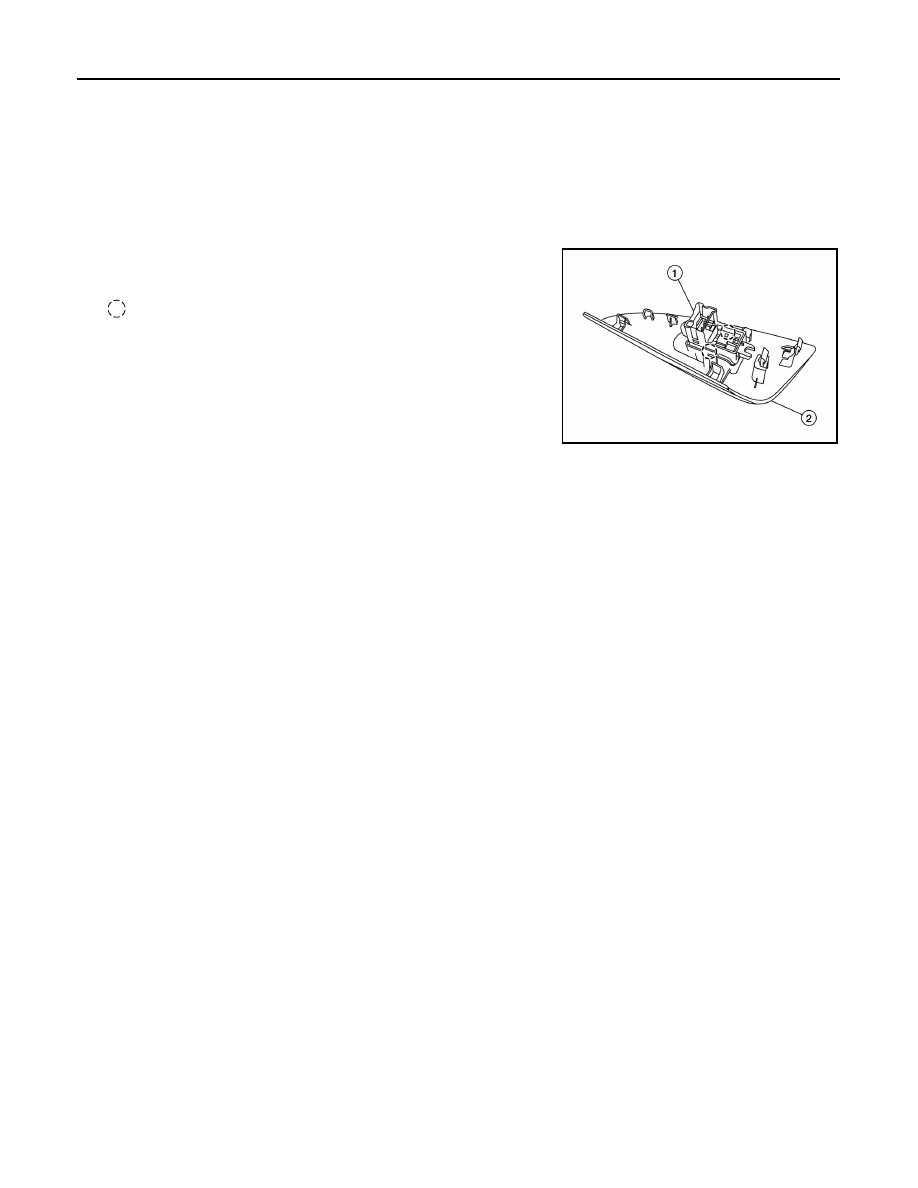

3. Release the pawl (one on each side) using a suitable tool, then

separate the rear power window switch (1) from the rear power

switch finisher (2).

: Pawl

CAUTION:

Do not bend back the pawls on the switch finisher too far or

breakage may occur.

INSTALLATION

Installation is in the reverse order of removal.

ALKIA2817ZZ
