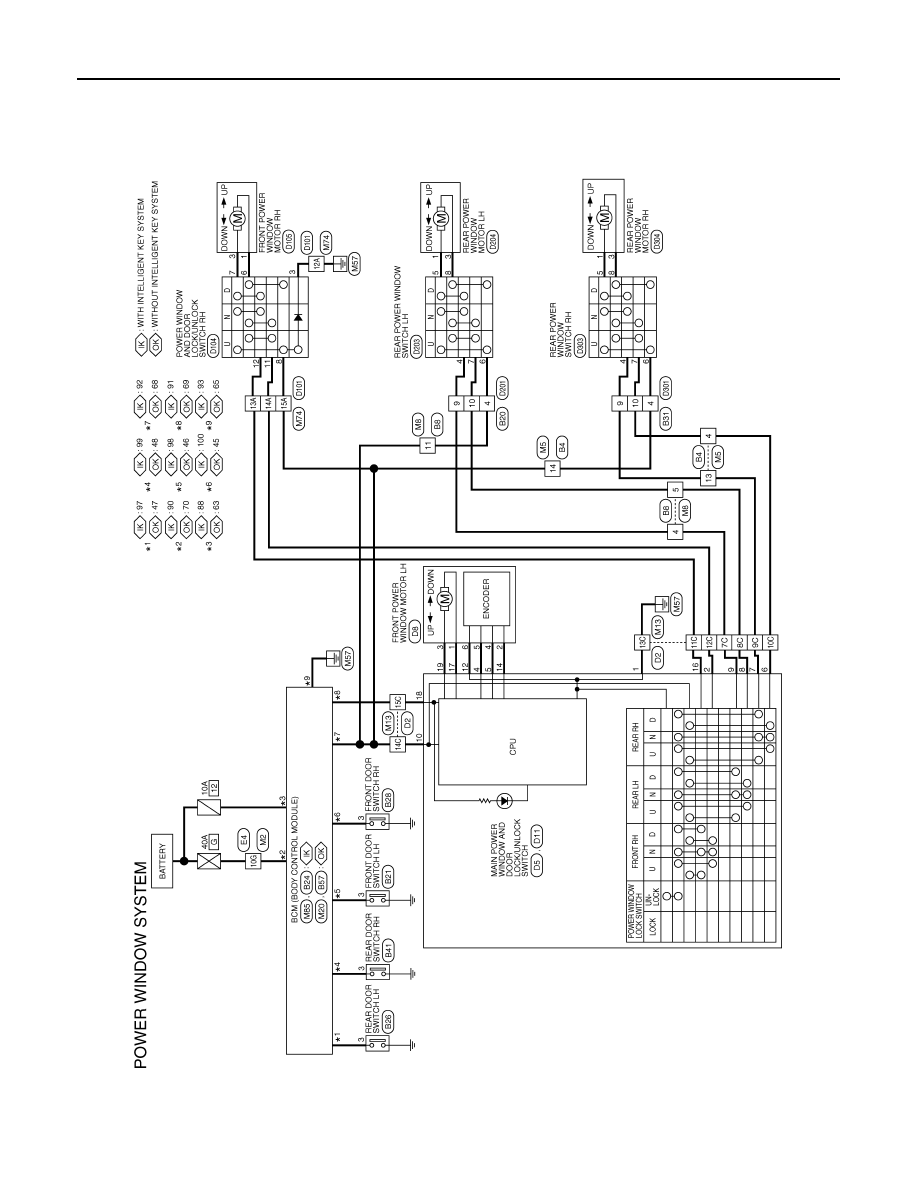

POWER WINDOW MAIN SWITCH
PWC-17
< ECU DIAGNOSIS INFORMATION >
C
D
E
F
G
H
I
J
L
M
A
B
PWC
N
O
P
Fail Safe
INFOID:0000000009757221
FAIL-SAFE CONTROL
Switches to fail-safe control when malfunction is detected in encoder signal that detects up/down speed and
direction of door glass. Switches to fail-safe control when error beyond regulation value is detected between
the fully closed position and the actual position of the glass.
It changes to condition before initialization and the following functions do not operate when switched to fail-
safe control.
• Auto-up operation
• Anti-pinch function
Perform initial operation to recover when switched to fail-safe mode. However, it switches back to fail-safe
control when malfunction is found in power window main switch or front power window motor (driver side).
10
(SB)
Ground Ignition switch power supply
Input
Ignition switch ON
Battery voltage
Other than above
0 – 1
12
(LG)
Ground Encoder ground
—
—
0 – 1
14
(G)
Ground Encoder power supply
Output
Ignition switch ON
Battery voltage
16
(V)
Ground
Front power window motor
(passenger side) UP signal
Output
When front RH switch in
power window main switch
is UP at operated.
Battery voltage
17
(O)
Ground
Front power window motor
(driver side) UP signal
Output
When front LH switch in
power window main switch
is UP at operated.
Battery voltage
18
(R)
Ground Battery power supply
Input
Ignition switch OFF
Battery voltage
19
(GR)
Ground
Front power window motor
(driver side) DOWN signal
Output
When front LH switch in
power window main switch
is DOWN at operated.
Battery voltage

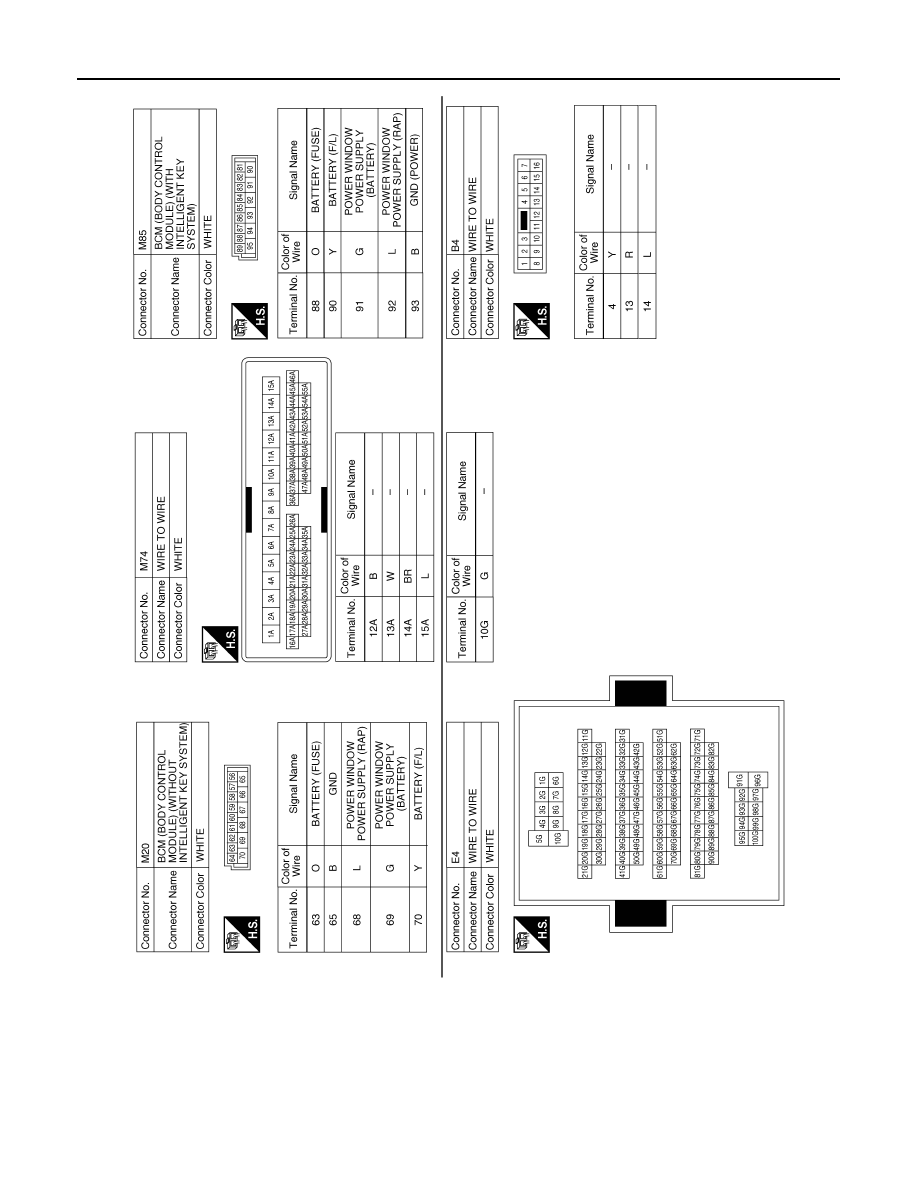

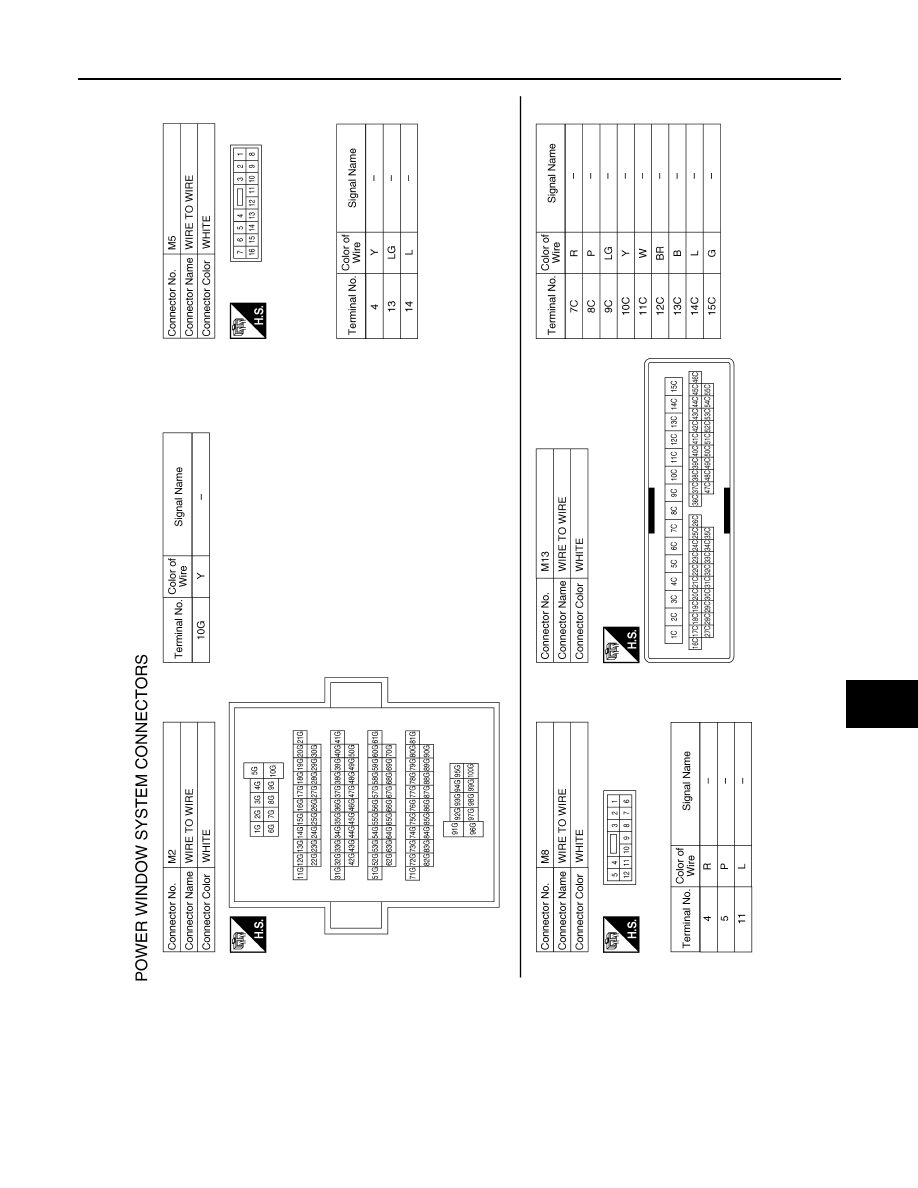

Terminal No.
(Wire color)
Description
Condition
Voltage (V)
+
-
Signal name
Input/
Output
Error
Error condition
Pulse sensor malfunction
When only one side of pulse signal is being detected for more than the specified value.
Both pulse sensors mal-
function
When both pulse signals have not been detected for more than the specified value during glass
open/close operation.
Pulse direction malfunc-
tion
When the pulse signal that is detected during glass open/close operation detects the opposite con-
dition of power window motor operating direction.
Glass recognition position
malfunction 1
When it detects the error between glass fully closed position in power window switch memory and
actual fully closed position during glass open/close operation is more than the specified value.
Glass recognition position
malfunction 2
When it detects pulse count more than the value of glass full stroke during glass open/close opera-
tion.
