PREPARATION

PWC-5

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000009757209

The actual shape of the tools may differ from those illustrated here.

Tool number
(TechMate No.)
Tool name

Description

—

(J-46534)
Trim Tool Set

Removing trim components

AWJIA0483ZZ

PWC-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

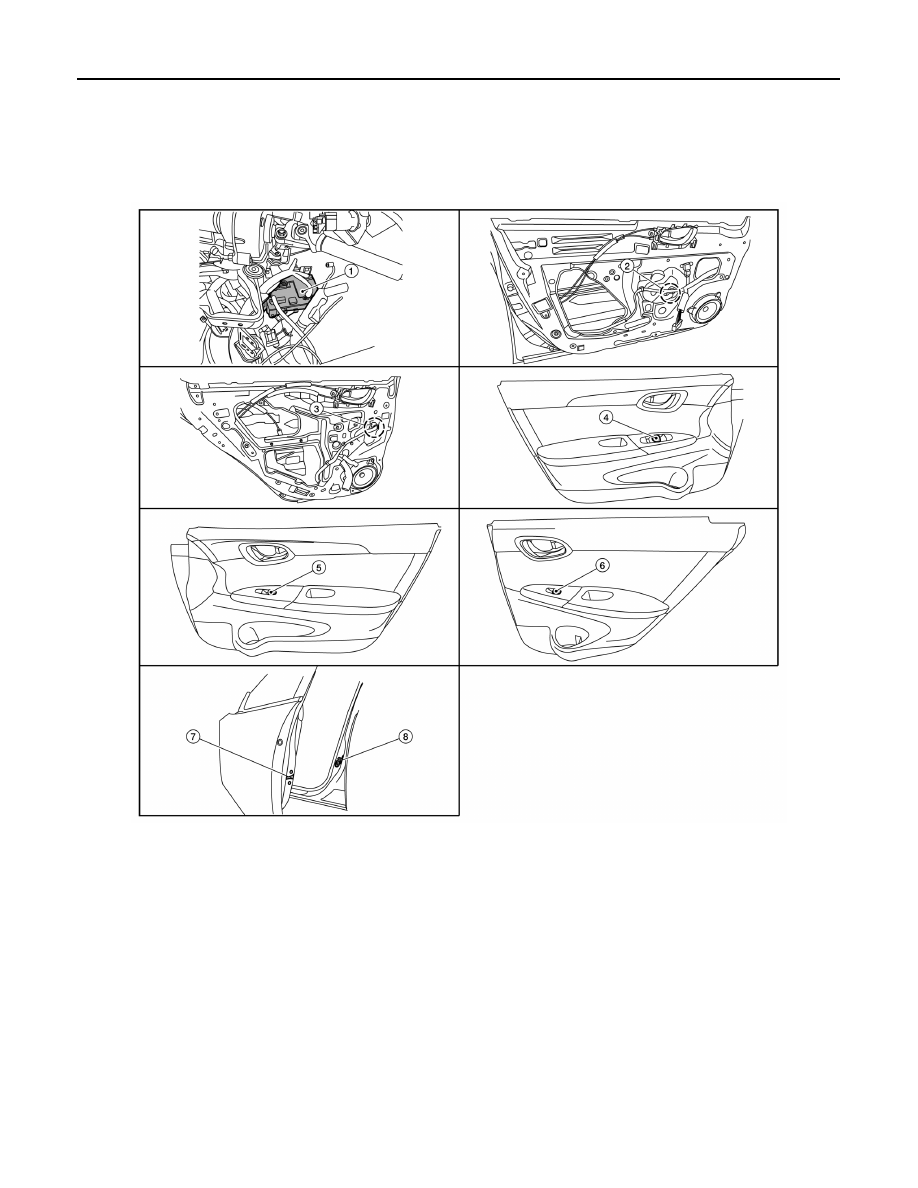

Component Parts Location

INFOID:0000000009757210

Component Description

INFOID:0000000009757211

FRONT POWER WINDOW LH ANTI-PINCH SYSTEM

AWKIA2052ZZ

1.

BCM (view under instrument panel
on the left side of the vehicle)

2. Front power window motor LH (RH

similar) (view with front door finisher
removed)

3.

Rear power window motor LH (RH
similar) (view with rear door finisher
removed)

4.

Main power window and door lock/
unlock switch

5.

Power window and door lock/unlock
switch RH

6.

Rear power window switch RH (LH
similar)

7.

Front door lock assembly LH (key
cylinder switch)

8.

Front door switch LH (RH similar)

COMPONENT PARTS

PWC-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

Component

Function

BCM

• Supplies power to power window switches.
• Controls retained power.

Front power window motor LH

• Integrates the ENCODER POWER and WINDOW MOTOR.
• Starts operating with signals from main power window and door lock/unlock switch.
• Transmits power window motor rotation as a pulse signal to main power window and

door lock/unlock switch.

Front power window motor RH

Starts operating with signals from main power window and door lock/unlock switch &
power window and door lock/unlock switch RH.

Main power window and door lock/un-
lock switch

• Directly controls all power window motor of all doors.
• Controls anti-pinch operation of front power window LH.

Power window and door lock/unlock
switch RH

Controls front power window motor RH.

Rear power window switch

Controls rear power window motors LH and RH.

Rear power window motor

Starts operating with signals from main power window and door lock/unlock switch &
rear power window switch.

Front door switch LH or RH

Detects door open/close condition and transmits to BCM.

PWC-8

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

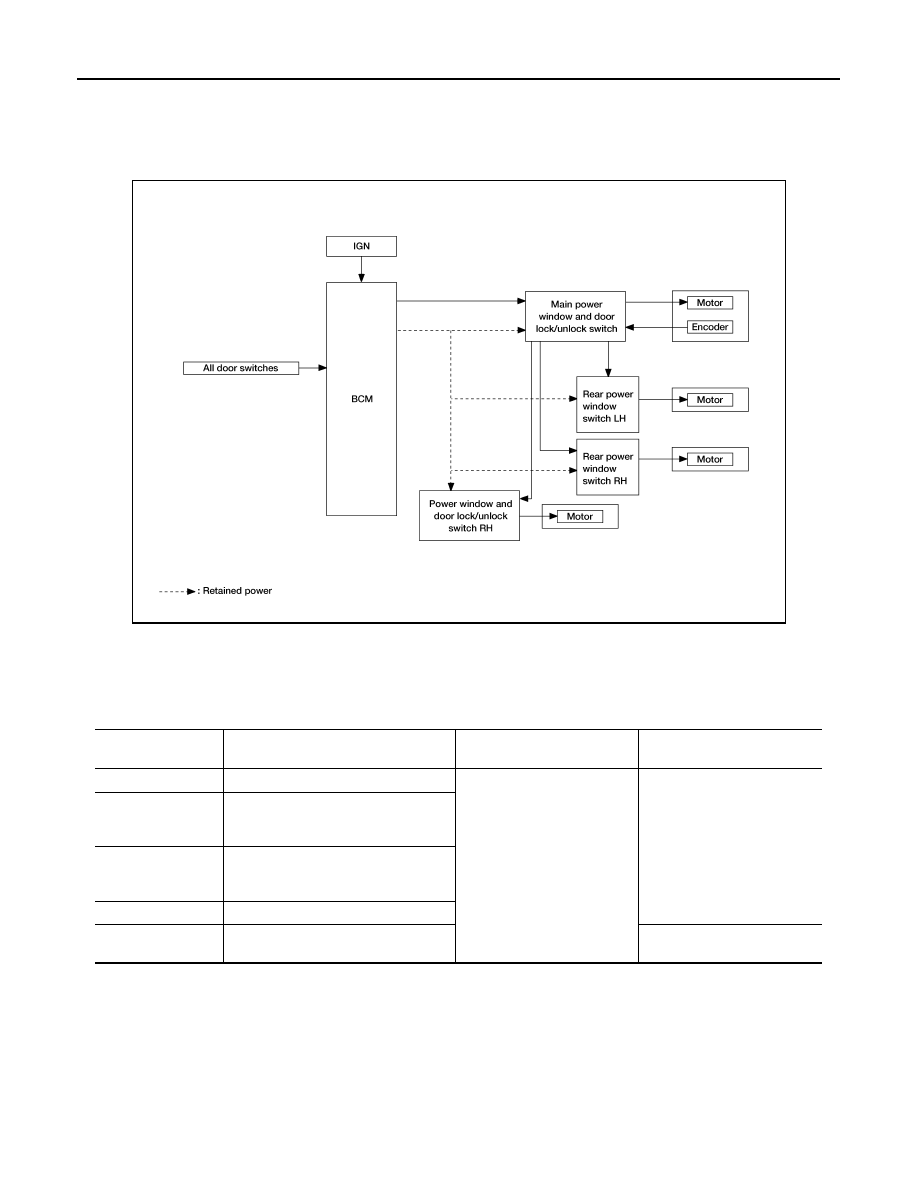

System Diagram

INFOID:0000000009757212

FRONT POWER WINDOW LH ANTI-PINCH SYSTEM

System Description

INFOID:0000000009757213

MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

INPUT/OUTPUT SIGNAL CHART

POWER WINDOW OPERATION

• Power window system is activated by the power window switch when the ignition switch is in the ON position

or during the retained power operation after ignition switch is turned OFF.

• Main power window and door lock/unlock switch can open/close all windows.

• Front & rear power window switches can open/close the corresponding windows.

• Power window lock switch can lock all power windows other than driver seat.

• If door glass receives resistance that is more than the specified value and the power window is in the AUTO-

UP operation (Front LH), power window will move in the reverse direction (Anti-Pinch Function).

POWER WINDOW AUTO-OPERATION (FRONT LH)

AWKIA2893GB

Item

Input signal to main power window and

door lock/unlock switch

Main power window and door

lock/unlock switch function

Actuator

Encoder

Encoder pulse signal

Power window control

Front power window motor

Main power window
and door lock/unlock
switch

Front power window motor LH UP/
DOWN signal

Power window and
door lock/unlock
switch RH

Front power window motor RH UP/
DOWN signal

BCM

RAP signal

Rear power window
switch

Rear power window motor UP/DOWN
signal

Rear power window motor
