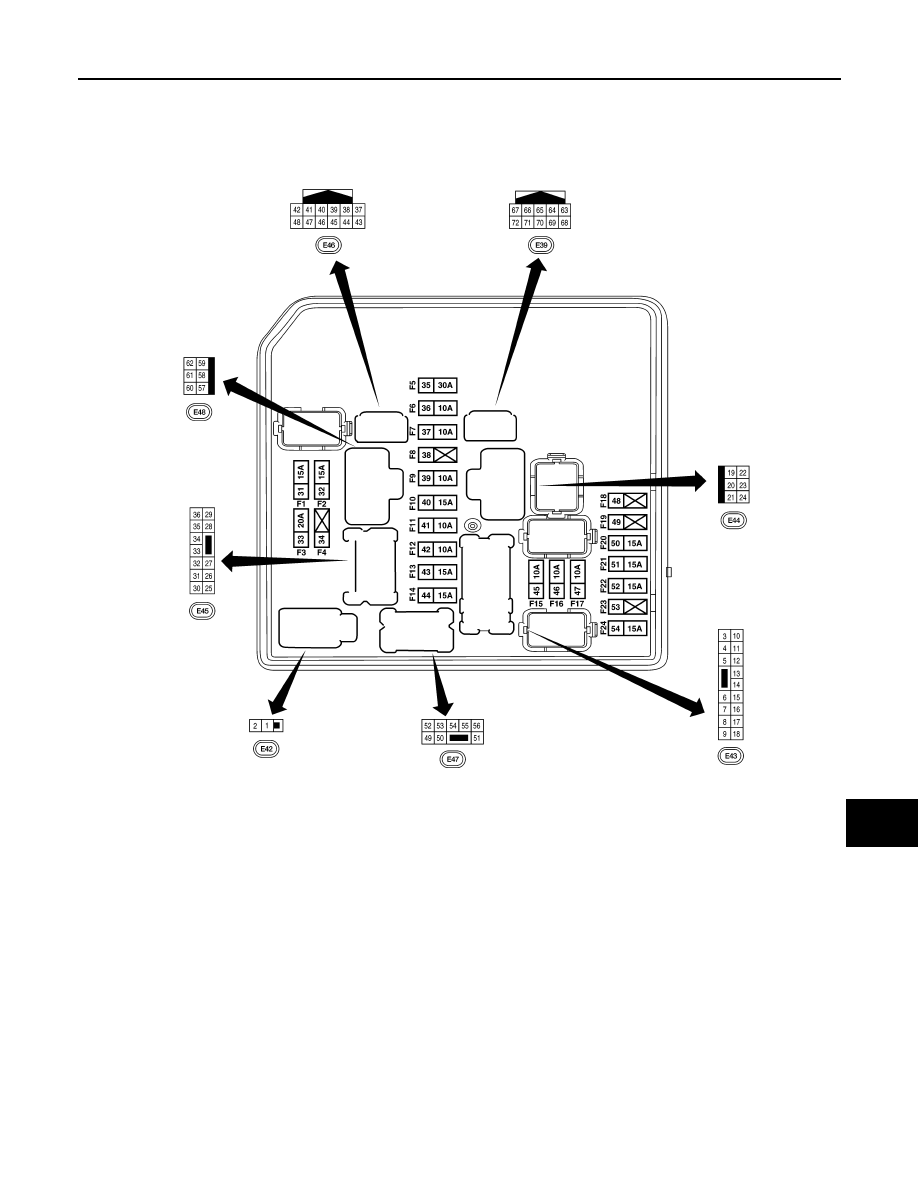

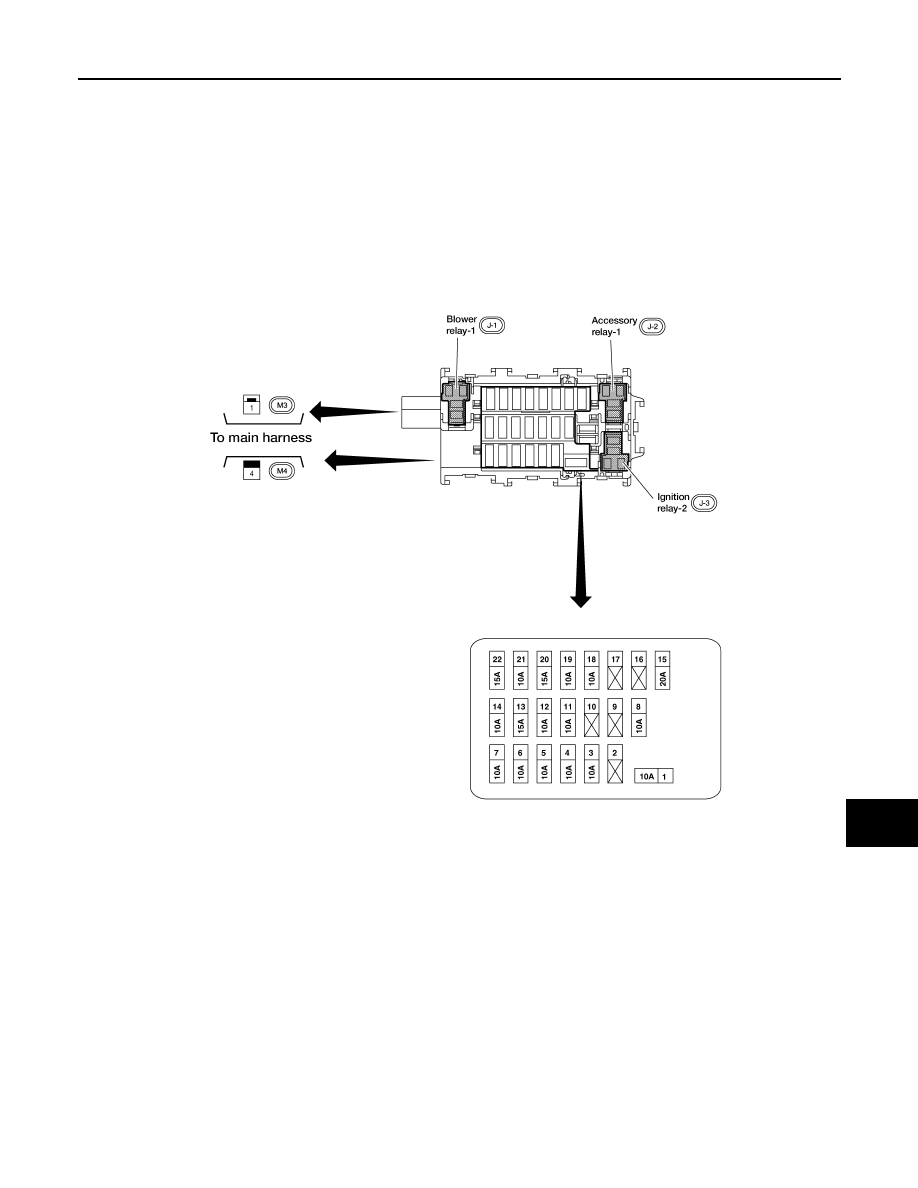

FUSE BLOCK - JUNCTION BOX (J/B)

Terminal Arrangement

INFOID:0000000009757196

ABMIA5651GB

PG-48

< DTC/CIRCUIT DIAGNOSIS >

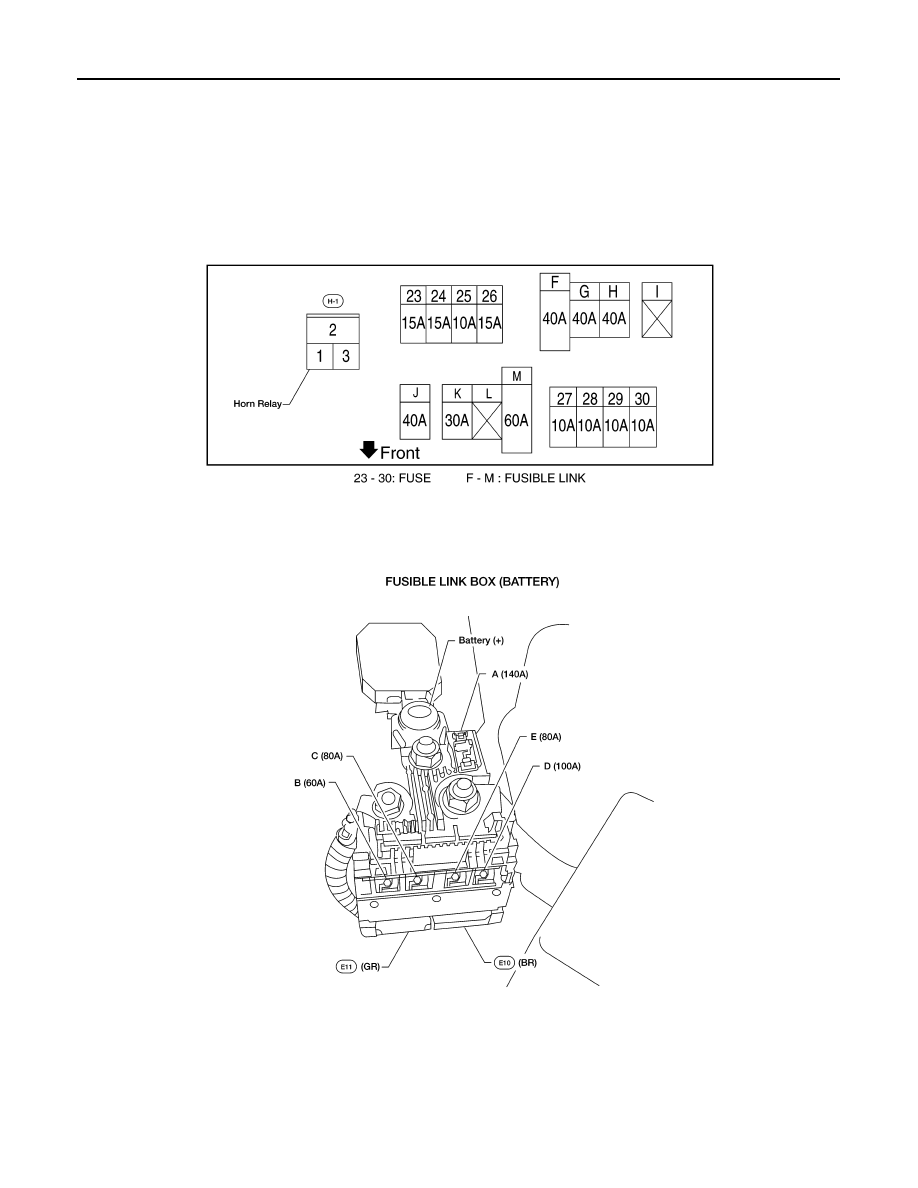

FUSE, FUSIBLE LINK AND RELAY BOX

FUSE, FUSIBLE LINK AND RELAY BOX

Terminal Arrangement

INFOID:0000000009757197

FUSE AND FUSIBLE LINK BOX

ABMIA5652GB

PG

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PG-49

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

IPDM E/R Terminal Arrangement

INFOID:0000000009757198

NOTE:

Numbers preceded by an "F" represent the fuse numbers imprinted on the IPDM E/R. The other numbers

represent the fuse numbers as they appear in the wiring diagrams.

ABMIA5674GB

PG-50

< REMOVAL AND INSTALLATION >

BATTERY

REMOVAL AND INSTALLATION

BATTERY

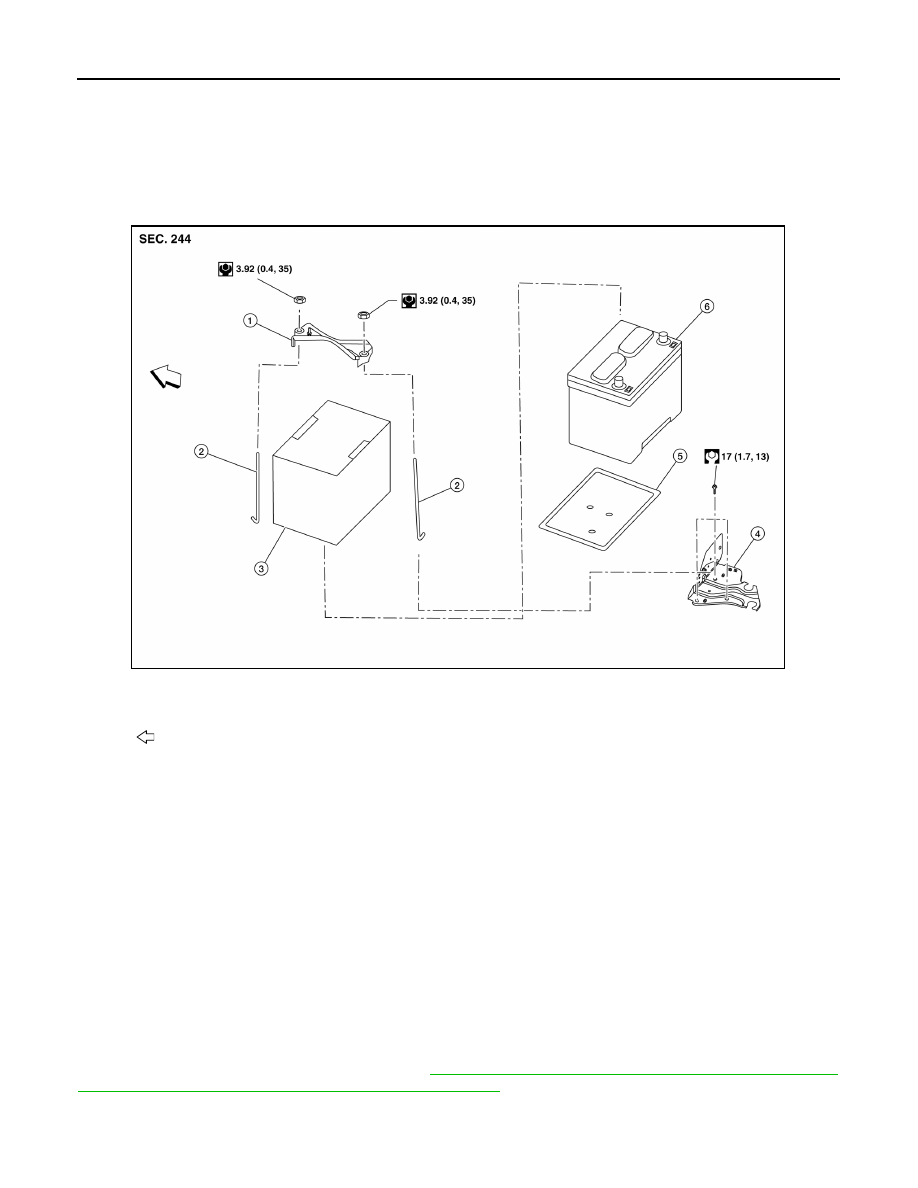

Exploded View

INFOID:0000000009757199

Removal and Installation (Battery)

INFOID:0000000009757200

REMOVAL

1. Loosen the battery terminal nuts and disconnect both battery negative and positive terminals.

CAUTION:

To prevent damage to the parts, disconnect the battery negative terminal first.

2. Remove battery frame nuts, battery frame and battery rods.
3. Remove battery cover and battery.
4. Remove battery tray.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• To prevent damage to the parts, connect the battery positive terminal first.

• Ensure battery cables are tightly clamped to battery terminals for good contact.

• Check battery terminal for poor connection caused by corrosion.

Reset electronic systems as necessary. Refer to

PG-7, "ADDITIONAL SERVICE WHEN REMOVING BAT-

TERY NEGATIVE TERMINAL : Special Repair Requirement"

.

1.

Battery frame

2.

Battery rods

3.

Battery cover

4.

Battery bracket

5.

Battery tray

6.

Battery

Front

ALMIA0951ZZ
