POWER SUPPLY ROUTING CIRCUIT

PG-19

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

AAMIA1379GB

PG-20

< DTC/CIRCUIT DIAGNOSIS >

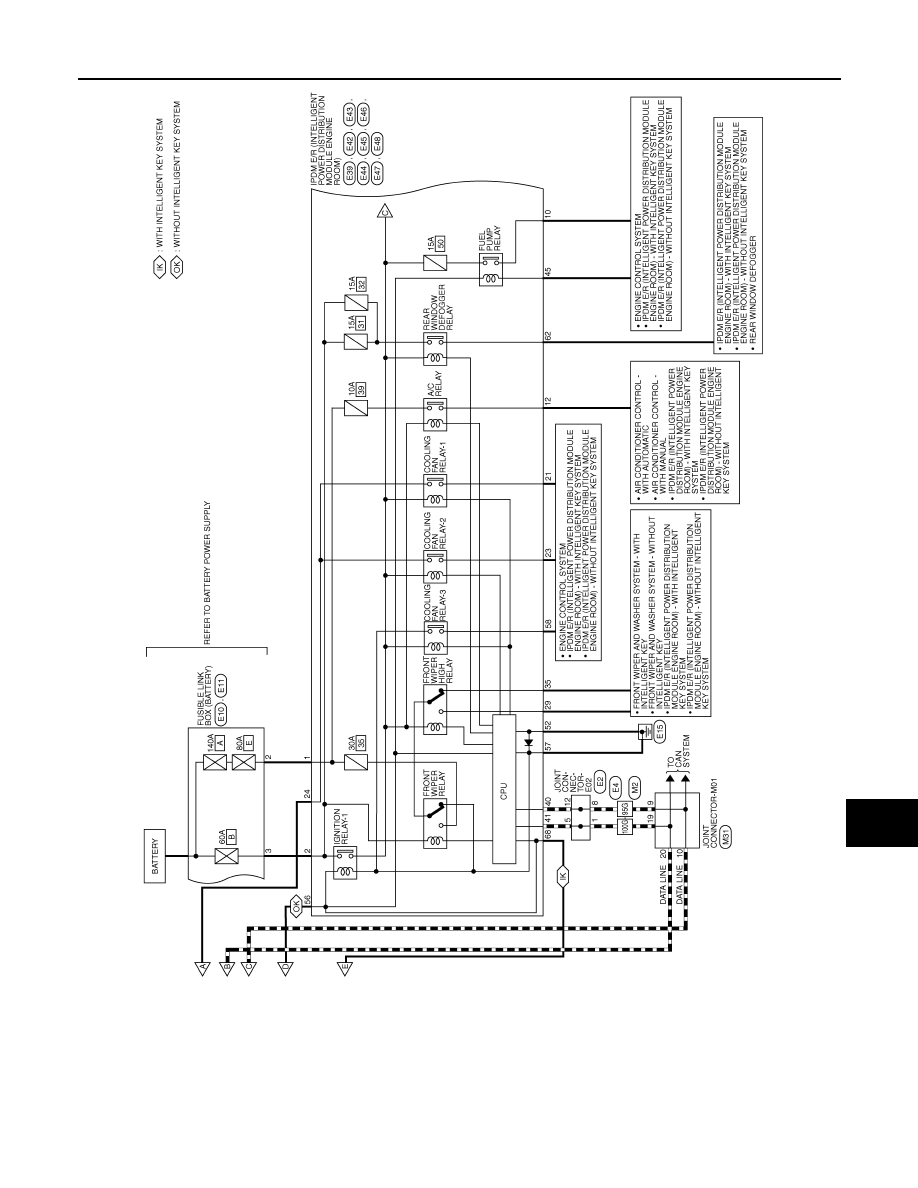

POWER SUPPLY ROUTING CIRCUIT

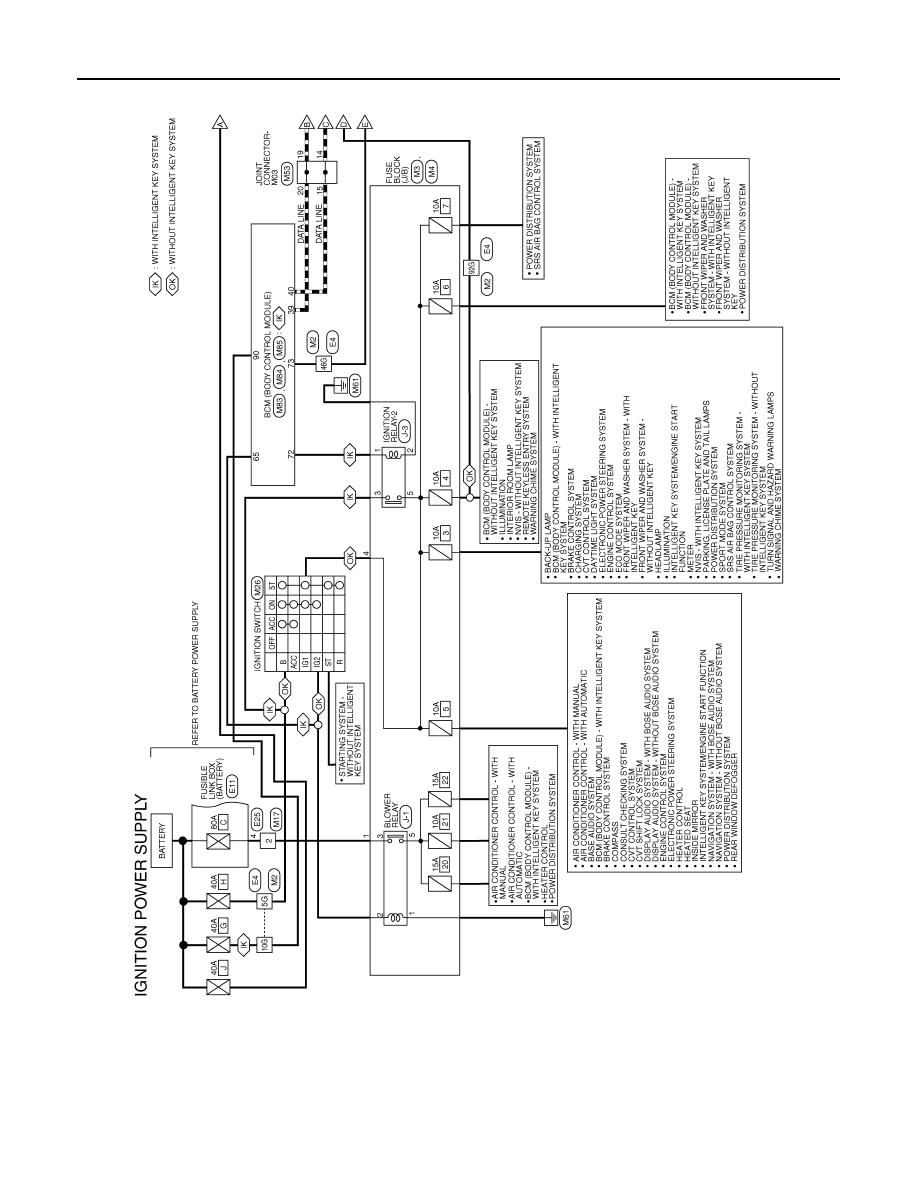

Wiring Diagram —Ignition Power Supply —

INFOID:0000000009757189

ABMWA2421GB

PG

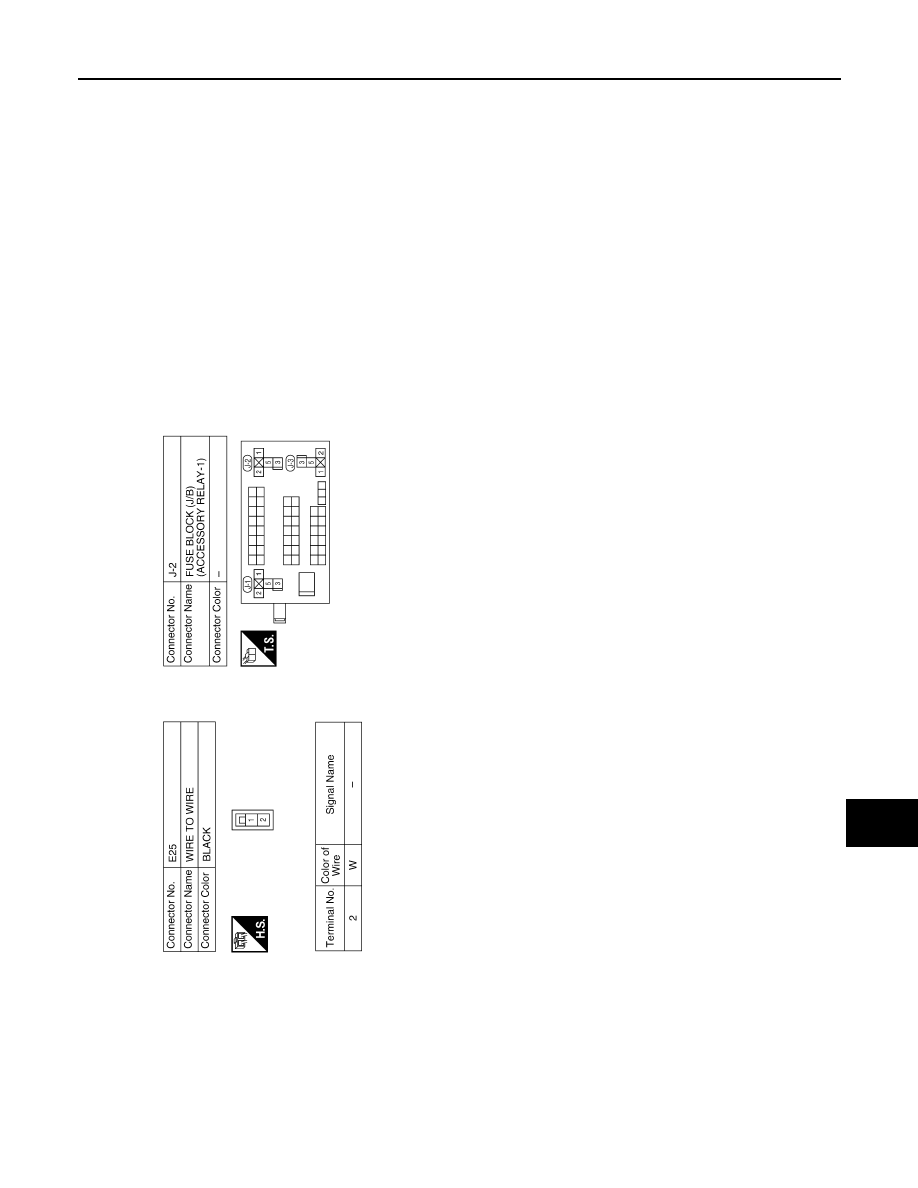

POWER SUPPLY ROUTING CIRCUIT

PG-21

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMWA2422GB

PG-22

< DTC/CIRCUIT DIAGNOSIS >

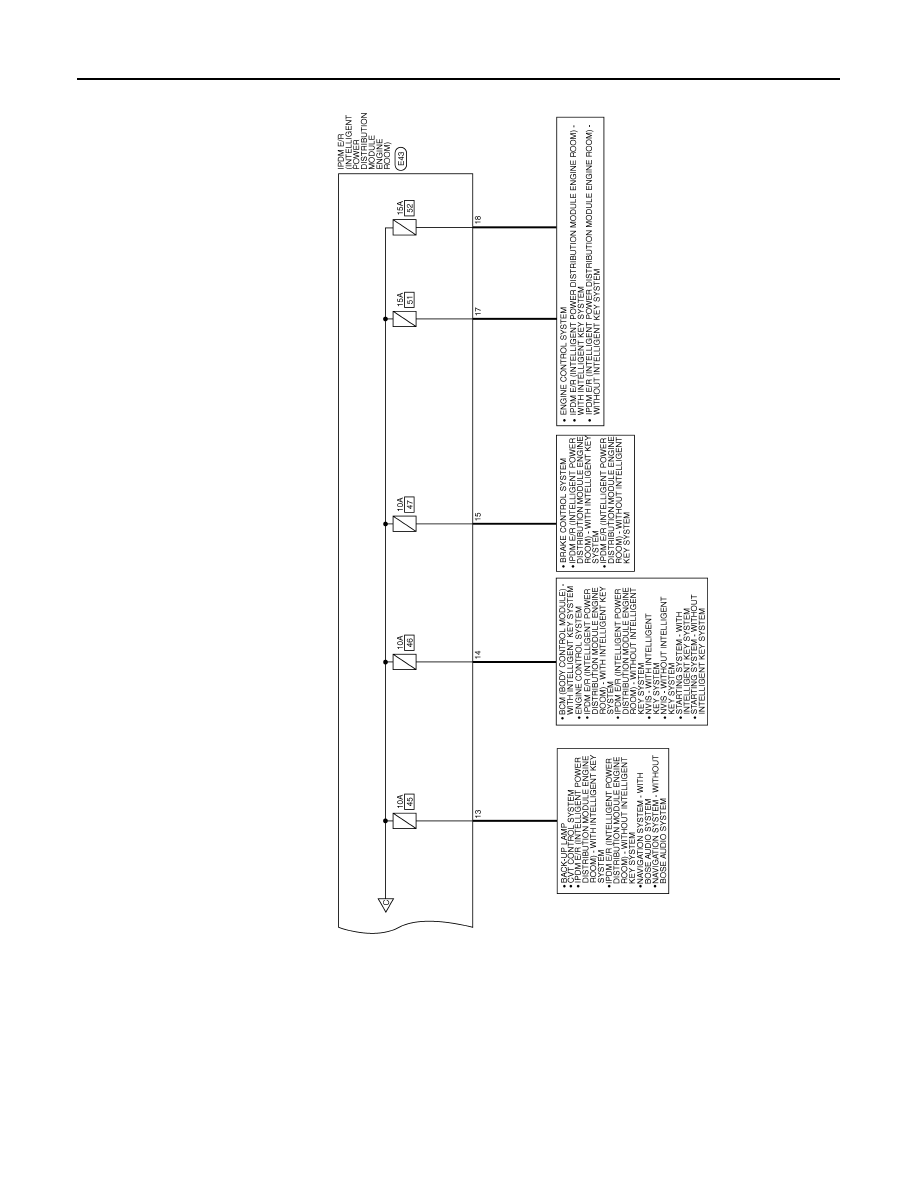

POWER SUPPLY ROUTING CIRCUIT

ABMWA2423GB
