PG

INSPECTION AND ADJUSTMENT

PG-7

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL
ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Spe-
cial Repair Requirement

INFOID:0000000009757186

Required Procedure After Battery Disconnection

System

Item

Reference

Engine Control System

Idle Air Volume Learning

EC-140

Brake Control System

Steering Angle Sensor Neutral Position

BRC-54

Power Window Control System

Power Window System Initialization

PWC-29

Roof

Moonroof Memory Reset/Initialization

RF-18

Heater & Air Conditioning Control System

Temperature Setting Trimmer

HAC-55

 (Automatic Air Conditioner)

Inlet Port Memory Function (FRE)

HAC-55

 (Automatic Air Conditioner)

Inlet Port Memory Function (REC)

HAC-56

 (Automatic Air Conditioner)

Target Evaporator Temp Upper Limit

HAC-56

 (Automatic Air Conditioner)

Audio, Visual and Navigation System

Audio (Radio Preset)

Refer to Owner's Manual.

Navigation System

Refer to Owner's Manual.

PG-8

< DTC/CIRCUIT DIAGNOSIS >

POWER SUPPLY ROUTING CIRCUIT

DTC/CIRCUIT DIAGNOSIS

POWER SUPPLY ROUTING CIRCUIT

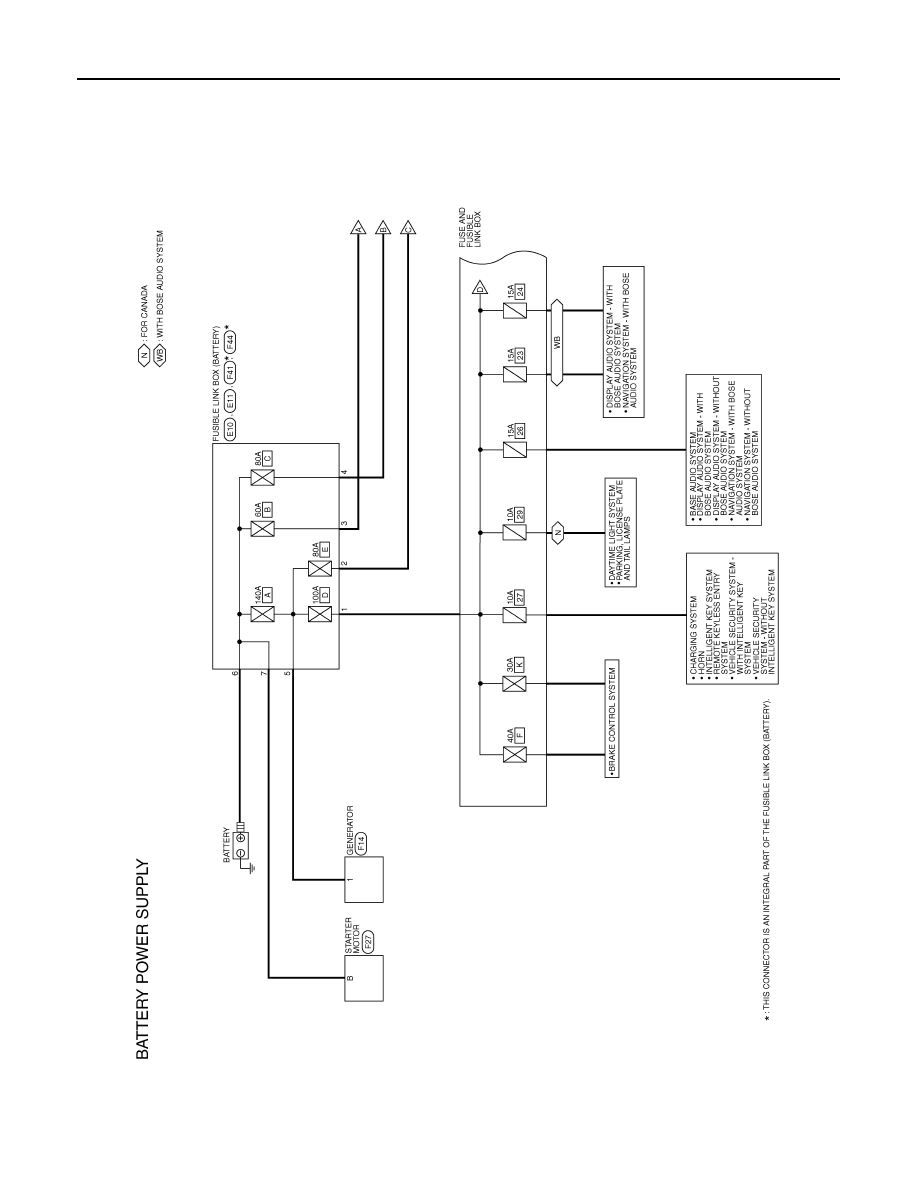

Wiring Diagram —Battery Power Supply —

INFOID:0000000009757187

ABMWA2415GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-9

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

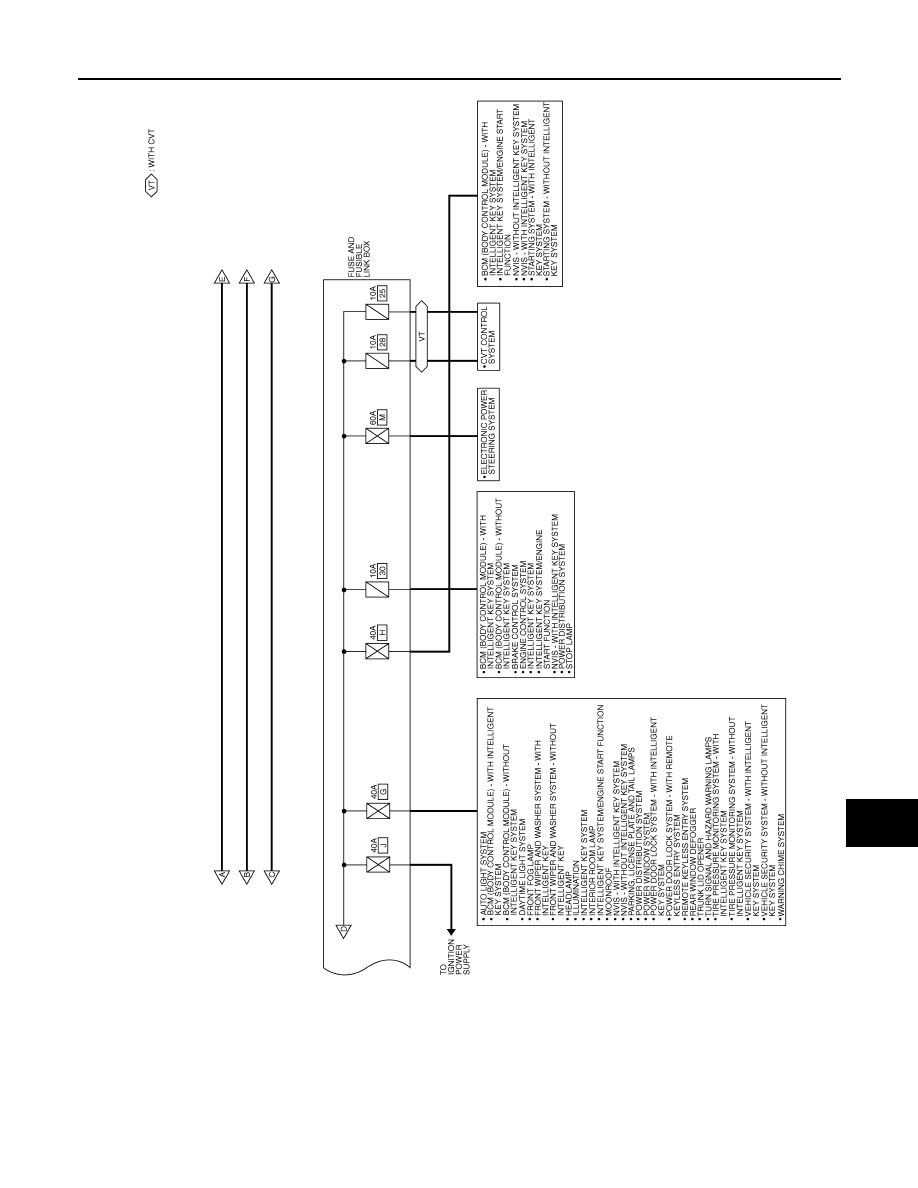

ABMWA2416GB

PG-10

< DTC/CIRCUIT DIAGNOSIS >

POWER SUPPLY ROUTING CIRCUIT

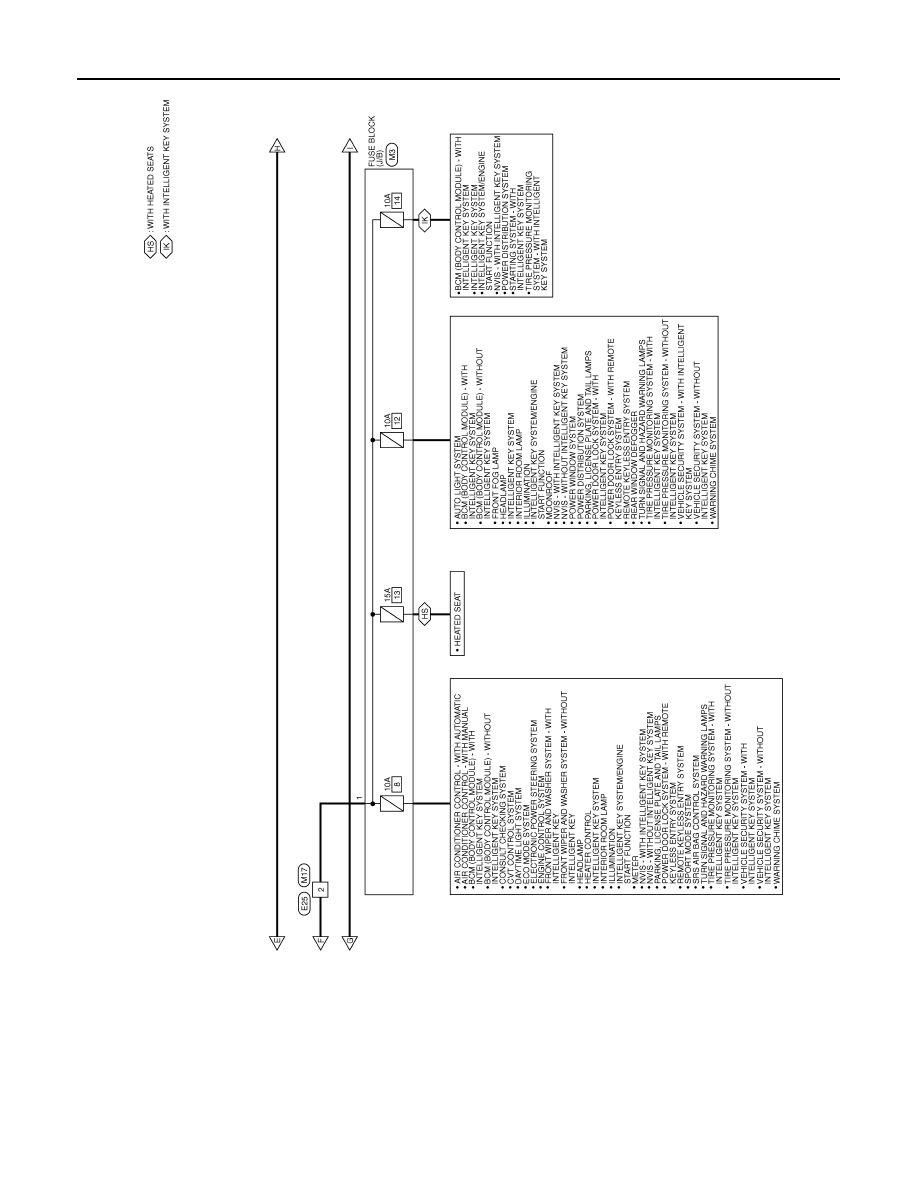

ABMWA2417GB
