Nissan Sentra. Manual - part 674

PCS

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PCS-49

< WIRING DIAGRAM >

[IPDM E/R (WITHOUT I-KEY)]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

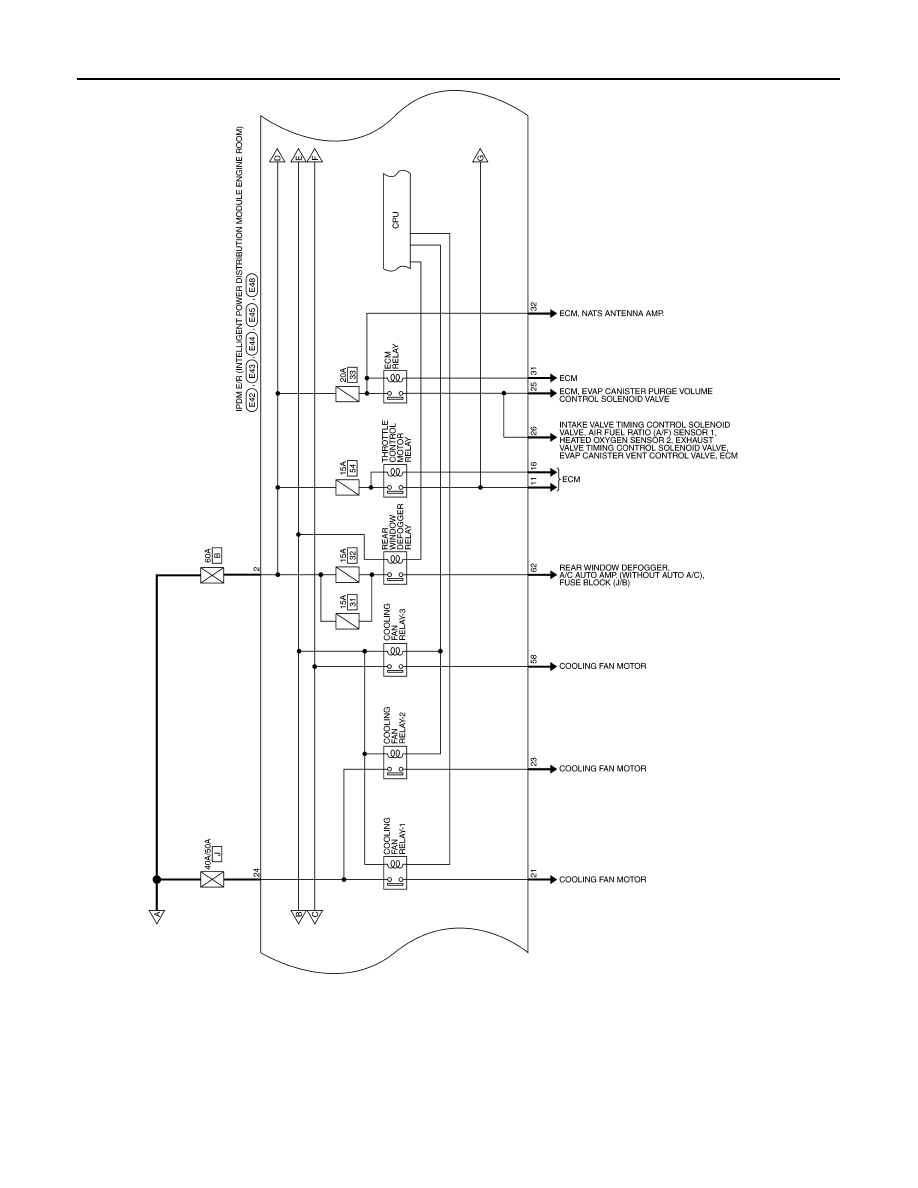

WIRING DIAGRAM

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

Wiring Diagram

INFOID:0000000009755840

ABMWA2391GB

PCS-50

< WIRING DIAGRAM >

[IPDM E/R (WITHOUT I-KEY)]

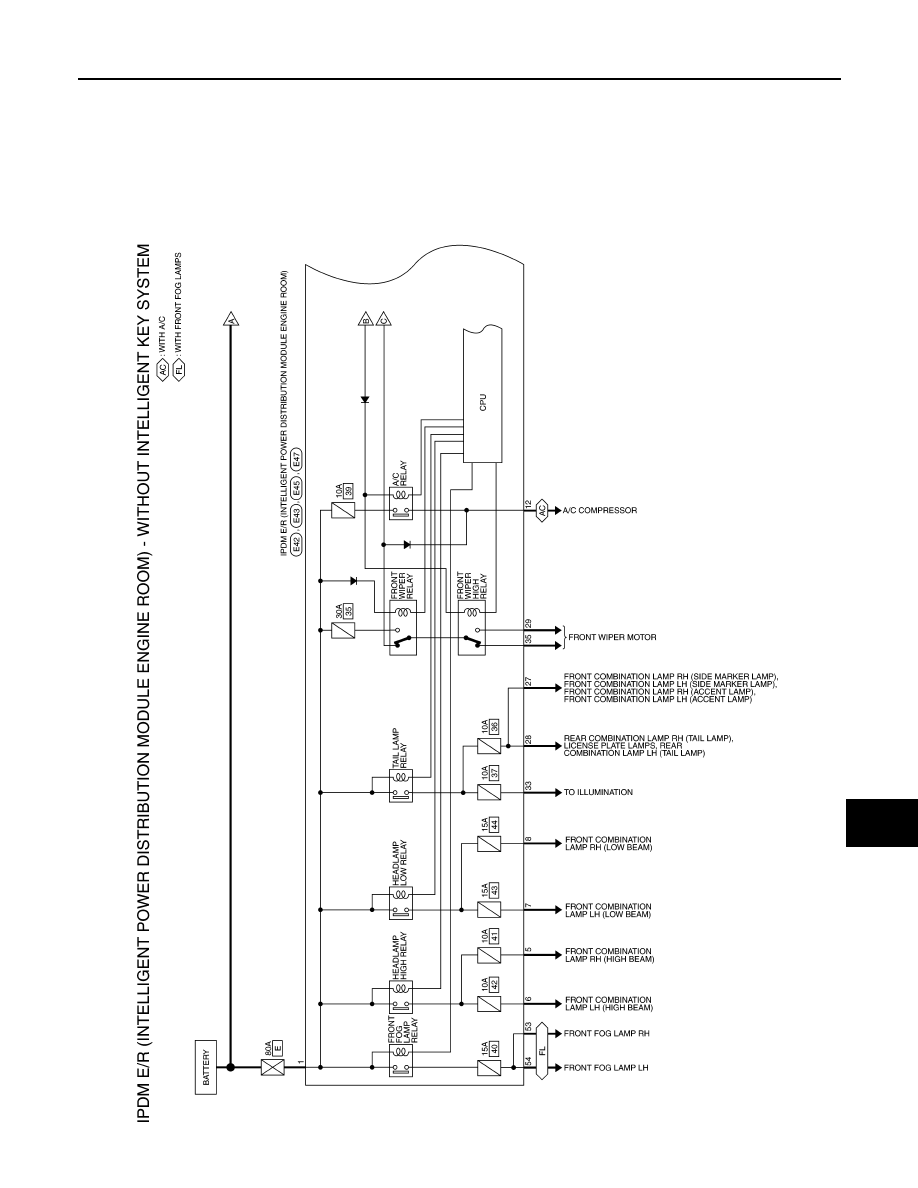

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

ABMWA2392GB

PCS

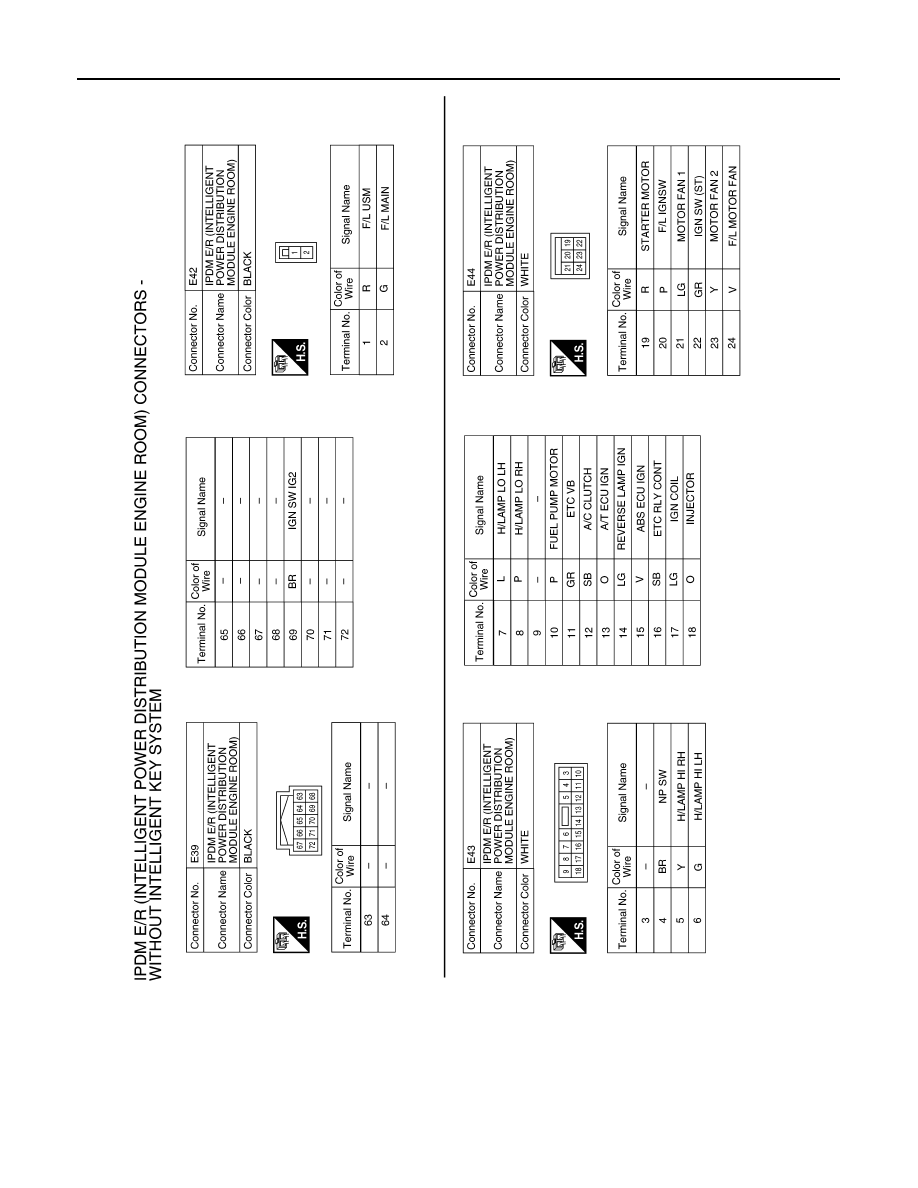

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PCS-51

< WIRING DIAGRAM >

[IPDM E/R (WITHOUT I-KEY)]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMWA2393GB

PCS-52

< WIRING DIAGRAM >

[IPDM E/R (WITHOUT I-KEY)]

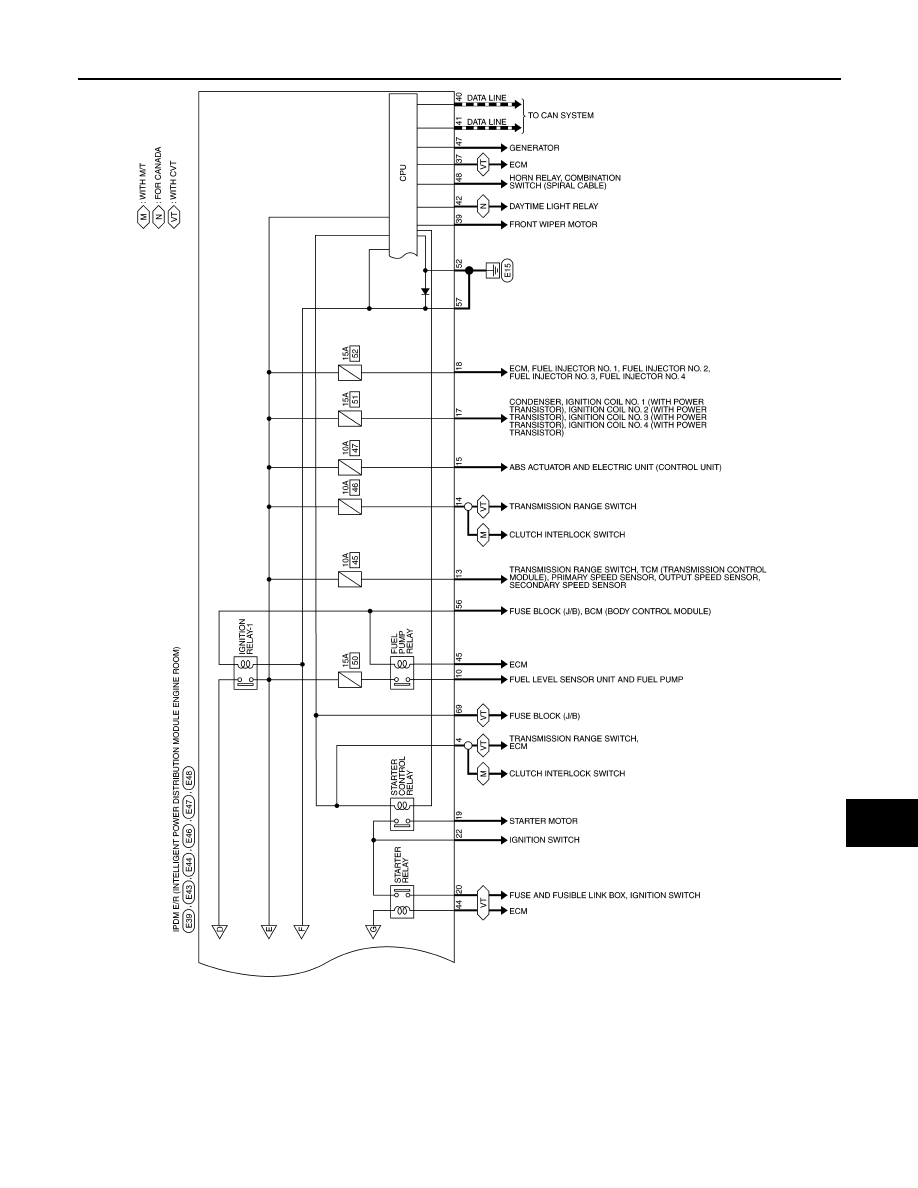

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

ABMIA5623GB
