IP-12

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

Diagnostic Worksheet

INFOID:0000000009756851

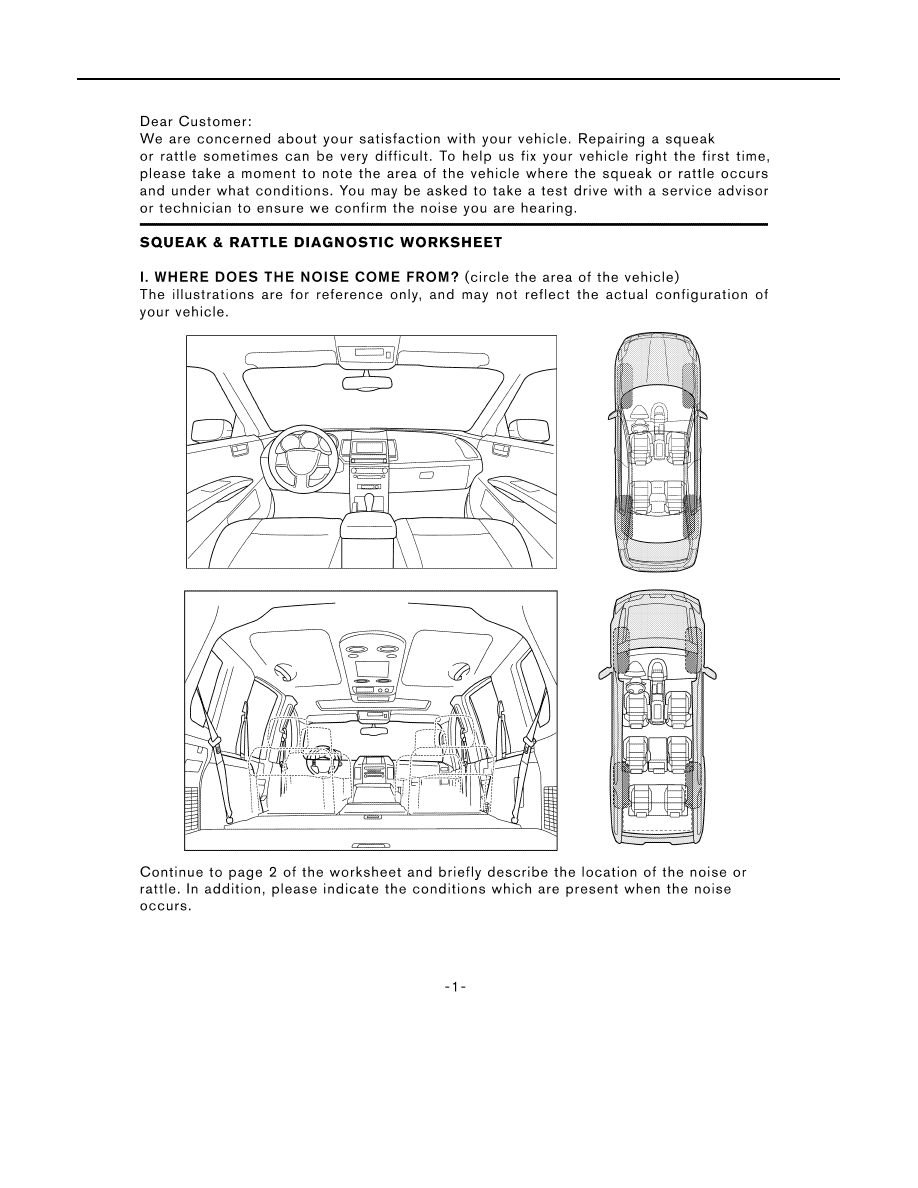

LAIA0072E

SQUEAK AND RATTLE TROUBLE DIAGNOSES

IP-13

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

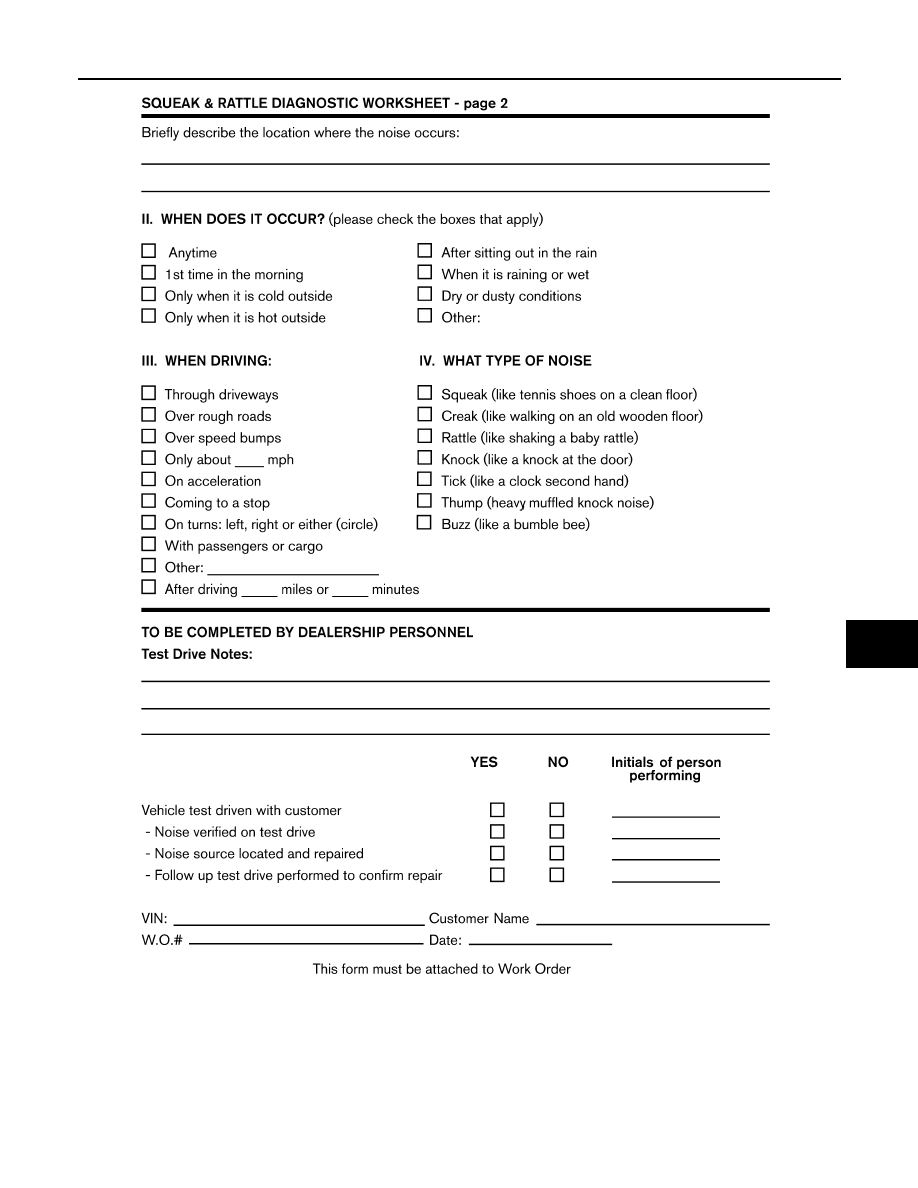

LAIA0071E

IP-14

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

REMOVAL AND INSTALLATION

INSTRUMENT PANEL ASSEMBLY

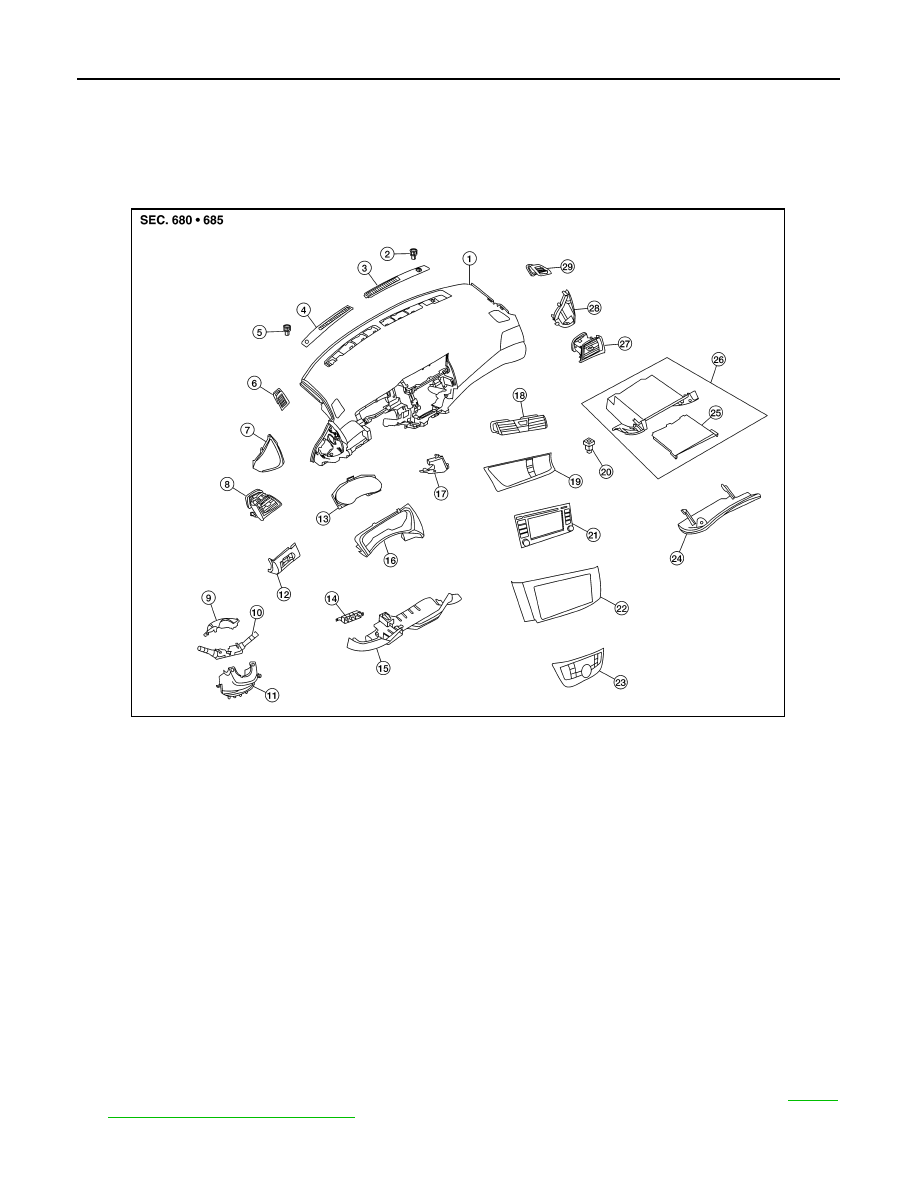

Exploded View

INFOID:0000000009756852

Removal and Installation

INFOID:0000000009756853

CAUTION:

• Be careful not to scratch instrument panel pad and other parts.

• Before servicing, turn ignition switch OFF, disconnect both battery terminals and wait at least three

minutes.

REMOVAL

1. Disconnect the negative and positive battery terminals, then wait at least three minutes. Refer to

PG-50,

"Removal and Installation (Battery)"

.

1.

Instrument panel assembly

2.

Ambient sensor

3.

Defroster grille (RH)

4.

Defroster grille (LH)

5.

Sunload sensor (if equipped)

6.

Side defroster grille (LH)

7.

Instrument side finisher (LH)

8.

Side ventilator grille (LH)

9.

Steering column upper cover

10. Combination switch

11. Steering column lower cover

12. Instrument finisher (LH)

13. Combination meter

14. Switch carrier

15. Instrument lower panel LH

16. Cluster lid A

17. Instrument finisher B

18. Center ventilator grille assembly

19. Cluster lid C

20. Hazard switch

21. AV control unit

22. Cluster lid C lower

23. A/C switch assembly

24. Glove box lid

25. Glove box mat

26. Glove box assembly

27. Side ventilator grille (RH)

28. Instrument side finisher (RH)

29. Side defroster grille (RH)

ALJIA1001ZZ

INSTRUMENT PANEL ASSEMBLY

IP-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

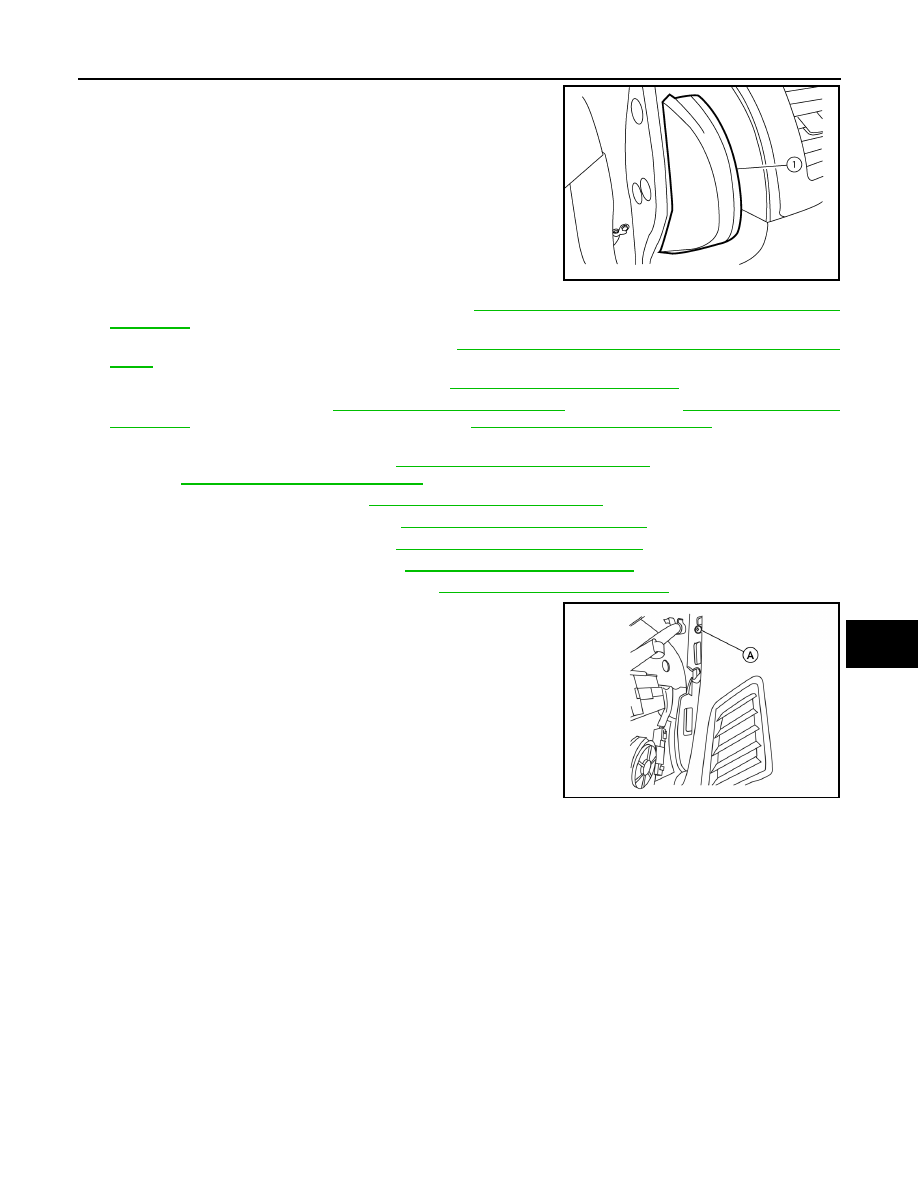

2. Remove the instrument side finishers (1) (LH/RH) using a suit-

able tool.

NOTE:

LH side shown; RH side similar.

3. Remove the front pillar finishers (LH/RH). Refer to

INT-24, "FRONT PILLAR FINISHER : Removal and

Installation"

.

4. Remove the front kicking plates (LH/RH). Refer to

INT-24, "KICKING PLATE INNER : Removal and Instal-

lation"

.

5. Remove the instrument lower panel LH. Refer to

IP-21, "Removal and Installation"

.

6. Remove the audio unit. Refer to

AV-58, "Removal and Installation"

 (BASE AUDIO),

AV-122, "Removal and

Installation"

 (DISPLAY AUDIO WITHOUT BOSE) or

AV-203, "Removal and Installation"

 (DISPLAY AUDIO

WITH BOSE).

7. Remove the AV control unit. Refer to

AV-298, "Removal and Installation"

 (NAVIGATION WITHOUT

BOSE) or

AV-406, "Removal and Installation"

 (NAVIGATION WITH BOSE).

8. Remove the steering wheel. Refer to

ST-10, "Removal and Installation"

.

9. Remove the combination switch. Refer to

BCS-75, "Removal and Installation"

.

10. Remove the combination meter. Refer to

MWI-77, "Removal and Installation"

.

11. Remove the glove box assembly. Refer to

IP-22, "Removal and Installation"

.

12. Remove the center console assembly. Refer to

IP-17, "Removal and Installation"

.

13. Remove the instrument panel screws (A) (LH/RH).

NOTE:

The instrument panel screws (A) can be found near the side

defroster grilles (LH/RH).

14. Remove the remaining instrument panel screws.
15. Disconnect the harness connector from the front passenger air bag module.
16. Disconnect all remaining harness connectors.
17. With the help of an assistant, remove the instrument panel assembly.

CAUTION:

Be careful not to scratch the instrument panel pad and other parts.

INSTALLATION

Installation is in the reverse order of removal.

• If replacing the instrument panel, transfer all the necessary parts to the new instrument panel.

ALJIA0018ZZ

ALJIA1002ZZ
