SQUEAK AND RATTLE TROUBLE DIAGNOSES

INT-13

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

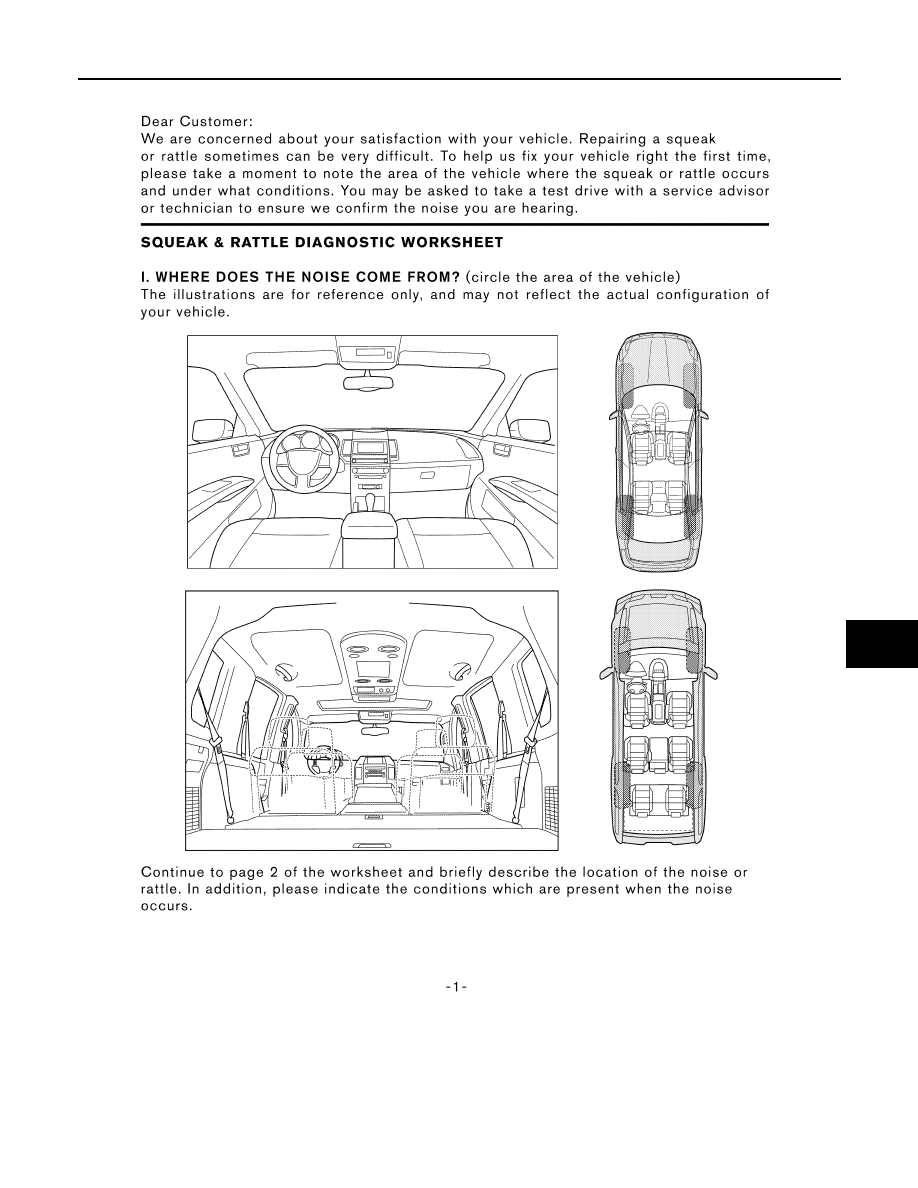

Diagnostic Worksheet

INFOID:0000000010290162

LAIA0072E

INT-14

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

LAIA0071E

FRONT DOOR FINISHER

INT-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

REMOVAL AND INSTALLATION

FRONT DOOR FINISHER

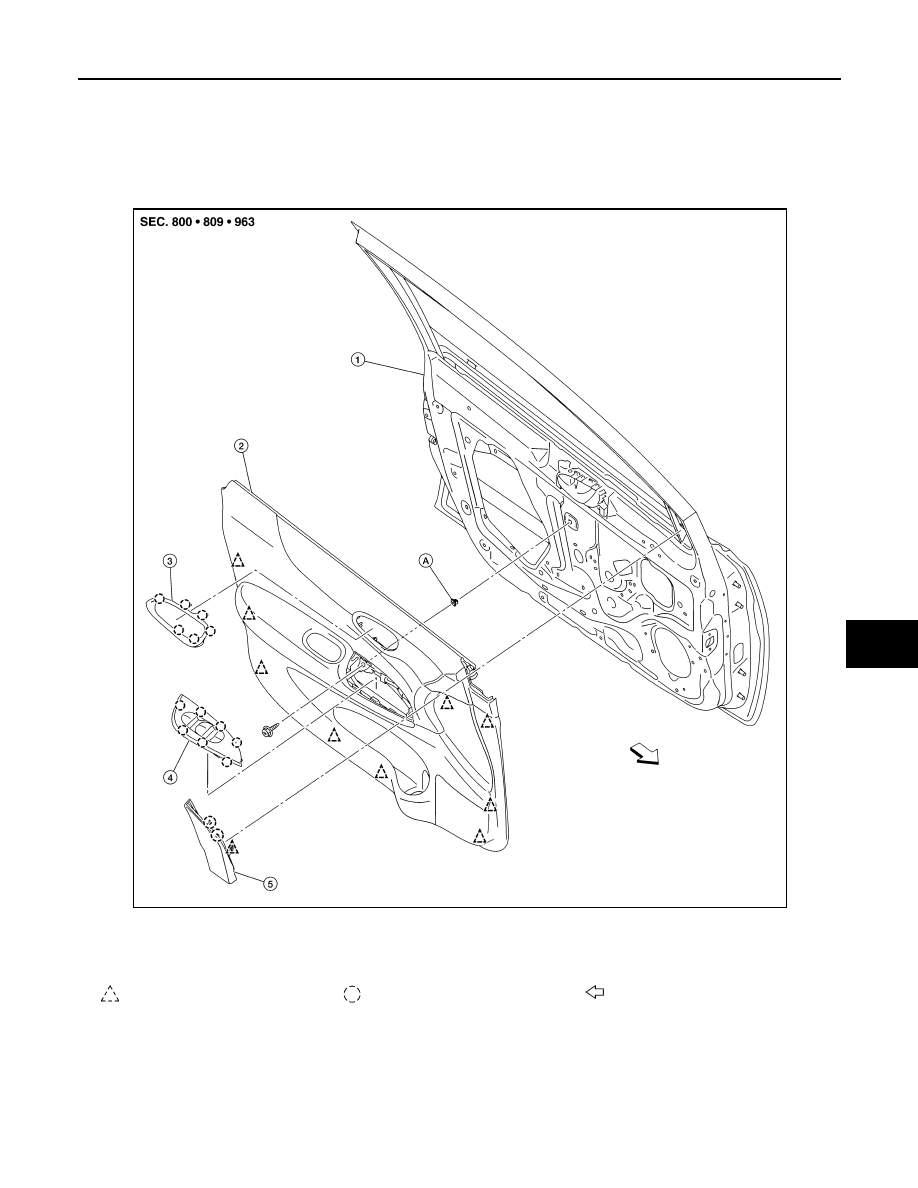

Exploded View

INFOID:0000000009756903

NOTE:

LH side shown; RH similar.

Removal and Installation

INFOID:0000000009756904

CAUTION:

• When removing, always use a suitable tool that is made of plastic to prevent damage to the parts.

1.

Front door panel

2.

Front door finisher

3.

Inside door handle escutcheon

4.

Main power window and door lock/
unlock switch finisher

5.

Door mirror corner finisher

A.

Grommet

Clip

Pawl

Front

AWJIA0966ZZ

INT-16

< REMOVAL AND INSTALLATION >

FRONT DOOR FINISHER

• Do not damage the door panel.

REMOVAL

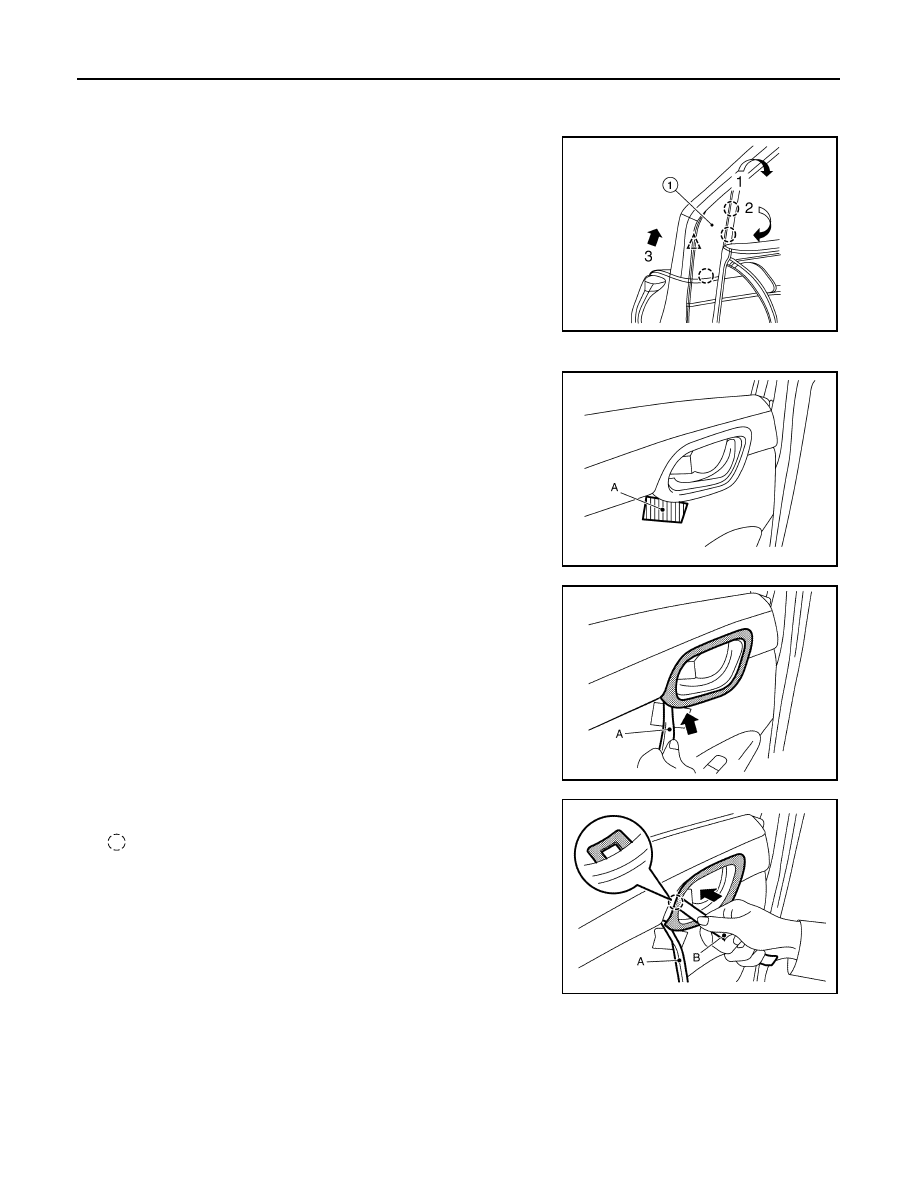

1. Remove door mirror corner finisher (1) according to numerical

order of arrows as shown.

2. Remove inside door handle escutcheon.
a. Apply protective tape (A) to protect the component from damage

as shown.

b. Insert a suitable tool (A) as shown between inside door handle

escutcheon and inside door handle.

c.

With suitable tool (A) in position, insert a second suitable tool (B)

as shown, then release pawl.

: Pawl

ALJIA1123ZZ

JMJIA7809ZZ

JMJIA7810ZZ

AWJIA0976ZZ
