DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)
INL-15
< SYSTEM DESCRIPTION >
C
D
E
F
G
H
I
J
K
M
A
B
INL
N
O
P
* : Initial setting
BATTERY SAVER
BATTERY SAVER : CONSULT Function (BCM - BATTERY SAVER)
INFOID:0000000010309884
DATA MONITOR
ACTIVE TEST
WORK SUPPORT
* : Initial setting

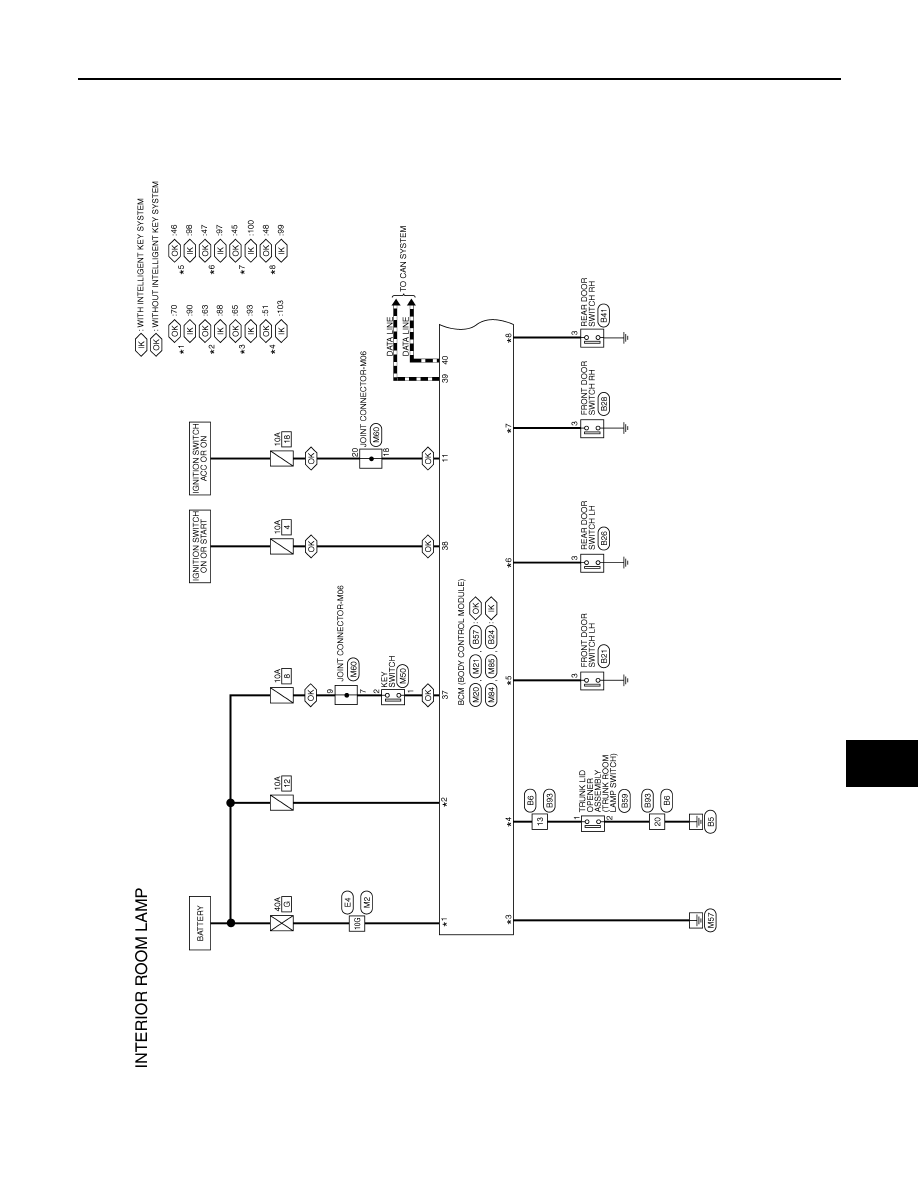

ROOM LAMP OFF TIME SET
MODE7
0 sec.
Sets the interior room lamp gradual dimming time.
MODE6
5 sec.
MODE5
4 sec.
MODE4
3 sec.
MODE3
2 sec.
MODE2*
1 sec.
MODE1
0.5 sec.
R LAMP TIMER LOGIC SET
MODE 2
Interior room lamp timer activates with all doors.
MODE 1*
Interior room lamp timer activates with the driver door only.
Support Item
Setting
Description

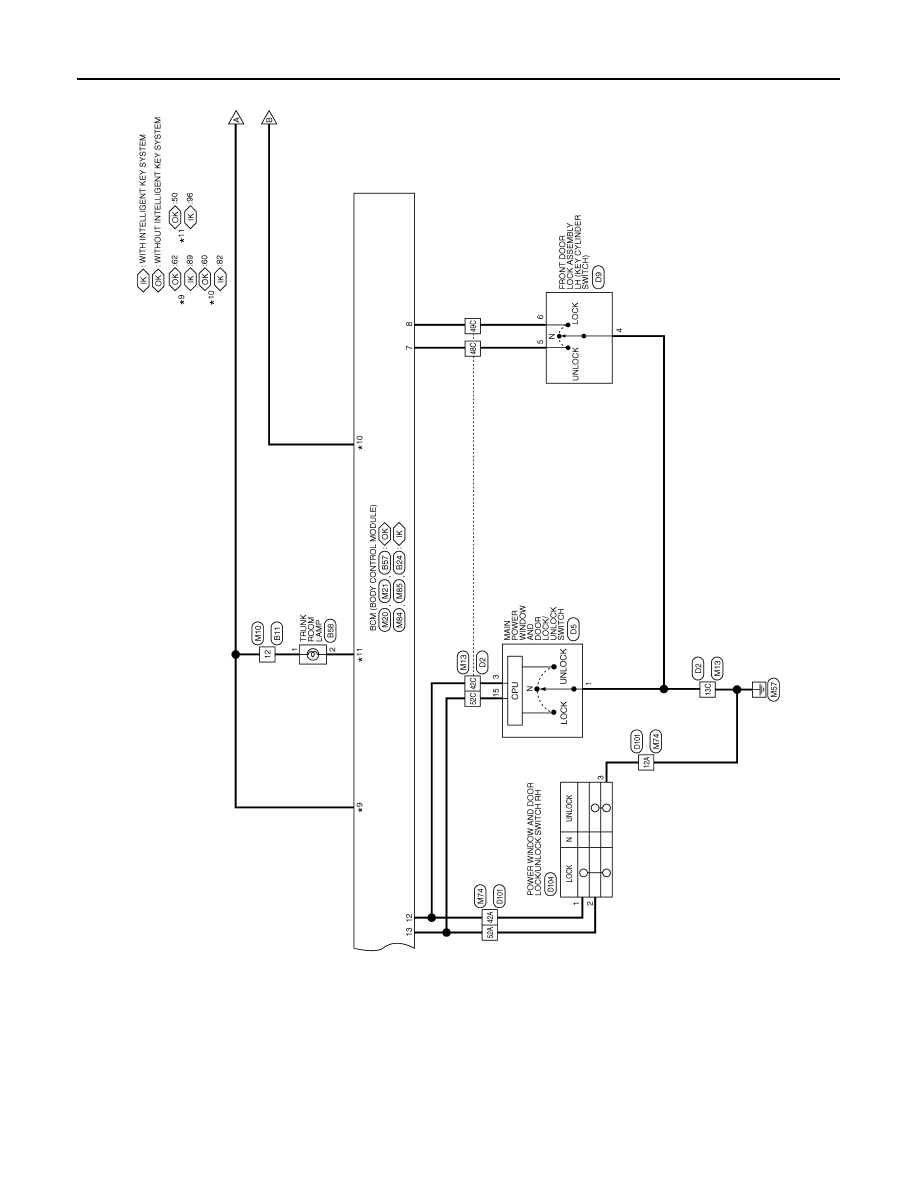

Monitor Item [Unit]
Description
IGN ON SW [On/Off]
Indicates condition of ignition switch ON position.
KEY ON SW [On/Off]
Indicates condition of key switch.
DOOR SW-DR [On/Off]
Indicates condition of front door switch LH.
DOOR SW-AS [On/Off]
Indicates condition of front door switch RH.
DOOR SW-RR [On/Off]
Indicates condition of rear door switch RH.
DOOR SW-RL [On/Off]
Indicates condition of rear door switch LH.
CDL LOCK SW [On/Off]
Indicates condition of lock signal from door lock and unlock switch.
CDL UNLOCK SW [On/Off]
Indicates condition of unlock signal from door lock and unlock switch.
KEYLESS LOCK [On/Off]
Indicates condition of lock signal from keyfob.
KEYLESS UNLOCK [On/Off]
Indicates condition of unlock signal from keyfob.
TRNK/HAT MNTR [On/Off]
Indicates condition of trunk lid switch.
KEY CYL LK-SW [On/Off]
Indicates condition of lock signal from door key cylinder switch.
KEY CYL UN-SW [On/Off]
Indicates condition of unlock signal from door key cylinder switch.
ACC SW [On/Off]
Indicates condition of ignition switch ACC position.
Test item
Description
BATTERY SAVER
This test is able to check battery saver operation [On/Off].
Support Item
Setting
Description
ROOM LAMP TIMER SET
MODE 3*
10 min.
Sets interior room lamp battery saver timer operating time.
MODE 2
60 min.
MODE 1
15 min.
