Nissan Sentra. Manual - part 550

HAC-48

< WIRING DIAGRAM >

[AUTOMATIC AIR CONDITIONER]

AUTOMATIC AIR CONDITIONING SYSTEM

ABIIA1303GB

AUTOMATIC AIR CONDITIONING SYSTEM

HAC-49

< WIRING DIAGRAM >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

ABIIA1304GB

HAC-50

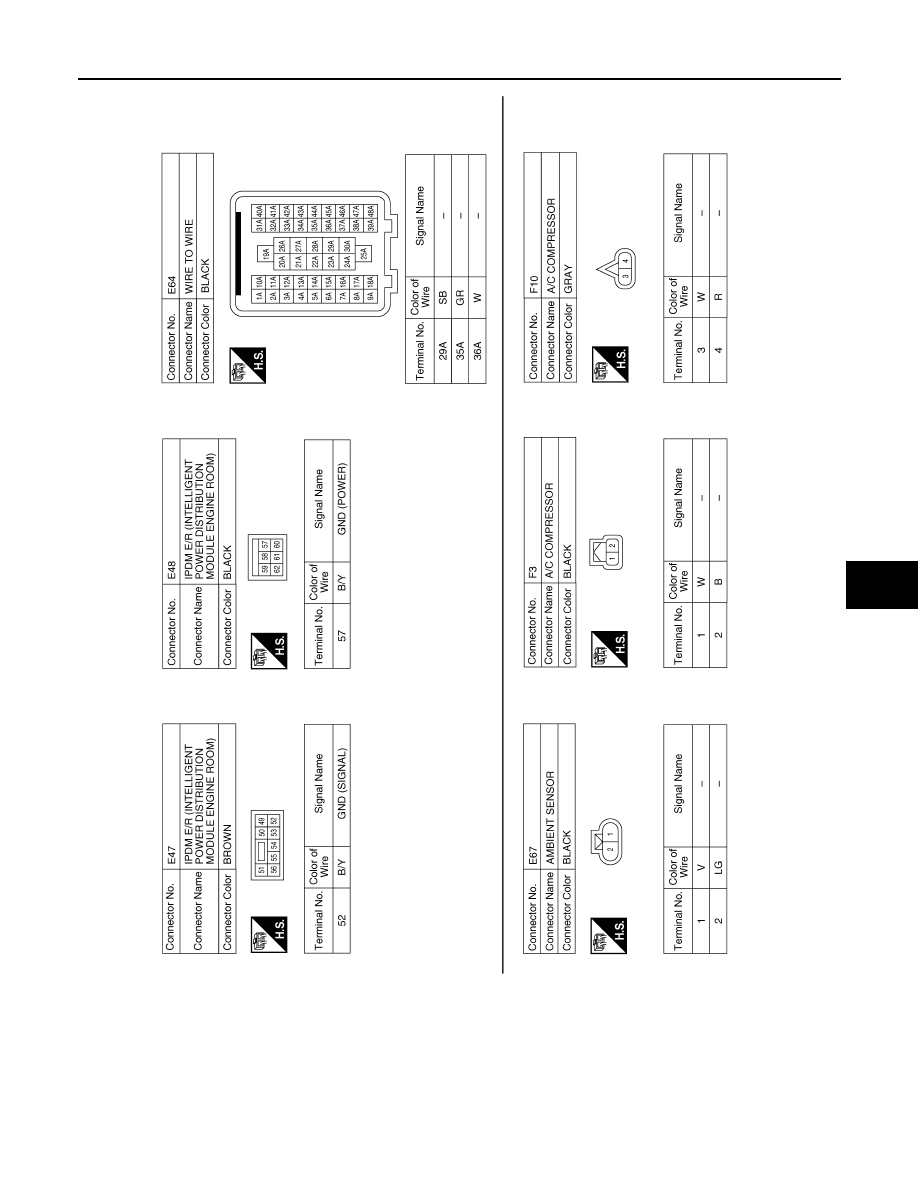

< WIRING DIAGRAM >

[AUTOMATIC AIR CONDITIONER]

AUTOMATIC AIR CONDITIONING SYSTEM

ABIIA1305GB

DIAGNOSIS AND REPAIR WORKFLOW

HAC-51

< BASIC INSPECTION >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000009757640

OVERALL SEQUENCE

DETAILED FLOW

1.

INTERVIEW CUSTOMER

Interview the customer to obtain as much information as possible about the conditions and environment under

which the malfunction occurred.

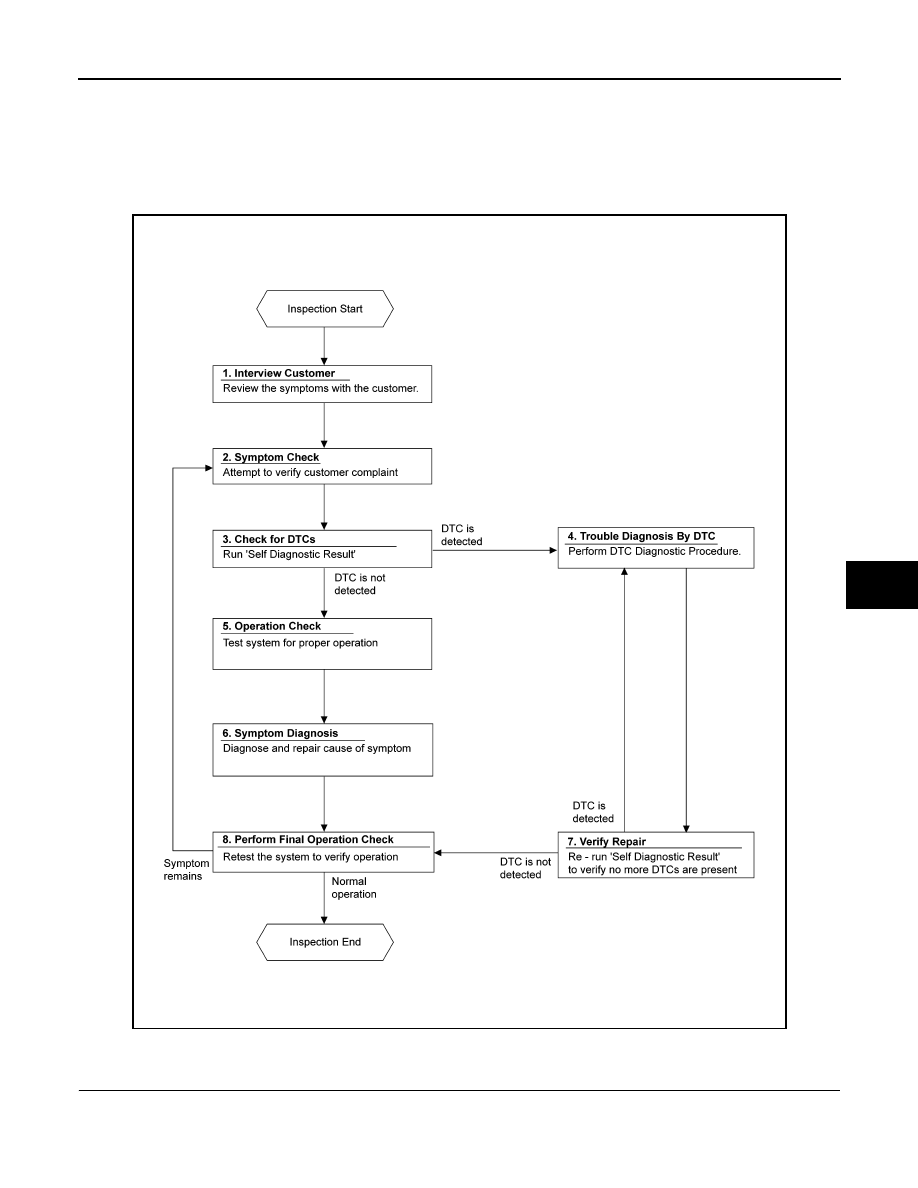

ALIIA0440GB
