Nissan Sentra. Manual - part 526





GW-26

< REMOVAL AND INSTALLATION >

REAR WINDOW GLASS

REAR WINDOW GLASS

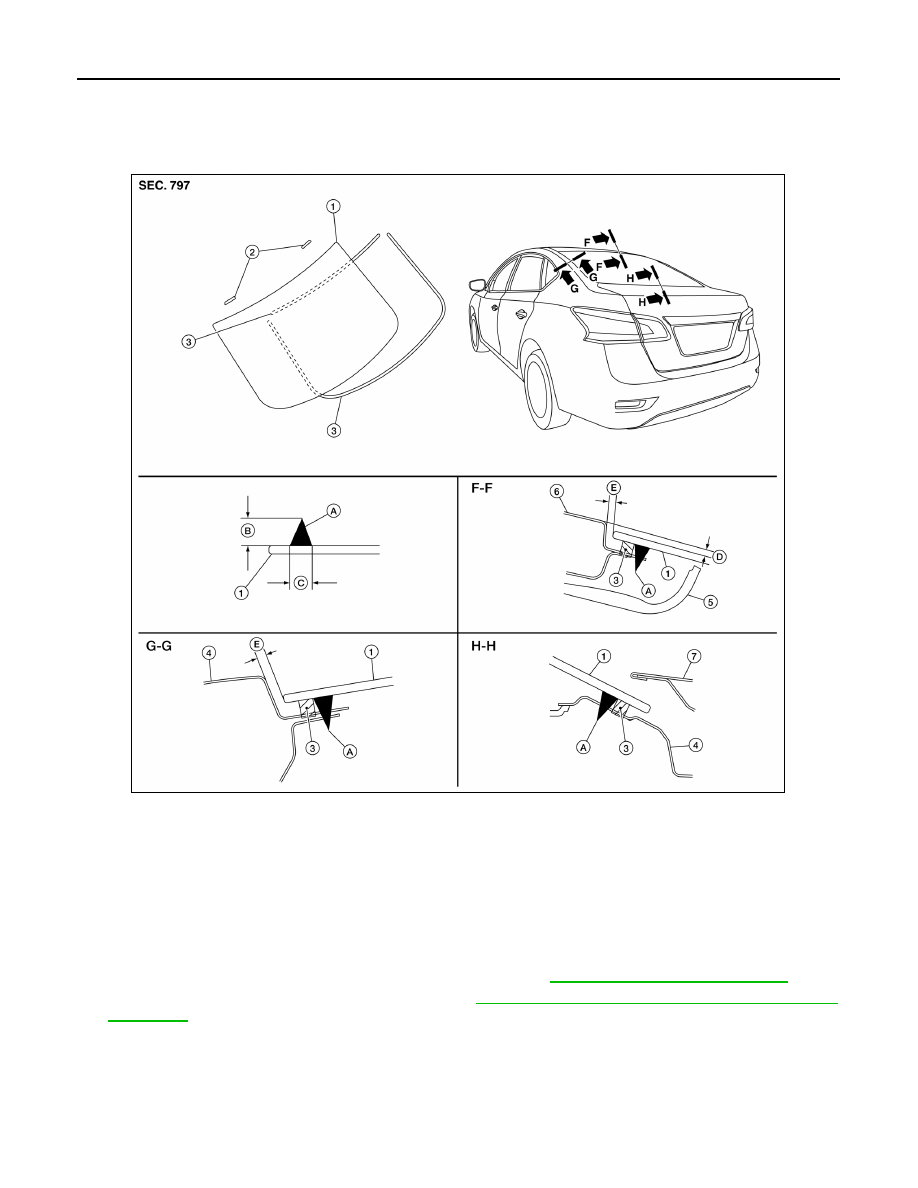

Exploded View

INFOID:0000000009758198

Removal and Installation

INFOID:0000000009758199

REMOVAL

1. Partially remove the rear of the headlining (rear edge). Refer to

INT-40, "Removal and Installation"

.

2. Remove the rear pillar finishers (LH/RH). Refer to

INT-29, "REAR PILLAR FINISHER : Removal and

Installation"

.

3. Remove the connectors and grounds for the rear window defogger and printed antenna.

1. Rear window glass

2.

Spacer

3. Rubber dam

4. Body side outer

5.

Headlining

6. Roof panel

7. Trunk lid

A. Adhesive

B. 12 mm (0.5 in)

C. 7 mm (0.3 in)

D. 2.0 mm (0.08 in)

E.  3 mm (0.1 in)

ALKIA2819ZZ

REAR WINDOW GLASS

GW-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

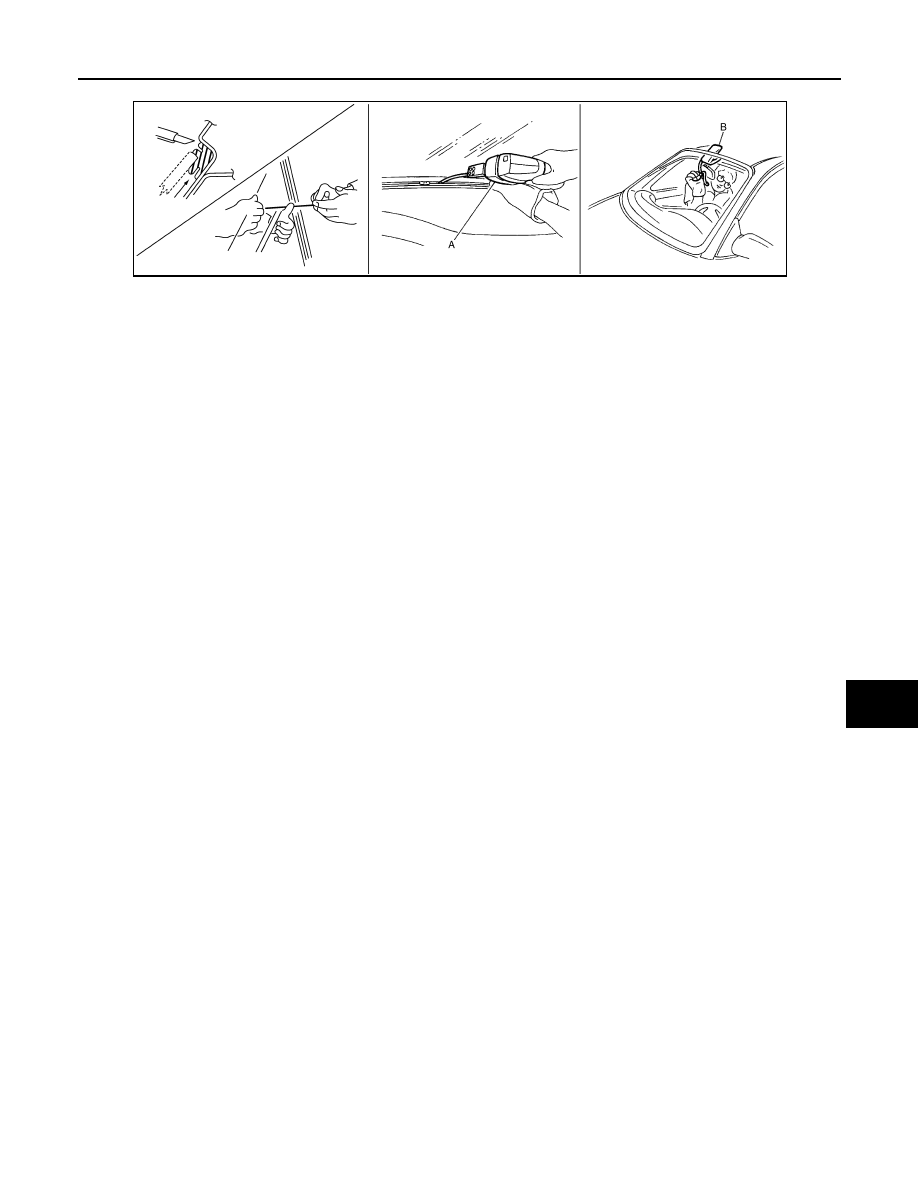

4. Remove windshield glass using piano wire or power cutting tool (A) and an inflatable pump bag (B).

• Apply protective tape around the rear window glass to protect the painted surface from damage.

• If the rear window glass is to be reused, mark the body and the glass with matching marks.

• Minimum adhesive coating amount 8 +3,-0 g/100 mm (0.28 +0.11,-0 oz/3.9 in) all around.

• Minimum primer application area 15

±1 mm (0.6 ±0.04 in) on body side and 13.0 mm (0.51 in) on glass

side.

WARNING:

When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help pre-

vent glass splinters from entering your eyes or cutting your hands.

CAUTION:

• Be careful not to scratch the glass when removing.

• Do not set or stand the glass on its edge. Small chips may develop into cracks.

• Apply protective tape around the rear window glass to protect the painted surface from damage.

INSTALLATION

Installation is in the reverse order of removal.

• If repainting near the rear window flange area, protect the flange adhesion area by masking the flange.

• Use a genuine NISSAN Urethane Adhesive Kit (if available) or equivalent and follow the instructions fur-

nished with it.

• Adhesive shall be continuously applied to ensure watertightness. Glass installation shall be finished within

five minutes after applying the adhesive.

• The start and finish of the urethane adhesive application should be located at the bottom to assure water-

tightness.

• While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced out

by passenger compartment air pressure when a door is closed.

• The molding must be installed securely to the rear window glass to avoid looseness and will leave no gap.

• Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely

cured (preferably 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.

• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid

contact with the skin and eyes.

• Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if inhaled.

If affected by vapor inhalation, immediately move to an area with fresh air.

• Driving the vehicle before the urethane adhesive has completely cured may affect the performance

of the rear window in case of an accident.

CAUTION:

• Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six

months after the date of manufacture. Carefully adhere to the expiration or manufacture date printed

on the box or product.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

• Do not leave primers or adhesive cartridge unattended with their caps open or off.

• The vehicle should not be driven for at least 24 hours or until the urethane adhesive has completely

cured. Curing time varies depending on temperature and humidity. The curing time will increase

under lower temperature and lower humidity.

REPAIRING WATER LEAKS FOR REAR WINDOW GLASS

• Leaks can be repaired without removing and reinstalling glass.

• If water is leaking between the urethane adhesive material and body or glass, determine the extent of leak-

age.

• This can be done by applying water to the side window area while pushing glass outward.

PIIB5779E

GW-28

< REMOVAL AND INSTALLATION >

REAR WINDOW GLASS

• To stop the leak, apply primer (if necessary) and then urethane adhesive to the leak point.

HA-1

VENTILATION, HEATER & AIR CONDITIONER

C

D

E

F

G

H

J

K

L

M

SECTION

HA

A

B

HA

N

O

P

CONTENTS

HEATER & AIR CONDITIONING SYSTEM

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

3

Precaution for Work  ..................................................

3

Precaution for Procedure without Cowl Top Cover ......

4

Precautions For Refrigerant System Service  ............

4

Service Equipment  ....................................................

7

PREPARATION ............................................

9

PREPARATION ...................................................

9

Special Service Tool  .................................................

9

HFC-134a (R-134a) Service Tool and Equipment ......

9

Commercial Service Tool  ........................................

12

Sealant or/and Lubricant  .........................................

12

SYSTEM DESCRIPTION  .............................

13

REFRIGERATION SYSTEM  ..............................

13

Component Part Location  .......................................

13

Refrigerant Cycle  ....................................................

13

Refrigerant System Protection ................................

14

BASIC INSPECTION  ...................................

15

DIAGNOSIS AND REPAIR WORKFLOW  .........

15

Workflow .................................................................

15

SYMPTOM DIAGNOSIS  ..............................

17

HEATER AND AIR CONDITIONING SYSTEM
SYMPTOMS .......................................................

17

Symptom Table  .......................................................

17

REFRIGERATION SYSTEM SYMPTOMS .........

18

Trouble Diagnosis For Unusual Pressure  ...............

18

Symptom Table  .......................................................

18

NOISE .................................................................

20

Symptom Table  .......................................................

20

PERIODIC MAINTENANCE  ........................

21

REFRIGERANT .................................................

21

Description ...............................................................

21

Leak Test .................................................................

21

Recycle Refrigerant  .................................................

23

Charge Refrigerant  ..................................................

23

OIL .....................................................................

25

Description ...............................................................

25

Inspection ................................................................

25

Perform Oil Return Operation ..................................

25

Oil Adjusting Procedure for Components Replace-
ment Except Compressor  ........................................

25

Oil Adjusting Procedure for Compressor Replace-
ment .........................................................................

26

PERFORMANCE TEST  ....................................

28

Inspection ................................................................

28

REMOVAL AND INSTALLATION ...............

30

COMPRESSOR .................................................

30

Exploded View .........................................................

30

COMPRESSOR ..........................................................

30

COMPRESSOR : Removal and Installation  ............

31

MAGNET CLUTCH  ....................................................

31

MAGNET CLUTCH : Removal and Installation  .......

31

COOLER PIPE AND HOSE  ..............................

35

Exploded View .........................................................

35

LOW-PRESSURE FLEXIBLE HOSE .........................

35

LOW-PRESSURE FLEXIBLE HOSE : Removal
and Installation  ........................................................

35

HIGH-PRESSURE FLEXIBLE HOSE  ........................

37

HIGH-PRESSURE FLEXIBLE HOSE : Removal
and Installation  ........................................................

37

HIGH-PRESSURE PIPE  ............................................

37
