Nissan Sentra. Manual - part 513

IDENTIFICATION INFORMATION

GI-23

< VEHICLE INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

Identification Number

INFOID:0000000009759189

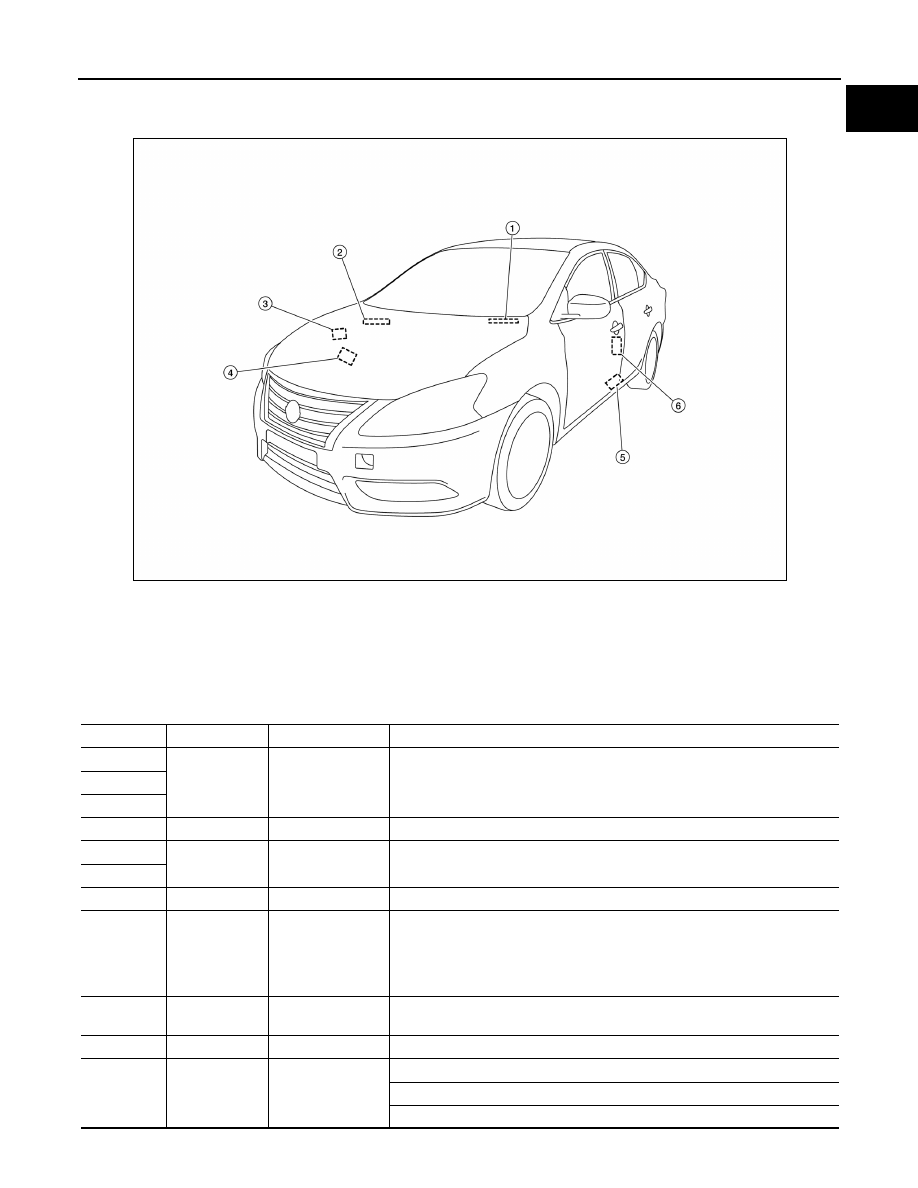

Vehicle Identification Number Arrangement

1. Vehicle identification number (VIN)

plate

2. Vehicle identification number

(chassis number)

3. Emission control information label

4. Air Conditioner specification label

5. F.M.V.S.S./C.M.V.S.S. certification

label

6. Tire and loading information label

ALAIA0073ZZ

Position

Character

Qualifier

Definition

1

3N1

Manufacturer

1N4: NISSAN passenger car [NNA]
3N1: NISSAN passenger car [Nismex]

2

3

4

A

Engine type

A: MRA8DE

5

B7

Model code

B7: B17 (Sentra)

6

7

A

Body type

A: 4 door sedan

8

P

Restraint system

P: (5 seating capacity)
• (Driver and Passenger) 3-Point Manual Belts, Frontal Air Bags, Side Air Bags

and Curtain Side Air Bags.

• (2nd Row Outboard): 3-Point Manual Belts and Curtain Side Air Bags.
• (2nd Row Center): 3-Point Manual Belt.

9

*

Check digit

(0 to 9 or X) The code for the check digit is determined by a mathematical com-
putation.

10

E

Model year

E: 2014

11

L

Manufacturing
plant

L: Aguascalientes, Mexico

Y: Aguascalientes, Mexico

N: Canton, Mississippi

GI-24

< VEHICLE INFORMATION >

IDENTIFICATION INFORMATION

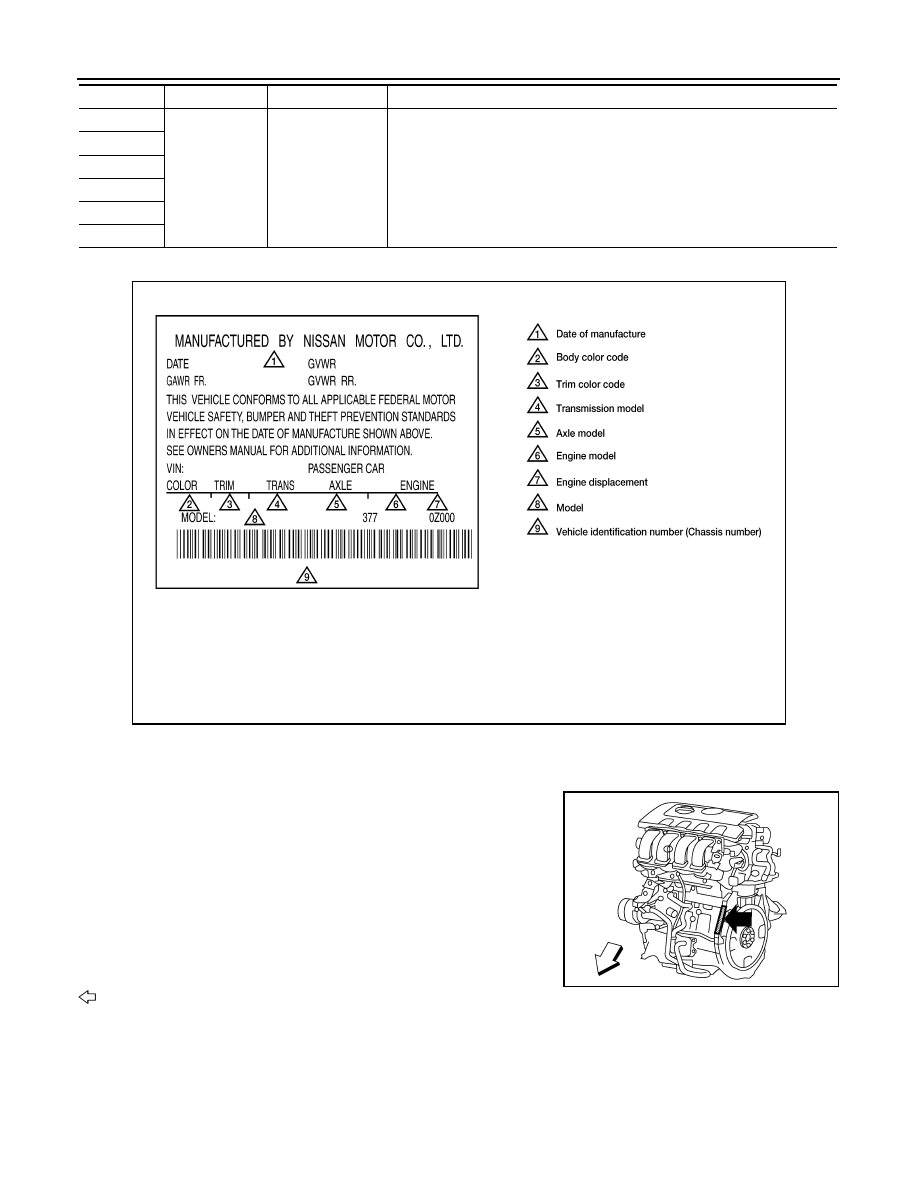

Identification Plate

INFOID:0000000009759190

Engine Serial Number

INFOID:0000000009759191

MRA8DE

: Vehicle front

12

XXXXX

Vehicle serial num-
ber

Chassis number

13

14

15

16

17

Position

Character

Qualifier

Definition

LAIA0027E

ALAIA0113ZZ

IDENTIFICATION INFORMATION

GI-25

< VEHICLE INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

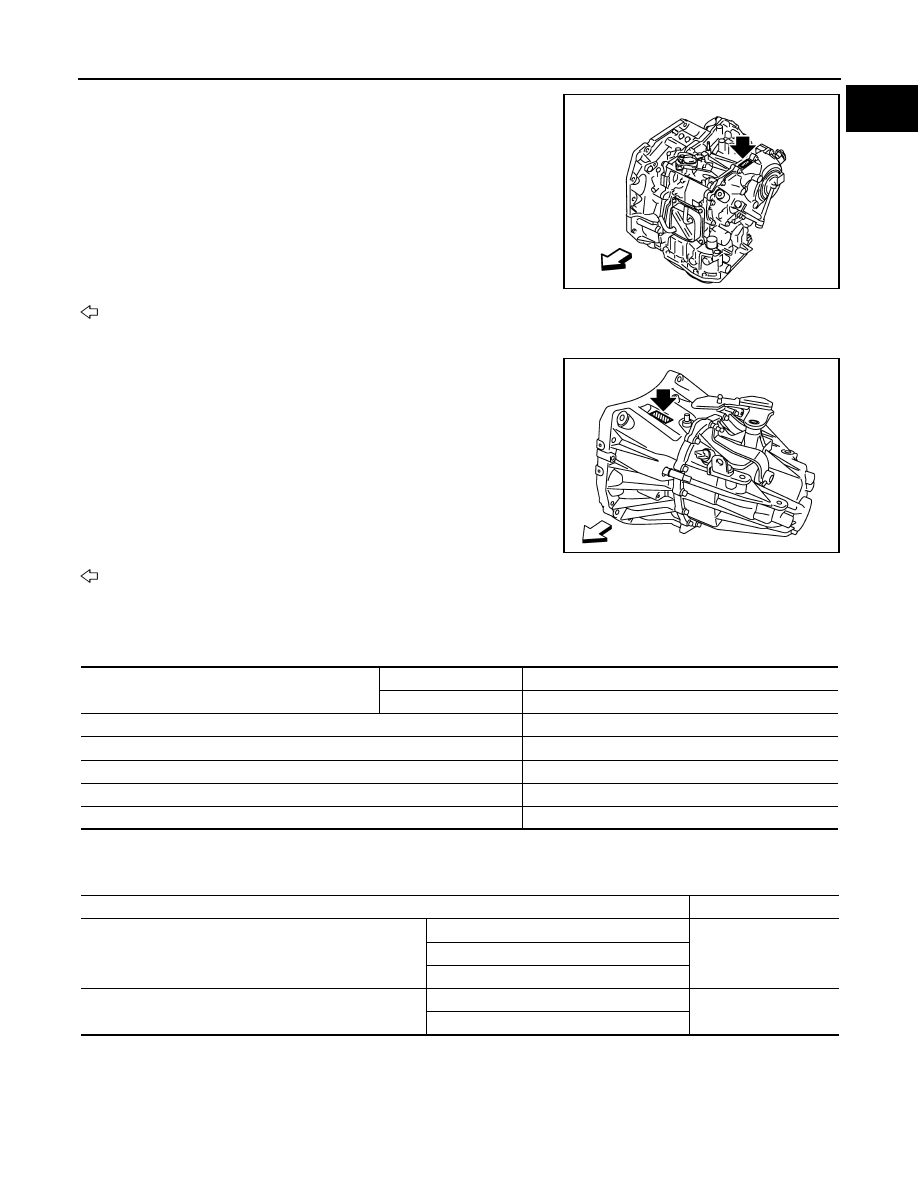

CVT Number

INFOID:0000000009759192

: Vehicle front

Manual Transaxle Number

INFOID:0000000009759193

: Vehicle front

Dimensions

INFOID:0000000009759194

Unit: mm (in)

Wheels & Tires

INFOID:0000000009759195

Unit: mm (in)

JPAIA0812ZZ

SAIA1338E

Overall length

All except SR grades

4,625 (182.1)

SR grades

4,635 (182.5)

Overall width

1,760 (69.3)

Overall height

1,495 (58.9)

Front tread

1,530 (60.2)

Rear tread

1,530 (60.2)

Wheelbase

2700 (106.3)

Conventional

Spare

Road wheel/offset

16 X 6.5J Steel/45 (1.77)

16x4T

16 X 6.5J Cast Aluminum/45 (1.77)

17 X 6.5J Cast Aluminum/45 (1.77)

Tire size

P205/55R16

T125/70D16

P205/50R17

GI-26

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Description

INFOID:0000000009759196

Observe the following precautions to ensure safe and proper servicing. These precautions are not

described in each individual section.

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009759197

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least 3 minutes before performing any service.

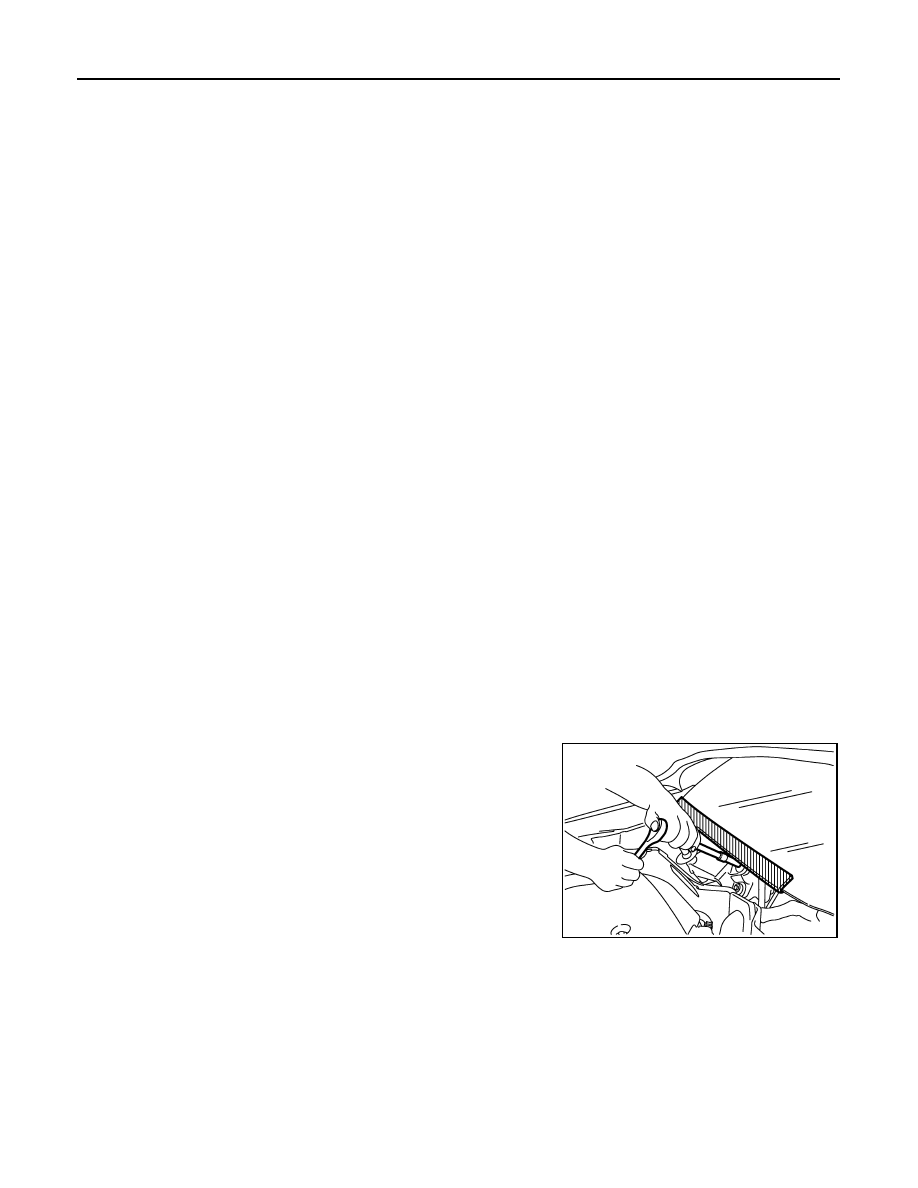

Procedures without Cowl Top Cover

INFOID:0000000009759198

When performing the procedure after removing cowl top cover, cover

the lower end of windshield with urethane, etc.

Cautions in Removing Battery Terminal and AV Control Unit

INFOID:0000000010283525

CAUTION:

Remove battery terminal and AV control unit after a lapse of 30 seconds or more after turning the igni-

tion switch OFF.

NOTE:

After the ignition switch is turned OFF, the AV control unit continues operating for approximately 30 seconds.

Therefore, data corruption may occur if battery voltage is cut off within 30 seconds.

PIIB3706J
