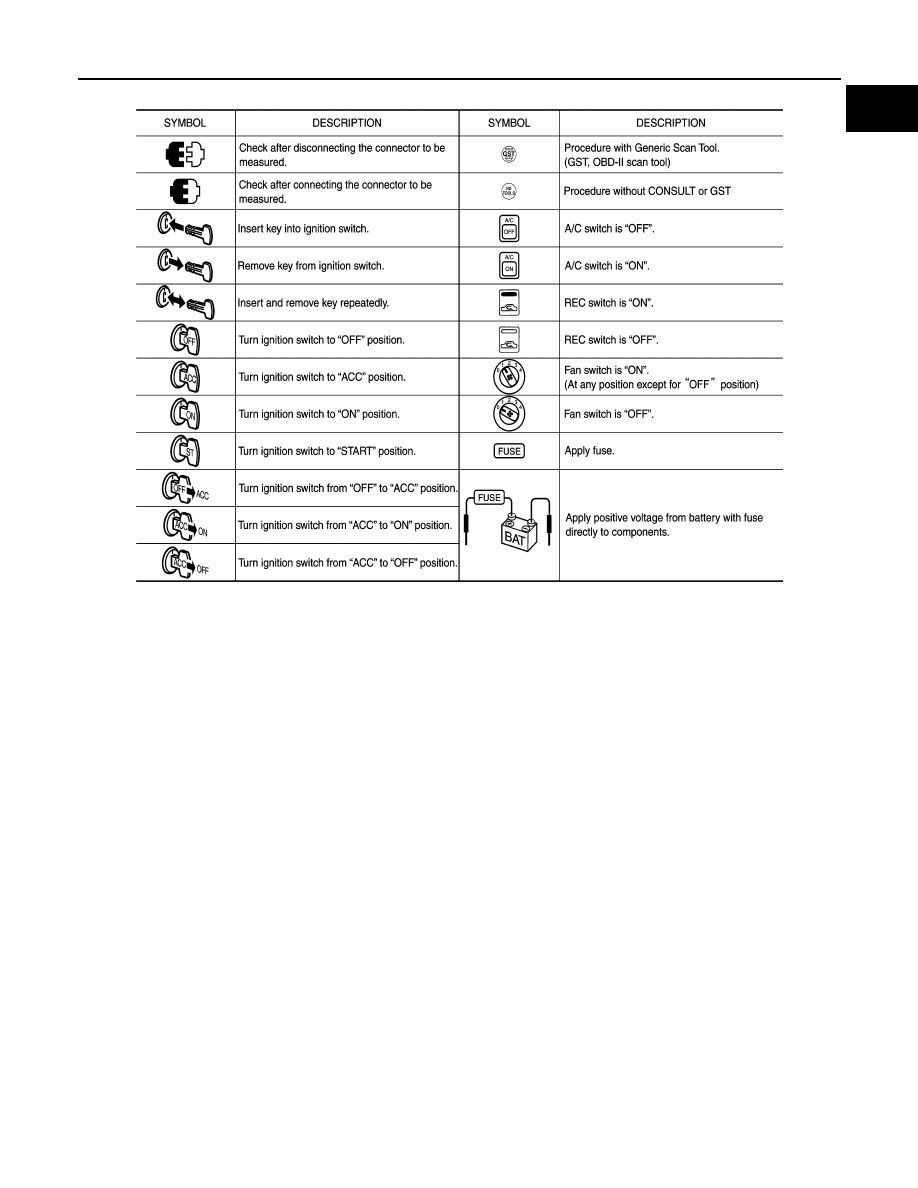

Key to Symbols Signifying Measurements or Procedures

INFOID:0000000009759179

JPAIA0982GB

GI-8

< HOW TO USE THIS MANUAL >

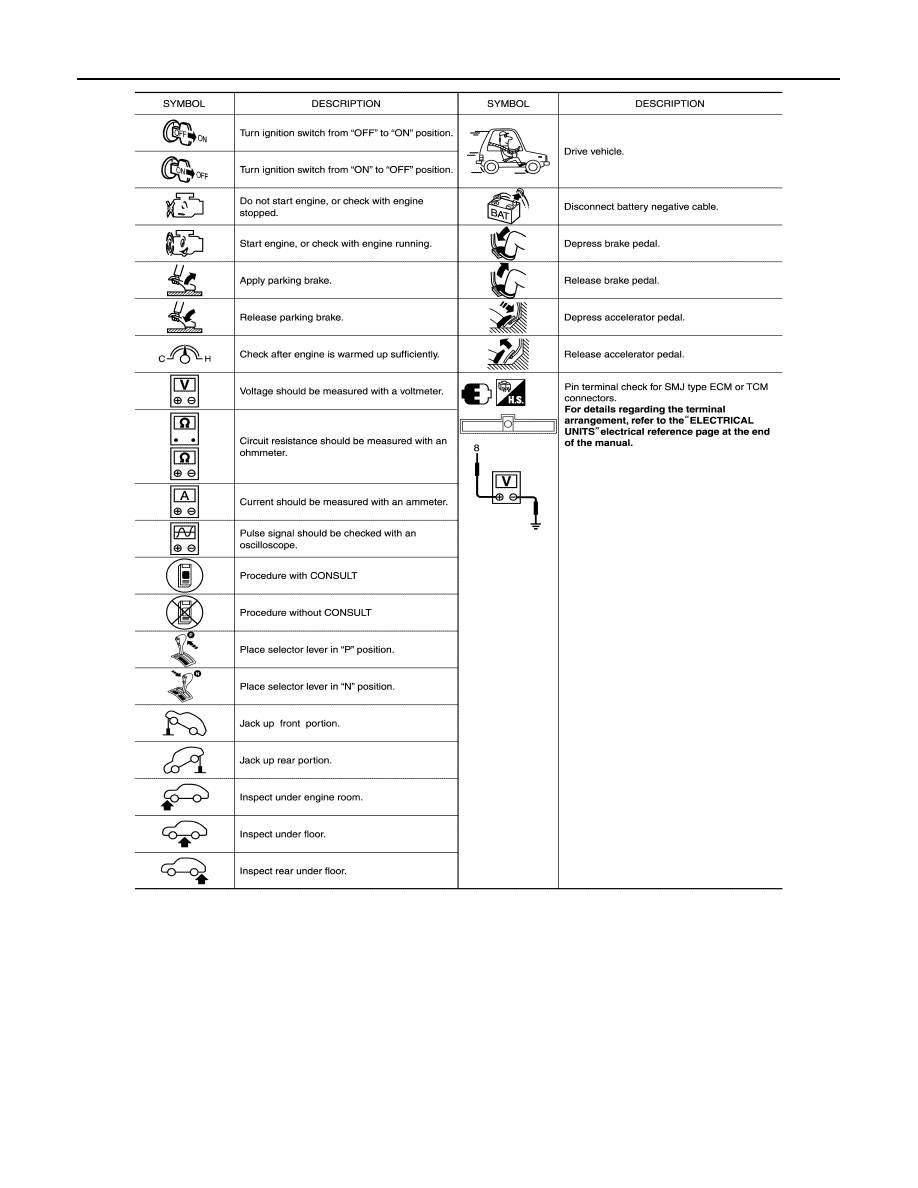

HOW TO FOLLOW TROUBLE DIAGNOSES

JSAIA1461GB

HOW TO READ WIRING DIAGRAMS

GI-9

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

HOW TO READ WIRING DIAGRAMS

Connector symbols

INFOID:0000000009759180

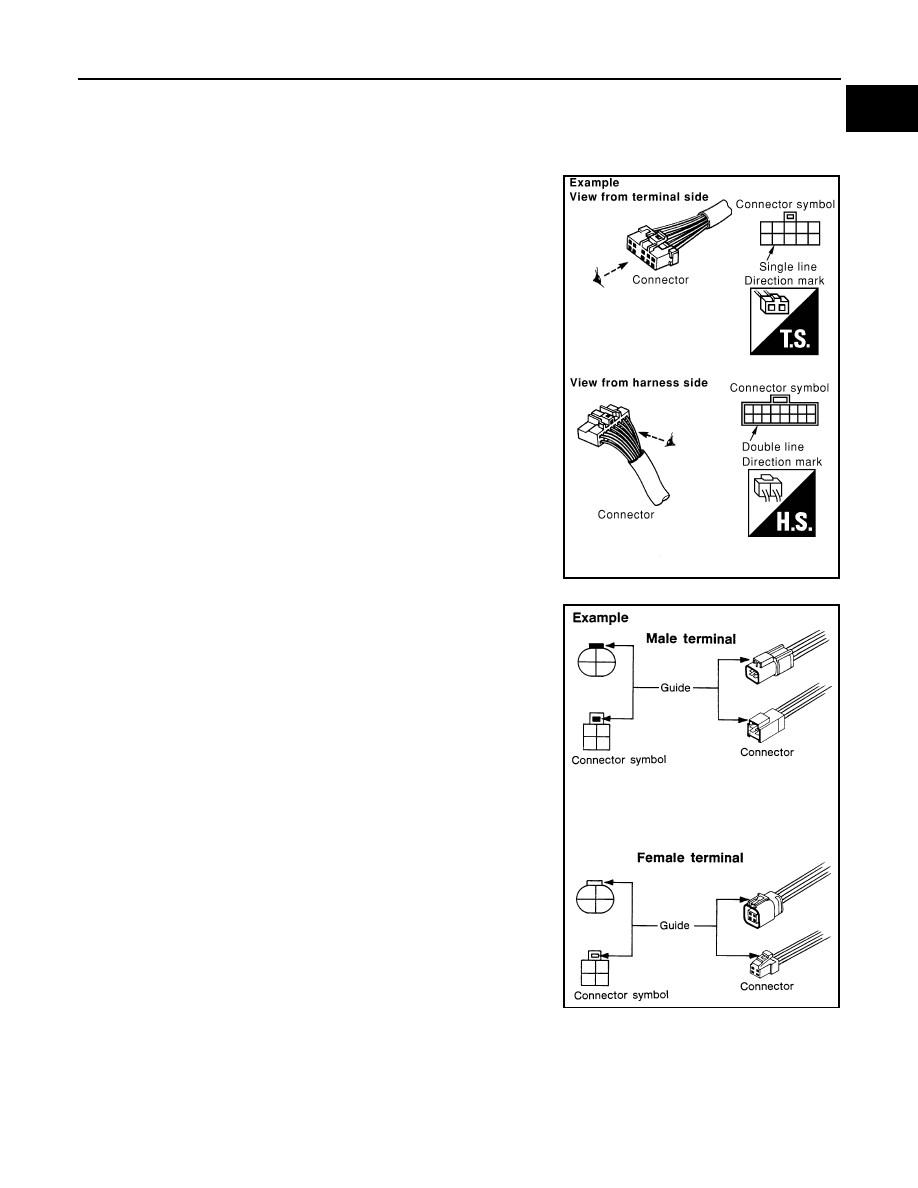

Most of connector symbols in wiring diagrams are shown from the terminal side.

• Connector symbols shown from the terminal side are enclosed by

a single line and followed by the direction mark.

• Connector symbols shown from the harness side are enclosed by

a double line and followed by the direction mark.

• Certain systems and components, especially those related to

OBD, may use a new style slide-locking type harness connector.

For description and how to disconnect, refer to PG section,

“Description”, “HARNESS CONNECTOR”.

• Male and female terminals

Connector guides for male terminals are shown in black and

female terminals in white in wiring diagrams.

SAIA0257E

SGI363

GI-10

< HOW TO USE THIS MANUAL >

HOW TO READ WIRING DIAGRAMS

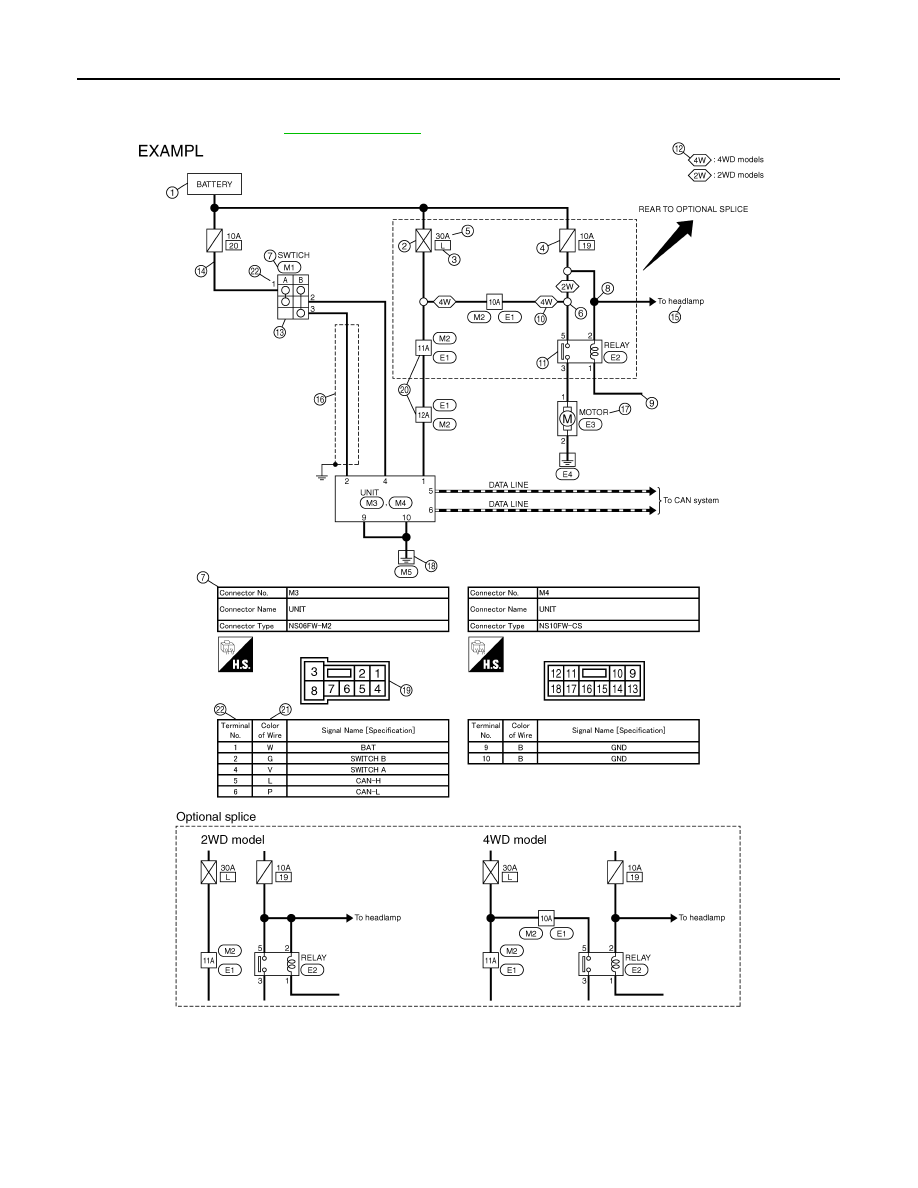

Sample/wiring diagram -example-

INFOID:0000000009759181

• For detail, refer to following

GI-11, "Description"

.

JCAWA0005GB
