FL-14

< REMOVAL AND INSTALLATION >

EVAP CANISTER

EVAP CANISTER

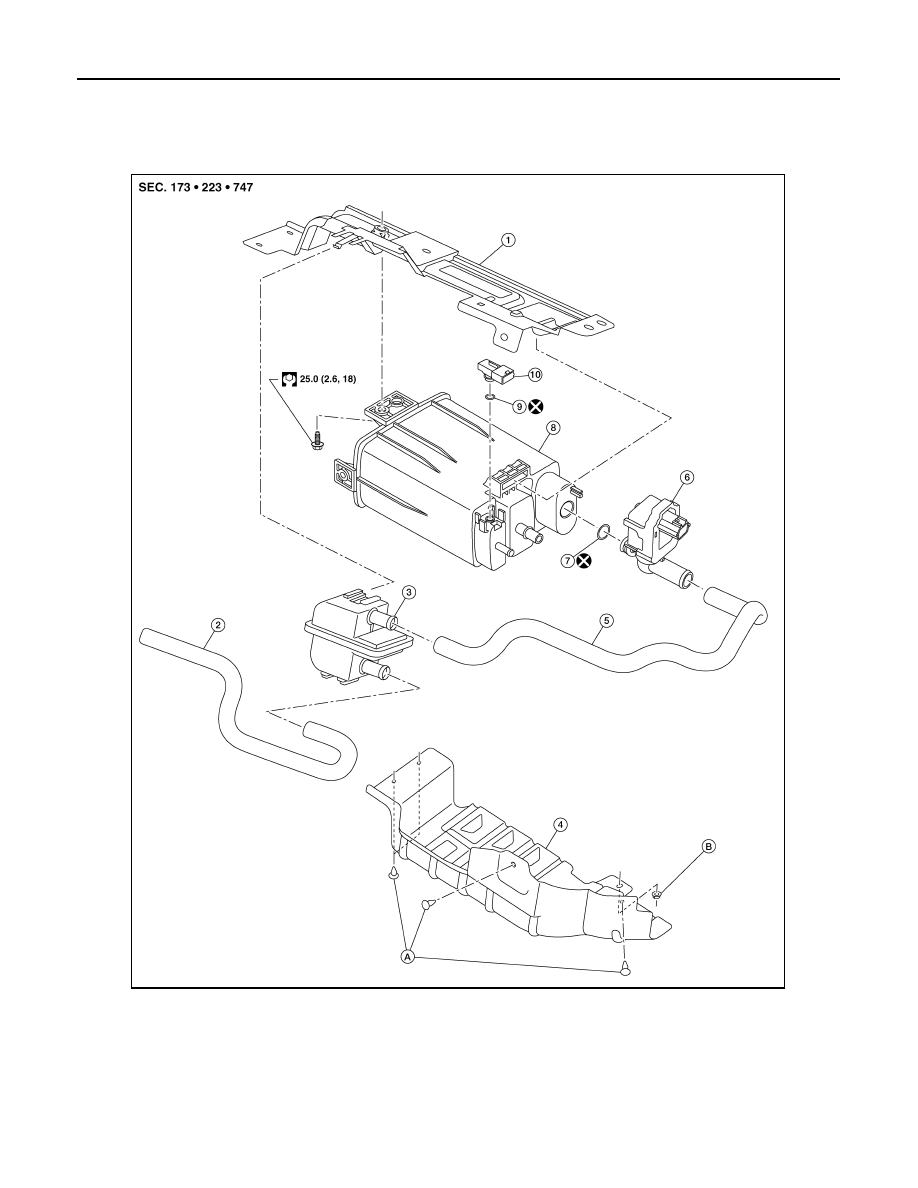

Exploded View

INFOID:0000000009756233

1.

EVAP canister bracket

2.

EVAP canister filter drain hose

3.

EVAP canister filter

4.

EVAP canister protector

5.

EVAP hose

6.

EVAP canister vent control valve

7.

O-ring

8.

EVAP canister

9.

O-ring

10. EVAP canister control pressure sensor A.

Clip

B.

Nut

AWBIA1931ZZ

EVAP CANISTER

FL-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

Removal and Installation

INFOID:0000000009756234

EVAP CANISTER

Removal

1. Remove EVAP canister protector.
2. Disconnect the harness connector from EVAP canister control pressure sensor.
3. Remove the EVAP canister control pressure sensor and O-ring, if necessary.

CAUTION:

Do not reuse O-ring.

4. Disconnect EVAP canister purge hose.
5. Disconnect fuel tank EVAP breather hose.
6. Disconnect the harness connector from EVAP vent control valve.
7. Disconnect the EVAP vent control valve hose.
8. Remove the EVAP canister bolt.
9. Remove the EVAP canister.
10. Remove the EVAP vent control valve and O-ring, if necessary.

CAUTION:

Do not reuse O-ring.

Installation

Installation is in the reverse order of removal.

CAUTION:

Do not reuse O-ring.

EVAP CANISTER CONTROL PRESSURE SENSOR

Removal

1. Remove EVAP canister protector.

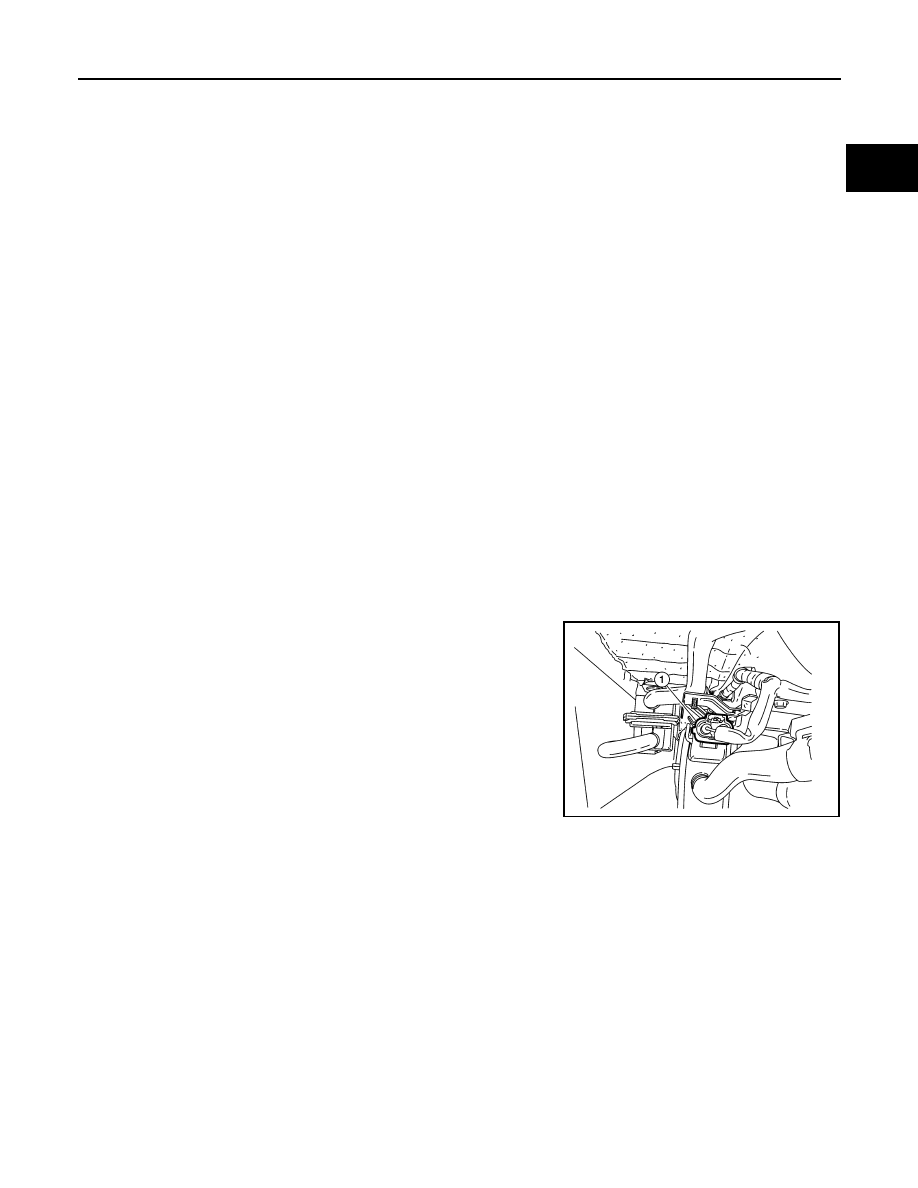

2. Disconnect the EVAP control pressure sensor harness connec-

tor (1).

3. Remove the EVAP canister control pressure sensor and O-ring.

CAUTION:

Do not reuse O-ring.

Installation

Installation is in the reverse order of removal.

CAUTION:

Do not reuse O-ring.

EVAP CANISTER VENT CONTROL VALVE

Removal

1. Remove EVAP canister protector.
2. Disconnect the harness connector from EVAP vent control valve.
3. Disconnect the EVAP vent control valve hose.

ALBIA1007ZZ

FL-16

< REMOVAL AND INSTALLATION >

EVAP CANISTER

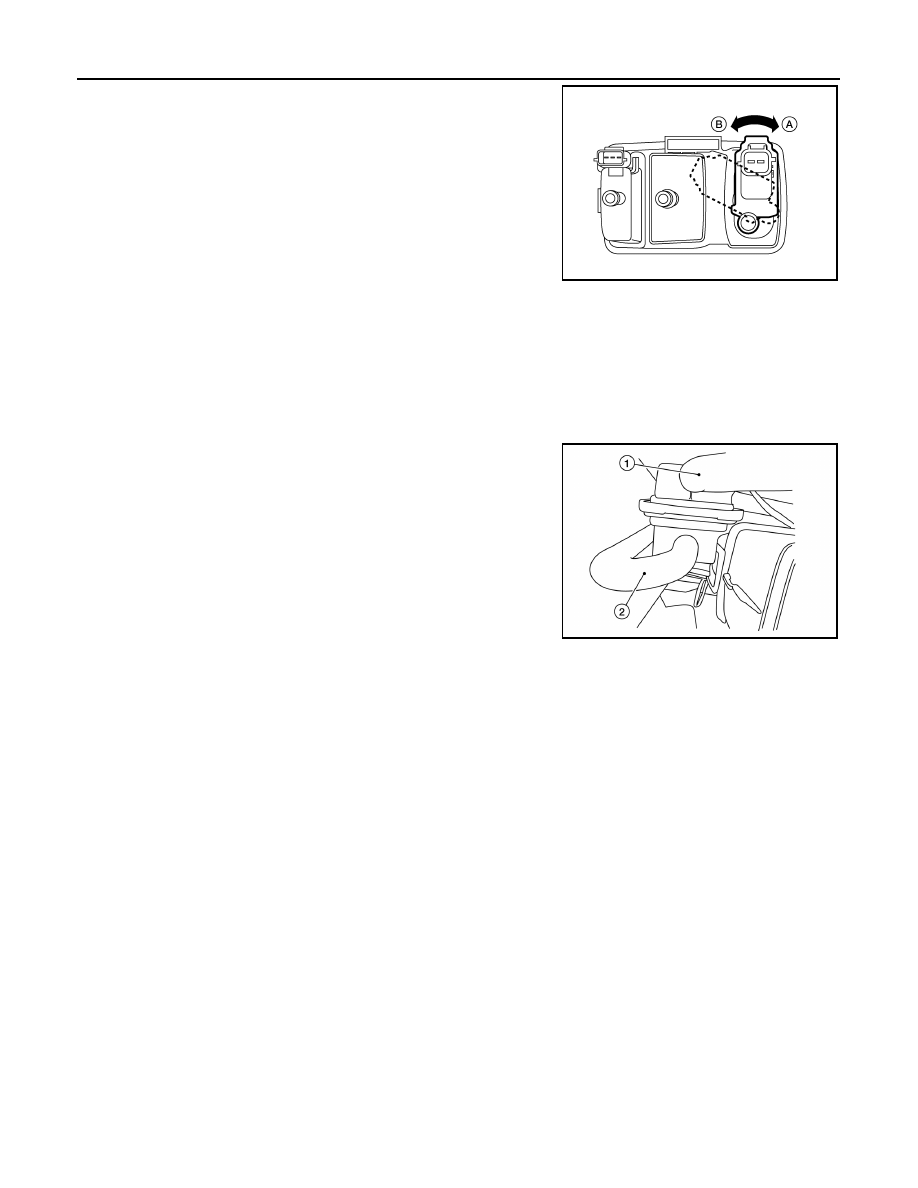

4. Turn EVAP canister vent control valve counterclockwise.

(A): Clock

(B): Unclock

5. Remove the EVAP canister vent control valve and O-ring.

CAUTION:

Do not reuse O-ring.

Installation

Installation is in the reverse order of removal.

CAUTION:

Do not reuse O-ring.

EVAP CANISTER FILTER

Removal

1. Remove EVAP canister protector.
2. Disconnect the EVAP canister filter drain hose (1).
3. Disconnect the EVAP hose (2).
4. Remove the EVAP canister filter.

Installation

Installation is in the reverse order of removal.

AWBIA1932ZZ

ALBIA1009ZZ

FUEL LEVEL SENSOR UNIT

FL-17

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

DISASSEMBLY AND ASSEMBLY

FUEL LEVEL SENSOR UNIT

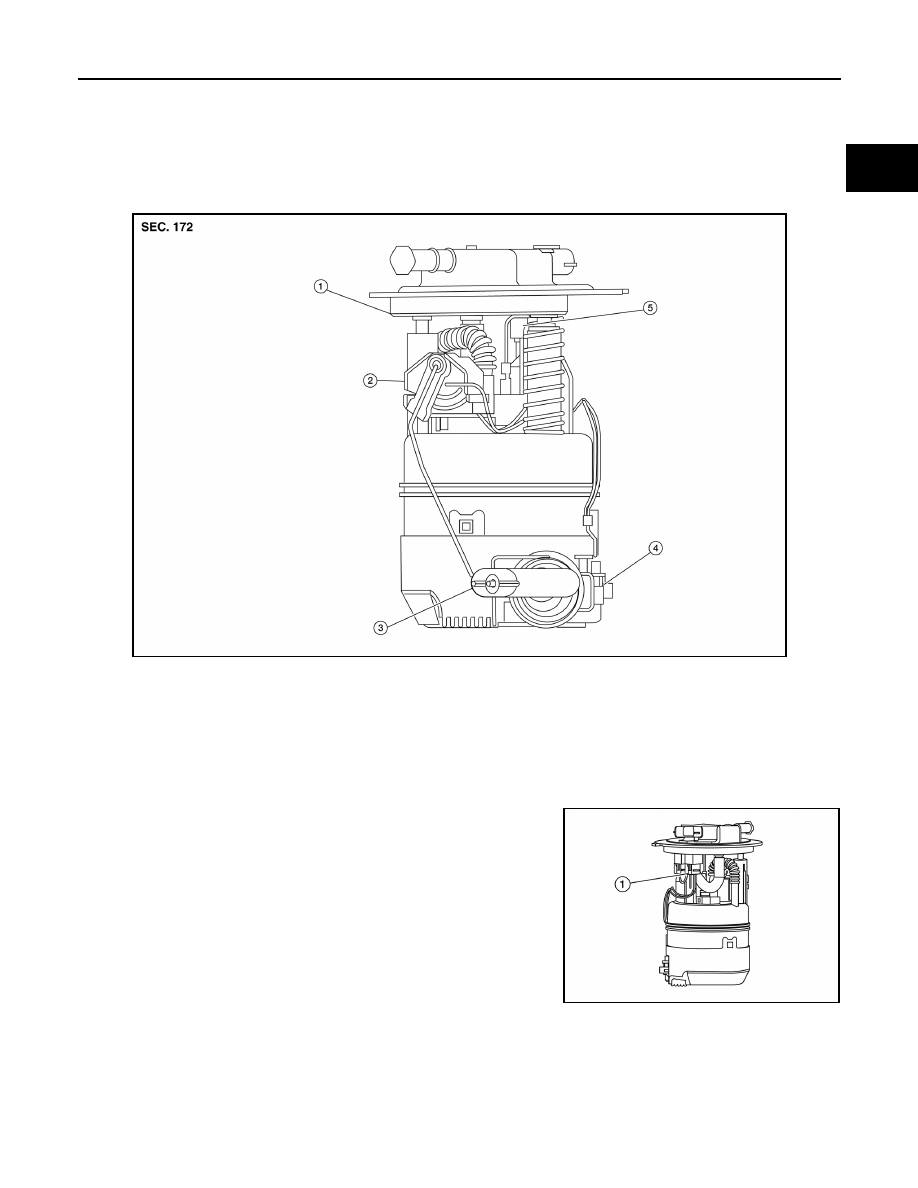

Exploded View

INFOID:0000000009756235

Fuel Level Sensor Unit

Disassembly and Assembly

INFOID:0000000009756236

DISASSEMBLY

1. Disconnect fuel level sensor unit/fuel tank temperature sensor

harness connector (1).

NOTE:

Hold connector with your fingers, because there is no tab for

releasing stopper. Pull it out straight downward.

ALBIA0955ZZ

1.

Fuel filter and pump assembly 2.

Fuel level sensor unit

3.

Float arm assembly

4.

Fuel tank temperature sensor  5.

Fuel level sensor unit/fuel tank temperature sensor harness con-
nector

ALBIA0952ZZ
