BACK-UP LAMP

EXL-83

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

AALIA1010GB

EXL-84

< WIRING DIAGRAM >

BACK-UP LAMP

ABLIA5877GB

DIAGNOSIS AND REPAIR WORK FLOW

EXL-85

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000009757506

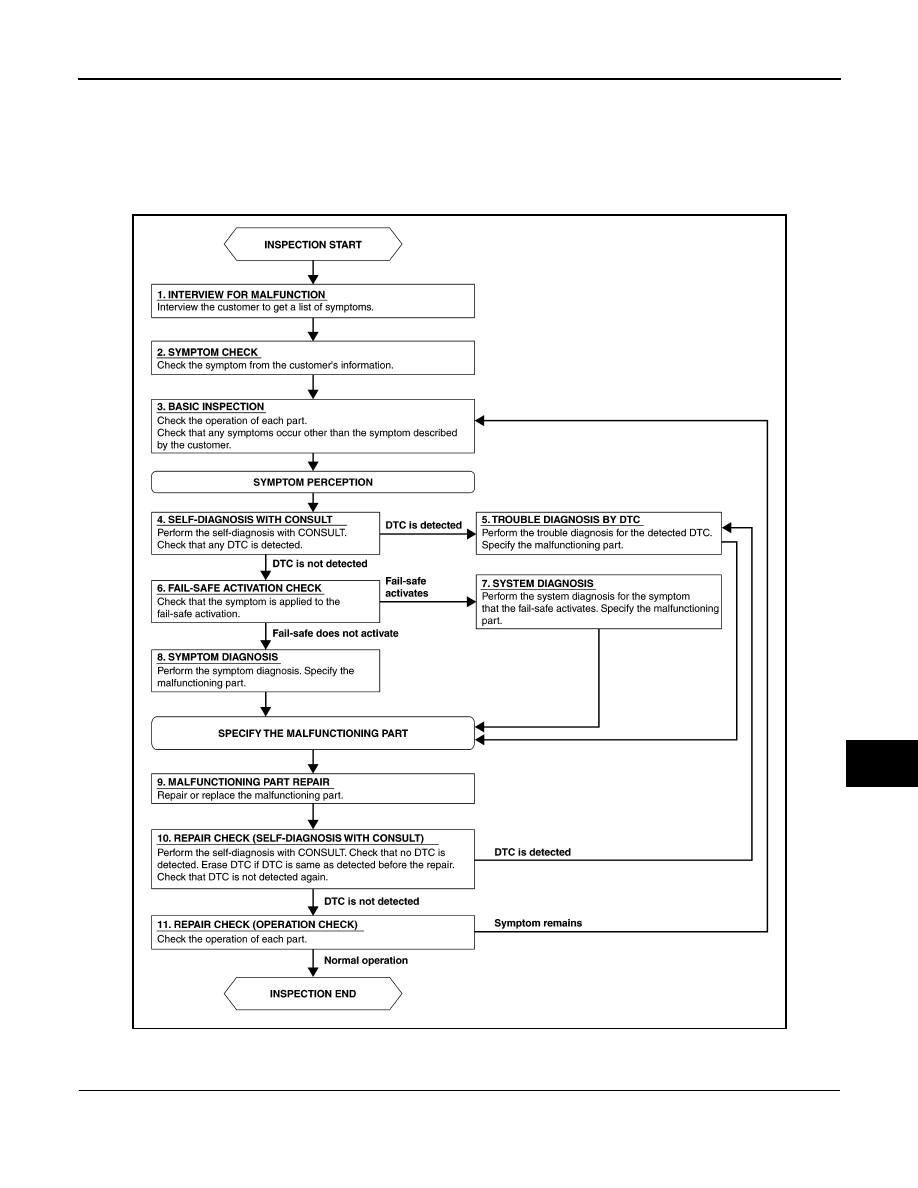

OVERALL SEQUENCE

DETAILED FLOW

1.

INTERVIEW FOR MALFUNCTION

Find out what the customer's concerns are.

AWLIA1837GB

EXL-86

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

>> GO TO 2

2.

SYMPTOM CHECK

Verify the symptom from the customer's information.

>> GO TO 3

3.

BASIC INSPECTION

Check the operation of each part. Check that any concerns occur other than those mentioned in the customer

interview.

>> GO TO 4

4.

SELF-DIAGNOSIS WITH CONSULT

Perform the self diagnosis with CONSULT. Check that any DTC is detected.
Is any DTC detected?

YES

>> GO TO 5

NO

>> GO TO 6

5.

TROUBLE DIAGNOSIS BY DTC

Perform the trouble diagnosis for the detected DTC. Specify the malfunctioning part.

>> GO TO 9

6.

FAIL-SAFE ACTIVATION CHECK

Determine if the customer's concern is related to fail-safe activation.
Does the fail-safe activate?

YES

>> GO TO 7

NO

>> GO TO 8

7.

SYSTEM DIAGNOSIS

Perform the system diagnosis for the system in which the fail-safe activates. Specify the malfunctioning part.

>> GO TO 9

8.

SYMPTOM DIAGNOSIS

Perform the symptom diagnosis. Specify the malfunctioning part.

>> GO TO 9

9.

MALFUNCTION PART REPAIR

Repair or replace the malfunctioning part.

>> GO TO 10

10.

REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT)

Perform the self diagnosis with CONSULT. Verify that no DTCs are detected. Erase all DTCs detected prior to

the repair. Verify that DTC is not detected again.
Is any DTC detected?

YES

>> GO TO 5

NO

>> GO TO 11

11.

REPAIR CHECK (OPERATION CHECK)

Check the operation of each part.
Does it operate normally?
