DIAGNOSIS SYSTEM (IPDM E/R) (WITHOUT INTELLIGENT KEY SYSTEM)

EXL-31

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

CAN DIAG SUPPORT MNTR

Refer to

LAN-13, "CAN Diagnostic Support Monitor"

.

MOTOR FAN

This test is able to check cooling fan operation [4/3/2/1].

EXTERNAL LAMPS

This test is able to check external lamp operation [Fog/Hi/Lo/TAIL/Off].

Test item

Description

EXL-32

< ECU DIAGNOSIS INFORMATION >

BCM, IPDM E/R

ECU DIAGNOSIS INFORMATION

BCM, IPDM E/R

List of ECU Reference

INFOID:0000000009757497

ECU

Reference

BCM (with Intelligent Key system)

BCS-29, "Reference Value"

BCS-46, "Fail-safe"

BCS-48, "DTC Inspection Priority Chart"

BCS-49, "DTC Index"

BCM (without Intelligent Key system)

BCS-97, "Reference Value"

BCS-108, "Fail-safe"

BCS-108, "DTC Inspection Priority Chart"

BCS-109, "DTC Index"

IPDM E/R (with Intelligent Key system)

PCS-13, "Reference Value"

PCS-19, "Fail-safe"

PCS-20, "DTC Index"

IPDM E/R (without Intelligent Key system)

PCS-41, "Reference Value"

PCS-47, "Fail-Safe"

PCS-48, "DTC Index"

HEADLAMP

EXL-33

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

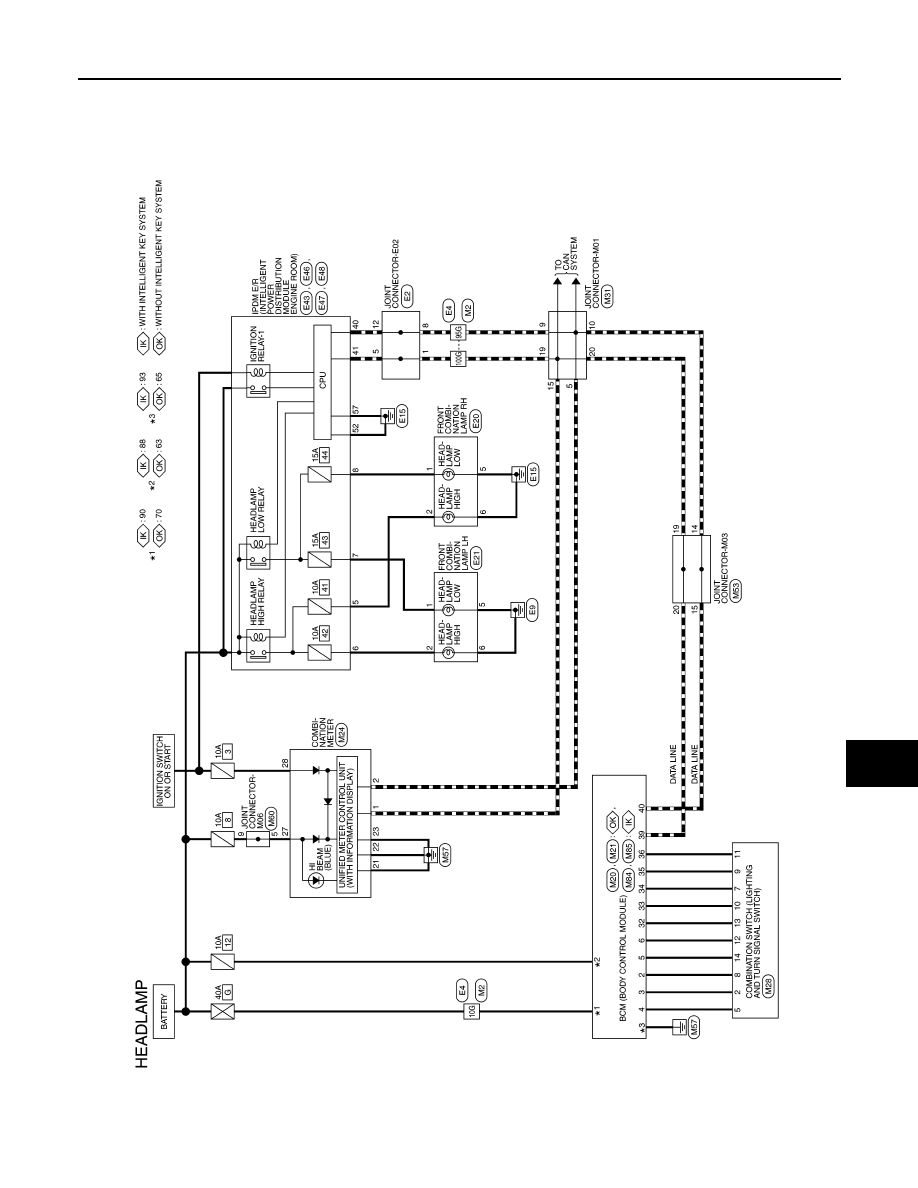

WIRING DIAGRAM

HEADLAMP

Wiring Diagram

INFOID:0000000009757498

ABLWA2440GB

EXL-34

< WIRING DIAGRAM >

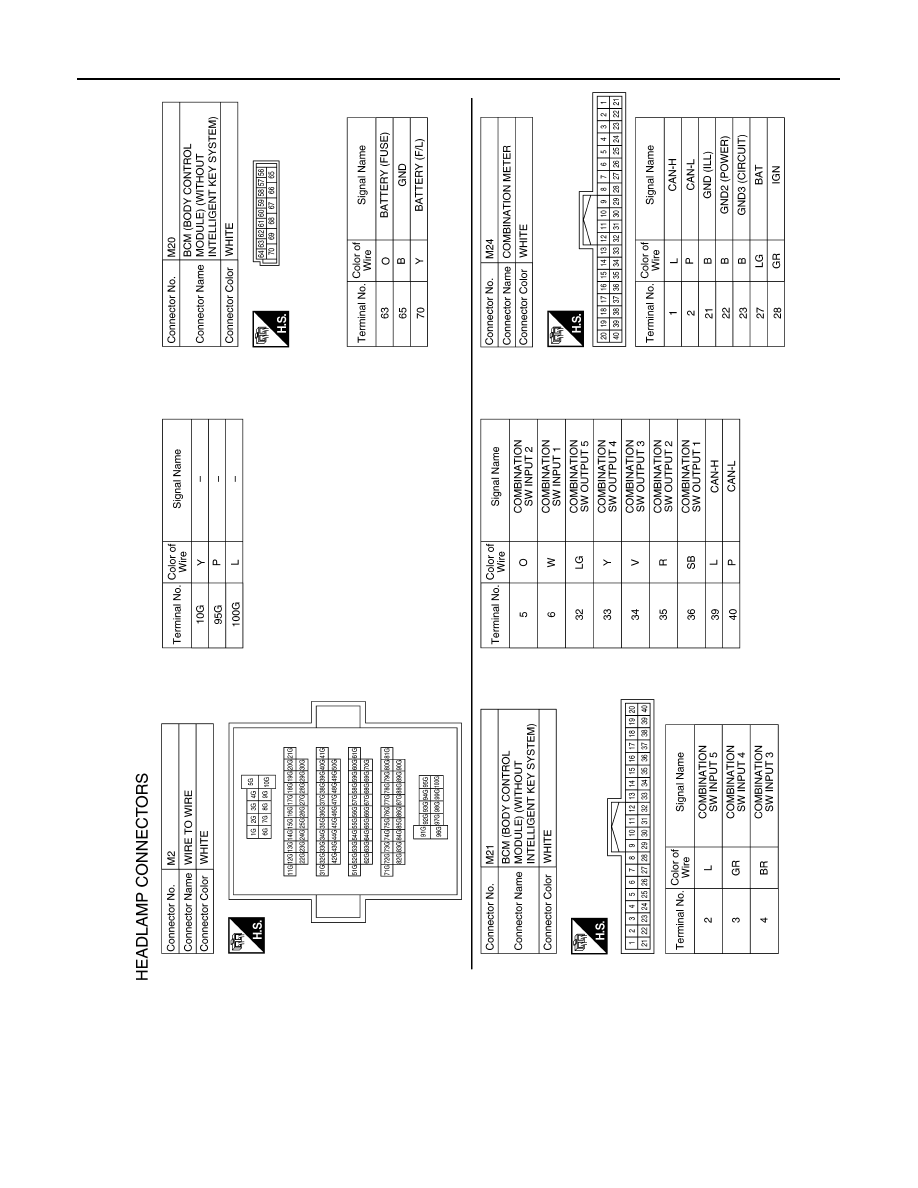

HEADLAMP

ABLIA5837GB
