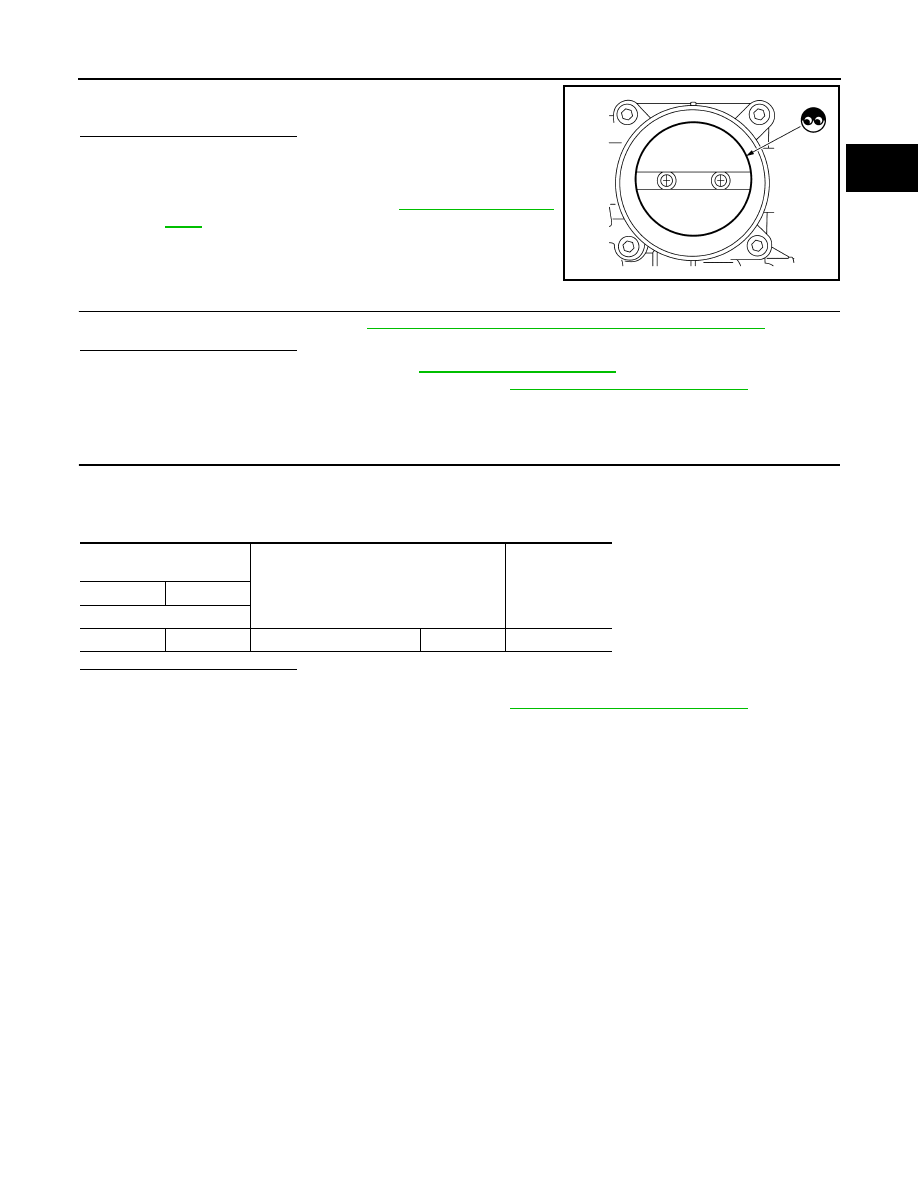

EC-424 < DTC/CIRCUIT DIAGNOSIS > [MRA8DE] P2100, P2103 THROTTLE CONTROL MOTOR RELAY Is the inspection result normal? YES >> GO TO 3. NO >> GO TO 2. 2. CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT 1. Disconnect ECM harness connector. 2. Disconnect IPDM E/R harness connector. 3. Check the continuity between ECM harness connector and IPDM E/R harness connector. 4. Also check harness for short to ground. YES >> Perform the trouble diagnosis for power supply circuit. NO >> Repair or replace error-detected parts. 3. CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL Check the voltage between ECM harness connector and ground as per the following conditions. Is the inspection result normal? YES >> Check intermittent incident. Refer to GI-39, "Intermittent Incident" . NO >> GO TO 4. 4. CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect ECM harness connector. 3. Disconnect IPDM E/R harness connector. 4. Check the continuity between ECM harness connector and IPDM E/R harness connector. 5. Also check harness for short to ground and to power. YES >> Check intermittent incident. Refer to GI-39, "Intermittent Incident" . NO >> Repair or replace error-detected parts. + − Continuity ECM IPDM E/R Connector Terminal Connector Terminal F24 21 E43 16 Existed ECM Condition Voltage (Approx.) + − Connector Terminal Connector Terminal F24 2 E16 128 Ignition switch: OFF 0 V Ignition switch: ON Battery voltage + − Continuity ECM IPDM E/R Connector Terminal Connector Terminal F24 2 E43 11 Existed |
