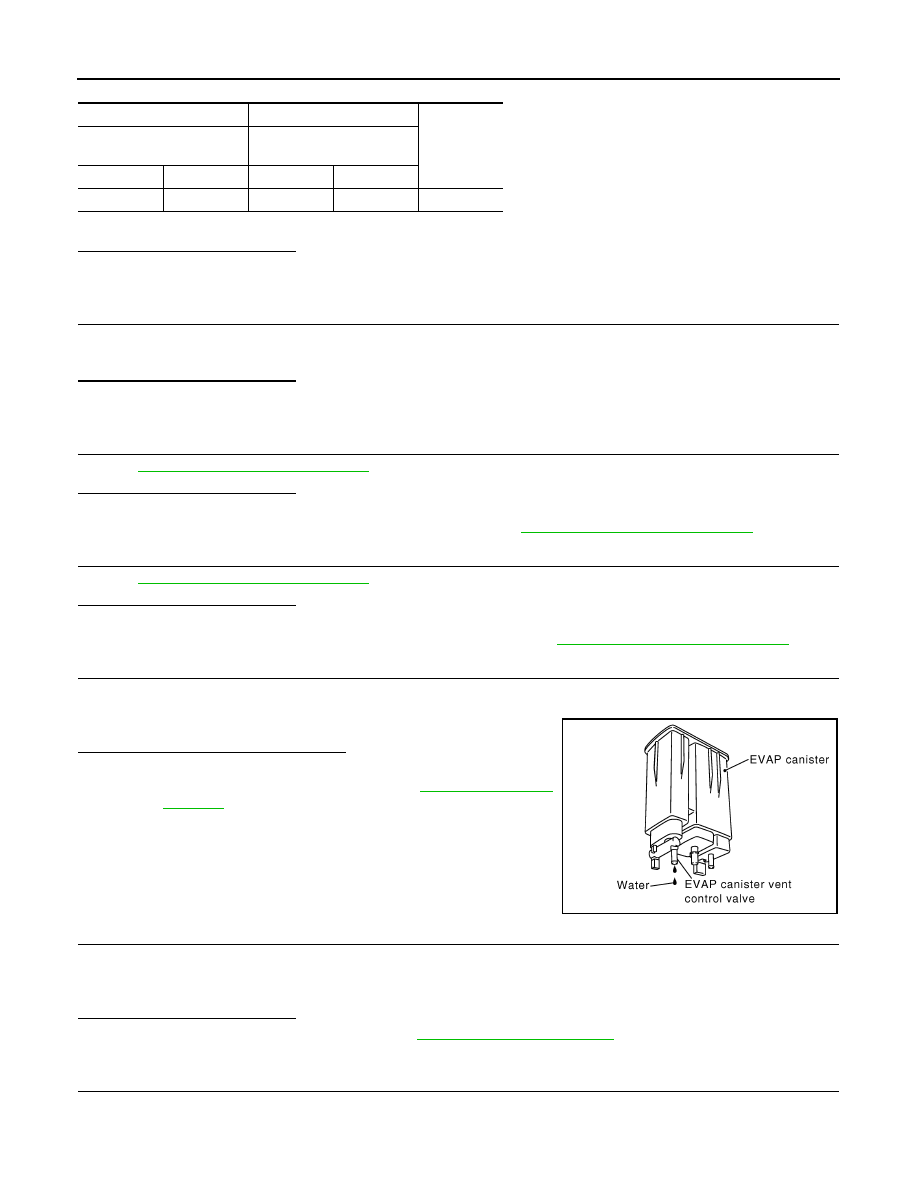

EC-316 < DTC/CIRCUIT DIAGNOSIS > [MRA8DE] P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR DTC Logic INFOID:0000000009758554 DTC DETECTION LOGIC DTC CONFIRMATION PROCEDURE 1. PRECONDITIONING If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test. 1. Turn ignition switch OFF and wait at least 10 seconds. 2. Turn ignition switch ON. 3. Turn ignition switch OFF and wait at least 10 seconds. TESTING CONDITION: Always perform test at a temperature of 5 °C (41°F) or more. >> GO TO 2. 2. PERFORM DTC CONFIRMATION PROCEDURE With CONSULT 1. Start engine and warm it up to normal operating temperature. 2. Turn ignition switch OFF and wait at least 10 seconds. 3. Turn ignition switch ON. 4. Select “DATA MONITOR” mode of “ENGINE” using CONSULT. 5. Make sure that “FUEL T/TMP SE” indication is more than 0 °C (32°F). 6. Start engine and wait at least 20 seconds. 7. Check 1st trip DTC. With GST 1. Start engine and warm it up to normal operating temperature. 2. Set voltmeter probes to ECM harness connector terminals as per the following. 3. Make sure that the voltage is less than 4.2 V. 4. Turn ignition switch OFF and wait at least 10 seconds. 5. Start engine and wait at least 20 seconds. 6. Check 1st trip DTC. YES >> Proceed to . NO >> INSPECTION END Diagnosis Procedure INFOID:0000000009758555 1. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR FOR WATER 1. Turn ignition switch OFF. 2. Disconnect EVAP control system pressure sensor harness connector. 3. Check sensor harness connector for water. DTC No. CONSULT screen terms (Trouble diagnosis content) DTC detecting condition Possible cause P0453 EVAP SYS PRES SEN An excessively high voltage from the • Harness or connectors (EVAP control system pressure sensor • EVAP control system pressure sensor ECM Voltage Connector + − Terminal E16 114 124 Less than 4.2 V |
