EC-16

< SYSTEM DESCRIPTION >

[MRA8DE]

COMPONENT PARTS

ENGINE COMPARTMENT

EVAP canister purge volume control solenoid valve

EC-24, "EVAP Canister Purge Volume Control Solenoid
Valve"

EVAP service port

EVAP service port is prepared in order to perform evapora-
tive emission system leak check.

• Intake manifold tuning valve
• Intake manifold runner control valve

•

EC-28, "Intake Manifold Tuning Valve"

•

EC-27, "Intake Manifold Runner Control Valve"

ECM

EC-22, "ECM"

Battery current sensor
(with battery temperature sensor)

EC-20, "Battery Current Sensor (with Battery Temperature
Sensor)"

No.

Component

Function

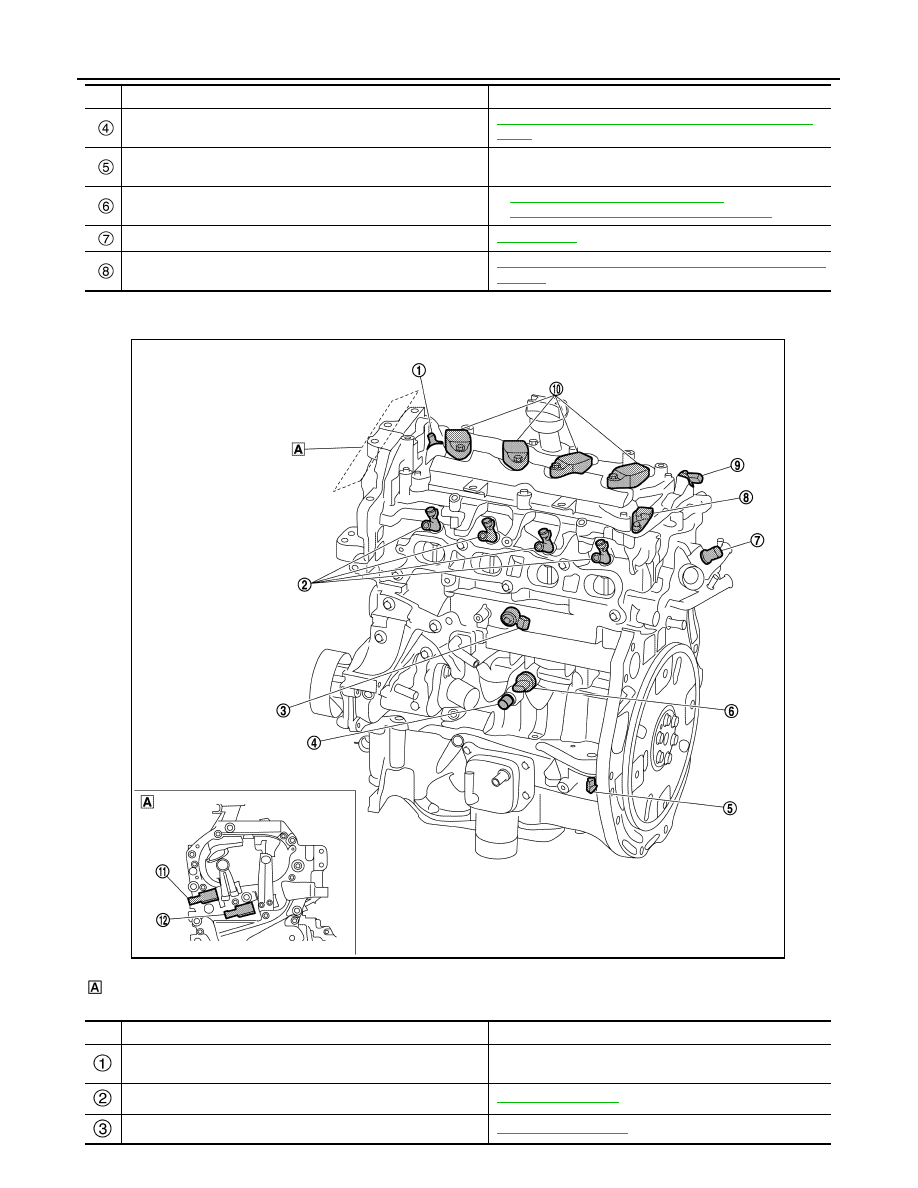

Engine front side

No.

Component

Function

PCV valve

The positive crankcase ventilation (PCV) valve is provided
to conduct crankcase blow-by gas to the intake manifold.

Fuel injector

EC-25, "Fuel Injector"

Knock sensor

EC-28, "Knock Sensor"

JSBIA2632ZZ

COMPONENT PARTS

EC-17

< SYSTEM DESCRIPTION >

[MRA8DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

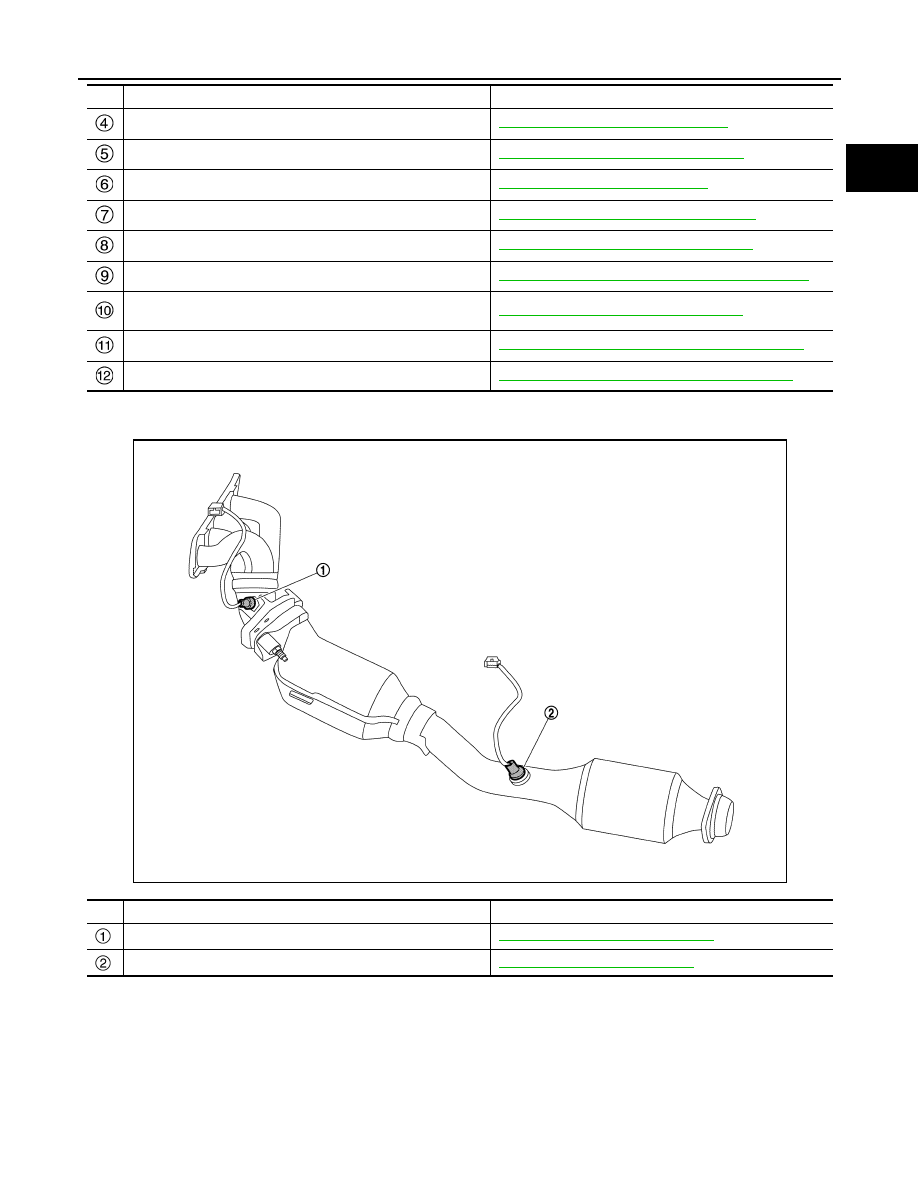

EXHAUST COMPARTMENT

BODY COMPARTMENT

Engine oil temperature sensor

EC-24, "Engine Oil Temperature Sensor"

Crankshaft position sensor (POS)

EC-21, "Crankshaft Position Sensor (POS)"

Engine oil pressure sensor

EC-23, "Engine Oil Pressure Sensor"

Engine coolant temperature sensor

EC-23, "Engine Coolant Temperature Sensor"

Camshaft position sensor (PHASE)

EC-21, "Camshaft Position Sensor (PHASE)"

Exhaust valve timing control position sensor

EC-25, "Exhaust Valve Timing Control Position Sensor"

Ignition coil
(with power transistor)

EC-27, "Ignition Coil with Power Transistor"

Exhaust valve timing control solenoid valve

EC-25, "Exhaust Valve Timing Control Solenoid Valve"

Intake valve timing control solenoid valve

EC-27, "Intake Valve Timing Control Solenoid Valve"

No.

Component

Function

No.

Component

Function

Air fuel ratio (A/F) sensor 1

EC-19, "Air Fuel Ratio (A/F) Sensor 1"

Heated oxygen sensor 2

EC-26, "Heated Oxygen Sensor 2"

JSBIA2635ZZ

EC-18

< SYSTEM DESCRIPTION >

[MRA8DE]

COMPONENT PARTS

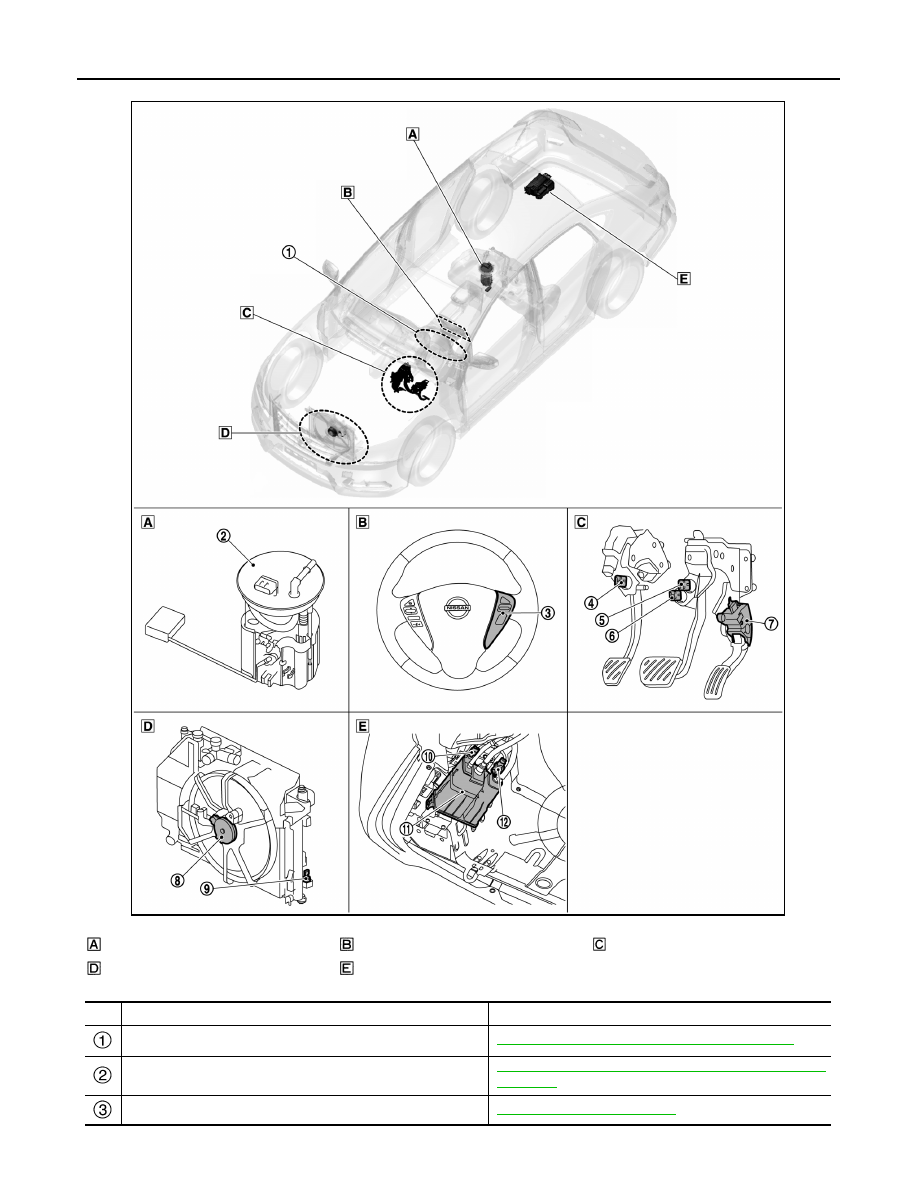

Under the right side second seat

On the steering wheel

Periphery of pedals

Radiator assembly

Under the left side fuel tank

No.

Component

Function

Combination meter

MWI-6, "METER SYSTEM : Component Description"

Fuel level sensor unit, fuel filter and fuel pump assembly

EC-26, "Fuel Level Sensor Unit, Fuel Filter and Fuel Pump
Assembly"

ASCD steering switch

EC-20, "ASCD Steering Switch"

JSBIA3185ZZ

COMPONENT PARTS

EC-19

< SYSTEM DESCRIPTION >

[MRA8DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

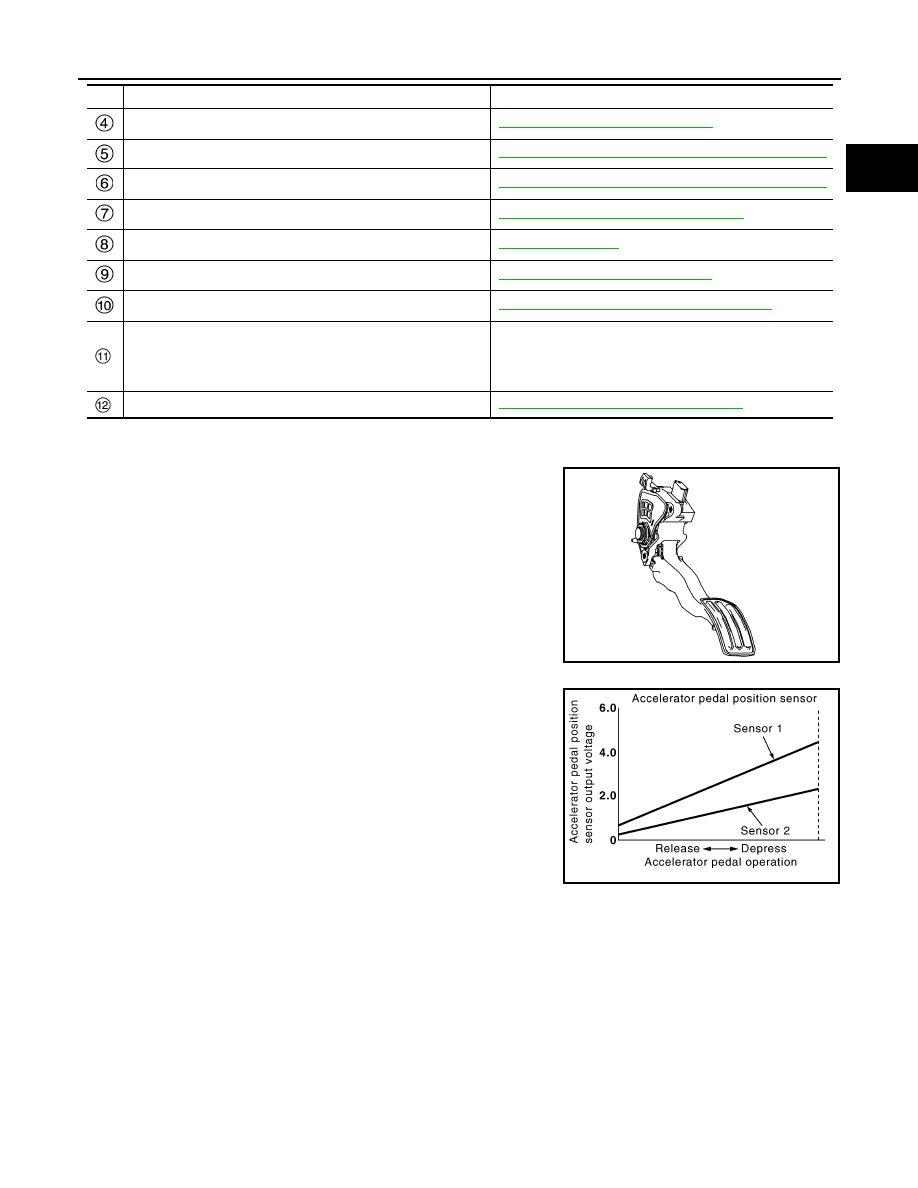

Accelerator Pedal Position Sensor

INFOID:0000000009758327

The accelerator pedal position sensor is installed on the upper end

of the accelerator pedal assembly. The sensor detects the accelera-

tor position and sends a signal to the ECM.

Accelerator pedal position sensor has two sensors. These sensors

are a kind of potentiometers which transform the accelerator pedal

position into output voltage, and emit the voltage signal to the ECM.

In addition, these sensors detect the opening and closing speed of

the accelerator pedal and feed the voltage signals to the ECM. The

ECM judges the current opening angle of the accelerator pedal from

these signals and controls the throttle control motor based on these

signals.

Idle position of the accelerator pedal is determined by the ECM

receiving the signal from the accelerator pedal position sensor. The

ECM uses this signal for the engine operation such as fuel cut.

Air Fuel Ratio (A/F) Sensor 1

INFOID:0000000009758328

DESCRIPTION

Clutch pedal position switch

EC-21, "Clutch Pedal Position Switch"

Stop lamp switch

EC-29, "Stop Lamp Switch & Brake Pedal Position Switch"

Brake pedal position switch

EC-29, "Stop Lamp Switch & Brake Pedal Position Switch"

Accelerator pedal position sensor

EC-19, "Accelerator Pedal Position Sensor"

Cooling fan motor

EC-21, "Cooling Fan"

Refrigerant pressure sensor

EC-29, "Refrigerant Pressure Sensor"

EVAP control system pressure sensor

EC-25, "EVAP Control System Pressure Sensor"

EVAP canister

EVAP canister stores the generated fuel vapors in the
sealed fuel tank to activated charcoals of EVAP canister
when the engine is not operating or when refueling to the
tank.

EVAP canister vent control valve

EC-24, "EVAP Canister Vent Control Valve"

No.

Component

Function

JPBIA4615ZZ

PBIB1741E
