[SPORT MODE (M/T)]

ECM

ECU DIAGNOSIS INFORMATION

ECM

List of ECU Reference

INFOID:0000000009755926

REFERENCE LIST

Engine

Reference

ECM

EC-77, "Reference Value"

EC-90, "Fail Safe"

EC-93, "DTC Inspection Priority Chart"

EC-94, "DTC Index"

Combination meter

MWI-20, "Reference Value"

MWI-25, "Fail-Safe"

MWI-26, "DTC Index"

DMS

SPORT MODE SYSTEM

DMS-45

< WIRING DIAGRAM >

[SPORT MODE (M/T)]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

WIRING DIAGRAM

SPORT MODE SYSTEM

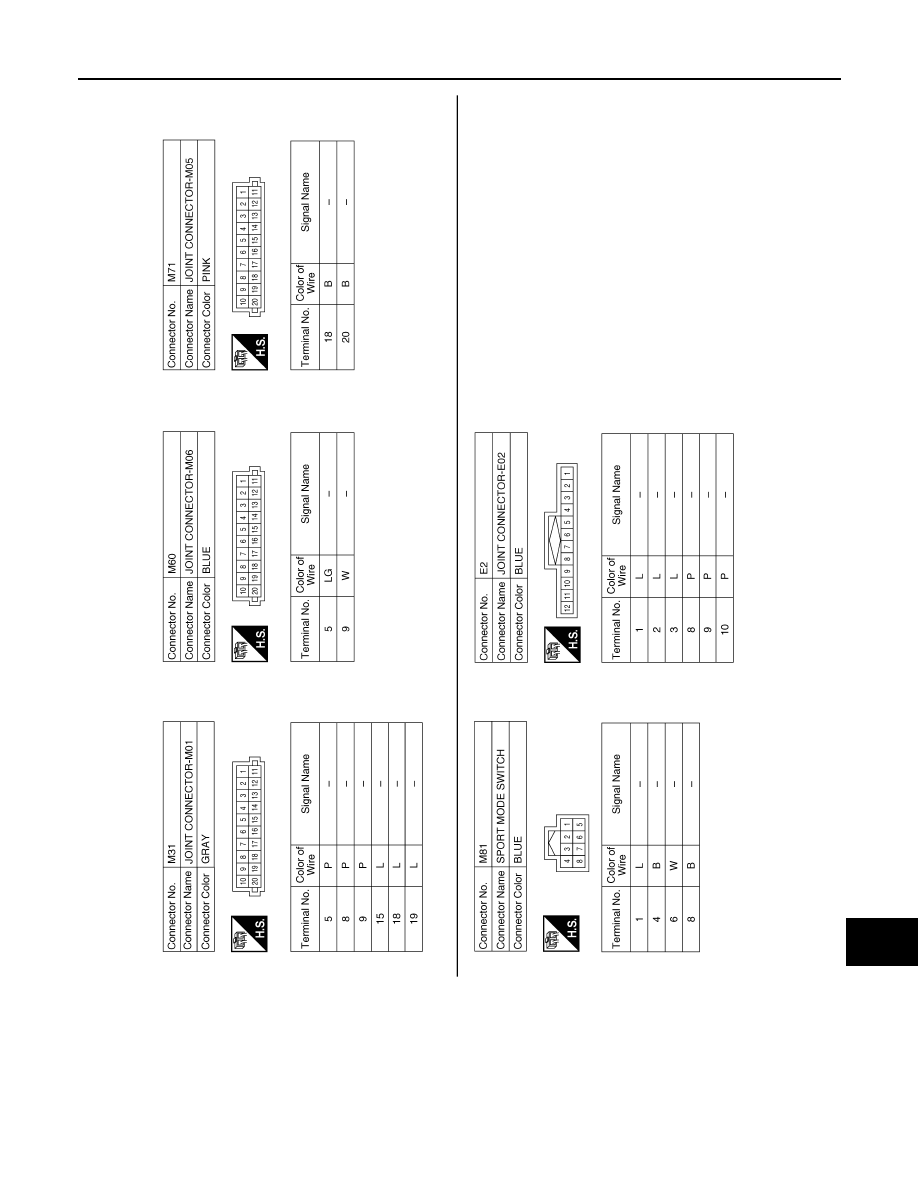

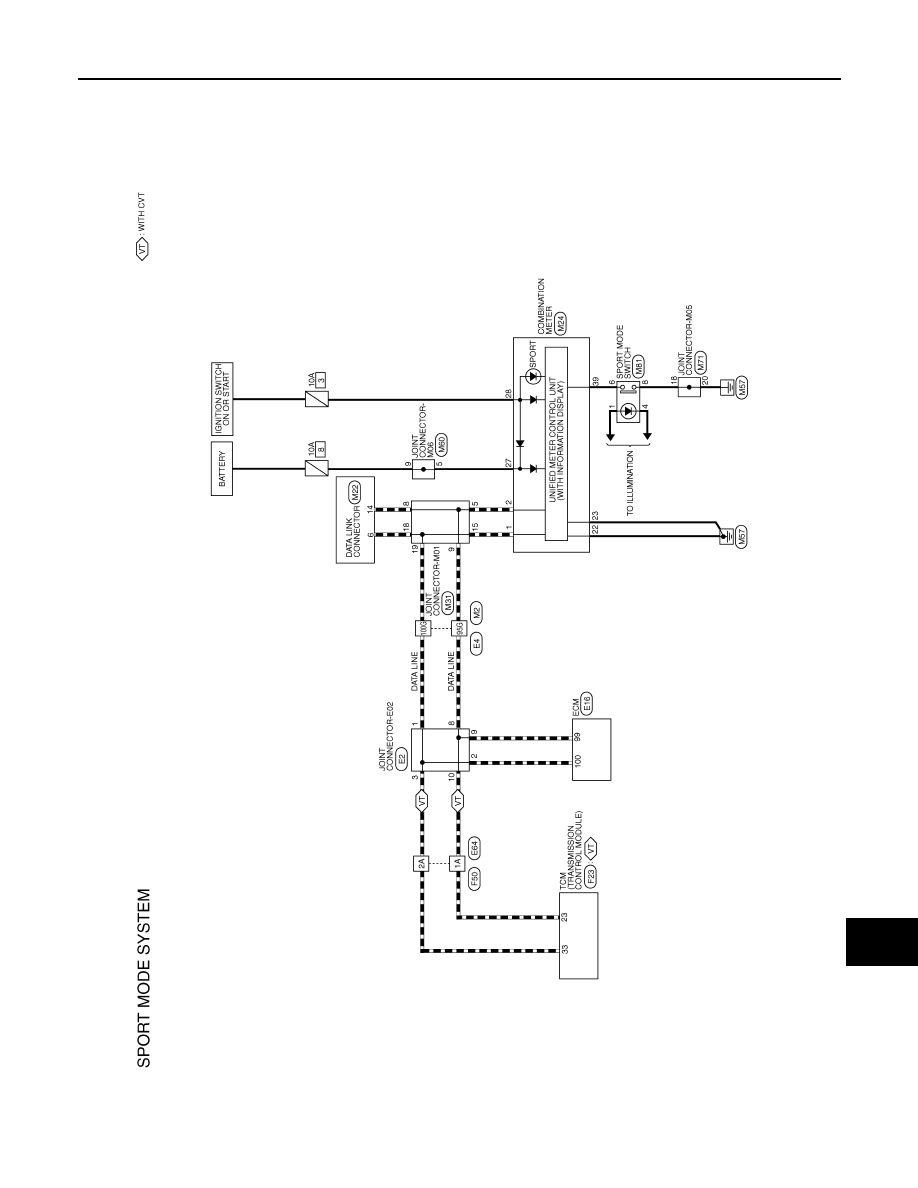

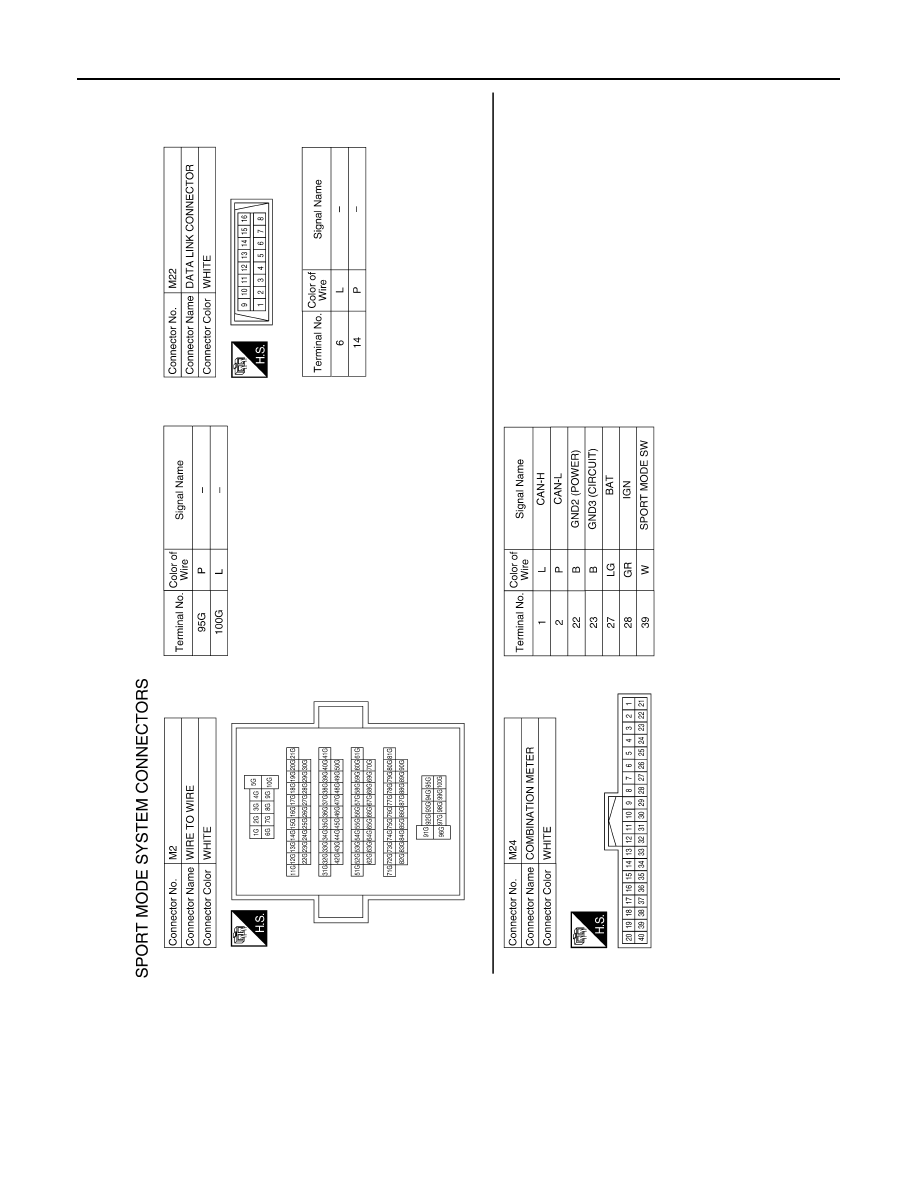

Wiring Diagram

INFOID:0000000009755927

ABOWA0047GB

DMS-46

< WIRING DIAGRAM >

[SPORT MODE (M/T)]

SPORT MODE SYSTEM

AAOIA0063GB

DMS

SPORT MODE SYSTEM

DMS-47

< WIRING DIAGRAM >

[SPORT MODE (M/T)]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

ABOIA0171GB
