Nissan Sentra. Manual - part 313





DMS-24

< SYSTEM DESCRIPTION >

[ECO MODE (CVT)]

COMPONENT PARTS

ECO Mode Switch

INFOID:0000000009755909

• The ECO mode switch is installed to the instrument lower finisher.

• When the ECO mode indicator lamp on the combination meter is

OFF and the ECO mode switch is pressed, the ECO mode is

active and the ECO mode indicator lamp is ON.

• When the ECO mode indicator lamp on the combination meter is

ON and the ECO mode switch is pressed, the ECO mode is can-

celled and the ECO mode indicator lamp is OFF.

ECO Mode Indicator Lamp

INFOID:0000000009755910

DESIGN/PURPOSE

The ECO mode indicator lamp inform the driver that the vehicle is in

ECO mode.

BULB CHECK

Not applicable

SIGNAL PATH

• TCM receives ECO mode switch signal (ON/OFF) from combination meter via CAN communication. Based

on the signal, TCM transmits ECO mode signal to ECM via CAN communication.

• ECM transmits ECO mode indicator signal to combination meter via CAN communication. Based on the sig-

nal, combination meter illuminates ECO mode indicator lamp.

LIGHTING CONDITION

When all of the following conditions are satisfied.

• Ignition switch: ON

• The ECO mode switch is pressed when the ECO mode indicator lamp is OFF

ECM

• The ECM receives the following signal via CAN communications from the TCM.
- ECO mode signal
• The ECM transmittes the following signal via CAN communications to the combi-

nation meter.

- ECO mode indicator signal
Refer to

EC-15, "ENGINE CONTROL SYSTEM : Component Parts Location"

 for

detailed installation location.

Transaxle assembly

Refer to

TM-73, "CVT CONTROL SYSTEM : Component Parts Location"

.

TCM

• The TCM receives the following signal via CAN communications from the combi-

nation meter.

- ECO mode switch signal
• The TCM transmittes the following signal via CAN communications to the ECM.
- ECO mode signal
Refer to

TM-73, "CVT CONTROL SYSTEM : Component Parts Location"

 for detailed

installation location.

ECO mode switch

Refer to

DMS-24, "ECO Mode Switch"

.

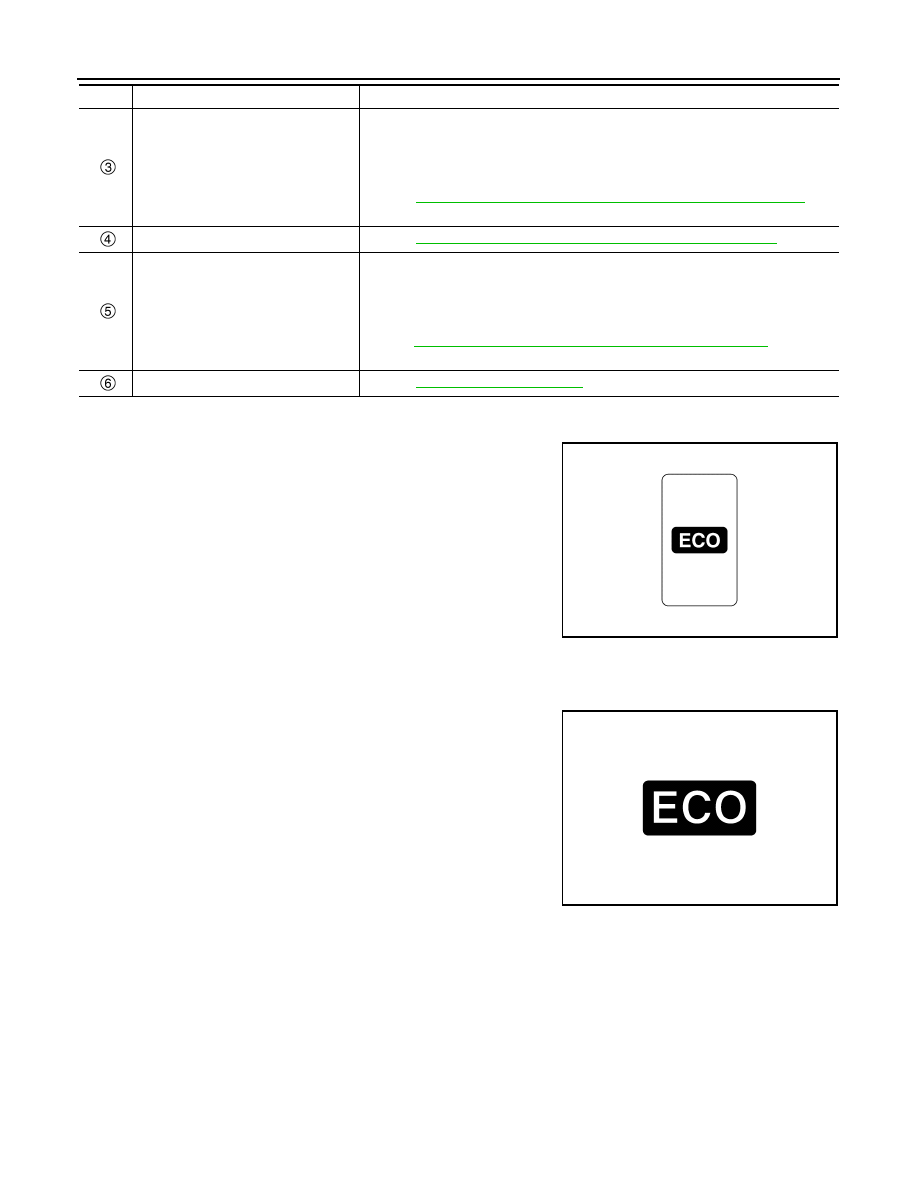

No.

Component

Function

JSOIA0626ZZ

JPNIA1941ZZ

DMS

COMPONENT PARTS

DMS-25

< SYSTEM DESCRIPTION >

[ECO MODE (CVT)]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

SHUTOFF CONDITION

When any of the condition listed below is satisfied.

• Ignition switch: Other than ON

• The ECO mode switch is pressed when the ECO mode indicator lamp is ON.

• The SPORT mode switch is pressed when the ECO mode indicator lamp is ON.

DMS-26

< SYSTEM DESCRIPTION >

[ECO MODE (CVT)]

SYSTEM

SYSTEM

ECO MODE CONTROL
ECO MODE CONTROL : System Description

INFOID:0000000009755911

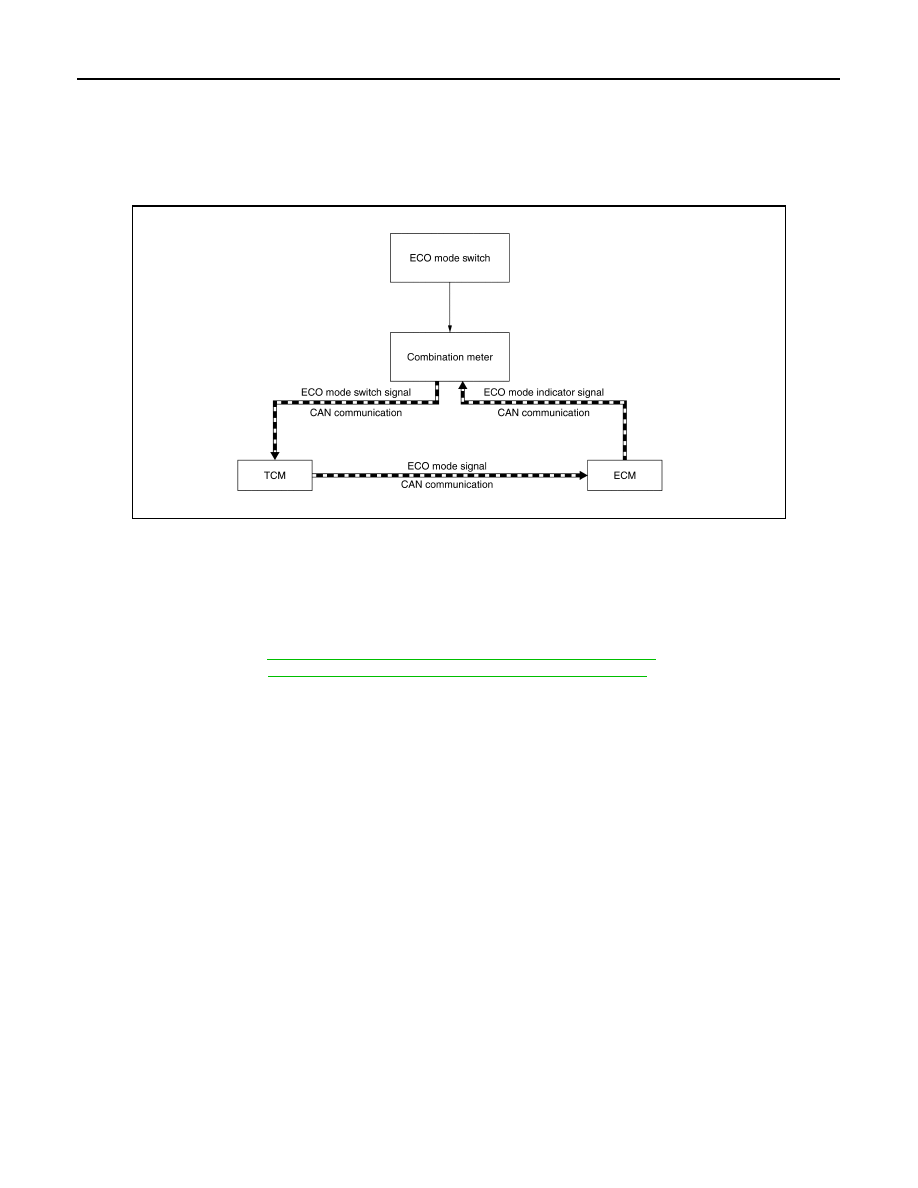

SYSTEM DIAGRAM

SYSTEM DISCRIPTION

• TCM receive ECO mode switch signal (ON/OFF) from combination meter via CAN communication. TCM

transmit ECO mode signal to ECM via CAN communication according to the signal.

• ECM transmit ECO mode indicator signal to combination meter via CAN communication. Combination meter

illuminates ECO mode indicator lamp according to the signal.

Each ECU Control

• For TCM control, refer to

TM-104, "ECO MODE CONTROL : System Description"

.

• For ECM control, refer to

EC-52, "ECO MODE CONTROL : System Description"

.

JSOIA0679GB

DMS

ECO MODE

DMS-27

< ECU DIAGNOSIS INFORMATION >

[ECO MODE (CVT)]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

ECU DIAGNOSIS INFORMATION

ECO MODE

List of ECU Reference

INFOID:0000000009755912

ECU

Reference

TCM

TM-114, "Reference Value"

TM-122, "Fail-Safe"

TM-125, "DTC Inspection Priority Chart"

TM-126, "DTC Index"

ECM

EC-77, "Reference Value"

EC-90, "Fail Safe"

EC-93, "DTC Inspection Priority Chart"

EC-94, "DTC Index"

Combination meter

MWI-20, "Reference Value"

MWI-25, "Fail-Safe"

MWI-26, "DTC Index"
