DLK-208

< PREPARATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

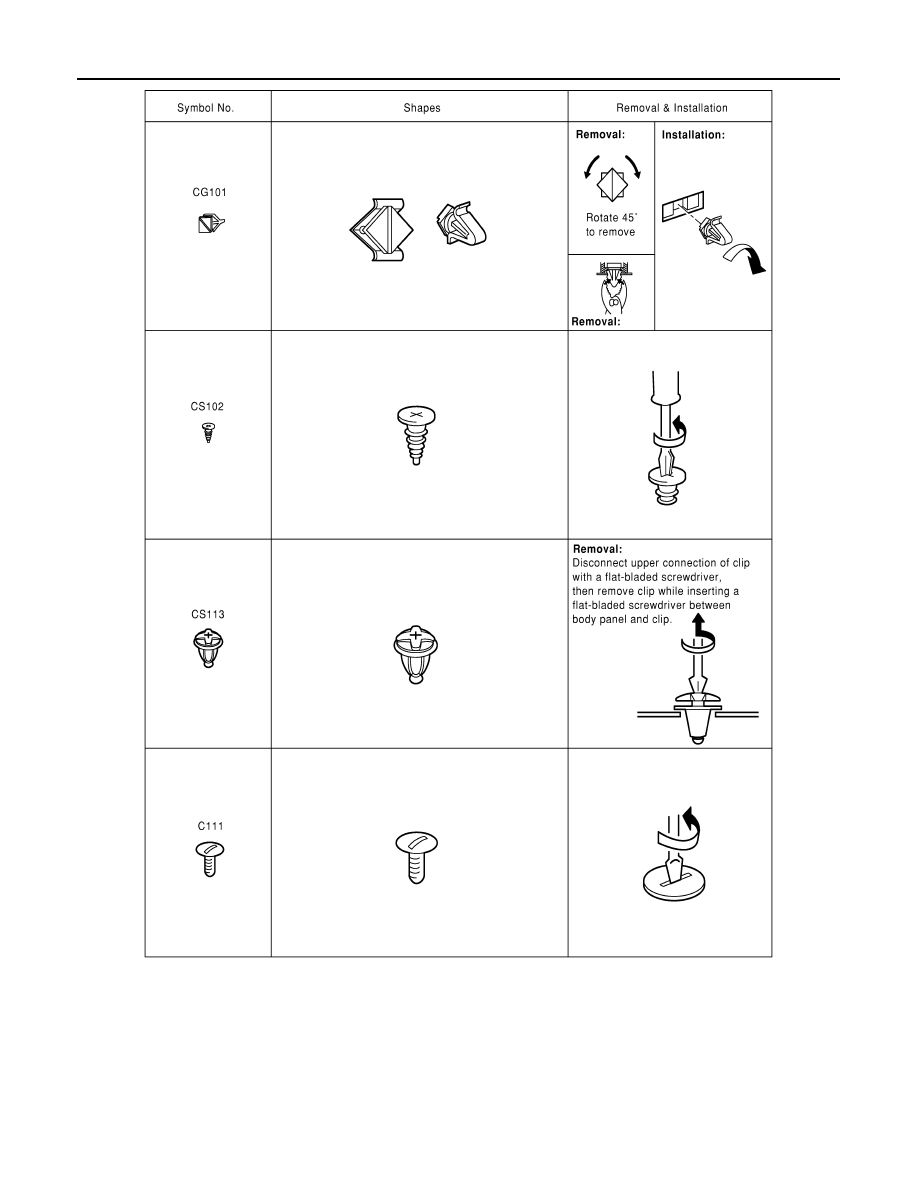

CLIP LIST

SIIA0317E

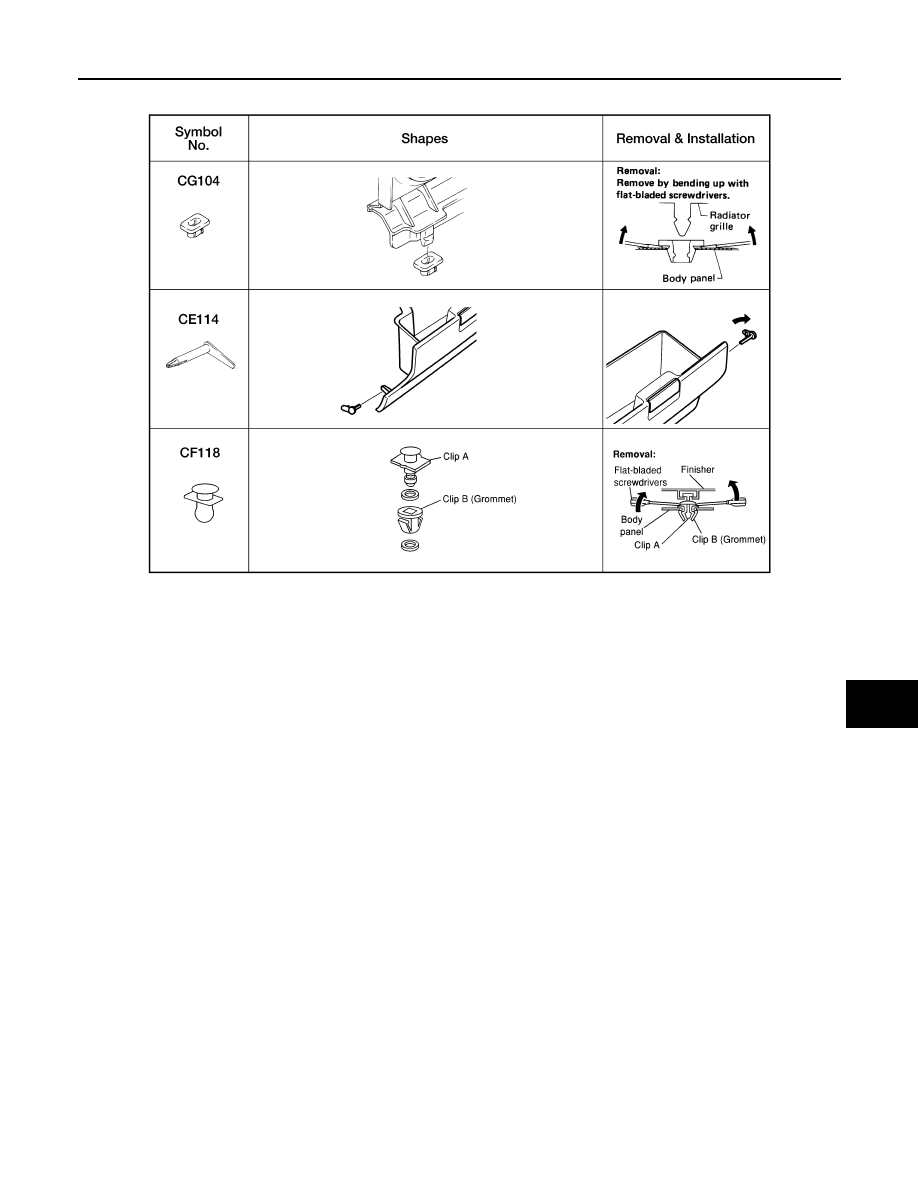

CLIP LIST

DLK-209

< PREPARATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ALJIA0564GB

DLK-210

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

AUTOMATIC DOOR LOCK/UNLOCK FUNCTION

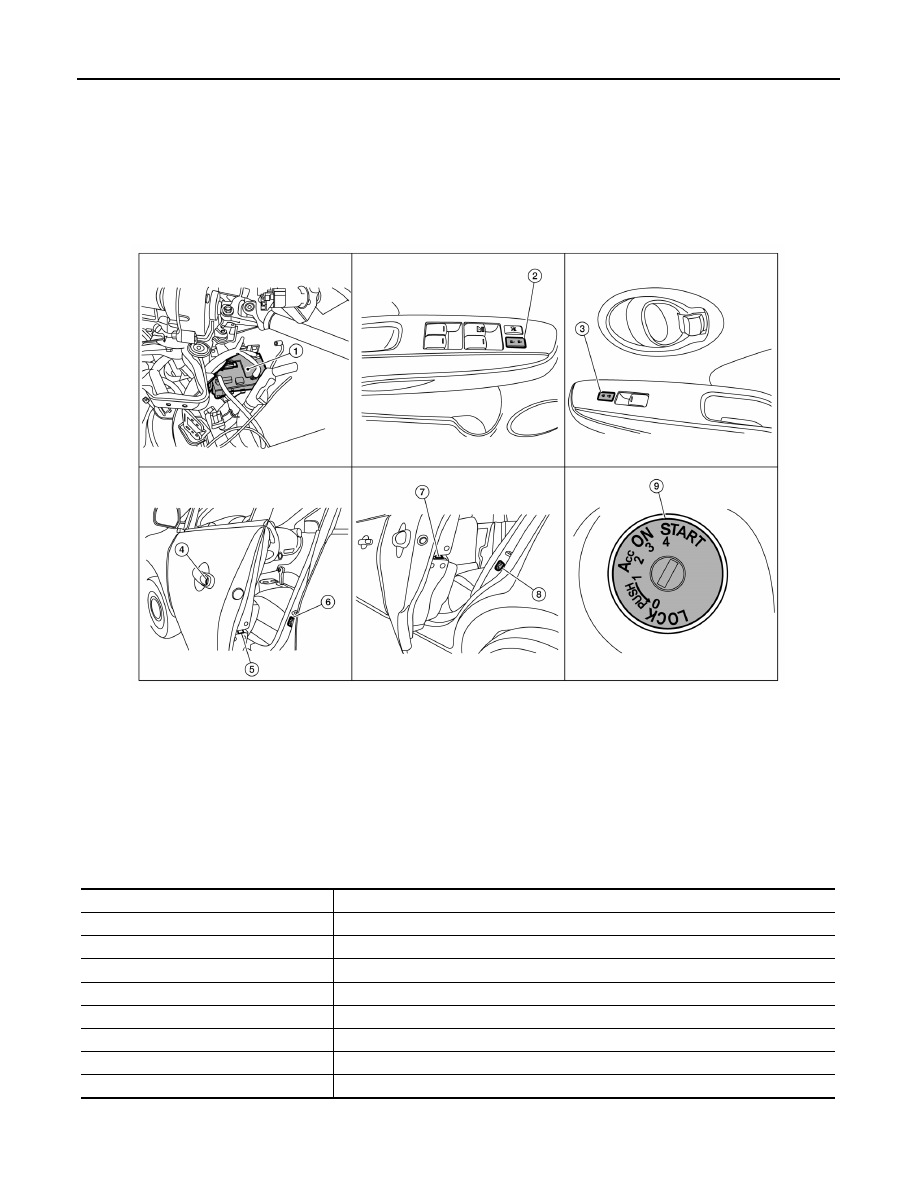

AUTOMATIC DOOR LOCK/UNLOCK FUNCTION : Component Parts Location

INFOID:0000000009756527

AUTOMATIC DOOR LOCK/UNLOCK FUNCTION : Component Description

INFOID:0000000009756528

POWER DOOR LOCK SYSTEM

1.

BCM
(view with instrument panel removed)

2.

Main power window and door lock/un-
lock switch

3.

Power window and door lock/un-
lock switch RH

4.

Front door lock key cylinder switch LH

5.

Front door lock actuator LH
(RH similar)

6.

Front door switch LH
(RH similar)

7.

Rear door lock actuator LH
(RH similar)

8.

Rear door switch LH
(RH similar)

9.

Key switch

ALKIA2972ZZ

Item

Function

BCM

Controls the door lock function.

Door lock and unlock switch

Input lock or unlock signal to BCM.

Door lock actuator

Output lock/unlock signal from BCM and locks/unlocks each door.

Door switch

Input door open/close condition to BCM.

Key switch

Input key switch condition to BCM.

Front door lock key cylinder switch LH

Input lock or unlock signal to the BCM.

ABS actuator and electric unit (control unit) Transmits vehicle speed signal to CAN communication line.

Ignition switch

Input ignition switch ON/OFF condition to BCM.

COMPONENT PARTS

DLK-211

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

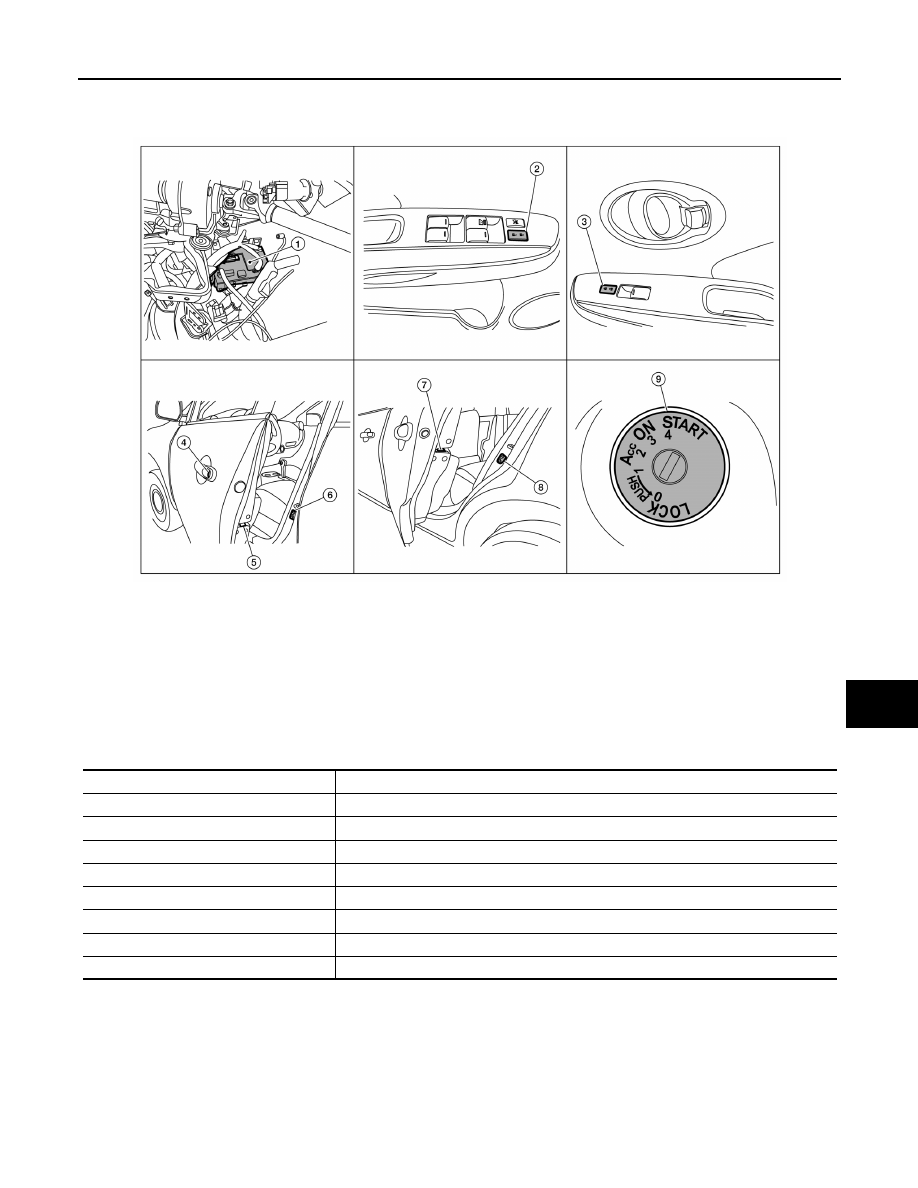

POWER DOOR LOCK SYSTEM : Component Parts Location

INFOID:0000000009756529

POWER DOOR LOCK SYSTEM : Component Description

INFOID:0000000009756530

REMOTE KEYLESS ENTRY SYSTEM

1.

BCM
(view with instrument panel removed)

2.

Main power window and door lock/un-
lock switch

3.

Power window and door lock/un-
lock switch RH

4.

Front door lock key cylinder switch LH

5.

Front door lock actuator LH
(RH similar)

6.

Front door switch LH
(RH similar)

7.

Rear door lock actuator LH
(RH similar)

8.

Rear door switch LH
(RH similar)

9.

Key switch

ALKIA2972ZZ

Item

Function

BCM

Controls the door lock function.

Door lock and unlock switch

Input lock or unlock signal to BCM.

Door lock actuator

Output lock/unlock signal from BCM and locks/unlocks each door.

Door switch

Input door open/close condition to BCM.

Key switch

Input key switch condition to BCM.

Front door lock key cylinder switch LH

Input lock or unlock signal to the BCM.

ABS actuator and electric unit (control unit) Transmits vehicle speed signal to CAN communication line.

Ignition switch

Input ignition switch ON/OFF condition to BCM.
