Nissan Sentra. Manual - part 237

DLK-64

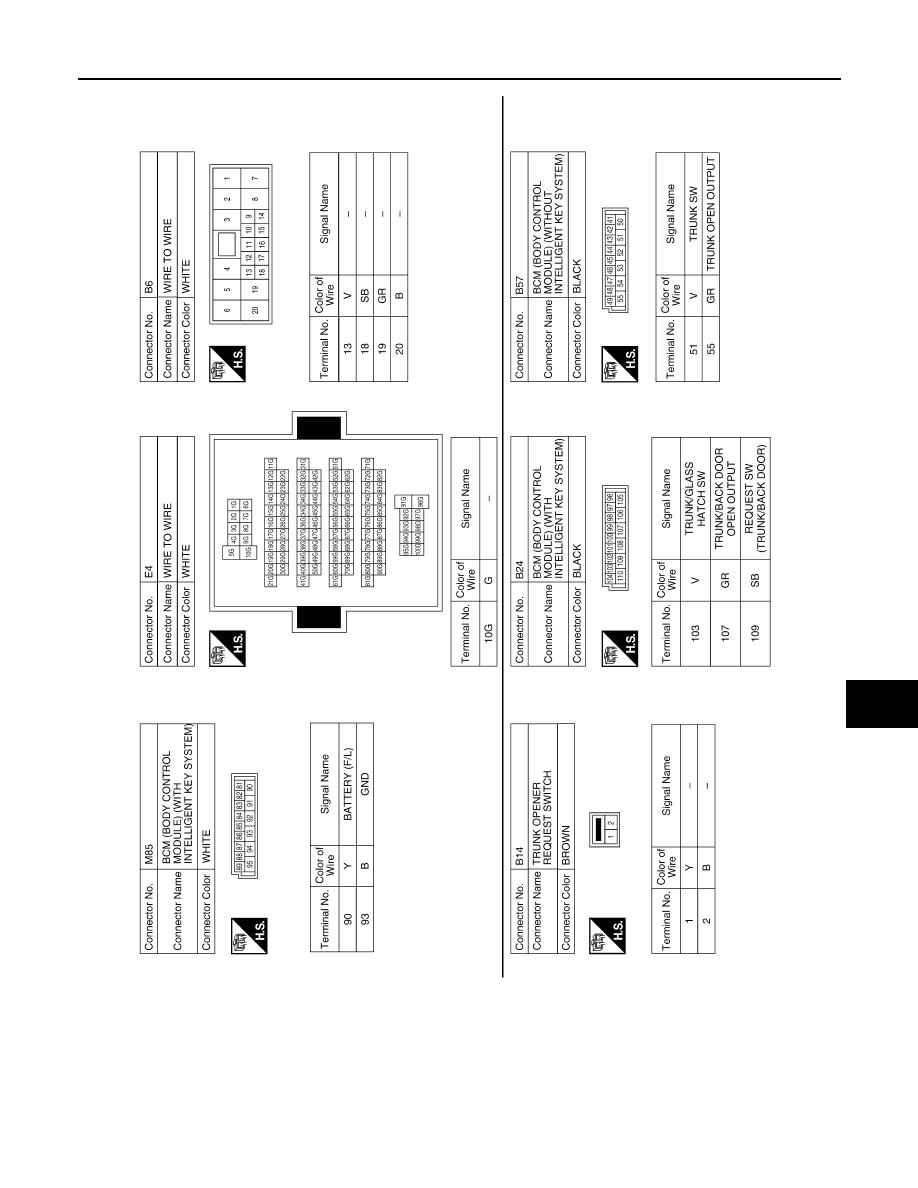

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

TRUNK LID OPENER

ABKIA5399GB

TRUNK LID OPENER

DLK-65

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ABKIA5400GB

DLK-66

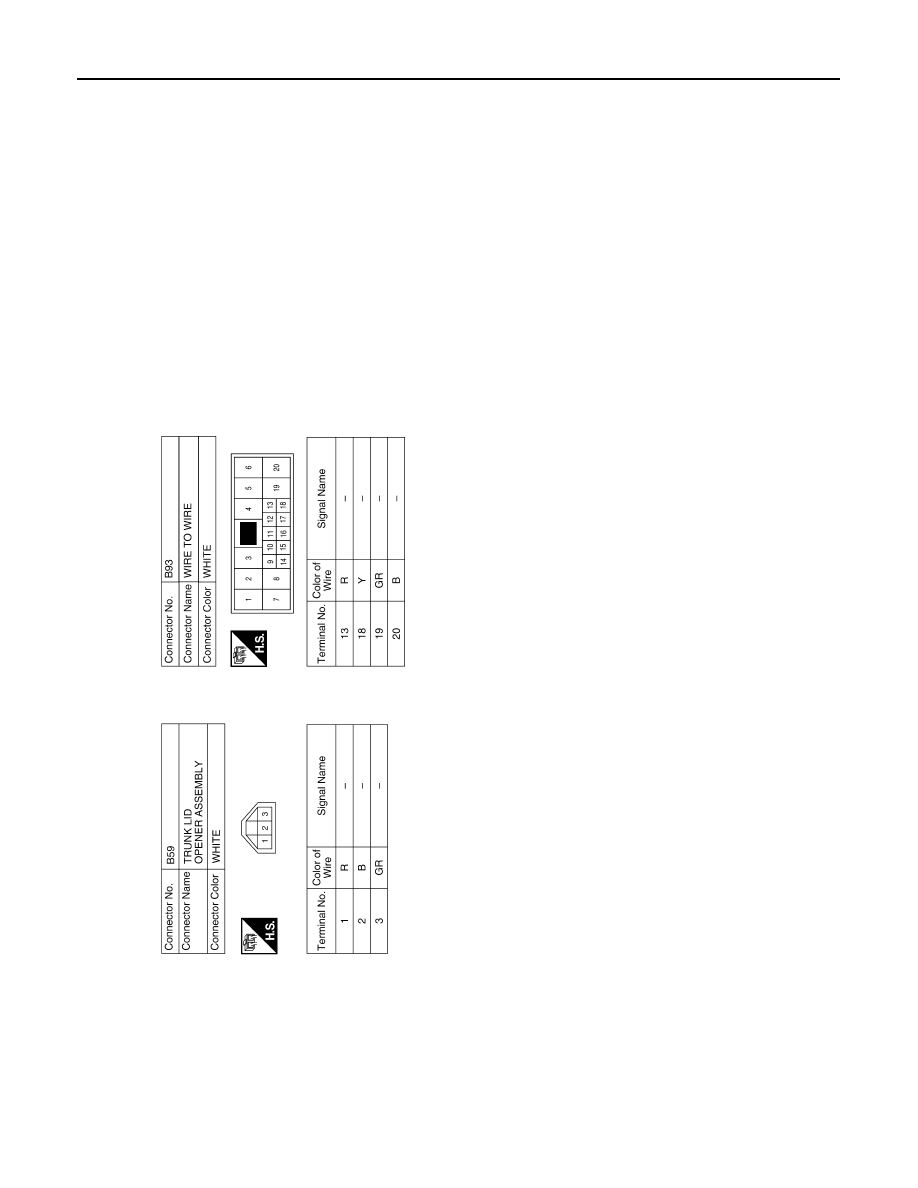

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

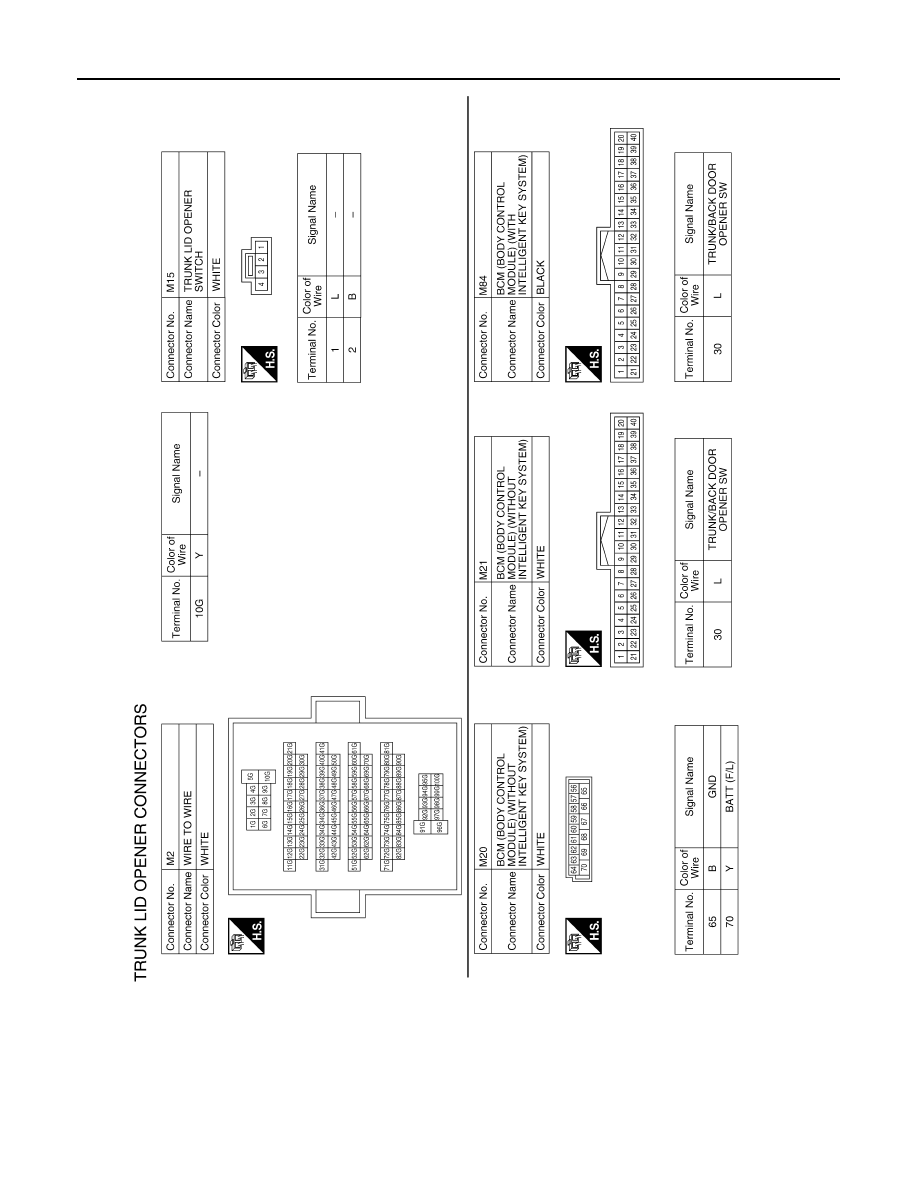

TRUNK LID OPENER

AAKIA1010GB

DIAGNOSIS AND REPAIR WORK FLOW

DLK-67

< BASIC INSPECTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000009756367

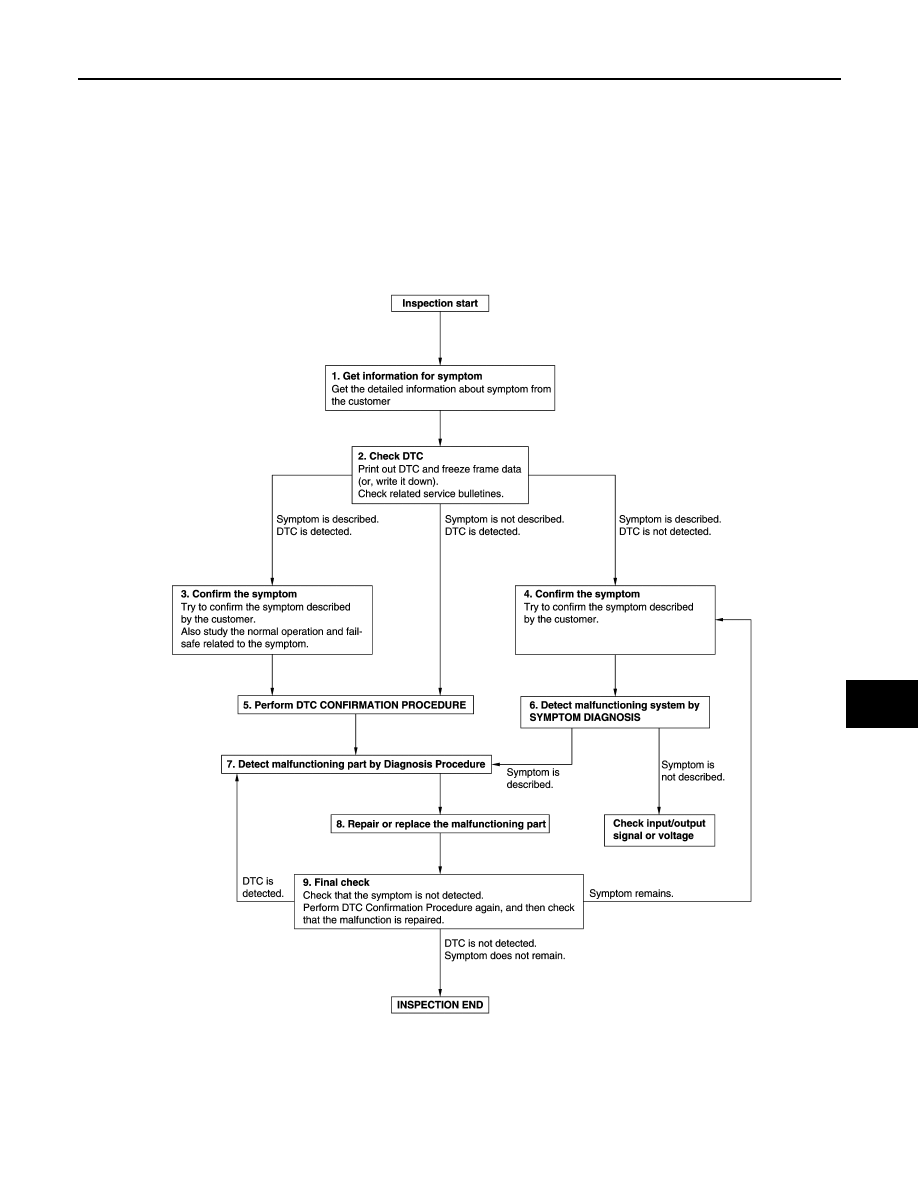

OVERALL SEQUENCE

DETAILED FLOW

JMKIA8652GB
