FRONT DISC BRAKE

FRONT DISC BRAKE

BRAKE PAD

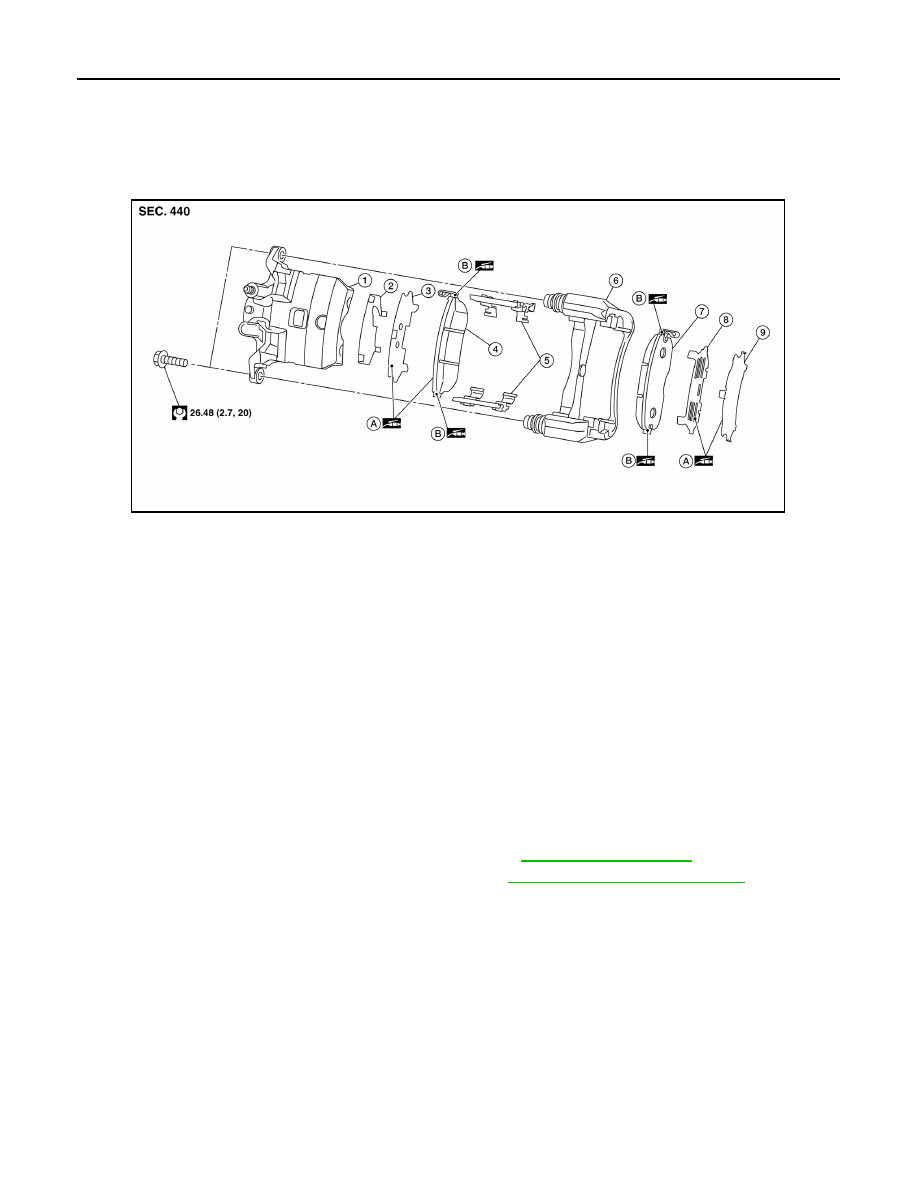

BRAKE PAD : Exploded View

INFOID:0000000009756015

BRAKE PAD : Removal and Installation

INFOID:0000000009756016

REMOVAL

WARNING:

Clean dust on brake caliper and brake pad with a vacuum dust collector to minimize the hazards of air-

borne particles or other material.

CAUTION:

• Do not depress the brake pedal while removing the brake pads because the pistons may pop out.

• It is not necessary to remove bolts on torque member and brake hose except for disassembly or

replacement of brake caliper. For brake pad removal, hang brake caliper with a wire so as not to

stretch brake hose.

• If brake fluid or grease adheres to the brake caliper or disc rotor, quickly wipe it off.
1. Partially drain brake fluid from the master cylinder. Refer to

BR-17, "Drain and Refill"

.

2. Remove front wheels and tires using power tool. Refer to

WT-47, "Removal and Installation"

.

3. Remove sliding pin bolts.
4. Remove the brake caliper from the torque member. Leaving brake hose attached, reposition the brake

caliper aside with wire.

5. Remove the brake pads, shims, shim covers and pad retainers from the torque member.

CAUTION:

1.

Cylinder body

2.

Inner shim cover

3.

Inner shim

4.

Inner pad (with pad wear sensor)

5.

Pad retainer

6.

Torque member

7.

Outer pad

8.

Outer shim

9.

Outer shim cover

A.

Molykote AS880N

B.

Molykote 7439

AWFIA0976ZZ

FRONT DISC BRAKE

BR-39

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

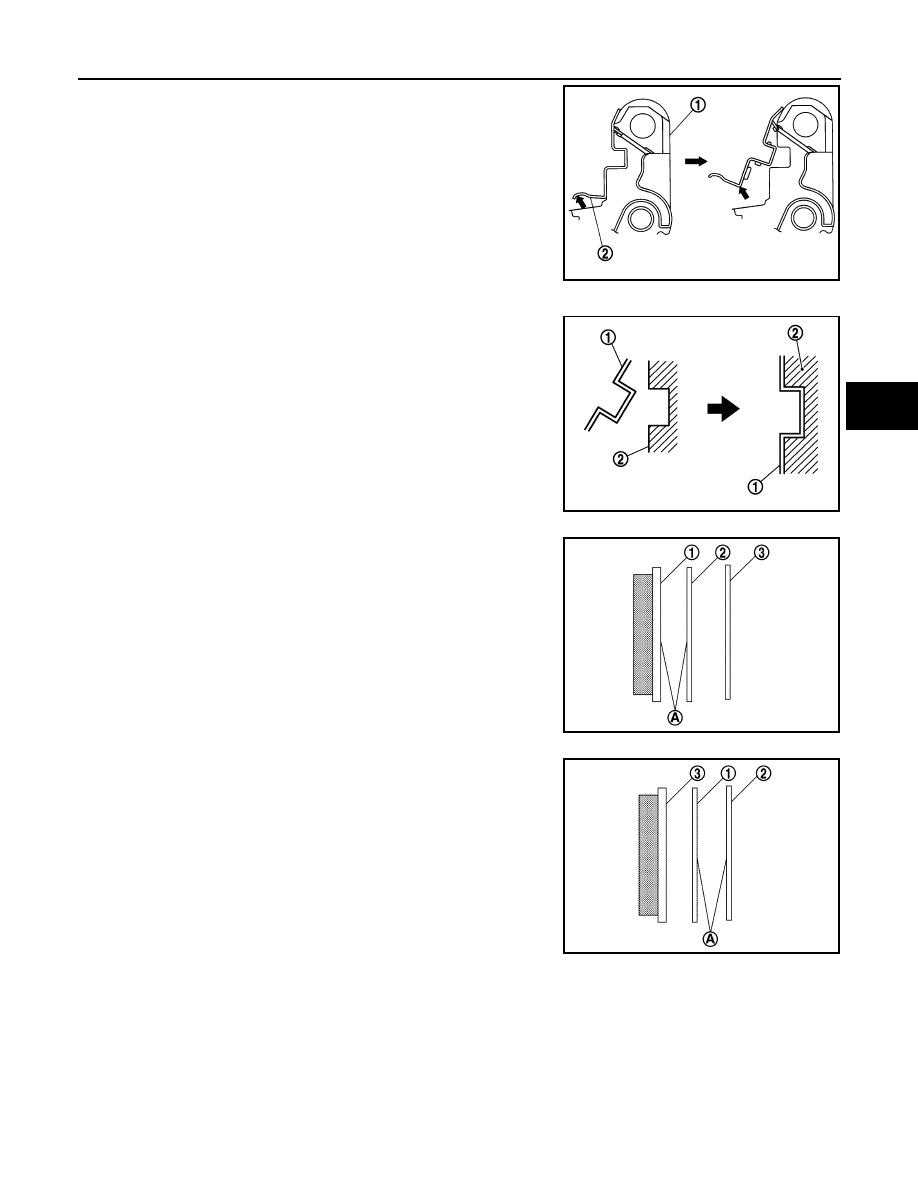

• Do not deform the pad retainer (2) when removing the pad

retainer from the torque member (1).

• Do not damage the piston boot.

• Do not drop the brake pads, shims, and the shim covers.

• Note the position of components during removal to aid

with installation.

INSTALLATION

1. Install the pad retainers (1) to the torque member (2) if the pad

retainers have been removed.

CAUTION:

• Do not deform brake pad retainers.

• Verify pad retainers are secured properly to torque mem-

ber.

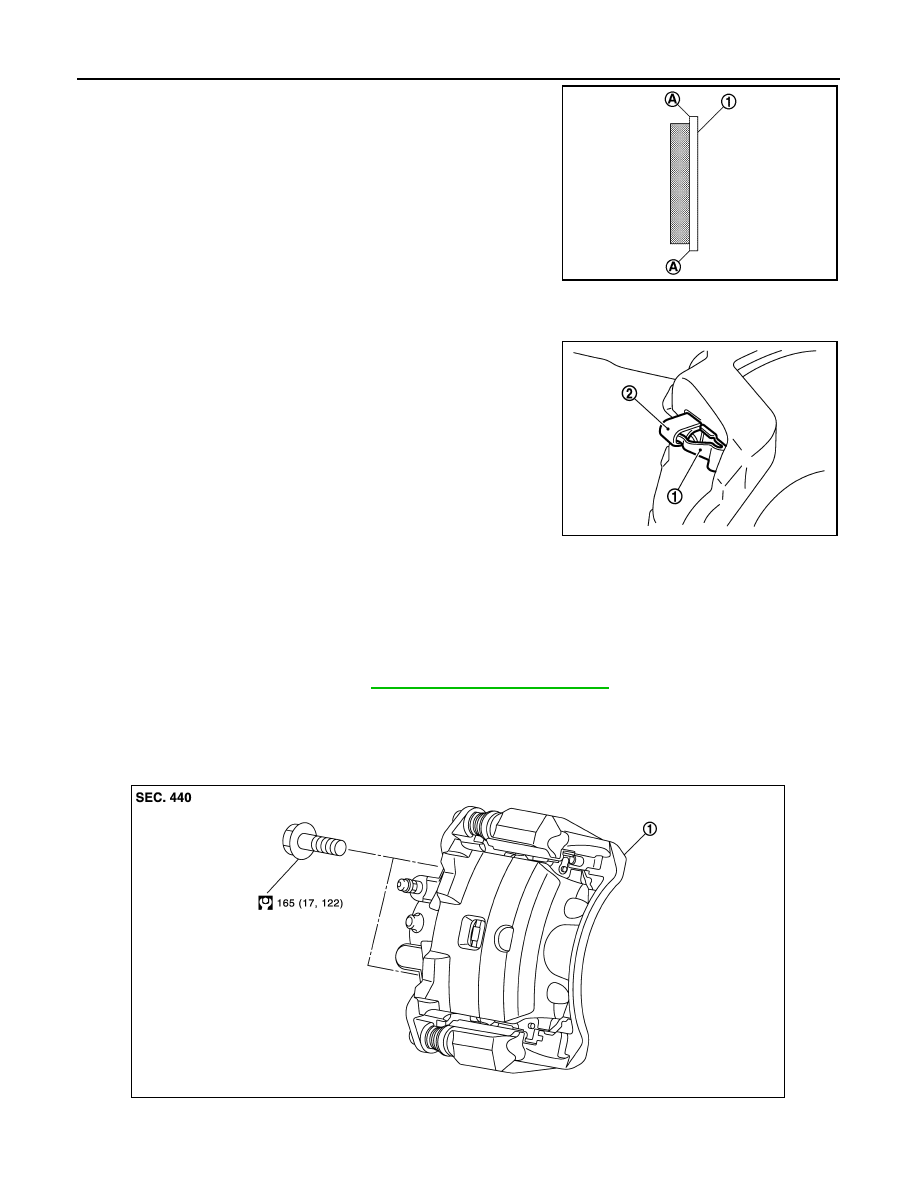

2. Apply Molykote AS880N or equivalent to the mating faces (A)

between the inner pad (1) and the inner shim (2), and install the

inner shim and inner shim cover (3) to the inner pad.

CAUTION:

Always replace the shim and shim cover when replacing

the brake pad.

3. Apply Molykote AS880N or silicone-based grease to the mating

faces (A) between the outer shim (1) and the outer shim cover

(2), and install the outer shim and outer shim cover to the outer

pad (3).

CAUTION:

Always replace the shim and shim cover when replacing

the brake pad.

JPFIA0118ZZ

PFIA0763J

JSFIA1336ZZ

JSFIA1330ZZ

BR-40

< REMOVAL AND INSTALLATION >

FRONT DISC BRAKE

4. Apply Molykote 7439 or equivalent to the mating faces (A)

between the brake pads (1) and the pad retainers.

5. Install the brake pads to the torque member.

CAUTION:

• Both inner and outer pads have a pad return system on

the pad retainer. Install pad return lever (1) securely to pad

retainer (2).

• Do not deform the pad retainers.

6. Using a suitable tool, press piston into the brake caliper.

CAUTION:

Do not damage the piston boot.

7. Install cylinder body to torque member.
8. Install the sliding pin bolts and tighten them to specified torque.
9. Depress the brake pedal several times to verify that drag does not exist.
10. Install front wheels and tires. Refer to

WT-47, "Removal and Installation"

.

BRAKE CALIPER ASSEMBLY
BRAKE CALIPER ASSEMBLY : Exploded View

INFOID:0000000009756017

JSFIA1337ZZ

JPFIA0027ZZ

1.

Brake caliper assembly

JPFIA0834GB

FRONT DISC BRAKE

BR-41

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

BRAKE CALIPER ASSEMBLY : Removal and Installation

INFOID:0000000009756018

REMOVAL

WARNING:

Clean dust on brake caliper and brake pad with a vacuum dust collector to minimize the hazard of air-

borne particles or other materials.

CAUTION:

• Do not depress the brake pedal.

• Do not spill or splash brake fluid on painted surfaces. Brake fluid may damage paint. If brake fluid is

splashed on painted areas, wash it away with water immediately.

• Do not bend, twist or pull the brake hoses and piping.

• Do not reuse drained brake fluid.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.
1. Remove front wheels and tires using power tool. Refer to

WT-47, "Removal and Installation"

.

2. Secure the disc rotor using wheel nuts.
3. Remove union bolt, copper sealing washers, and disconnect brake hose from brake caliper. Discard the

copper sealing washers.

CAUTION:

Do not reuse copper sealing washers.

4. Remove sliding pin bolts and the brake caliper.

CAUTION:

Do not drop brake pads or caliper.

INSTALLATION

1. Position the brake caliper to torque member and install the sliding pin bolts. Tighten to specification.

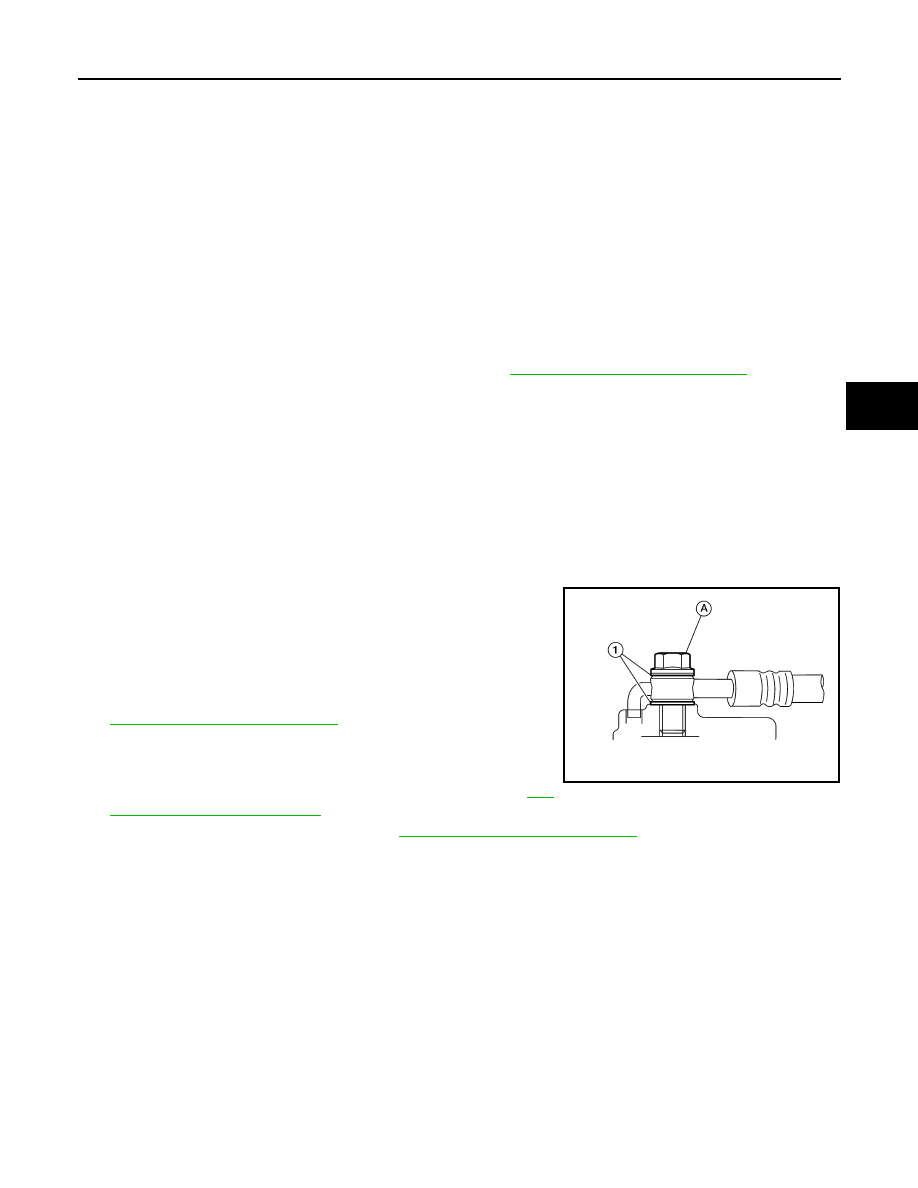

2. Assemble the union bolt (A) and the copper sealing washers (1)

to the brake hose and install it as an assembly to the brake cali-

per. Align the brake hose L-pin by aligning it with the brake cali-

per hole, and tighten the union bolt (A) to the specified torque.

CAUTION:

Do not reuse copper sealing washers.

3. Refill with new brake fluid and perform the air bleeding. Refer to

BR-17, "Bleeding Brake System"

.

CAUTION:

• Do not reuse drained brake fluid.

• Do not spill or splash brake fluid on the disc rotor.

4. Check the front disc brakes for drag. If drag exists, refer to

BR-

12, "BRAKE PAD : Inspection"

.

5. Install the front wheels and tires. Refer to

WT-47, "Removal and Installation"

.
