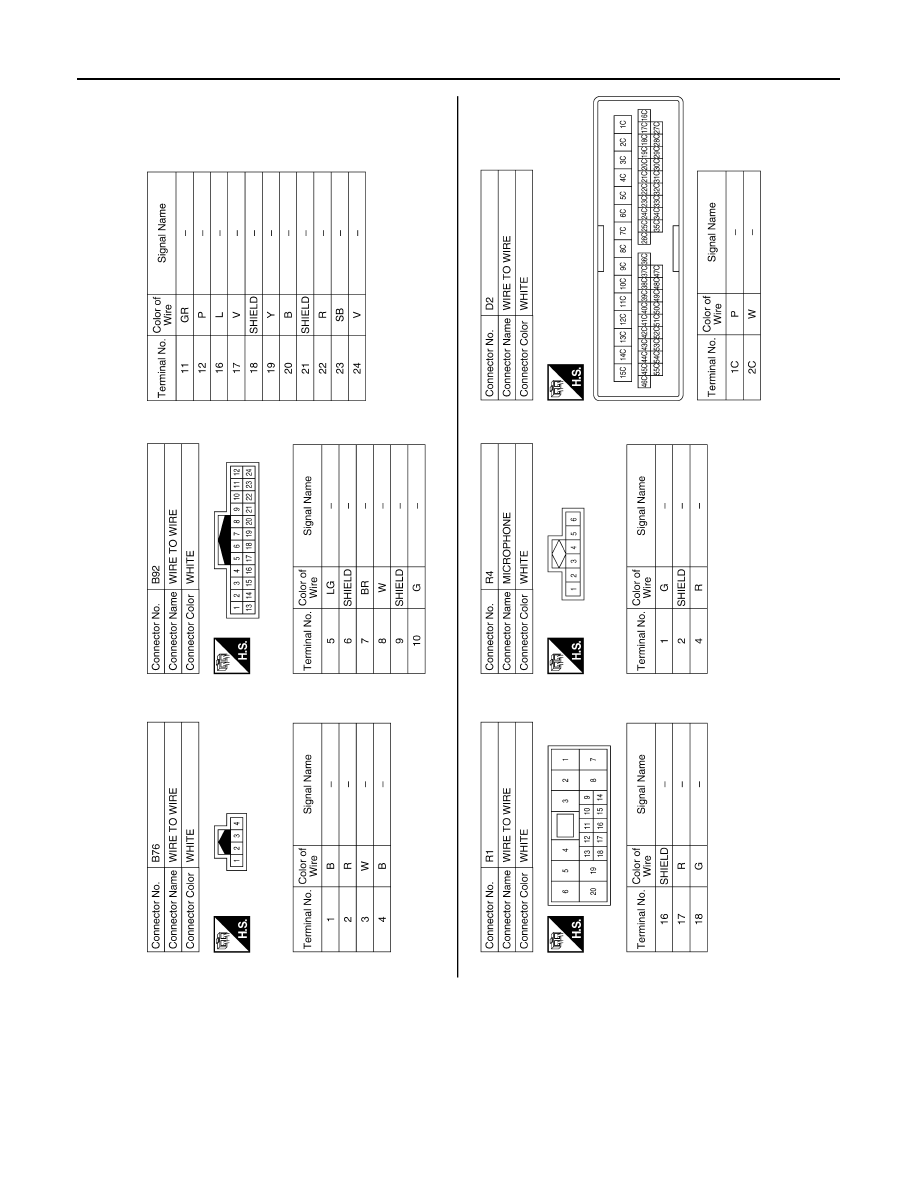

AV-344

< WIRING DIAGRAM >

[NAVIGATION WITH BOSE]

NAVIGATION WITH BOSE

AANIA1380GB

AV

NAVIGATION WITH BOSE

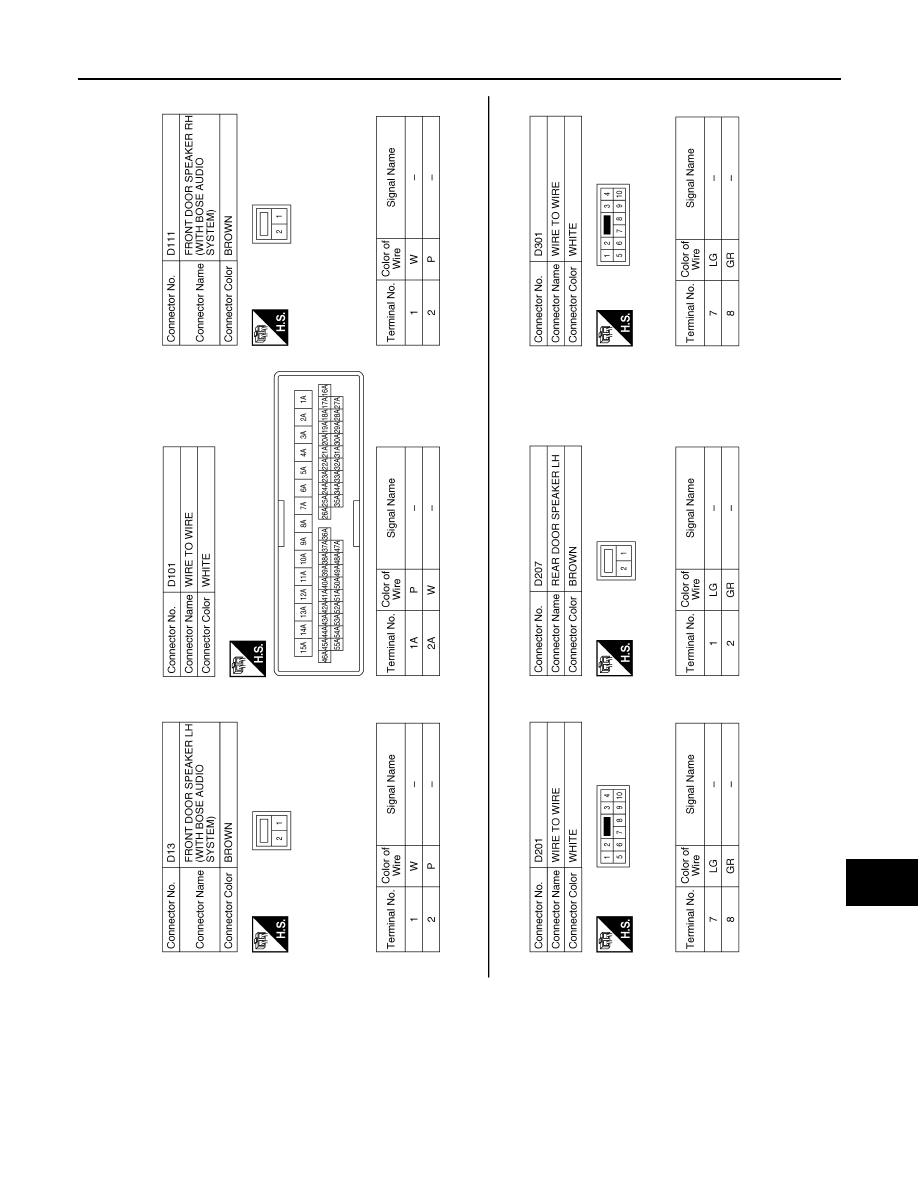

AV-345

< WIRING DIAGRAM >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ABNIA5806GB

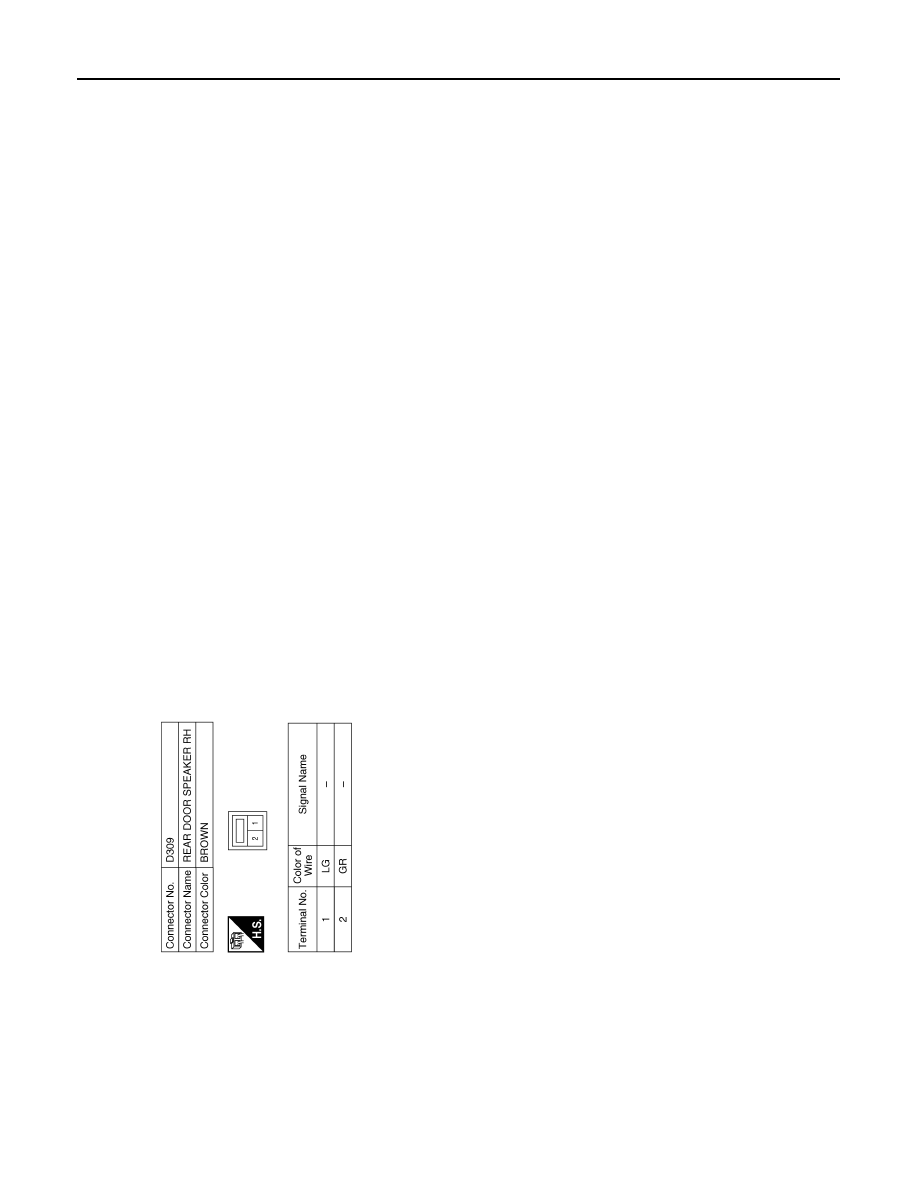

AV-346

< WIRING DIAGRAM >

[NAVIGATION WITH BOSE]

NAVIGATION WITH BOSE

ABNIA5807GB

AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-347

< BASIC INSPECTION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000009759017

OVERALL SEQUENCE

DETAILED FLOW

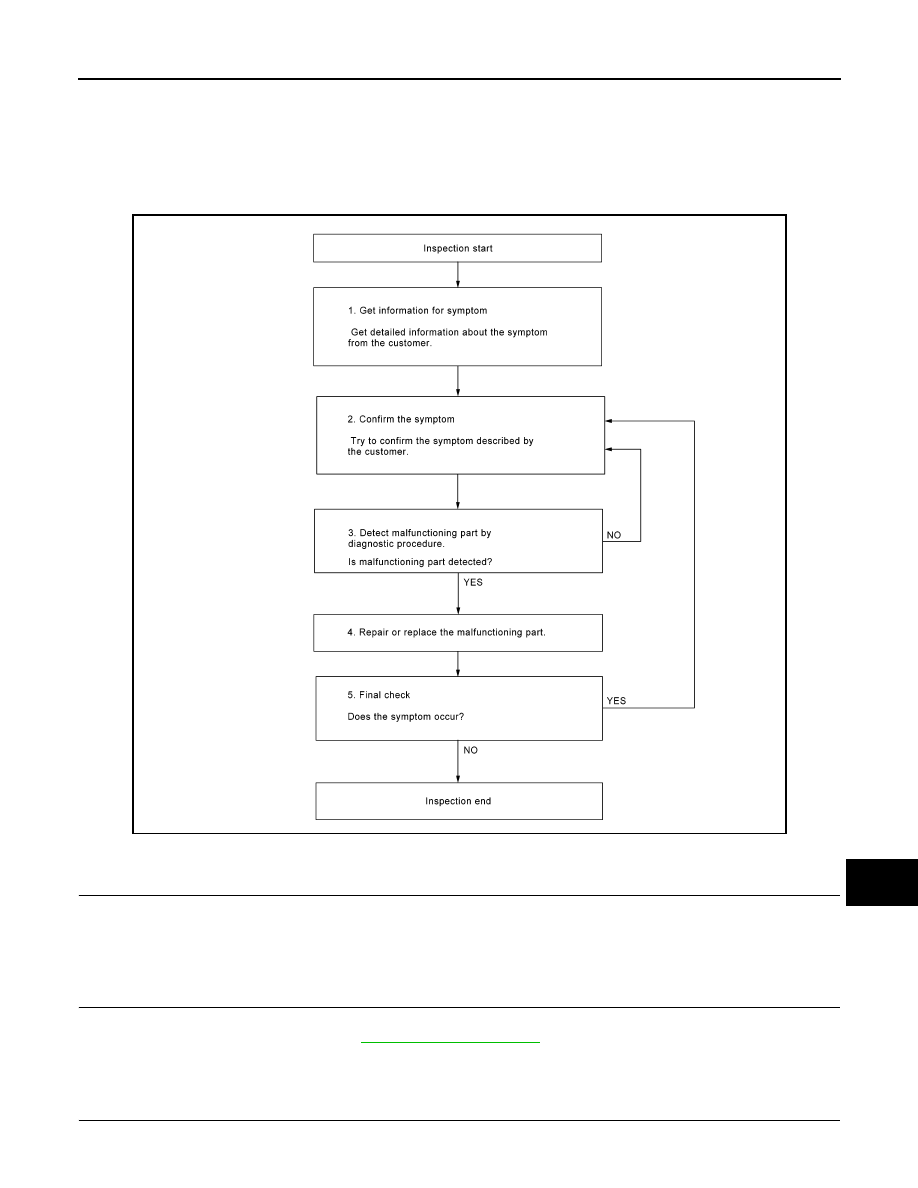

1.

GET INFORMATION FOR SYMPTOM

Get detailed information from the customer about the symptom (the condition and the environment when the

incident/malfunction occurred).

>> GO TO 2

2.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer. Verify relation between the symptom and the condition

when the symptom is detected. Refer to

AV-393, "Symptom Table"

.

>> GO TO 3

3.

DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Inspect according to Diagnostic Procedure of the system.

AWNIA2404GB
