AV-328

< ECU DIAGNOSIS INFORMATION >

[NAVIGATION WITH BOSE]

BOSE SPEAKER AMP

BOSE SPEAKER AMP

Reference Value

INFOID:0000000009759015

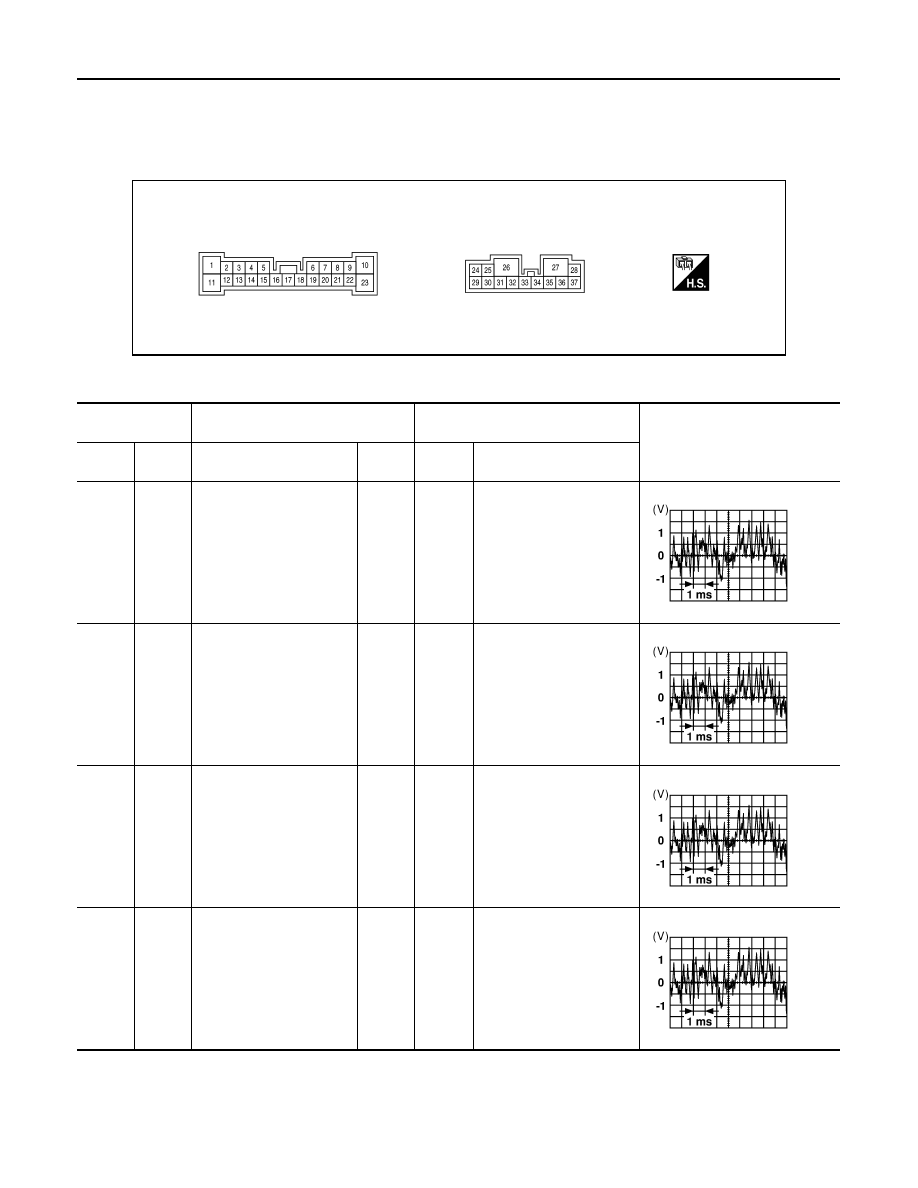

TERMINAL LAYOUT

PHYSICAL VALUES

ALNIA1375ZZ

Terminal

(wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

Ignition

switch

Operation

3

 (W)

2

(B)

Sound signal front speaker
LH

Input

ON

Sound output

5

 (G)

4

(R)

Sound signal front speaker
RH

Input

ON

Sound output

7

 (SB)

6

(V)

Front door speaker signal
RH

Output

ON

Sound output

10

 (G)

23

(GR)

Rear door speaker signal
LH

Output

ON

Sound output

SKIA0177E

SKIA0177E

SKIA0177E

SKIA0177E

AV

BOSE SPEAKER AMP

AV-329

< ECU DIAGNOSIS INFORMATION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

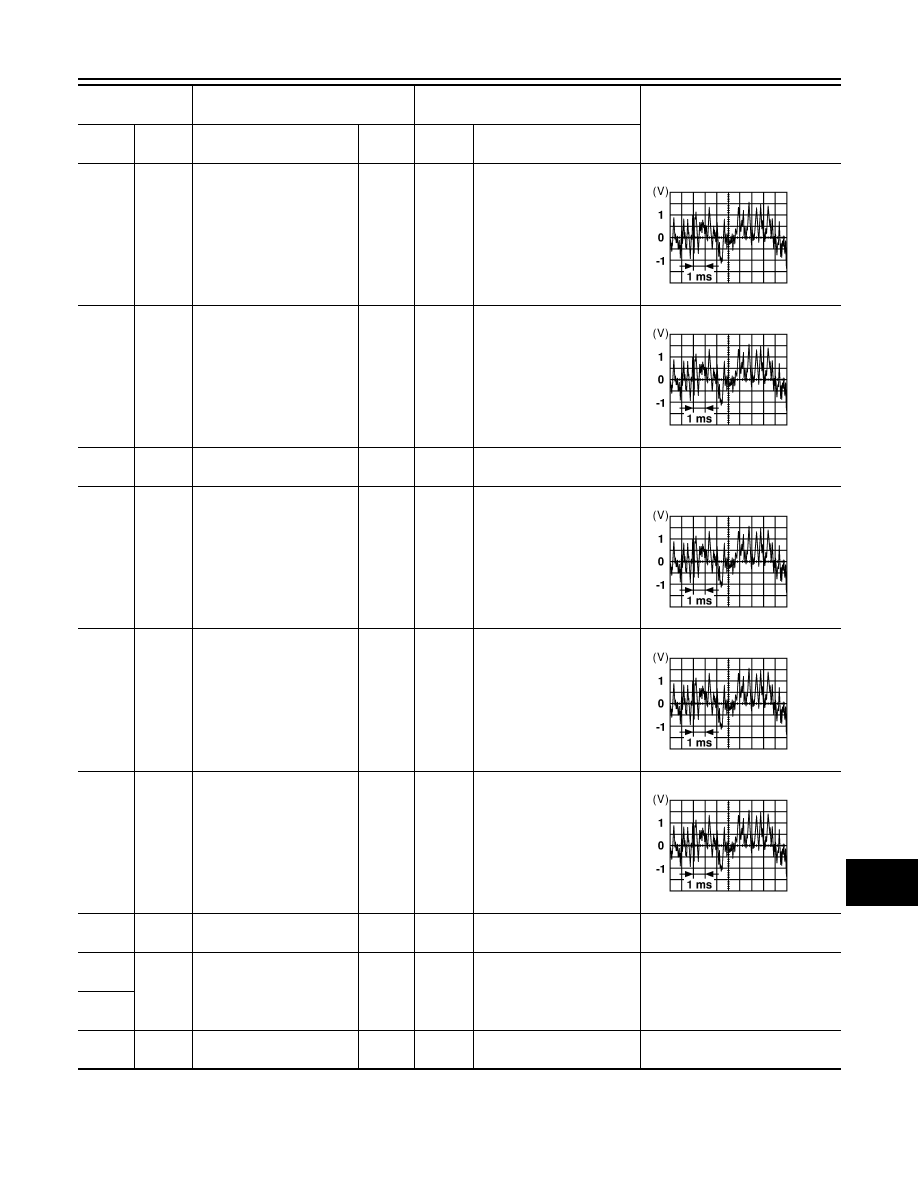

12

 (BR)

13

 (Y)

Sound signal rear speaker
RH

Input

ON

Sound output

14

 (LG)

15

 (V)

Sound signal rear speaker
LH

Input

ON

Sound output

18

(L)

Ground

Amp. ON signal

Input

ON

–

Greater than 6.5V

20

 (W)

19

 (Y)

Front door speaker signal
LH

Output

ON

Sound output

24

 (W)

29

 (O)

Rear door speaker signal
RH

Output

ON

Sound output

25

 (Y)

30

 (L)

Rear speaker signal LH

Output

ON

Sound output

26

 (B)

Ground Ground

–

ON

–

0V

27

(G)

Ground Battery power supply

Input

–

–

Battery voltage

28

(LG)

31

(B)

Ground Ground

–

ON

–

0V

Terminal

(wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

Ignition

switch

Operation

SKIA0177E

SKIA0177E

SKIA0177E

SKIA0177E

SKIA0177E

AV-330

< ECU DIAGNOSIS INFORMATION >

[NAVIGATION WITH BOSE]

BOSE SPEAKER AMP

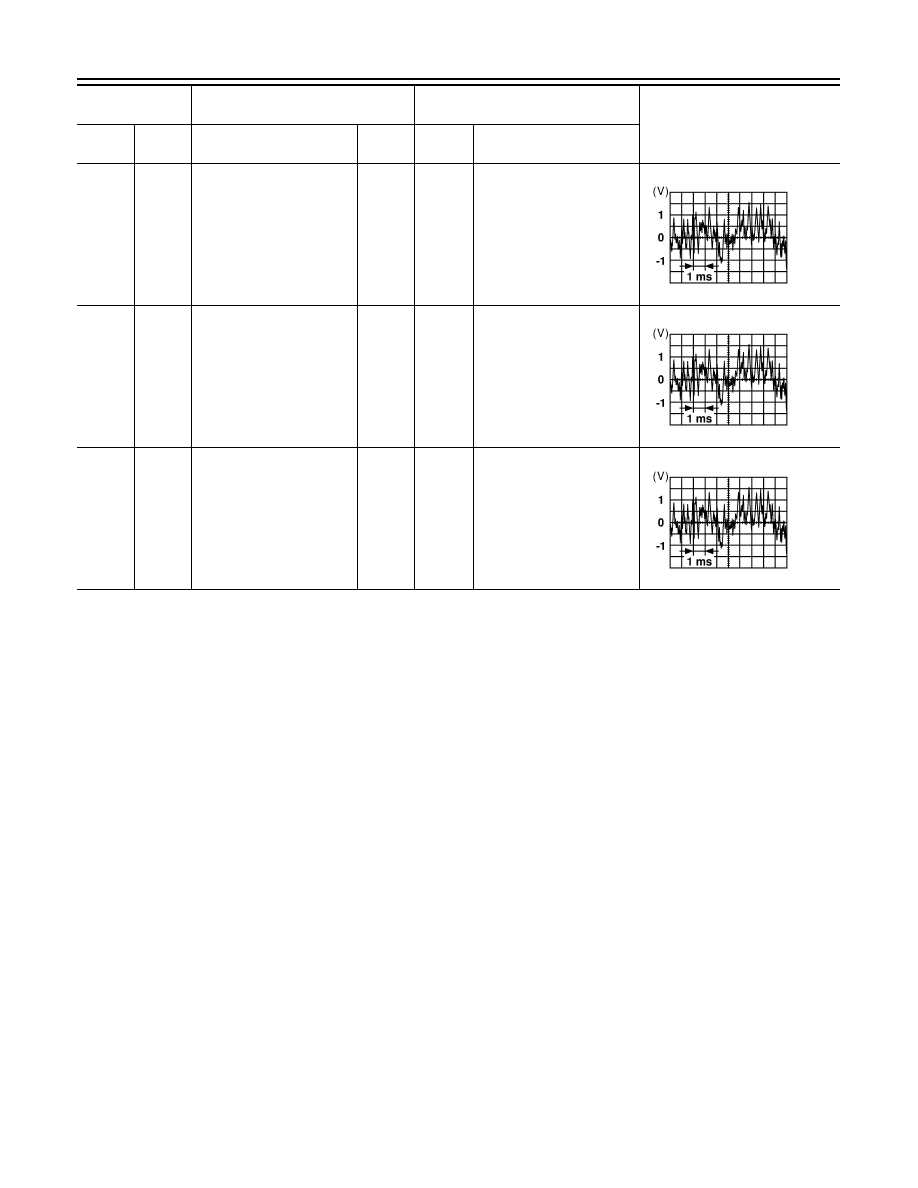

33

(R)

32

(W)

Rear speaker signal RH

Output

ON

Sound output

34

 (P)

35

 (V)

Front speaker signal RH

Output

ON

Sound output

37

 (GR)

36

 (SB)

Front speaker signal LH

Output

ON

Sound output

Terminal

(wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

Ignition

switch

Operation

SKIA0177E

SKIA0177E

SKIA0177E

AV

NAVIGATION WITH BOSE

AV-331

< WIRING DIAGRAM >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

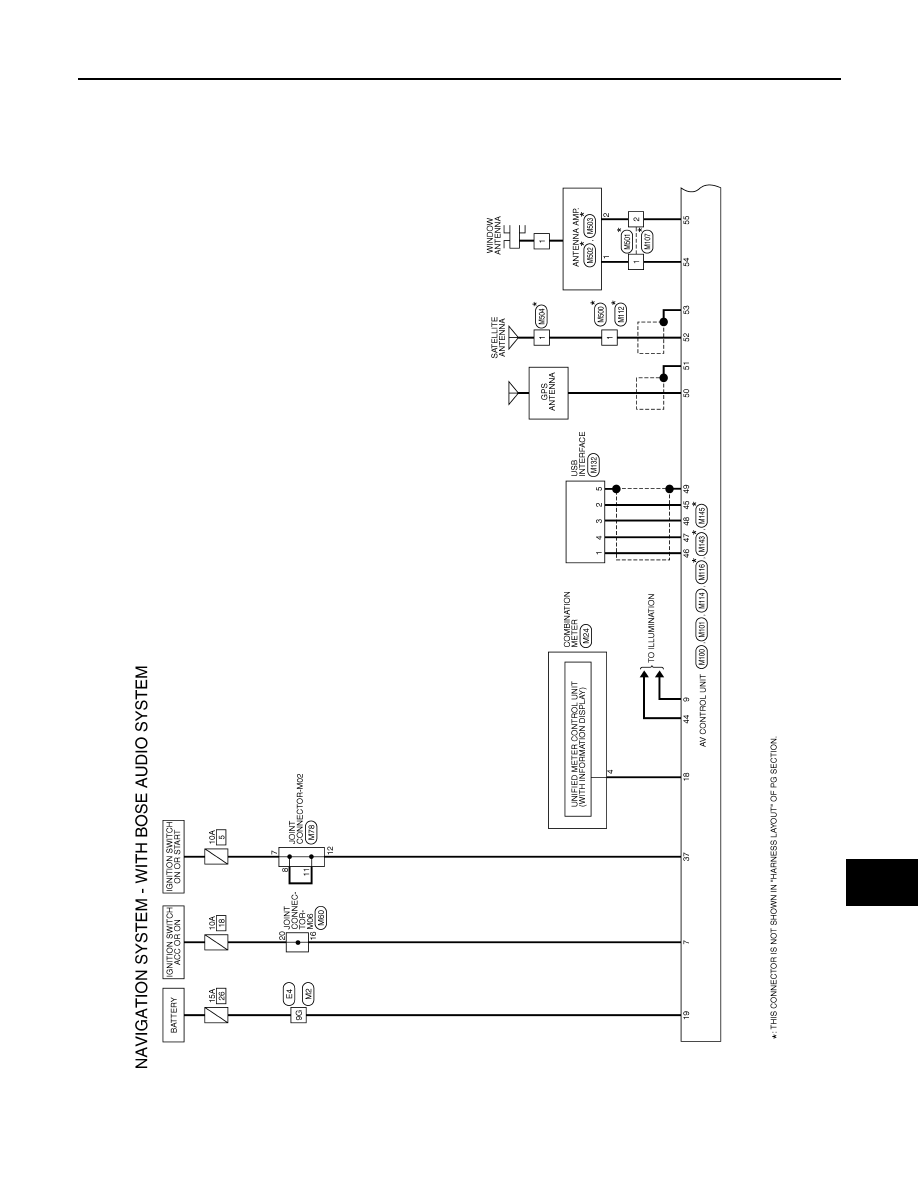

WIRING DIAGRAM

NAVIGATION WITH BOSE

Wiring Diagram

INFOID:0000000009759016

ABNWA2125GB
