AV-232

< ECU DIAGNOSIS INFORMATION >

[NAVIGATION WITHOUT BOSE]

AV CONTROL UNIT

32

(W)

Ground AUX jack audio signal RH

Input

Ignition

switch

ON

Recieved audio signal
(AUX input)

33

(L)

Ground Camera ground

—

ON

—

0 V

34

(LG)

Ground Camera image signal

Input

ON

When camera image is dis-
played

35

—

Camera shield

—

—

—

—

36

(V)

Ground Camera power supply

Output

ON

When camera image is dis-
played

6.0 V

Except for above

0 V

37

(BR)

Ground Ignition power supply

Input

ON or

START

—

Battery voltage

42

(R)

—

MIC VCC

Input

Ignition

switch

ON

—

—

43

(G)

41

(Shield)

Microphone signal

Input

ON

While speaking into micro-
phone.

45

(W)

—

V BUS signal

—

—

—

—

46

(G)

—

USB ground

—

—

—

—

47

(L)

—

USB D+ signal

—

—

—

—

48

(R)

—

USB D

− signal

—

—

—

—

49

—

Shield

—

—

—

—

50

(B)

Ground GPS antenna signal

Input

ON

—

5.0 V

51

—

GPS Shield

—

—

—

—

52

(B)

Ground Satellite antenna signal

Input

ON

—

5.0 V

53

—

SAT Shield

—

—

—

—

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

Ignition

switch

Operation

SKIB3609E

SKIB2251J

SKIB3609E

AV

AV CONTROL UNIT

AV-233

< ECU DIAGNOSIS INFORMATION >

[NAVIGATION WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DTC Index

INFOID:0000000009758941

54

(B)

Ground Antenna amp. ON signal

Output

ON

—

Battery voltage

55

(B)

Ground AM-FM main antenna

Input

ON

—

5.0 V

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

Ignition

switch

Operation

CONSULT Display

Reference Page

U1000: CAN COMM CIRCUIT

AV-253, "DTC Logic"

U1010: CONTROL UNIT (CAN)

AV-254, "DTC Logic"

U1217: BLUETOOTH MODULE

AV-255, "DTC Logic"

U1229: iPod CERTIFICATION

AV-256, "DTC Logic"

U122F: Digital broadcasting connection error

AV-257, "DTC Logic"

U1244: GPS ANTENNA CONN

AV-258, "DTC Logic"

U1258: XM ANTENNA CONN

AV-259, "DTC Logic"

U1263: USB OVERCURRENT

AV-260, "DTC Logic"

U1264: ANTENNA AMP TERMINAL

AV-261, "DTC Logic"

U12AA: Configuration Error

AV-262, "DTC Logic"

U12AC: Display Temperature too High

AV-263, "DTC Logic"

U12AD: ECU Temperature too High

AV-264, "DTC Logic"

U12AE: Internal Amplifier temperature Warning

AV-265, "DTC Logic"

U12AF: CD Mechanism Temperature Warning

AV-266, "DTC Logic"

U12B0: Supply Voltage Goes below 9V > 20s

AV-267, "DTC Logic"

U12B1: Supply Voltage Goes High > 16V for 20s

AV-268, "DTC Logic"

U1310: CONTROL UNIT (AV)

AV-269, "DTC Logic"

AV-234

< WIRING DIAGRAM >

[NAVIGATION WITHOUT BOSE]

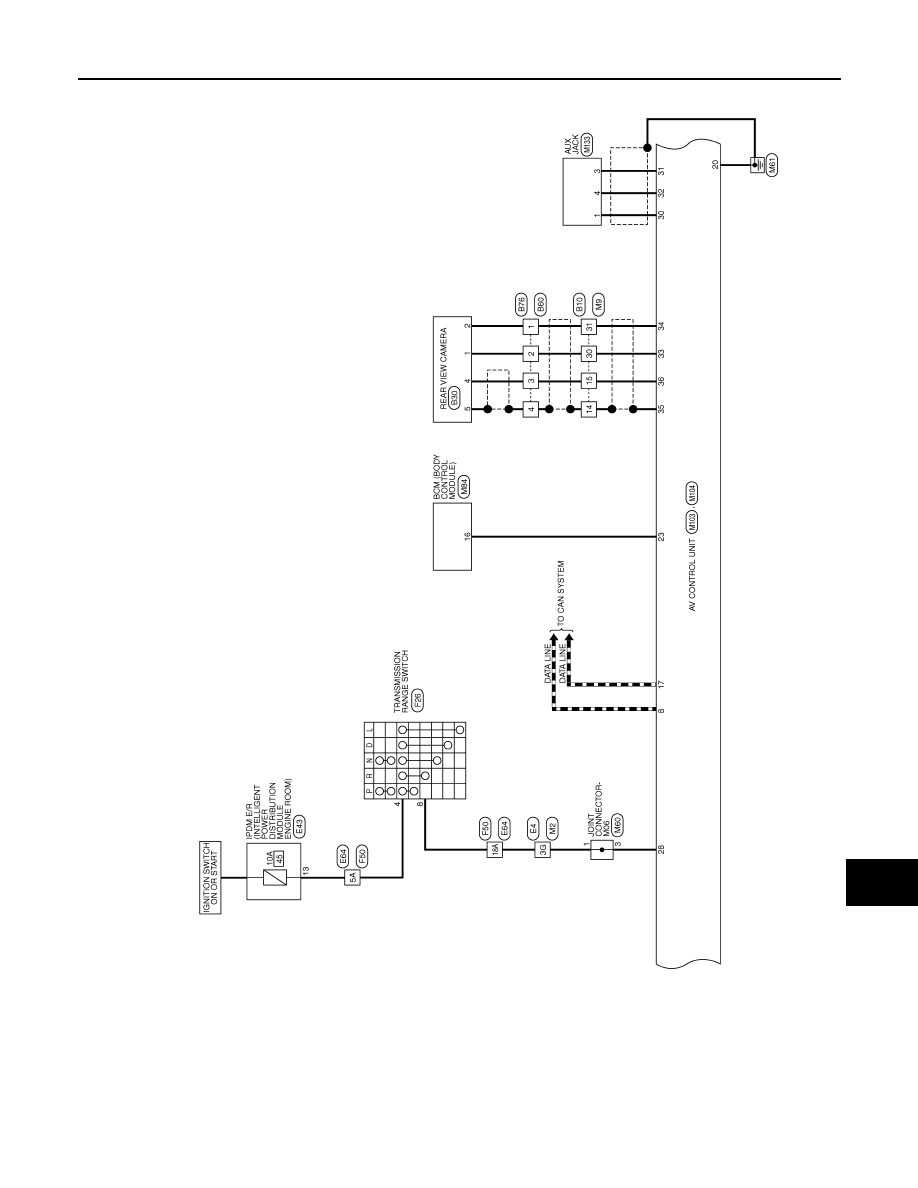

NAVIGATION WITHOUT BOSE

WIRING DIAGRAM

NAVIGATION WITHOUT BOSE

Wiring Diagram

INFOID:0000000009758942

ABNWA2128GB

AV

NAVIGATION WITHOUT BOSE

AV-235

< WIRING DIAGRAM >

[NAVIGATION WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ABNWA2129GB
