AV-168

< WIRING DIAGRAM >

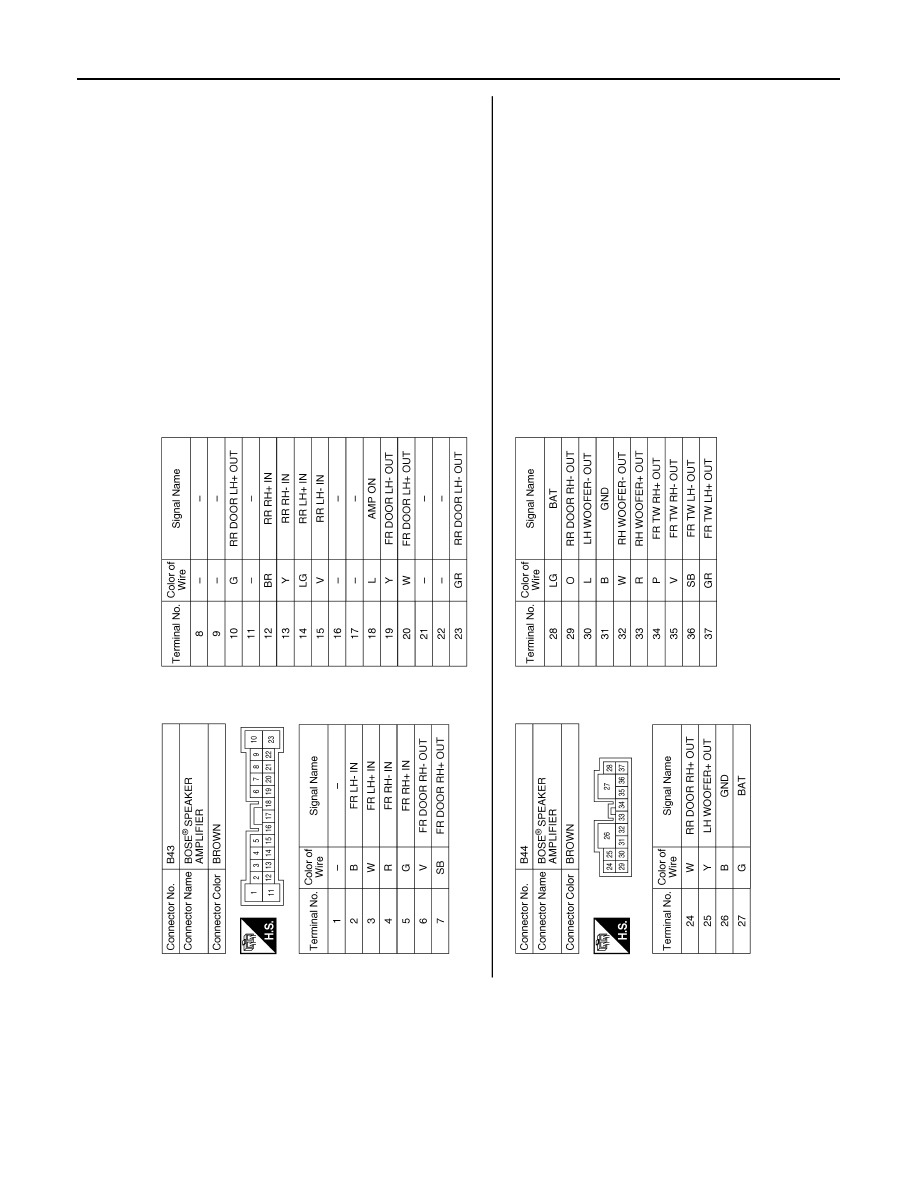

[DISPLAY AUDIO WITH BOSE]

DISPLAY AUDIO WITH BOSE

ABNIA5789GB

AV

DISPLAY AUDIO WITH BOSE

AV-169

< WIRING DIAGRAM >

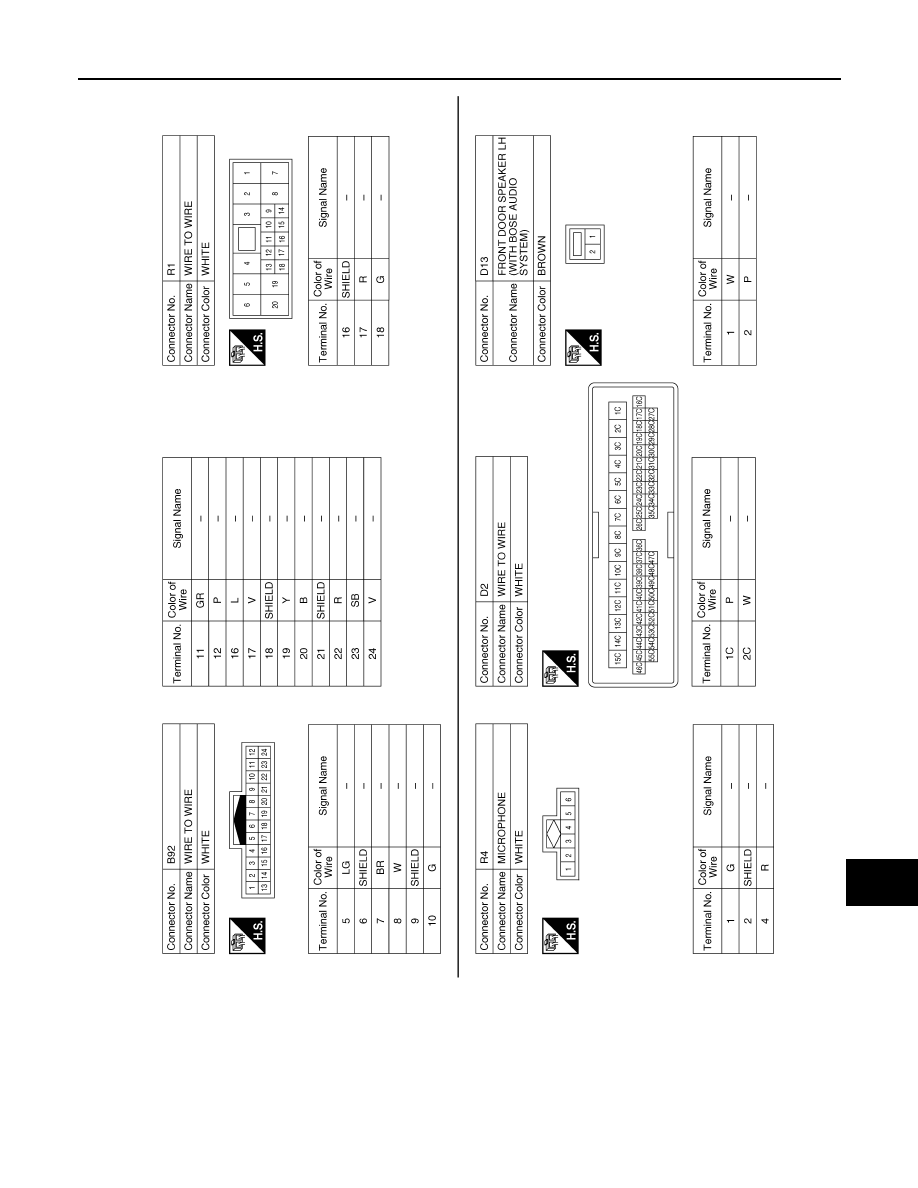

[DISPLAY AUDIO WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ABNIA5790GB

AV-170

< WIRING DIAGRAM >

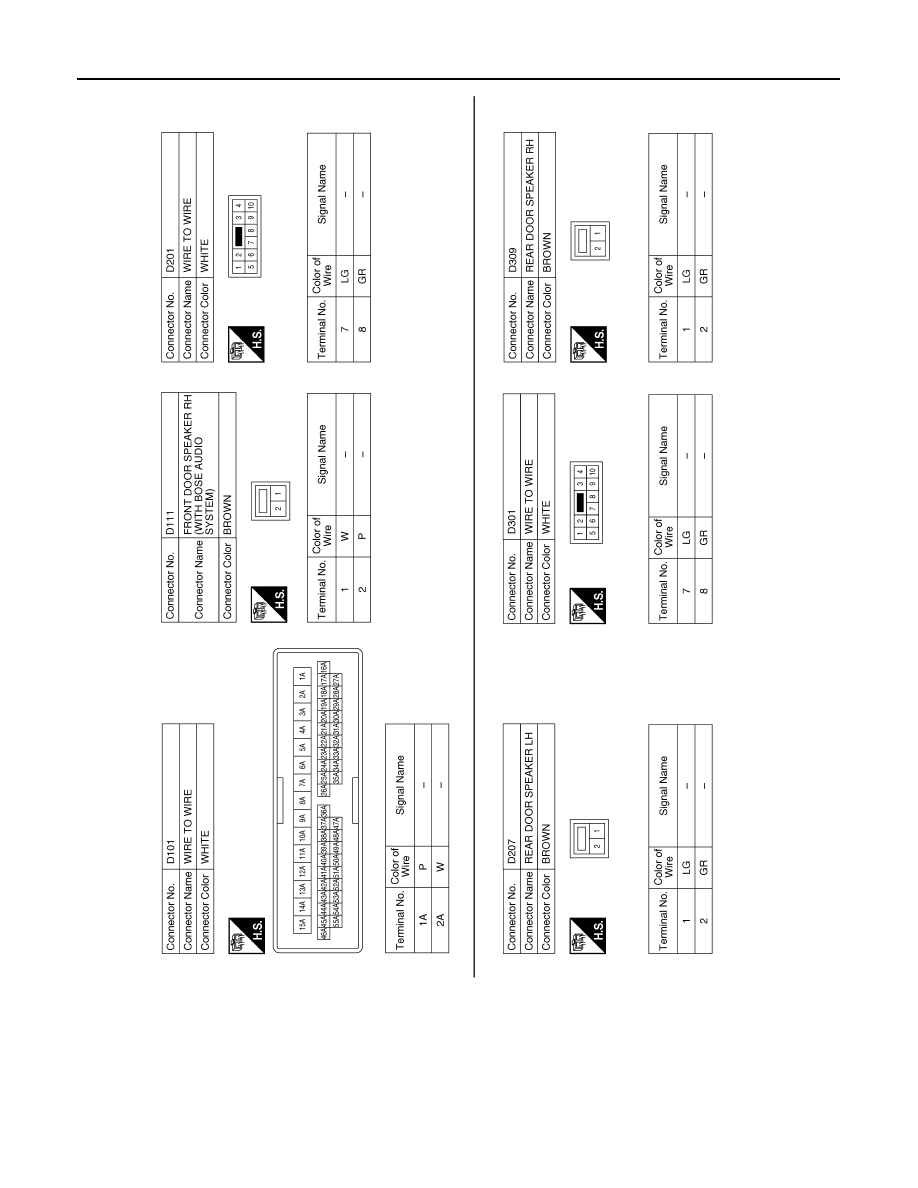

[DISPLAY AUDIO WITH BOSE]

DISPLAY AUDIO WITH BOSE

ABNIA5791GB

AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-171

< BASIC INSPECTION >

[DISPLAY AUDIO WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000009758895

OVERALL SEQUENCE

DETAILED FLOW

1.

GET INFORMATION FOR SYMPTOM

Get detailed information from the customer about the symptom (the condition and the environment when the

incident/malfunction occurred).

>> GO TO 2

2.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer. Verify relation between the symptom and the condition

when the symptom is detected.

>> GO TO 3

3.

DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Inspect according to Diagnostic Procedure of the system.

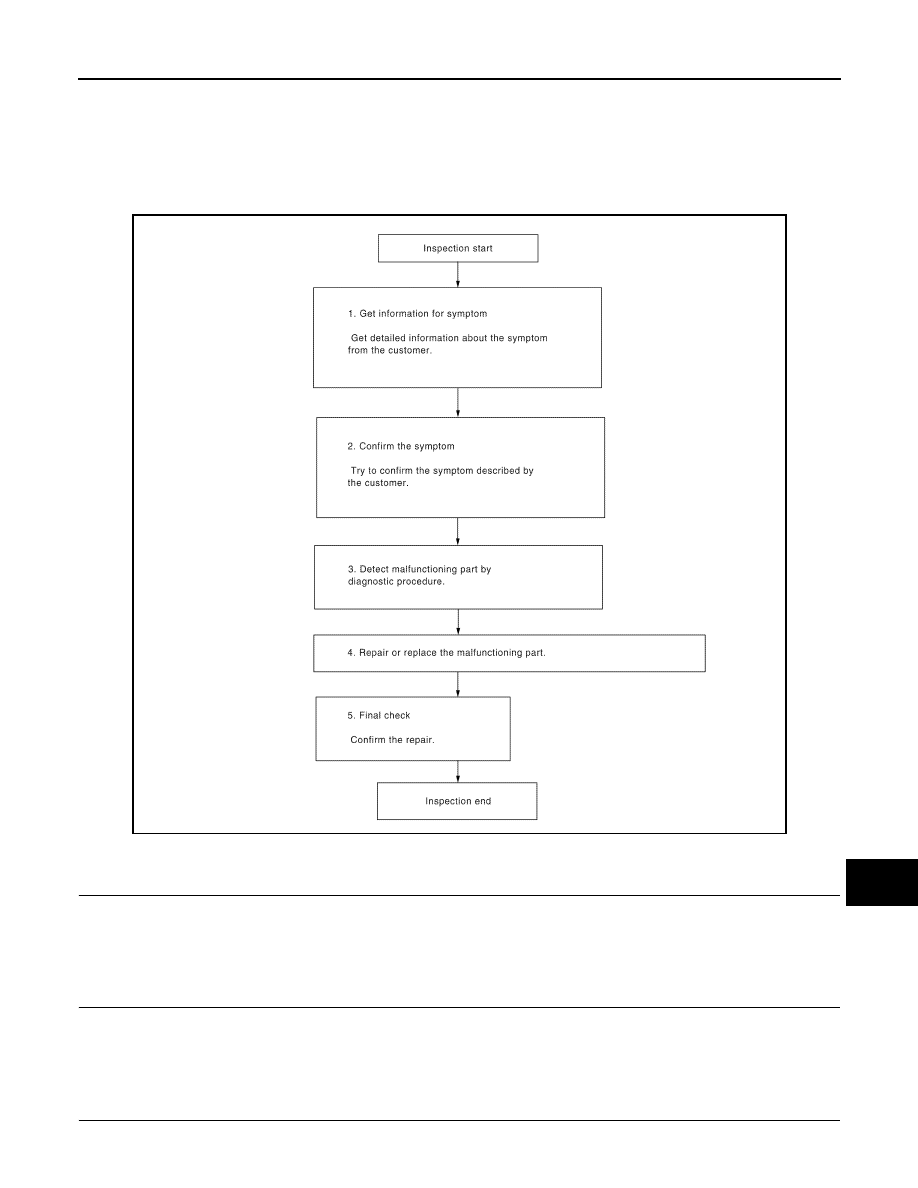

ALNIA0182GB
